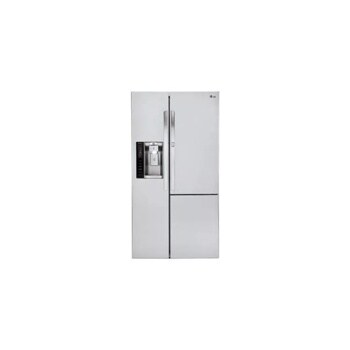

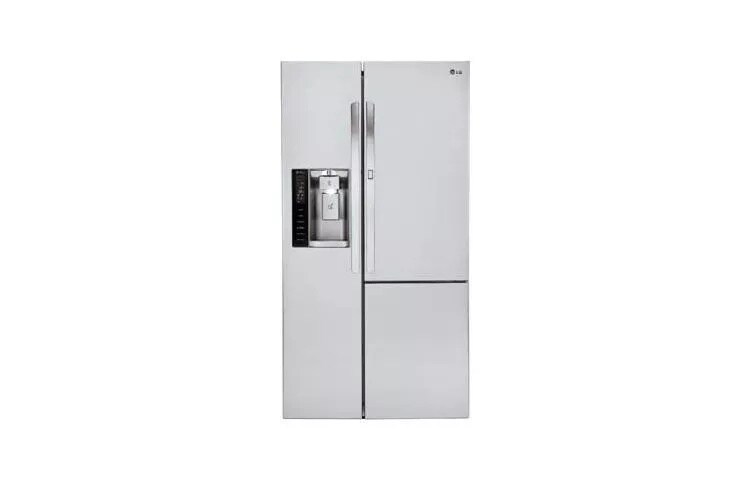

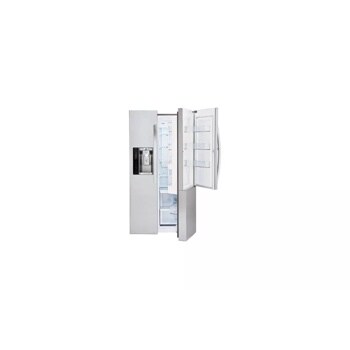

26 cu. ft. Side-by-Side Refrigerator w/ Door-in-Door®

  • LSXS26366S

  • Stainless Steel

Key Features

  • 26 cu. ft. Capacity
  • Door-in-Door®
  • SpacePlus® Ice System

Easy Access to Family Favorites

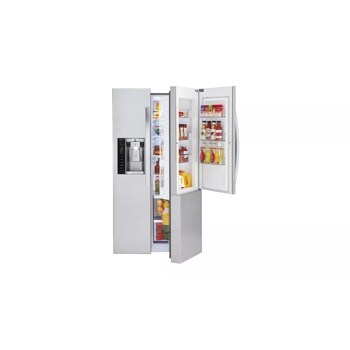

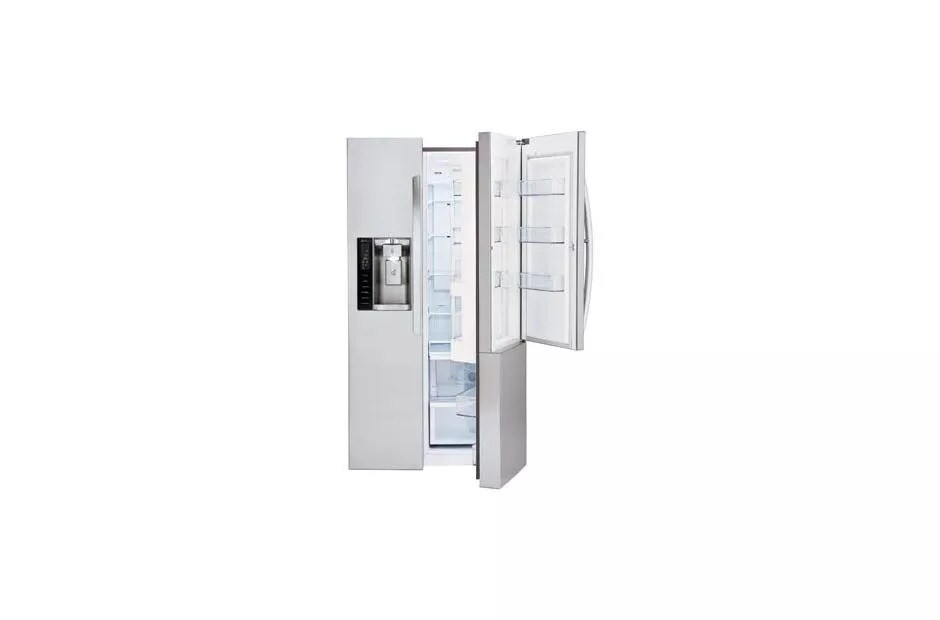

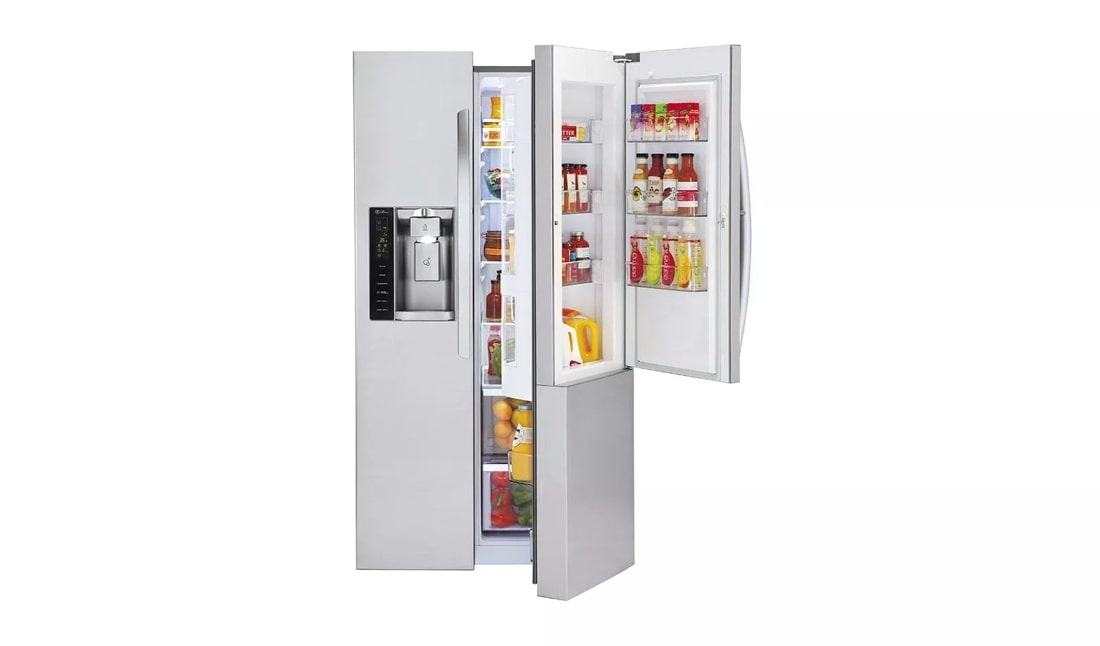

For those fly-by visits to the refrigerator, the Door-In-Door® feature allows you to get in and get out providing easy access to beverages and snacks. Only LG Door-In-Door® models include bonus door bins for added organization and storage.

Extend Food Freshness

Extend Food Freshness While Conserving Energy

Door-in-Door® with ColdSaver™ Panel acts like a barrier keeping cold air in where it matters most - in the inside - giving you peace of mind that food will stay fresh longer. It reduces cold air loss helping keep food fresher longer while conserving on precious energy.

SPACE WHEN YOU NEED IT.

SPACE WHEN YOU NEED IT.

Get more space for groceries in a great feature-packed refrigerator. Nothing beats the convenience of having more food when you need it, and with a generous 26 cu. ft. of space, you'll have room and room to grow.

Free up some space.

Free up some space.

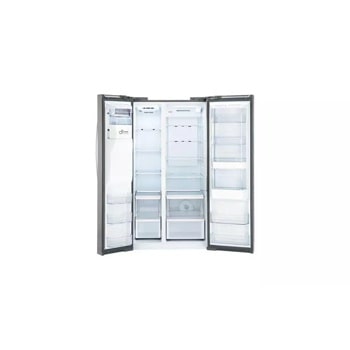

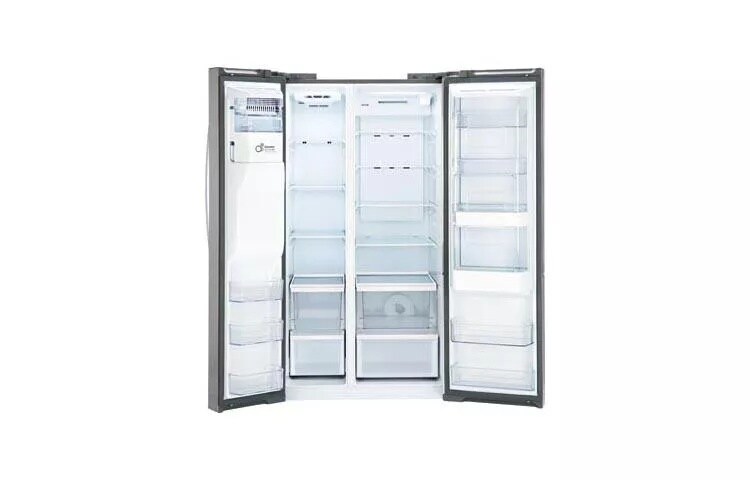

The LG SpacePlus® Ice System is on the inside door, freeing up valuable space in the fresh food shelf compartments. More space means you can store more food.

SUMMARY
Door Type Side-by-Side
CAPACITY
Refrigerator 16.90 cu. ft.
Freezer 9.20 cu. ft.
Total 26.1 cu. ft.
FEATURES
Door-in-Door® Yes
Ice & Water Dispenser Yes
Dispenser Type Vertical
Ice System SpacePlus®
Daily Ice Production 3.5 lbs / 4.1 lbs (IcePlus™)
Ice Storage Capacity 4.5 lbs
Water Filtration System Filter LT800P
Multi-Air Flow Cooling Yes
Smart Cooling® Yes
Temperature Sensors 5
Display Type Smooth Touch Control / White LED
Temperature Controls Digital
Door Alarm Yes
Child Lock Yes
LoDecibel™ Quiet Operation Yes
Auto Closing Door Hinge Yes
REFRIGERATOR
No. of Shelves 4
Cantilevered Shelves Yes
Shelf Construction Tempered Glass
Crisper Bins 2
Refrigerator Light Premium LED
REFRIGERATOR DOOR
No. of Shelves/Bin 9 (Including Door-in-Door®)
Door Bin Construction Clear
Dairy Corner Yes
FREEZER
No. of Shelves 3
Cantilevered Shelves Yes
Shelf Construction Tempered Glass
Freezer Light Premium LED
FREEZER DOOR
No. of Shelves/Bins 3
Door Bin Contruction Clear
MATERIALS AND FINISHES
Contour Door Yes
Hidden Hinges Yes
Surface Stainless Steel/Coated Metal
Back Flush & Metal Cover Over Mechanical Parts
Available Colors Stainless Steel (S), Black Stainless Steel (D)
Handles Matching Commercial Handles
SPECIFICATIONS
Depth with Handles 36 5/16"
Depth without Handles 34"
Depth without Door 29 1/16"
Depth (Total with Door Open) 51 1/8"
Height to Top of Case 69 3/8"
Height to Top of Door Hinge 70 1/4"
Width 35 7/9"
Width (Door Open 90° with Handle) 44 1/5"
Width (Door Open 90° without Handle) 39 1/4"
Door Edge Clearance with Handle 1 3/8"
Door Edge Clearance without Handle 3/8"
Installation Clearance Sides 1/8", Top 1", Back 2"
Weight (Unit/Carton) 304 lbs. / 328 lbs.
Carton Dimensions (WxHxD) 38 1/2" x 72 1/4" x 37 31/64"
WARRANTY
Limited Warranty 1 Year Parts and Labor, 7 Years on the Sealed System, 10 Years on Linear Compressor
UPC 048231 786300

What People Are Saying

Rated 1 out of 5 by from Compressor loud The compressor runs all the time and is very loud. It has a constant loud hum.
Date published: 2016-09-25
Rated 5 out of 5 by from Love the door-in-door feature! The door-in-door feature in the refrigerator is awesome. Capacity is good, and it seems to run really well. The only down-side is that the water dispenser is not intuitive. It sprays out and down instead of just down. So the first time anyone uses it, they tend to spray water on the floor. Not a huge deal but could have been designed better.
Date published: 2016-09-19
Rated 5 out of 5 by from Love the door in door I have had this fridge for about a year and love it! Had issue with ice maker at first, but come to find out it was just not plugged in when it was installed.
Date published: 2016-09-17
Rated 4 out of 5 by from Spacious but... I love this refrigerator. It is spacious and I like the door in door feature. However, this door doesn't close well. It seems to me that I have to make sure that I have to push it in. Is there any recall about this problem?
Date published: 2016-09-17
Rated 4 out of 5 by from Love the Door In Door We have been using this model for about a month now and love the features. The door in door eliminates about 75% of total door openings for our family, saving energy. Our old fridge was the same cubic feet of storage, yet this seems to have more room both in the fridge and freezer. We also noticed a reduction in noise when the compressor runs, lower volume and a more tolerable sound. We also have grown to appreciate the door alarm. All things considered, we are very pleased and have only 2 minor complaints. The door alarm is not on the "Door in Door" and as with every fridge we wish there was more flexibility in shelf adjustment ( even though this fridge is pretyy flexible).
Date published: 2016-09-12
Rated 4 out of 5 by from Love the door in door, but design flaw on top. We recently updated all of our appliances to the LG line in our kitchen. The Door in Door side by side fridge is awesome. It does take some getting used to, but once you have a way of loading it, it's smooth sailing from there on. The best feature is the door in door, I have two toddlers, and I load that up with their snacks, like yogurt, baby bel cheese, juice boxes, smoothies and milk, with a piece of mind that they can get what they want when they want. My 3 year old calls it a "transformer" because it goes from a small fridge to a big fridge. As for storage, I have read complaints about no meat and cheese drawer, I solved that by putting it in the top shelf of the door in door! The veggie and fruit drawers are awesome, keeps them very fresh! My only complaint which is a pretty big one, is a design flaw. They moved the plug to the top of the fridge, with no written notice we could find of it, as well as large hinges. If you don't have any cabinets above the fridge, you will be fine. But if you do, like we do, we had to drill a notch in the bottom to be able to slide the fridge back, then the hinges were so big, the cabinet doors will not open now. Our house is only 10 years old. Just an FYI, one that none of us knew about, even the store and our saleslady.
Date published: 2016-09-07
Rated 4 out of 5 by from Loud! I bought this a few months ago and the compressor is so loud, constantly hear the hum of it.
Date published: 2016-09-05
Rated 5 out of 5 by from Great for a big family I bought this fridge over 5 1/2 months ago. Love it at first site, still love it. It's great for a big family. My 4 small kids, myself, my mother and when we have company come over. It's easy to open, convenient for the small section door to put drinks in for a quick and go and for milk for the kids to grab. It's space saving in general. Love the ice and water maker. Granted the only issue I have is when you lock the lock on control panel to keep little fingers from touching.... you also lock the ice & water dispenser. So you can't use it. But I have to deal with it. But other wise I swear to this product anyway. LOVE IT
Date published: 2016-07-30
  • 2016-09-29T10:51CST
  • bvseo_cps, prod_bvrr, vn_cps_3.4.0
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_45
  • loc_en_US, sid_MD05132761, PRD, sort_mostRecent
  • clientName_LG
  • bvseo_sdk, java_sdk, bvseo-2.3.0.0
  • CLOUD, getReviews, 40ms
  • REVIEWS, PRODUCT

We're here to support you with our product.

View LSXS26366S Product Support

Contact us for any support inquiries.

ASK & ANSWER

Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

How do I use the child lock feature?

Asked by: Rob607
We appreciate your interest in this refrigerator and its functions. According to page 23 of the owner’s manual, if you wish to activate the LOCK function, in order to lock the other buttons, press and hold the DOOR ALARM button for 3 seconds or more. The LOCK icon will display and the LOCK function will be enabled.
Answered by: NeilE
Date published: 2016-08-15

My door came apart from the top n a little tool came off like a little fork n now I can't put it back at all help from top of the right door helppp.....

Asked by: Bella1881
We regret the trouble you have experienced with this refrigerator. It is uncertain to what component is being referred as a “tool”. Please contact our Customer Interactive Center at 800-243-0000 for assistance.
Answered by: NeilE
Date published: 2016-08-02

can you purchase a deli meat bin? or should i just move one of the lower bins up for deli meats?

Asked by: scottbenner
I apologize, but no; it appears that this refrigerator does not have a location available for Deli Meats, nor a drawer available for such usage.
Answered by: NeilE
Date published: 2016-07-14

What are the door handle part numbers for model LSXS26366S.

Asked by: Jill2002
Parts and accessories can be obtained through our parts distributor, MCM Electronics. Their contact number, for placing orders, is 800-824-9491. You can also use their website, at http://www.mcmelectronics.com/content/en-US/forms/lg_parts. The part number for this item is: AED37082916 and AED37082970.
Answered by: NeilE
Date published: 2016-07-08

You change a water filter

Asked by: Debir
It is recommended that you replace the water filter: Approximately every six months; When the water filter indicator turns on; When the water dispenser output decreases; When the ice cubes are smaller than normal. 1 Remove the old water filter. Lower or remove the top left shelf to allow the water filter to rotate all the way down. Pinch the sides to open the water filter cover. NOTE: Replacing the water filter causes a small amount of water (around 1 oz. or 25 cc) to drain. Place a cup under the front end of the water filter cover to collect any leaking water. Hold the water filter upright, once it is removed, to prevent any remaining water from spilling out of the water filter. Pull the water filter downward and turn it counterclockwise to pull it out. Make sure to rotate the filter down completely before pulling it out of the manifold hole. 2 Replace with a new water filter. Take the new water filter out of its packing and remove the protective cover from the o-rings. With water filter tabs in the horizontal position, push the new water filter into the manifold hole until it stops. Rotate the water filter up into position and close the cover. The cover will click when closed correctly. 3 After the water filter is replaced, dispense 2.5 gallons of water (flush for approximately five minutes) to remove trapped air and contaminants from the system. Do not dispense the entire 2.5 gallon amount continuously. Depress and release the dispenser pad for cycles of 30 seconds ON and 60 seconds OFF. This information can be found on page 35 of your owner’s manual.
Answered by: NeilE
Date published: 2016-06-25

When I moved they lost the metal plate that sits under ice dispenser can I buy that part?

Asked by: Karen b
We regret the inconvenience you have experienced with this refrigerator and its accessories. According to our parts listing, the plate you have mentioned is part of the Dispenser Assembly, and is not available separately.
Answered by: NeilE
Date published: 2016-05-24

After changing the water filter how do you reset the front panel light?

Asked by: BigMCP40
When the water filter indicator turns on, you need to replace the water filter. After replacing the water filter, press and hold the REPLACE FILTER button for 3 seconds to deactivate the indicator light. This information is found on page 23 of the owner’s manual.
Answered by: NeilE
Date published: 2016-04-27

My ice has a stale taste. How do I fix this problem? I've had the refrigerator less than a month and followed the set up instruction with the ice maker. My water is good.

Asked by: Micheler1124
We regret the trouble you have experienced with this refrigerator. If the water flow tastes poorly, then it may be necessary to replace the water filter. Instructions to do so should be found on page 35 of the owner’s manual. Please contact our Customer Interactive Center at 800-243-0000 for additional information.
Answered by: NeilE
Date published: 2016-04-11
