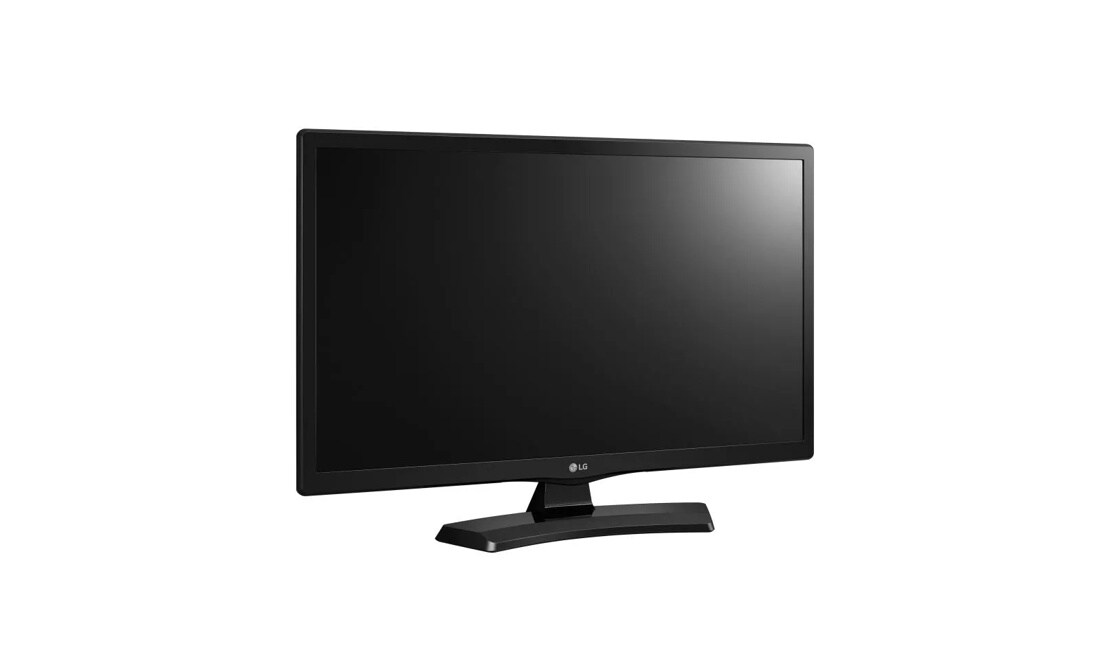

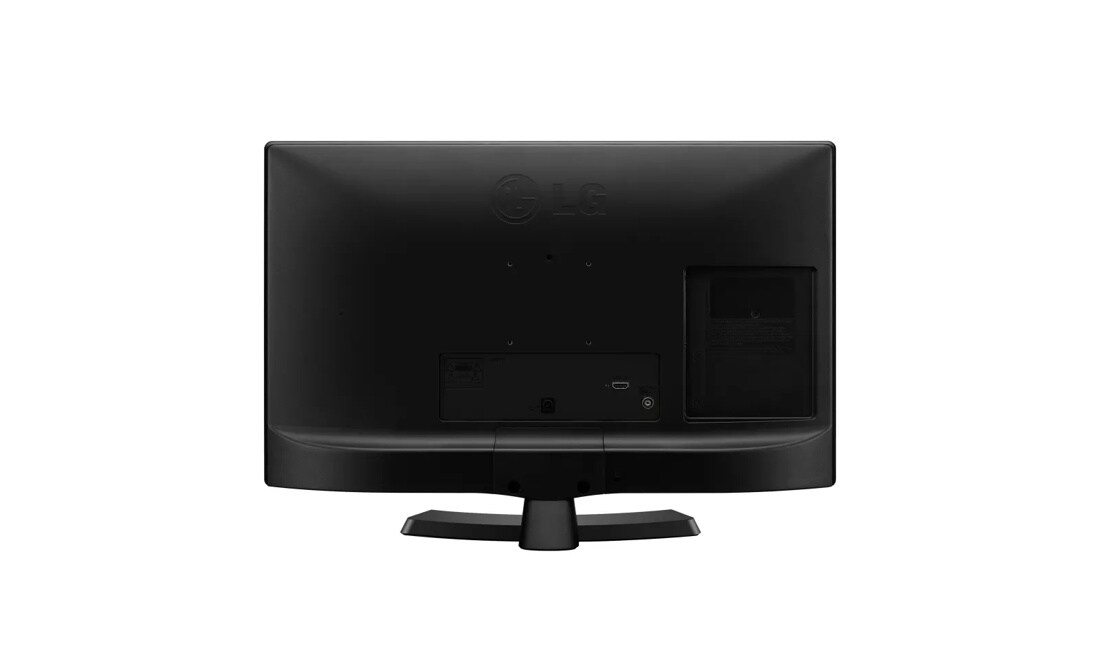

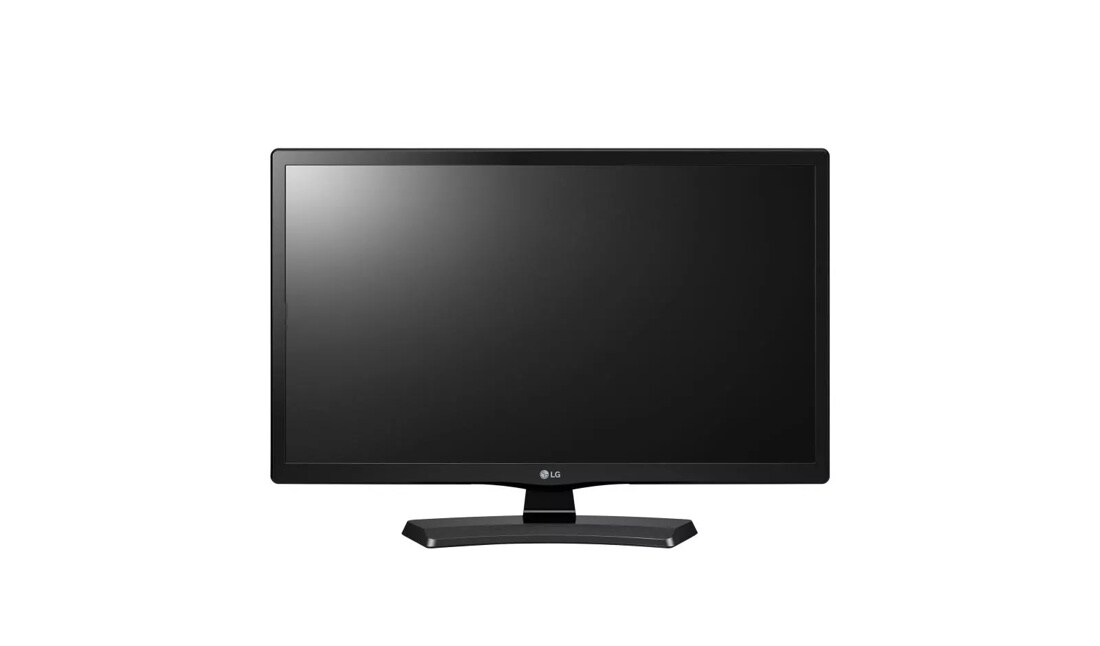

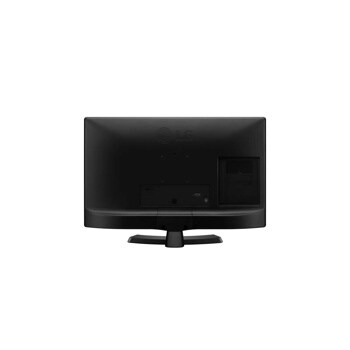

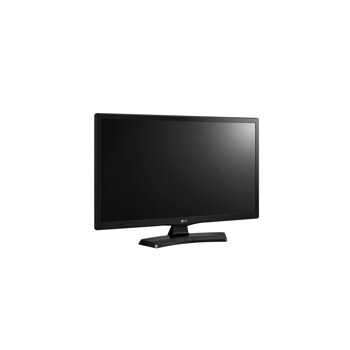

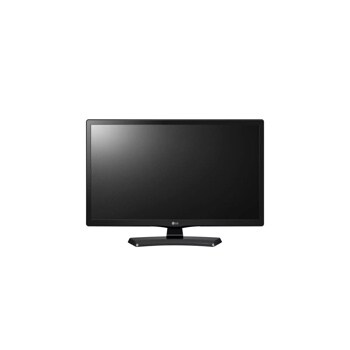

Full HD 1080p LED TV - 22" Class (21.5" Diag)

  • 22LH4530-P

Key Features

  • Full HD (1920x1080) IPS Display
  • Triple XD Engine
  • HDMI
  • LED Backlighting
AVAILABLE SIZES:

Full HD IPS Display

IPS (In-Plane Switching) technology highlights the performance of liquid crystal displays. Response times are shortened, color reproduction is improved, and users can now view the screen at virtually any angle.

Triple XD Engine

Triple XD Engine processes images with even greater precision to enable more natural color expression, deeper contrast and for a more lifelike picture.

HDMI

HDMI (High Definition Multimedia Interface) offers incredible audio/video quality and single-cable convenience. This monitor includes an HDMI input, so you can connect a true high-definition source, such as a high-end computer, Blu-ray player or next-generation videogame console.

LED Backlighting

LG’s LED backlighting delivers exceptional brightness and amazing image clarity. You'll see richer colors and deeper blacks too, and LEDs offer greater energy efficiency compared to conventional LCD monitors.

SUMMARY
Diagonal Class 22 inches
Diagonal Size 21.5 inches
Resolution 1920 X 1080
Display Type IPS
Display Format Full HD 1080p
HDMI Port(s) 1 HDMI 2.0
Other Input(s) -
Smart TV Operating System -
Refresh Rate -
Speaker System 2ch Speaker System
Other Features Triple XD engine, Flicker Safe, Eye Comfort Mode, Smart Energy Saving, Motion Eye Care
PANEL
Screen Size 21.5"
Resolution 1920 x 1080
Panel Type IPS
Color Gamut (CIE 1931) 72%
Color Bit 8bit (6bit plus FRC)
Color Depth (Number of Colors) 16.7M colors
Pixel Pitch (mm) 0.24795 x 0.24795
Brightness (Typ.) 180 cd/m2
Contrast Ratio (Original) 1000:1
Contrast Ratio (DFC) 5M:1
Response Time_Typ. (GTG) 14ms
Viewing Angle R/L 178 (Typ.), U/D178 (Typ.)
Surface Treatment non Glare

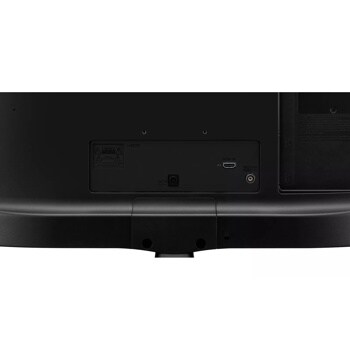

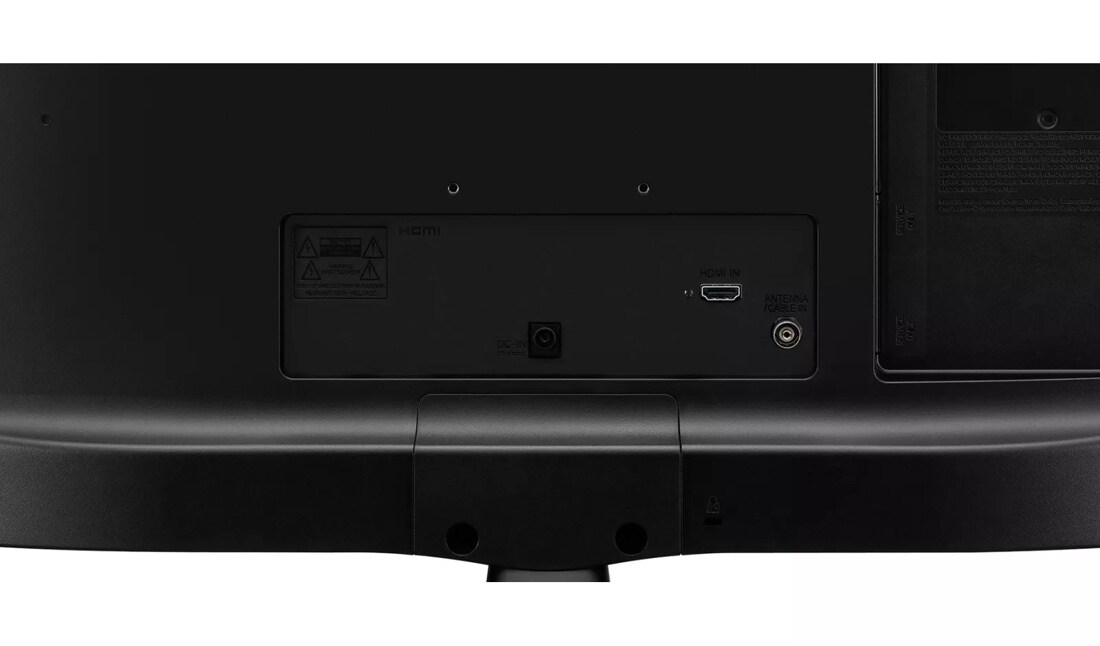

INPUTS/OUTPUTS
HDMI 2.0 Yes
TUNER INPUT
Digital ATSC
Analog NTSC
SPEAKER
Type Internal
Input 3W x 2
FREQUENCY (H/V)
H-Frequency 30kHz~83kHz
V-Frequency 56Hz~75Hz
POWER
Type (w/ Watt) Adapter (24W)
Input 100~240V
Power Save/Sleep Mode (Max.) 1W
DC Off (Max.) 0.4W
SPECIAL FEATURES
HDCP Yes
Remote Control Yes
Key Lock Yes
Caption Yes
Flicker Safe Yes
Eye Comfort Mode Yes
Smart Energy Saving Yes
Motion Eye Care Yes
Auto / Manual Clock Yes
On/ Off Time Yes
Sleep Timer Yes
Picture Mode Yes
Triple XD engine Yes
ARC-PC 16:9, 4:3
Wall Mount 100 x 100
DIMENSIONS/WEIGHT
With Stand (WxHxD) 20" x 14.1" x 5.7"
Without Stand (WxHxD) 20" x 12.5" x 2.1"
Shipping Dimensions (WxHxD) 26" x 15" x 5"
With Stand Weight 15 lbs
Without Stand Weight 14 lbs
Shipping Weight 21 lbs
ACCESSORIES
Power Cord Yes
Remote Control Yes
STANDARD
UL(cUL) Yes
FCC-B Yes
EPA Yes
WARRANTY / UPC
Limited Warranty 1 Year Parts & Labor
UPC 719192199798

What People Are Saying

Rated 3 out of 5 by from Good picture/sound. Easy set up. No browser Good picture and sound. Easy set up. Disappointed there's no web browser. Would have preferred a headphone jack. For the price it's great.
Date published: 2017-03-27
Rated 5 out of 5 by from Not bad at all!!! Got this for my guess room when my 4-yr old grandson is over to watch Netflix cartoons. This little TV is ok!
Date published: 2017-03-26
Rated 5 out of 5 by from Perfect Right size and great picture. Easy to set up. Perfect for my exercise room.
Date published: 2017-02-01
Rated 4 out of 5 by from Good picture and colour. We both find that the volume could be a little higher.
Date published: 2017-01-31
Rated 5 out of 5 by from Great Prize I was awarded this TV for 25 yrs of service at my job. It exceeded my expectations in every way. I have never owned an LG product but that may change. The picture is clear and crisp; the sound quality is also great. I am very happy with my award!
Date published: 2016-12-23
Rated 5 out of 5 by from Received my tv yesterday. Overall great picture and sound for price and size. Easy to assemble, connect and operate. Fits nicely on top of my bedroom dresser. Quite satisfied with this product.
Date published: 2016-08-16
Rated 5 out of 5 by from Fantastic Picture! I just purchased this unit for my wife for her birthday, she has been using her old TV in her makeup room and it was pretty old. I just finished the set up procedure on my new TV and I was so surprised at the fantastic picture quality and how easy it was to get it started, hardly any set up at all. The sound is great and I was also surprised at how light it is (weight), I thought it was going to be heavier and that I would have to find another more sturdy place to put my new LG, but it sits perfectly on an antique side table she has been using, the stand is near perfect, the ergonomics are unbelievable. This is my first LED TV and I can see the difference almost immediately in the picture quality from my older LG LCD.
Date published: 2016-08-08
Rated 5 out of 5 by from Small but great. Bought this to fit in a certain space and it is an excellent TV.
Date published: 2016-07-18
  • y_2017, m_4, d_24, h_24
  • bvseo_bulk, prod_bvrr, vn_bulk_1.0.0-hotfix-1
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_8
  • loc_en_US, sid_MD05602298, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-2.3.0.0
  • CLOUD, getReviews, 4ms
  • REVIEWS, PRODUCT

We're here to support you with our product.

View 22LH4530-P Product Support

Contact us for any support inquiries.

ASK & ANSWER

Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

Are you going to produce a 28 inch TV this year? Where can I buy a new one now?

Asked by: Garya
Hi Garya. LG has not yet announced it lineup for the 2017 LED TVs and until they are announced, we do not have any information on if there will be a 2017 28" LED TV or if the LG HD LED TV - 28" Class (27.5" Diag), Model # 28LH4530-P will be carried over into 2017...^IFV
Answered by: LGJoel
Date published: 2017-03-17

TV is 22LH4530;  I have it hooked-up to cable and have Apple TV hooked up to HDMI port;  is there any way to have external audio?  (Sound quality on the TV is disappointing)

Asked by: Frenchs
Our offices, in the United States, do not have product information for Canada. In order to obtain such information, it is recommended to check our subsidiary’s website, at http://www.lg.com/ca_en/index.jsp. You may also contact our Canada offices at 1-888-542-2623.
Answered by: NeilE
Date published: 2016-11-30

Is this TV capable of being hooked up with wireless headphones? I can't find an audio outposts.

Asked by: Grannieshelper
I apologize, but no; this television has not been designed for operations with any external audio connections, whether wired or otherwise.
Answered by: NeilE
Date published: 2016-10-01

Why is the 22inch version 1080p and have a higher resolution than the 28inch version

Asked by: allend
Can be used as a computer monitor.
Answered by: BobyQ
Date published: 2016-08-13

This tv has a separate power supply. What is the DC output? I'm looking for one that would run on a 12v car battery.

Asked by: fusebox
We appreciate your interest in this television and its features. According to our information, it appears that the outlet on this device is a 19V DC power adapter.
Answered by: NeilE
Date published: 2016-06-10

Does the remote have a closed caption button (CC) on it?

Asked by: Chris46

Is there a headphone jack?

Asked by: brent1000

Whether this TV works with headphones

Asked by: Sameera
