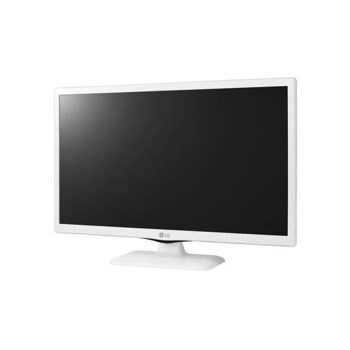

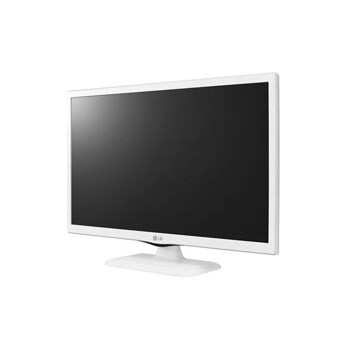

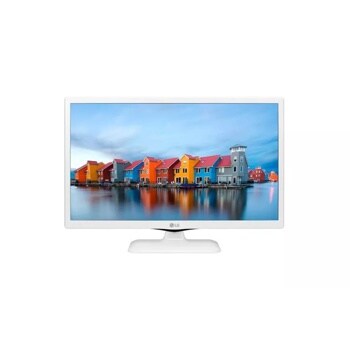

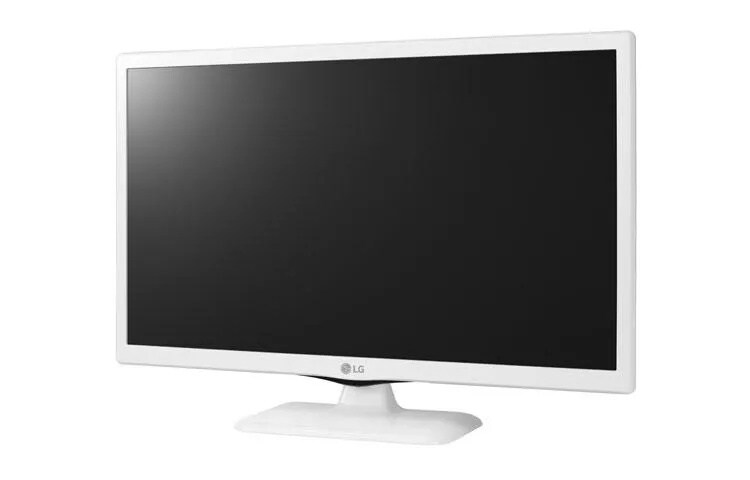

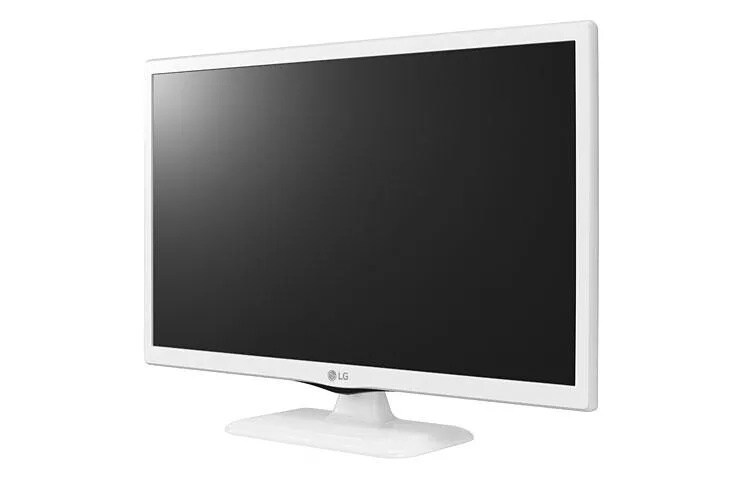

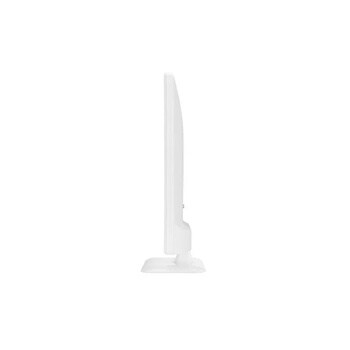

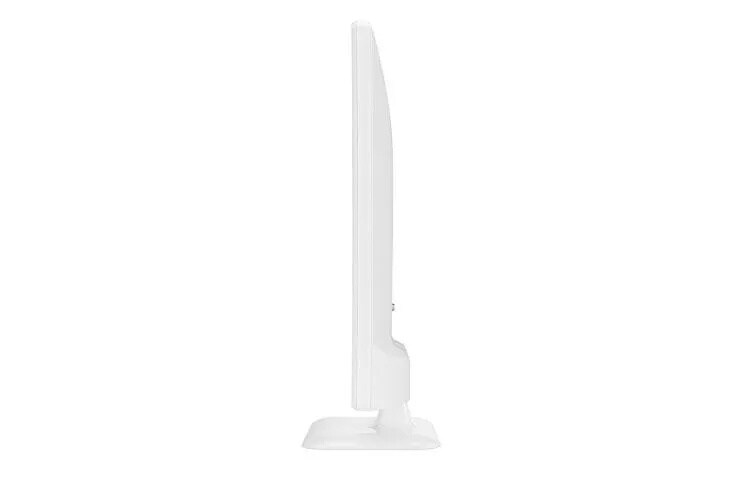

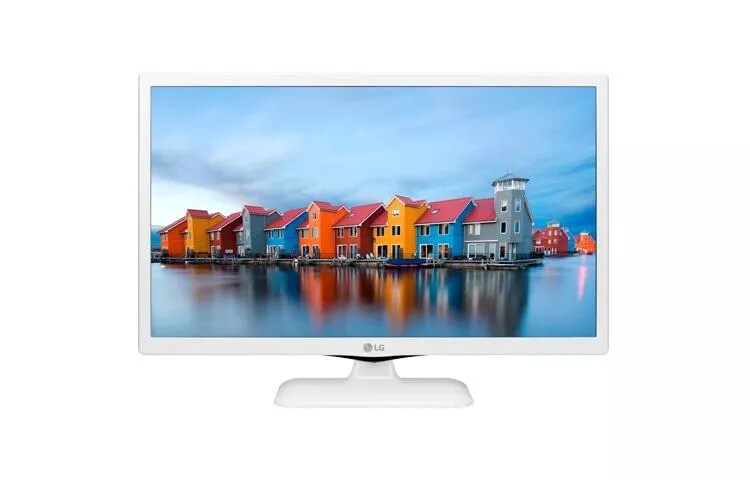

720p LED TV - 24" Class (23.6" Diag)

  • 24LF4520-WU

Key Features

  • 720p HD
  • 60Hz
  • HDMI
  • ENERGY STAR® Qualified
AVAILABLE SIZES:
High Definition Resolution

High Definition Resolution

Pictures are sharper. Colors are more vibrant. Entertainment is more real. Everything looks better on a HDTV.

HDMI

HDMI

HDMI (High Definition Multimedia Interface) offers incredible audio/video quality and single-cable convenience. This monitor includes dual HDMI inputs, so you can connect a true high-definition source, such as a high-end computer, Blu-ray player or next-generation videogame console.

ENERGY STAR® Qualified

ENERGY STAR® Qualified

Earning the ENERGY STAR means a product meets strict energy efficiency guidelines set by the US Environmental Protection Agency and the Department of Energy. For TVs, it means they save energy both in standby and active (when they're on) modes. ENERGY STAR qualified TVs use about 30% less energy than standard units.

SUMMARY
Diagonal Class 24 inches
Diagonal Size 23.6 inches
Resolution 1366 x 768
Display Type LED
Display Format 720p HD
HDMI Port(s) 1
Other Input(s) 1 USB 2.0, 1 RF In (Antenna/Cable), 1 Component Video In, 1 Composite In (AV) - shared w/Component
Smart TV Operating System -
Refresh Rate 60Hz
Speaker System 2ch Speaker System
Other Features Triple XD™ Engine, Real Cinema 24p, Dolby® Digital Decoder, Clear Voice II
AUDIO
Speaker System 2 Channel
Audio Output Power (Watts - THD 10%) 10W
Mono/Stereo/Dual (MTS/SAP) Yes
Dolby® Digital Decoder Yes
Clear Voice II Yes (Clear Voice)
USB
Photo JPEG, JPS, MPO
Audio AAC, MP2, OGG, MP3, PCM, WMA
INPUTS
RF In (Antenna/Cable) 1 (Rear)
Component Video In 1 (Rear)
Composite In (AV) 1 (shared w/Component)
HDMI® 1 (Rear)
USB 3.0/2.0 In 0/ 1(Side)
POWER
ENERGY STAR® Qualified Yes
Power Supply (Voltage, Hz) 100V ~ 240V, 50/60 Hz
Power Consumption 28W
Standby Mode 0.5W
DIMENSIONS/WEIGHT
TV without Stand (WxHxD) 21.9” x 13.6” x 2.1”
TV with Stand (WxHxD) 21.9” x 15.3” x 5.3”
Shipping Dimensions (WxHxD) 27.6” x 15.8” x 5”
TV without Stand weight 7.1 lbs
TV with Stand weight 7.5 lbs
Shipping Weight 10.1 lbs
WARRANTY / UPC
Limited Warranty 1 Year Parts & Labor
UPC 719192197602
PANEL SPECIFICATIONS
Screen Size Class (diagonal) 24" Class (23.6" diagonal)
Resolution 720p
Refresh Rate 60 Hz
VIDEO
Triple XD™ Engine Yes
Real Cinema 24p Yes
CABINET / ACCESSORIES
VESA Compatible Yes
FIND THE RIGHT PRODUCTS
ENERGY STAR® Qualified Yes

What People Are Saying

Rated 5 out of 5 by from Crisp Picture - Vibrant Color....best TV !! My company Metlife gave this as a retirement gift. We are delighted as we have never had such crisp high definition. You can see very pore on the skin. Nice small size for bedroom, color is vibrant. Easy set up, slim as can be. Right out of the box. LG provides great customer service, with an 800 number so when you set it up do not stress. This was easy. Really happy with this TV. You will not find a crisper picture, almost looks like 4K HD.
Date published: 2017-02-13
Rated 4 out of 5 by from Good value Nice tv for the price picture is great fits on kitchen countertop niccly
Date published: 2017-02-12
Rated 5 out of 5 by from Great TV My son loves this TV. The picture quality is excellent.
Date published: 2017-01-30
Rated 5 out of 5 by from Excellent product for the money TV purchased just over a month ago for the bedroom and I feel it was a great buy. Color is pretty good and easily adjustable. Only issue would be that if you get too far to the side you don't get that good of view but product is very light and easily movable.
Date published: 2017-01-27
Rated 4 out of 5 by from I Luv the style/appearance of my new LG TV I Bought My New 24' LG LED to use in my basement man cave area. It has great style/appearance. I was surprisingly proud when I took the item out of the box and hooked it up. The picture is great, color in white classy, as well the sounds great for a smaller television. I would recommend this TV for any area in the home where you desire to have a smaller unit to accommodate for space.
Date published: 2016-11-30
Rated 1 out of 5 by from Great picture but I can't hear it. I love to look at the picture but I cannot listen to what I'm viewing. I have to run the sound up to the maximum when I want to watch a BluRay and almost sit on top of the television to hear it. There isn't an audio-output jack for speakers or headphones. The USB port is input only so you can't use speakers there either.
Date published: 2016-11-27
Rated 5 out of 5 by from Sharp picture Bought this TV about a month ago for use in our home office. Impressed with the small space it occupies without compromising picture quality.
Date published: 2016-10-24
Rated 4 out of 5 by from Good TV I bought this 4-5 months ago and I has been good so far. The sound quality is good and the screen/viewing quality is good, but I could be a little better.
Date published: 2016-10-13
  • y_2017, m_3, d_25, h_6
  • bvseo_bulk, prod_bvrr, vn_bulk_1.0.0
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_50
  • loc_en_US, sid_MD05205943, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-2.3.0.0
  • CLOUD, getReviews, 4ms
  • REVIEWS, PRODUCT

We're here to support you with our product.

View 24LF4520-WU Product Support

Contact us for any support inquiries.

ASK & ANSWER

Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

Will this TV work as a computer monitor? Are there drivers that allow setting the resolution to work with my laptop via HDMI? Thanks

Asked by: joejones
The ENERGY STAR® Qualified LG 720p LED TV - 24" Class (23.6" Diag), Model # 24LF4520 can be used as a monitor by connecting it via the HDMI port. It does not require ant drivers and you cannot download drivers in it...^IFV
Answered by: LGJoel
Date published: 2017-03-20

My LG LED HD TV is less than 2 years old. It will turn on, no sound or picture. Any ideas?

Asked by: Liza021454
We regret the inconvenience you have experienced with this television. It is suggested to unplug the TV for about 45 seconds before testing it again. If this does not resolve the matter, then the TV will likely require service. Please contact our Customer Interactive Center at 800-243-0000 to make proper service arrangements.
Answered by: NeilE
Date published: 2017-03-14

Why can't I get my tv off asnlog. I want to try air and cable

Asked by: Jeffang
We appreciate your interest in this television and its features. Once the different antennas are connected, it will be necessary to run the CHANNEL SCAN to find any available channels. For additional questions about proper setup, please contact our Customer Interactive Center at 800-243-0000.
Answered by: NeilE
Date published: 2017-03-09

Why USB on back but can't use for pictures

Asked by: Yellowflameman
We appreciate your interest in this television and its options. According the information in our service manual, it appears that the MY MEDIA settings should provide options for both PHOTOS and MUSIC. Check the file formats of the pictures to ensure they are compatible. For additional assistance, please contact our Customer Interactive Center at 800-243-0000.
Answered by: NeilE
Date published: 2017-03-03

What is the width of 22LF4520? I'm not talking about screen size but full width.

Asked by: Hoot46
In the Tech Specs for the ENERGY STAR® Qualified LG 1080p LED TV - 22" Class (21.5" Diag), Model # 22LF4520 under Dimensions/Weight, the listed W x H x D dimensions of 20” x 12.5” x 2.1”, the 20" for the width is the measurement from side to side for this TV...^IFV
Answered by: LGJoel
Date published: 2017-02-27

Hi on my 22inch lg.. do I just plug the usb in and get output straight away or do I have tk set the output as usb somewhere

Asked by: LongmanStan
A USB drive or an other storage device that you plug into the USB port on the ENERGY STAR® Qualified LG 1080p LED TV - 22" Class (21.5" Diag), Model # 22LF4520 is considered an external device. The USB Input is an input just like your HDMI ports are and to watch anything that is plugged into the TV as an external device, all you need do is select the appropriate input that the external device is plugged into to watch...^IFV
Answered by: LGJoel
Date published: 2017-01-30

Please what is the four digit code for auto tuning of lg tv 24 inches.it demands code before auto tuning can be active

Asked by: Prince Rowland
Our offices, in the United States, do not have product information for Nigeria. In order to obtain such information, it is recommended to check our subsidiary’s website, at http://www.lg.com/africa/support/contact/chat-email, or by phone at 0800 9811 5454 (Toll Free).
Answered by: NeilE
Date published: 2017-01-27

How do I connect external speakers or a sound bar to my 24LF4520-WU.

Asked by: Reggg
We appreciate your interest in this television and its features. This model has not been designed for any external audio system.
Answered by: NeilE
Date published: 2017-02-02
