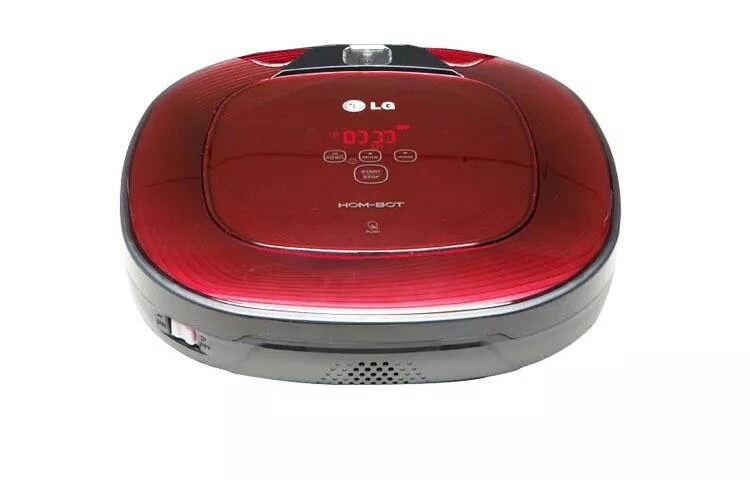

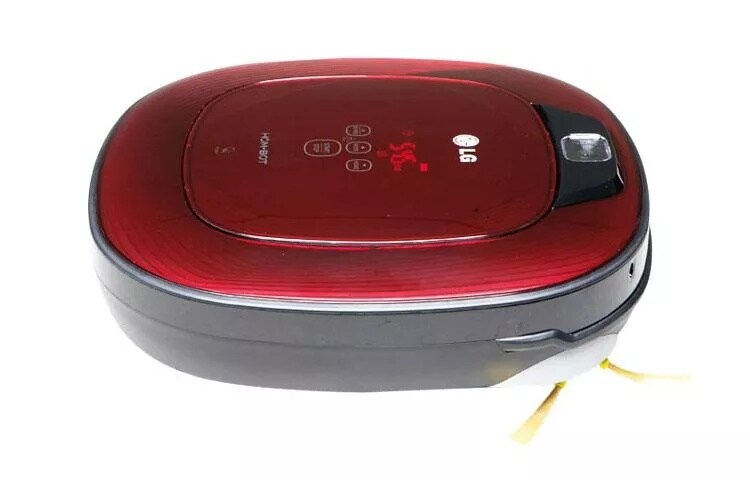

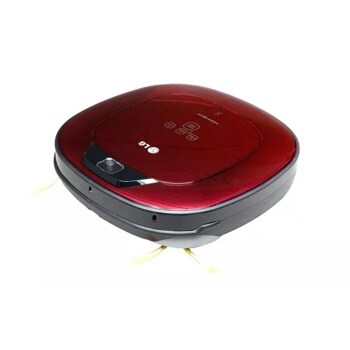

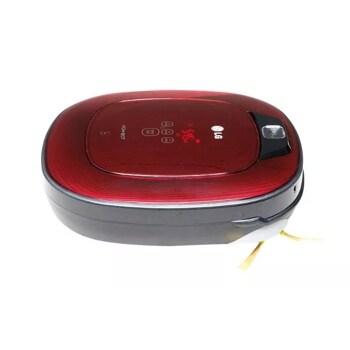

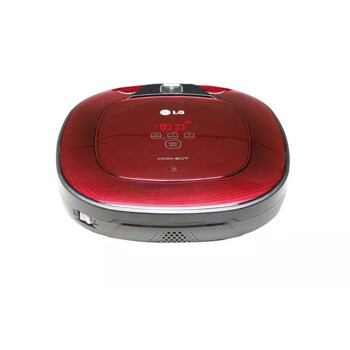

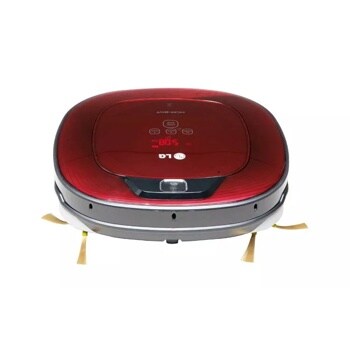

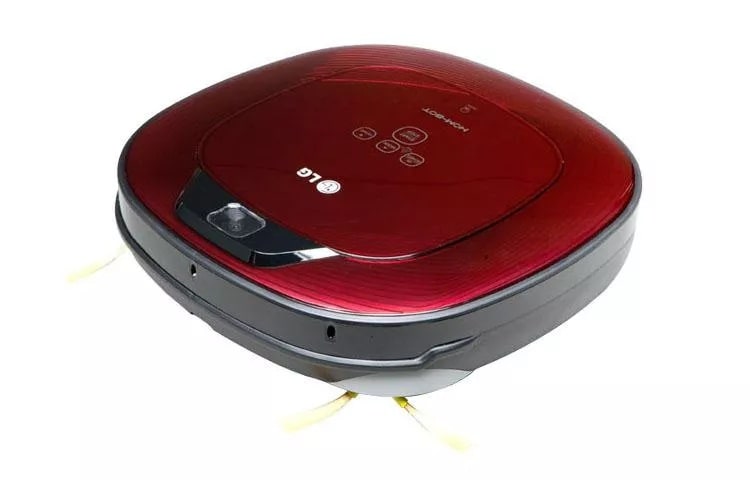

Hom-Bot Square Robot Vacuum Cleaner

  • LrV790R

  • Red
  • Discontinued Product

Key Features

  • Corner Master
  • Dual Eye Mapping System
  • 7 Smart Cleaning Modes
  • Voice Alerts
DIMENSIONS
Product (DxH) 14 1/10" x 3 1/2"
Carton (WxDxH) 17 3/4" W x 20 3/4" H x 6 1/8" D
Home Station (WxH) 9 3/5" x 5 1/5" x 7 3/5"
Weight: Product / Shipping 6.6 lbs /12.3 lbs
FEATURES
Floor Type Bare Floor/Tile/Carpet
Navigation Method Dual Camera Visual Mapping
Mapping Algorithm Upper CV-SLAM : Celing Vision Based Simultaneous Localization and Mapping
Mapping Algorithm Lower OFS (Optical Flow Sensor)
Cleaning Modes 7 Modes (Cell by Cell/Spot/Manual/Zig Zag/Turbo/My Space/Repeat)
Scheduled Cleaning Yes (up to 2,6,12 hours)
Sensors Vision, Optical Flow, Ultrasonic, Infrared, Gyro, Accelerometer
Stair Recognition Yes
Easy-to-Empty Dust Bin Yes
Voice Alert Yes
Dust Bin Capacity 0.6L
Battery Type LiPB
Auto Docking and Recharging Yes
Auto Power Saving Yes
Approximate Running Time 100 Min.
Approximate Charging Time 2 Hr.
Noise Level 50 dB
Cleaning Path Width (Without / With Side Brushes) 7 2/5" / 14 3/5"
Filter Type HEPA Filter
Edge Cleaning Corner Master
Remote Control Yes
SmartDiagnosis™ Yes
HEPA Filter Yes
ACCESSORIES
Accessories Side Brush Set, Filter, Carpet Brush
POWER CONSUMPTION
Hom-Bot 18 Watts
Home Station 23 Watts
Battery DC 16.8V
WARRANTY
Limited Warranty Body : 2 year, Battery : 6 months
UPC 048231 318228

What People Are Saying

Rated 4.8 out of 5 by 5 reviewers.
Rated 5 out of 5 by This product is very useful This product is very useful, but some features are missing. Pros Strong cleaning ability, very quiet, nice design. Cons Home station requires 3m X 2m free space. The robot gets confused when the furniture has rounded concave corners. Virtual barriers are missing. Only 'One time' and 'Everyday' scheduled cleaning. March 10, 2014
Rated 5 out of 5 by The best choice of all the "Robots" I purchased the "Hom-Bot" in late August 2013 and it arrived 9-06-2013. It was an early Birthday present for my wife. At first she wasn't happy that I thought she needed any help but after a couple of weeks she began to love it. I named our Hom-Bot "Maud" and she really does a great job. Our home is 1900+ sq. ft. with mostly wood or vinyl flooring and "Maud" runs every day on a route that she picked out for herself. We show her off to everyone that comes to visit so I am sure the orders are rolling in. We have three small dogs and five cats and because of our Hom-Bot we don't have any loose hair problems. It's about time to buy a replacement filter and I can't seem to find any. Please send me info on where and how to purchase them. Thank you for our "Hom-Bot Maud". February 23, 2014
Rated 5 out of 5 by Amazing technology This little robot is amazing.It will sweep and vacuum your floors,return to home base and recharge then resume where it left off. I wasn't expecting all the things that was advertised, but it has exceeded my expectation. The technology is amazing! October 15, 2013
Rated 4 out of 5 by This is an excellent product but need improvement. Because of his mapping technology, with time, he takes less time to clean your place. It's the most quiet vacuum of his category. Brushes well design which no pet hair will get stuck in bearings. Hepa filter, good for allergies. Cons: Because of his square shape, it tends to hit the sides back while turning. They should have expand the front bumper all around it. Also, if you have small baseboard (the inch one, that sits against the other baseboard) The two gray under plastic where the spinning brushes are is a bit lower which will hit those kind of baseboards. Won't work if it's completely dark, need some lights. Difficult to obtain parts Price September 22, 2013
Rated 5 out of 5 by Excellent Product This product is excellent for busy people!!! The only bad thing is that I do not know where I can buy the accessories (HEPA Filters, brushes, etc.) If you know where I can buy these accessories, please comment my post!! And Tell ME PLEASE! June 28, 2013
1-5 of 5

We're here to support you with our product.

Contact us for any purchasing inquiries.

Product Support

ASK & ANSWER

Ask your questions. Share your answers.

11 Questions & 12 Answers

Ask Your Questions, Share Your Answers

Ask your questions. Share your answers.



« Back


Category: I do not own this product
Interested in: Specifications
1 year ago
User Name:
Anonymous
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
No mop in the US version, Comes with two spinning brush and a main one. One extra filter
Gender: male
10 months ago
User Name:
alliyance
New York, NY, USA

Please wait while more information about alliyance is loaded.
Additional information about alliyance could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful

Answer:
Yes, spotless clean: Sweep + Vacuum + Mop

According to the manual the box includes:
Hom Bot
Remote control
Home station
Cleaning tool
Dust bin filter (spare) (some models)
Quick guide & Owner's manual
Cleaning brush(Located on the dust bin cover)
Mop plate (some models)
Ultra microfiber mop (2 pieces) (some models)
Dry cell for remote control (2 units of AAA size)
Side brush (2 pieces) (some models)
Carpet brush (some models)
1 year ago
User Name:
Nadine

Please wait while more information about Nadine is loaded.
Additional information about Nadine could not be loaded.
+1point
1out of 1found this answer helpful.
HelpfulNot Helpful
Has staff answer
Has expert answer

2 answers

This unit uses a re-chargable battery, how is it replaced?

This unit uses a re-chargable battery. Not the battery in the remote control, but the battery within the vacuum itself. How is it replaced? Is there a part number for the battery. If the battery is not user replaceable, what happens when the battery eventually dies and needs replaced?
Category: I own this product
9 months ago
User Name:
Shopkins1994

Please wait while more information about Shopkins1994 is loaded.
Additional information about Shopkins1994 could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
It has a rechargeable battery that is easy accessible you can get the battery from Lg.
Gender: male
5 months, 1 week ago
User Name:
Jlchance
Myrtle Beach, SC, USA

Please wait while more information about Jlchance is loaded.
Additional information about Jlchance could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful

Answer:
We appreciate your interest in this Hom Bot vacuum. Yes, according to Page 41 of your owner’s manual, this battery can be replaced. Turn off the main power switch on the back-left side of the Hom Bot. Place a soft cloth on the floor. Remove the dust bin and flip the Hom Bot to access the bottom of the device. Remove the screw, on the battery, with a screwdriver. When extracting the battery, separate the wire from the battery while pressing the connector hook. Remove the battery from the device. Accessories can be obtained through our parts distributor, MCM Electronics. Their contact number, for placing orders, is 800-824-9491. You can also use their website, at http://www.mcmelectronics.com/conte.... The Part Number for this Rechargeable Battery is EAC60766105. It is recommended to reinstall the replacement battery in reverse order.
9 months ago
User Name:
NeilE

Please wait while more information about NeilE is loaded.
Additional information about NeilE could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful

2 answers

To big of a house

What if the house is to big for hombot to clean in one charge, will it stop cleaning and just go to charge or will it stop and go charge and resume cleaning when charged.
Category: I do not own this product
Interested in: Specifications
1 year ago
User Name:
Anonymous
+1point
1out of 1found this question helpful.
HelpfulNot Helpful

Answers

Answer:
yes will finish the job give her time
Gender: male
5 months, 3 weeks ago
User Name:
abogak
Toronto, ON, Canada

Please wait while more information about abogak is loaded.
Additional information about abogak could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful

Answer:
He will go back to his charging station and resume cleaning where he was.
Gender: female
10 months ago
User Name:
alliyance
New York, NY, USA

Please wait while more information about alliyance is loaded.
Additional information about alliyance could not be loaded.
+1point
1out of 1found this answer helpful.
HelpfulNot Helpful
Category: I do not own this product
Interested in: Where to buy
1 year, 2 months ago
User Name:
Loie

Please wait while more information about Loie is loaded.
Additional information about Loie could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
Type LG Hom bot square or Lg Roboking in Youtube
Gender: male
10 months ago
User Name:
alliyance
New York, NY, USA

Please wait while more information about alliyance is loaded.
Additional information about alliyance could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful

Answer:
I did not take videos, but I have photos, so you can visualize it better!!!
Gender: male
User submitted photo
User submitted photo
1 year, 1 month ago
User Name:
EdwinB
San Juan, Puerto Rico

Please wait while more information about EdwinB is loaded.
Additional information about EdwinB could not be loaded.
+1point
1out of 1found this answer helpful.
HelpfulNot Helpful
Has staff answer
Has expert answer

1 answer

How do I get replacement parts.

We will eventually need new brushes, side brushes, filters, etc. Where can we turn?
Category: I own this product
1 year ago
User Name:
Dtho
Grand Junction

Please wait while more information about Dtho is loaded.
Additional information about Dtho could not be loaded.
+1point
1out of 1found this question helpful.
HelpfulNot Helpful

Answers

Answer:
Accessories can be obtained through our parts distributor, MCM Electronics. Their contact number, for placing orders, is 800-824-9491. You can also use their website, at http://www.mcmelectronics.com/conte.... The part number for the Agitator Shaft Assembly is AHR73109802, while the side brushes are ABC73130001 and ABC73129901.
1 year ago
User Name:
NeilE

Please wait while more information about NeilE is loaded.
Additional information about NeilE could not be loaded.
+1point
1out of 1found this answer helpful.
HelpfulNot Helpful
