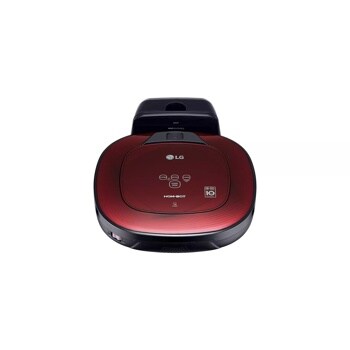

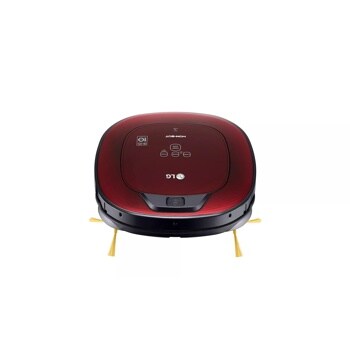

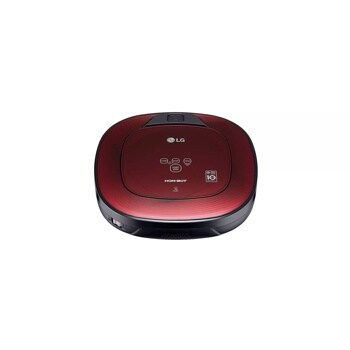

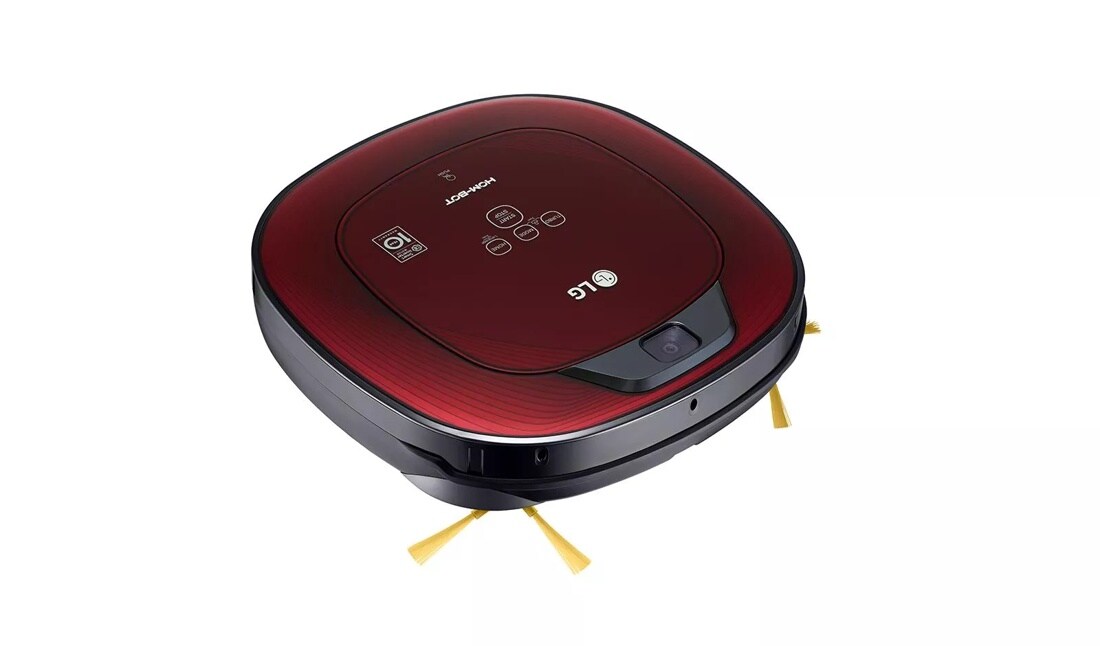

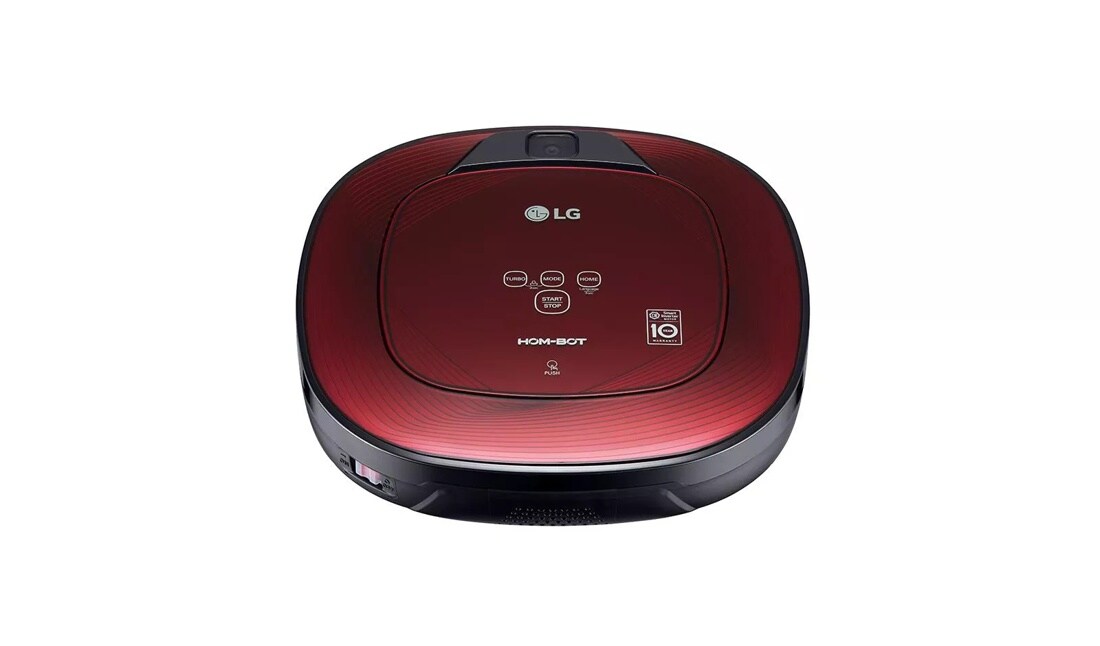

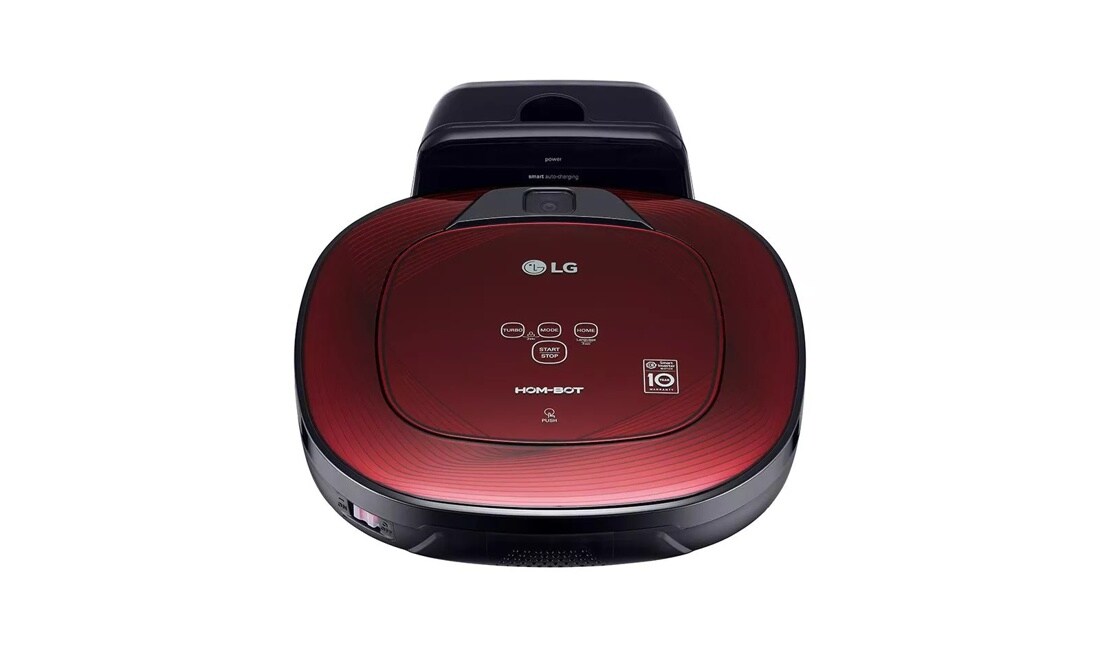

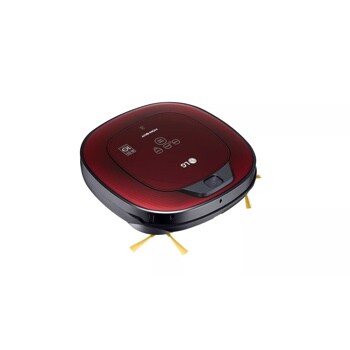

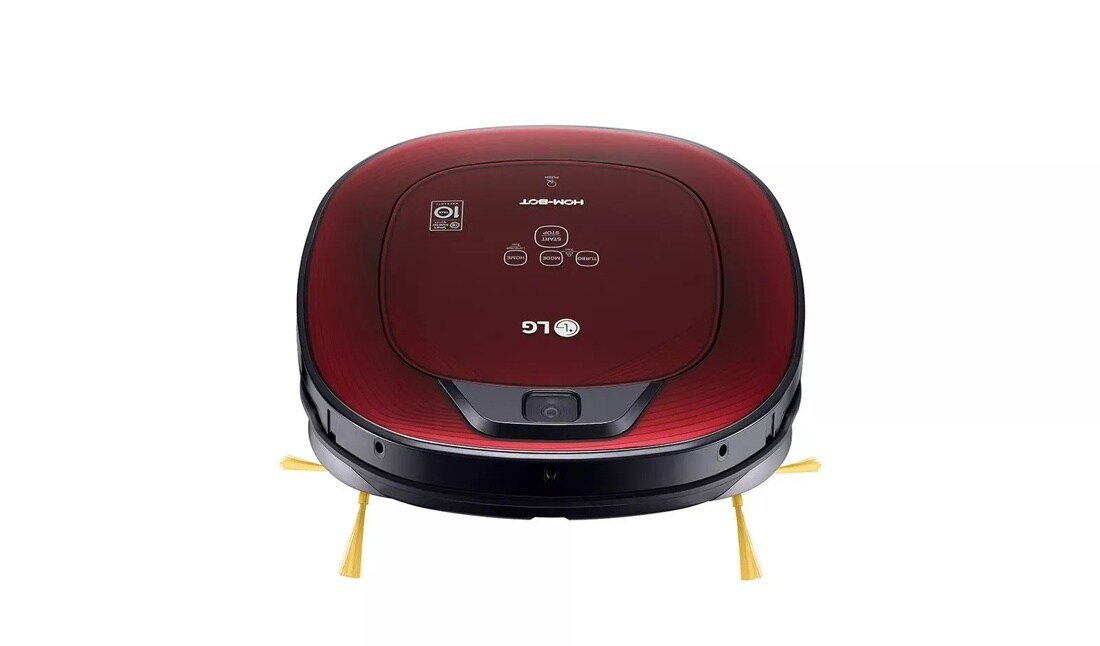

LG HOM-BOT SQUARE ROBOTIC VACUUM

  • VR65502LV

  • Ruby Red

Key Features

  • Corner Master
  • Dual Eye 2.0
  • Collision Safe Bumper
  • 7 Smart Cleaning Mode
  • Easy-out Dust Bin
Hom-Bot Square Robot Vac Video

Hom-Bot Square: "The iPad of Vacuums"

With smart mapping skills and effortless cleaning, LG Home-Bot earned a rave review from Forbes, who called it "the best vacuum cleaner I've ever owned."

Your vacuum just
got a lot smarter

With a new square design, Dual Eye 2.0 Mapping System and 7 Smart Clean
Modes, LG Hom-Bot Square is the latest advancement in automated home vacuuming.

Corner Master

Hom-Bot Square with its longer side brushes cleans corner and walls edges with impressive efficiency.

Revolutionary Dual Eye 2.0™ Mapping System

With cameras mounted on the top and bottom, Hom-Bot maps the area around your home as it cleans to help ensure it doesn't miss a spot.

Collision-Safe Digital Bumper

The Hom-Bot learns where to go and identifies objects it needs to avoid, so less bumping into furniture and household items.

7 Smart Cleaning Modes

The LG Hom-Bot lets you select between seven different custom cleaning modes, each uniquely suited to different tasks.

Easy-out Dust Bin

When the dust bin is full, removing it and putting it back is tidy and quick, so the LG Hom-Bot can get back to business in no time.

Smart Resume Function

If cleaning is interrupted or if the Hom-Bot is moved to a new area, its Auto-Resume allows it to continue cleaning where it left off.

SPECIFICATIONS
Consumption Power 58W
Running time approx. 100min (based on general wooden floor)
Charging time 3hr
Cleaning Extent m2 (without recharging) 150m2
Upper Camera CV SLAM
Lower Camera OFS
Smart Diagnosis Yes
BATTERY
Type Lithium
Capacity 14.4V / 2330mAh
CHARGER
Rating Electrocity 17.1V /1.7A/30W
CLEANING MODE
Number of Cleaning Mode 7
Zigzag Yes
Cell by Cell Yes
Spot (Spiral) Yes
My Space Yes
Turbo Yes
Smart Turbo Yes
Repeat Yes
NOISE LEVEL(IEC)
IEC (Normal) 60dB
IEC (Turbo) 68dB
NAVIGATION
System Robonavi10.0
Method Absolute / SLAM / Kidnap
Localization Sensors Vision / Gyro / OFS
Learning Function Yes
Kidnap Yes
Button Lock Yes
OBSTACLE DETECTION
Barrier Sensing Ability 10mm & up
OBSTACLE SENSORS
OFS (Lower Camera) Yes
Gyro Yes
USS (Ultrasonic Sensor) 1T / 2R (2-Pair)
PSD (Position Senstive Detector) Qty 2
Cliff (Qty) 3
Accelometer Sensor Yes
Side Brush (Qty) 2
Carpet (Cil) Overcome Height 1.5cm
Dry Mopping Yes
Dust Bin Capacity 0.6L
Filter Type EPA11
VOICE ALERT
Guide Yes
Speaking Sentence 106
Voice Guide Language English, French, German, Spanish, Italian, Dutch, Danish
Mute Yes
Remote Control Yes
Power Saving Function Yes
USER INTERFACE
Display LED Module
Button Touch
ACCESSORY
Carpet Brush Yes
Cleaning Brush Yes
Cleaning Tool Yes
ACCESSORIES (Sold Separately)
Replacement Filter VEF-SP02R
DIMENSIONS / WEIGHT (WXDXH)
Body (WxHxD) 13.39" x 3.5" x 13.39"
Packing (WxHxD) 17.44" x 6.42" x 21.45"
Net Weight (lbs) 6.6
Packing Weight (lbs) 12.3
LIMITED WARRANTY
Limited Warranty 1 Year Parts & Labor
UPC CODES
VR65502LV Ruby Red 048231016001

What People Are Saying

Rated 5 out of 5 by from Attractive Well Built One Touch Vacuum I received a Ruby Red Hom-Bot Robot Vacuum (VR65502LV) from LG just before Christmas for free to use and evaluate. The vacuum cleaner arrived well packaged and in perfect condition. The Vacuum was ready to use right out of the box, just plug in the home station, charge the vacuum for a few hours and you are ready to go. There was also spare dust bin filter and a brush for cleaning the filter and the sensors in the box. The Hom-Bot is square unlike the round robot vacuums I have used in the past. The case is a bright Ruby Red with a LED readout that lets you know if the unit is charging and the current battery level as well as the current mode selected. The buttons on the vacuum are touch activated and allows you to, start cleaning, select the cleaning mode and return the unit to the home station. There are two brushes in each from corner that rotate when the vacuum is in use. There is a simple remote control that stands up in the charging base and has all these controls as well as a Turbo Mode, Repeat, My Space Schedule Diagnosis Mute, clock and direction controls to steer the vacuum to a specific location. It is vital to ensure you have at least 3ft clearance on either side of the home station or the Hom-Bot will have difficulty returning home. The dust bin is accessible from the top of the vacuum by pushing the center front of the vacuum. The lid pops up to revel the dust bin with a handle that removes the dust bin easily. Once you empty the dust bin it slides back in the vacuum easily. This is about the only user intervention this vacuum actually needs (more later) so the easy access is a very welcome feature. The Hom-Bot has custom cleaning modes that determine the vacuum pattern, zig zag, or cell by cell. You can change the modes using the remote control or by pressing a button on the vacuum and you get a voice confirmation of the change. I used both modes and the vacuum did an excellent job in either mode so I just set it to zig zag and left it. The vacuum also has a spiral spot clean that use can use to clean a small area only. It starts in the center of the area and spirals around until co covers about a 3ft by 3 ft. spot. The vacuum then turns off and you can either use the direction control on the remote to move to another area or just press the home button to return to to the charging station if you are done. The only way to keep the vacuum from going places you don’t want it to is by using some physical barrier (close a room door etc.). There is a My Space mode where you can drive the vacuum around a small area and the vacuum will stay in that area. The space can be irregular but it has to have four sides and the same starting and ending point or you will get an error and the vacuum will wait until you set the space correctly. My Space is a nice feature to keep the vacuum in one space and then return to the home station when it is done. If the Hom-Bot could remember more than one space this feature would be much more useful but this is a good start. I have a one-story home with a mix of hardwood floors and carpet. I also have three black cats and light carpet so cat hair is a daily issue. The Hom-Bot did a great job picking up the cat hair and cleaning both floor types with ease. The front brushes moved dirt and hair away from the sideboards and the corners so the vacuum could pick it up. You could hear the machine changing speeds and vacuum power automatically when it went from Hardwood to carpet. The Hom-Bot is very quiet even in on carpet. You can start cleaning by either using the buttons on the vacuum, the remote control or using the built-in schedule feature. Using the schedule feature the vacuum will run automatically on the time you select however you cannot skip days or set different times for different days I pushed the start button twice, the vacuum came to life rolled off the charging station and spun around. A voice reminder came on to remind me to check the dust bin just before the Hom-Bot started cleaning. The Hom-Bot navigated around obstacles with ease only bumping into things occasionally and did not try and go down the stairs to the basement. You will have to pick up loose cables and any small objects that you do not want the vacuum to pick up, cat toys in my case. It did seem to have a little trouble with chairs, The Hom-Bot would go under chairs but sometimes could not figure out how to get back out. The built-in voice lets you know when and if the vacuum gets stuck so you can free it up. Once I moved it out from under the chair I just set it down and it resumed cleaning the rest of the room. The voice alert also lets you know when the Hom-Bot is returning home to charge the battery or if it is returning home because it is done cleaning. After the battery is charged the Hom-Bot returns where it left off and continues cleaning. The vacuum ran just under two hours before it needed to be charged. The Hom-Bot is an attractive well-built one touch vacuum that does a great job cleaning the house. If you want to manually control, the vacuum you can do that as well. It probably won’t replace your full-size vacuum however it cuts way down on your house cleaning time and gives your home the just vacuumed look every time you use it.
Date published: 2017-01-15
Rated 5 out of 5 by from HOM-BOT is an Excellent Robotic Vacuum Cleaner! Over the past 3 weeks we have really put this vacuum to the test. Our home has various floor coverings; hardwood, carpet and tile; besides a large hairy dog and a long hair cat. The HOM-BOT (HB) performed great on all 3 floor coverings along with handling all the hair from the dog and cat. The battery life is exceptional on tile and hardwood with a run time of 1 hour and 45 minutes when running in the standard mode. The HB will automatically switch to turbo mode when on carpeting which causes the battery to run down faster. We closed off a carpeted area to test the battery in turbo mode and it lasted 35 minutes but it did an exceptional job of cleaning the carpet. We first vacuumed the carpet with our upright vacuum and after the HB ran we had to empty HB bin twice before it was finished. The 2 brushes on the front of the HB help to get the hard to reach areas that the other robotic models struggle with. The HB does not get stuck in tight areas and has always been able to find it's way back to the charging station. The charging station works better when installed on a hard surface. We had some issues with the HB docking on the charging station when installed on carpet. The charging station is lightweight and easily moves on carpeting with pad. The only issue we had with the HB was finding a place for the charging station. The instructions show you need a flat surface near a wall at least 5' to the left and right of the charging station and 6.5' in front with no obstacles. With all of the furniture in our home a 10' open spot on a wall was almost impossible to find without moving furniture. LG should have this information on the outside of their packaging to make sure consumers are aware of this requirement before purchasing.
Date published: 2017-01-13
Rated 5 out of 5 by from The Home Bot that saved Christmas. My Red LG Home Bot saved our Christmas. Not only was the Home Bot my favorite Christmas present but, as usual my husband and I over did it physically. We are both 55 years old and cannot pick up and carry a regular vacuum.
Date published: 2017-01-03
Rated 3 out of 5 by from HOM-BOT a nice little machine See video for my review. Over all it is a nice little machine. But does have some draw backs
Date published: 2017-01-02
Rated 5 out of 5 by from LG Hom-Bot Square Robotic Vacuum CHANGED MY LIFE The sleek, modern look and functionality of this robotic vacuum makes daily vacuuming easy and actually fun. Very low noise level makes it easy for me to talk on the phone and continue the unit vacuuming. The sweep and vacuum function with the dual eye mapping system creates no bumping into furniture. Voice alerts and the long lasting battery creates no difficulty being able to vacuum indefinitely. Touch controls/remote makes it easy to use with the smart resume function makes this unit a pleasure to use. Using the LG HOM-BOT Square Robotic Vacuum has changed vacuuming forever; it is truly the modern view of cleaning floors.
Date published: 2016-12-30
Rated 5 out of 5 by from Great job I got this robot vacuum at the end of July. I was so excited to try it and I have heard so many good things about the LG robot vacuum. After I got it, I have been using it everyday. I just can't stop using it because it keeps my home so clean. Now I don't need to use a manual vacuum everyday, maybe once or twice a week. Saves me a lot of time.
Date published: 2016-09-04
  • y_2017, m_4, d_24, h_9
  • bvseo_bulk, prod_bvrr, vn_bulk_1.0.0-hotfix-1
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_6
  • loc_en_US, sid_MD05601821, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-2.3.0.0
  • CLOUD, getReviews, 3ms
  • REVIEWS, PRODUCT

We're here to support you with our product.

View VR65502LV Product Support

Contact us for any support inquiries.

ASK & ANSWER

Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

How does the robotic do on dog hair? Does it clog up where it lets you know when it does?

Asked by: Ingrid Snyder
I own a Hom Bot.  I am very happy with the ability of this product to pick up animal Pet hair.  If you follow directions and clean the robot after each use you will have no problems and the machine will work continuously. I am 55 and come and can no longer carry a large vacuum. This product is perfect for me and my hairy dog.
Answered by: Carole11634
Date published: 2017-01-04

Where can I find the lg hombot ruby red SLIM please?

Asked by: Mr Lasky
We appreciate your interest in this robotic vacuum cleaner. A search for local dealers, who might obtain this vacuum cleaner, can be found at https://www.lg.com/us/products/wtb?modelId=MD05601821.
Answered by: NeilE
Date published: 2016-12-30
