LAE Standard-Q
The LAE offers picture perfect quality even when combining several displays together. This display is RoHS certified. Find out more about our LAE displays below.

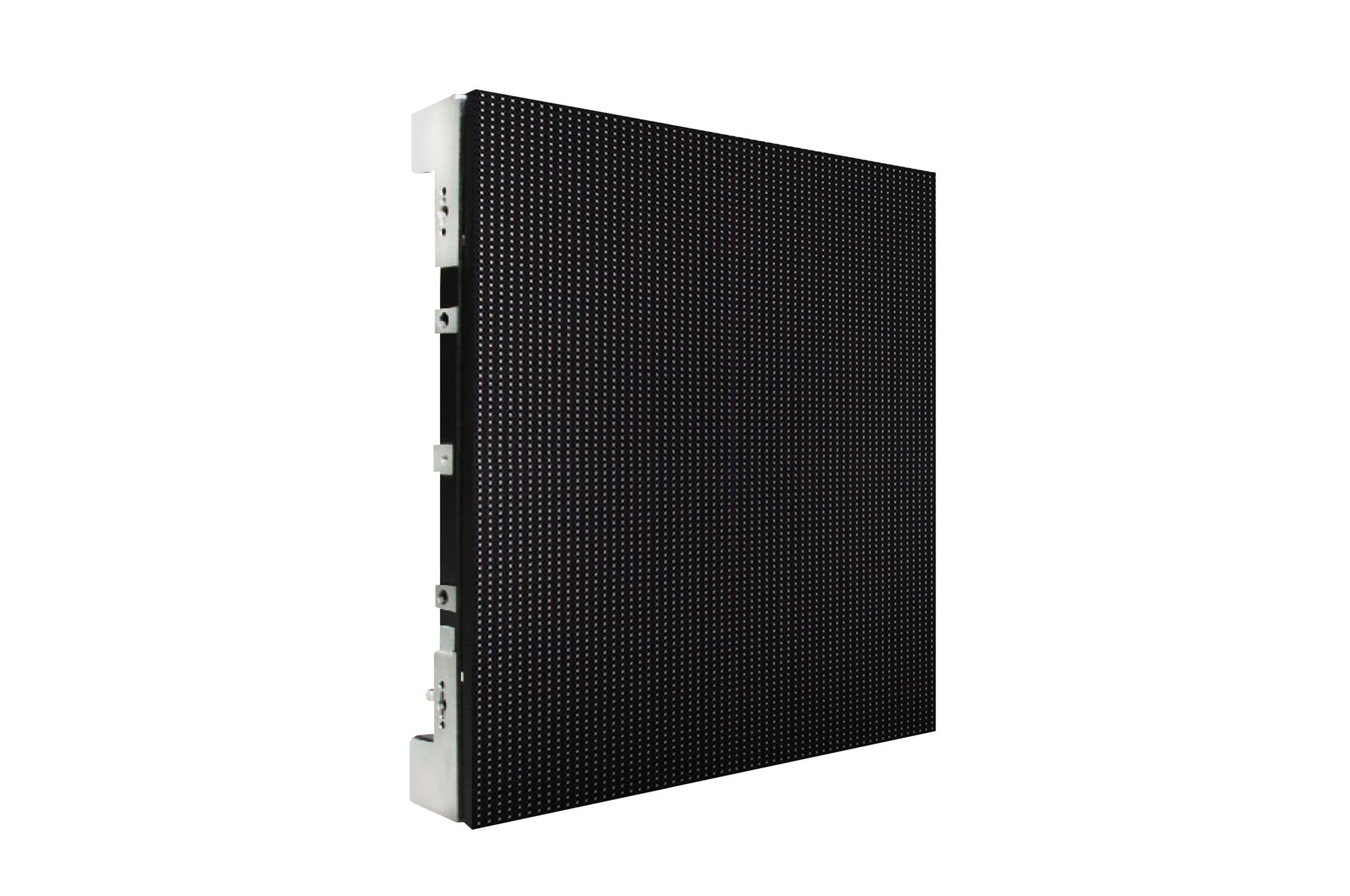

LAE-Q Standard

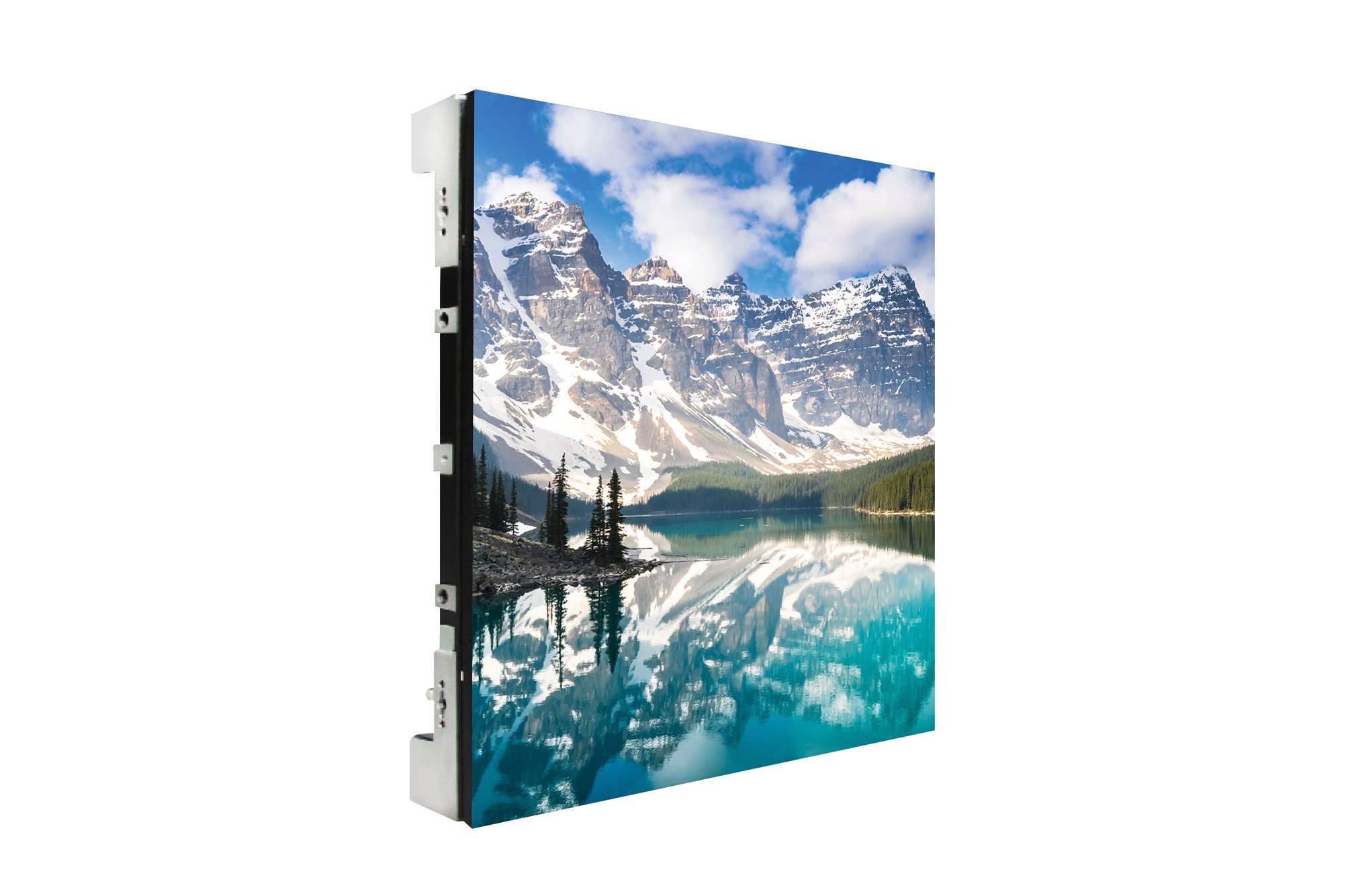

The LAE-Q Standard series is suitable for a variety of indoor installations, with precision-machined aluminum die-cast frames that enable easy and seamless screen building.

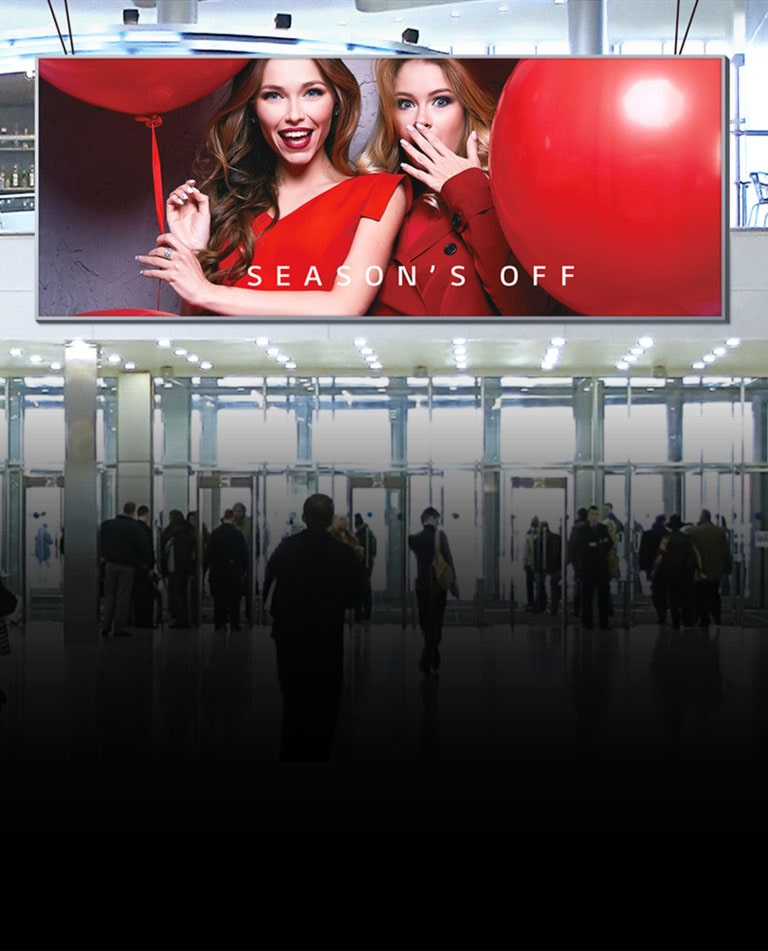

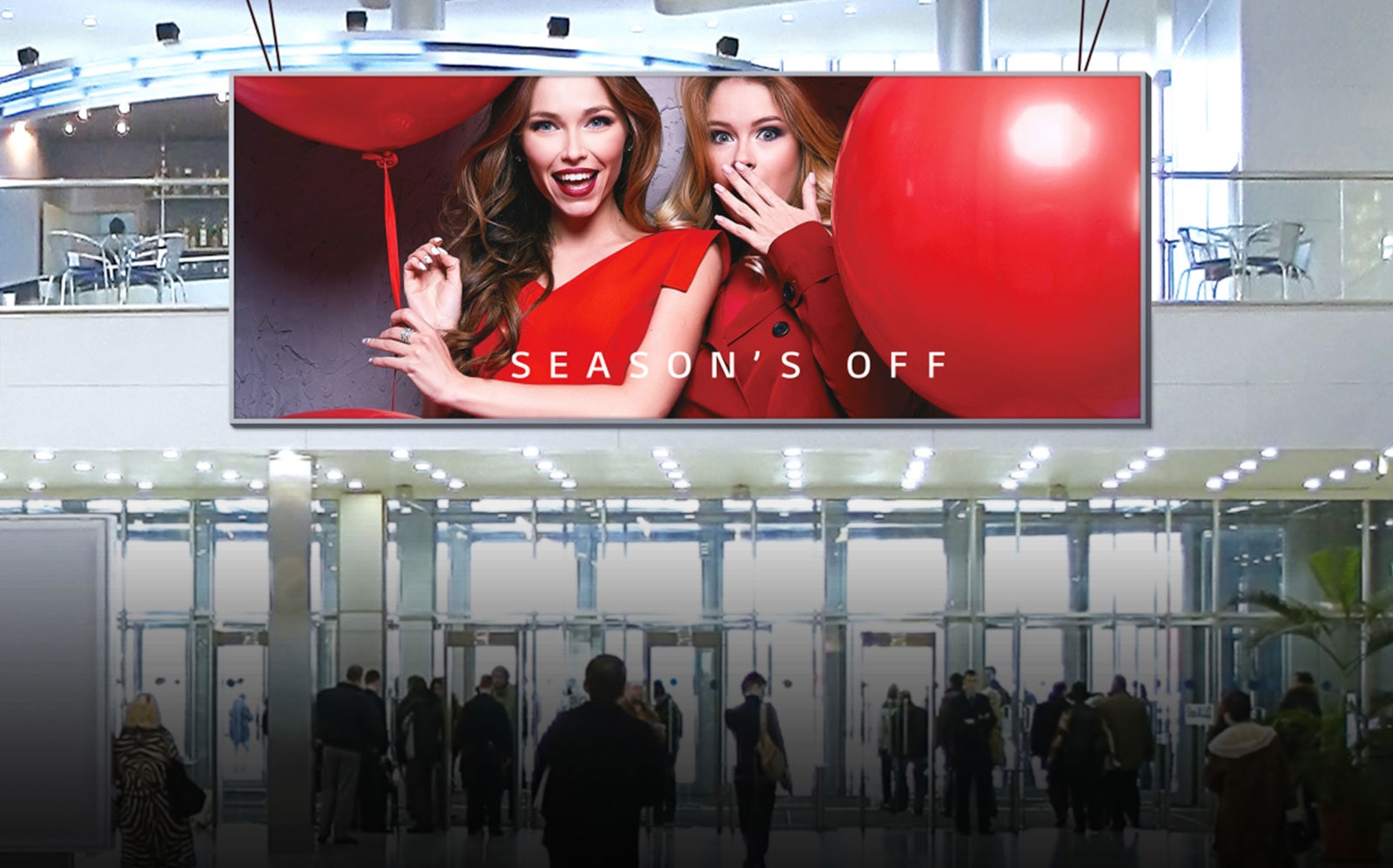

1,200nit High Brightness

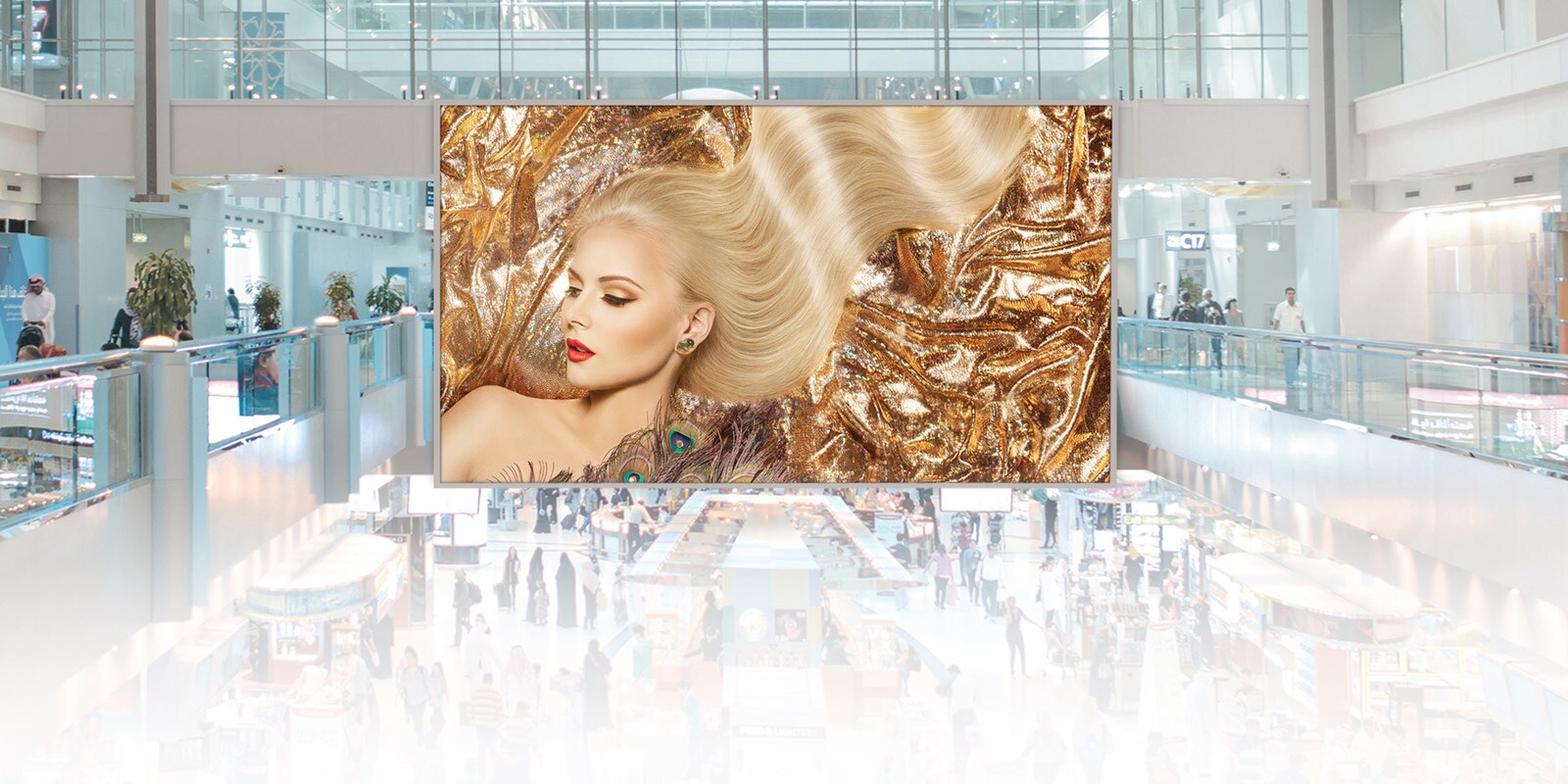

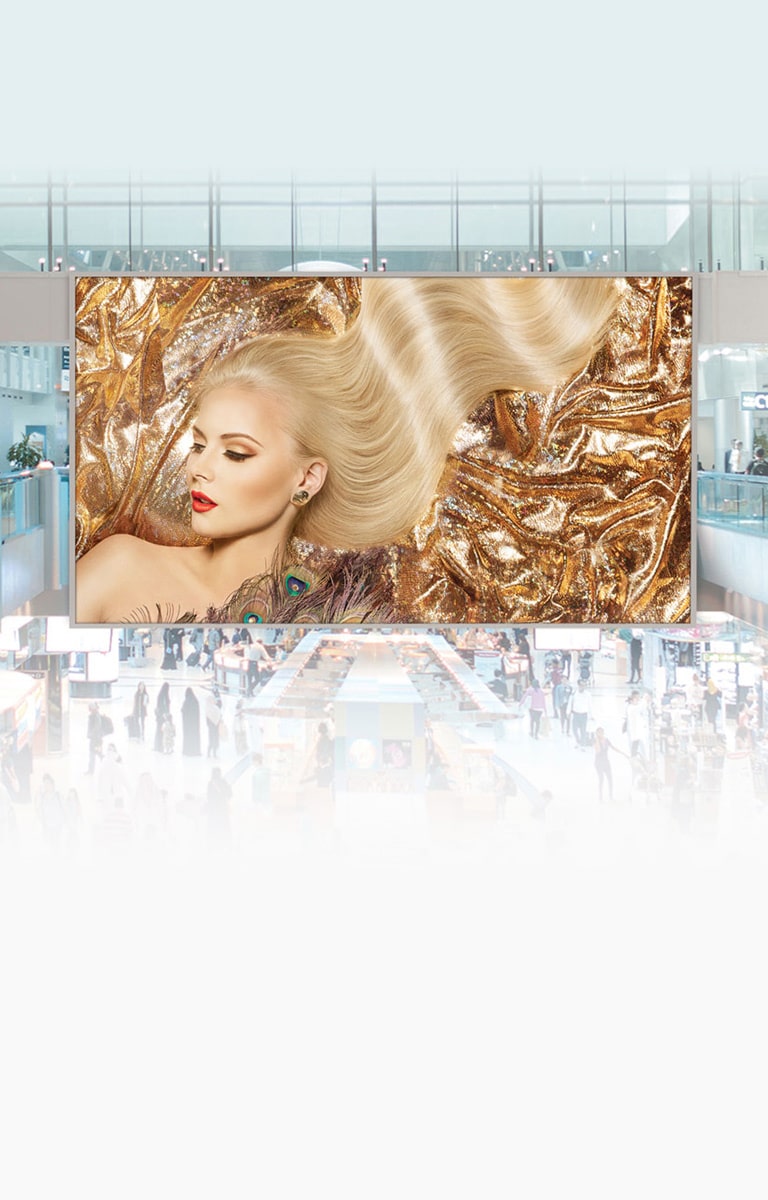

Installed in a large venue with natural or indoor lighting, this high-brightness product immediately captures the audience’s attention and effectively delivers your message.

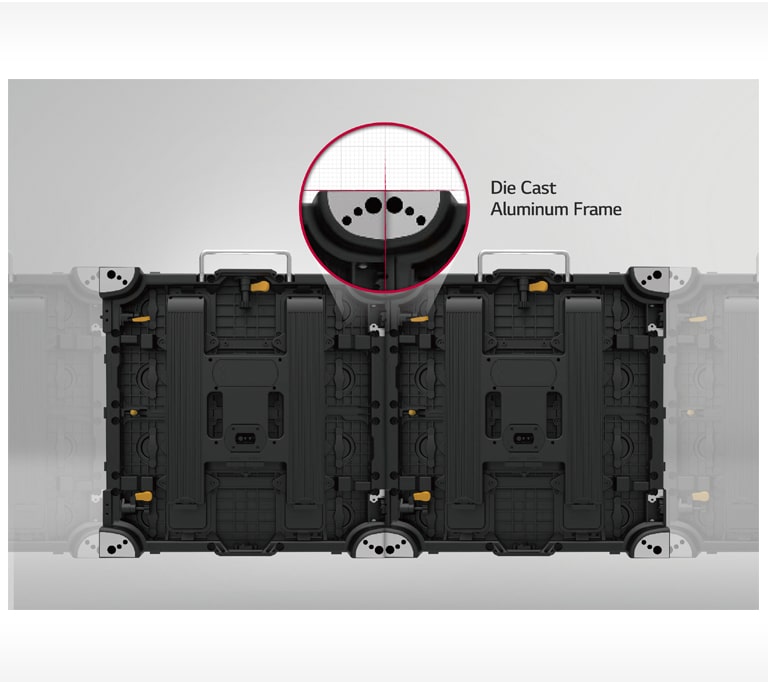

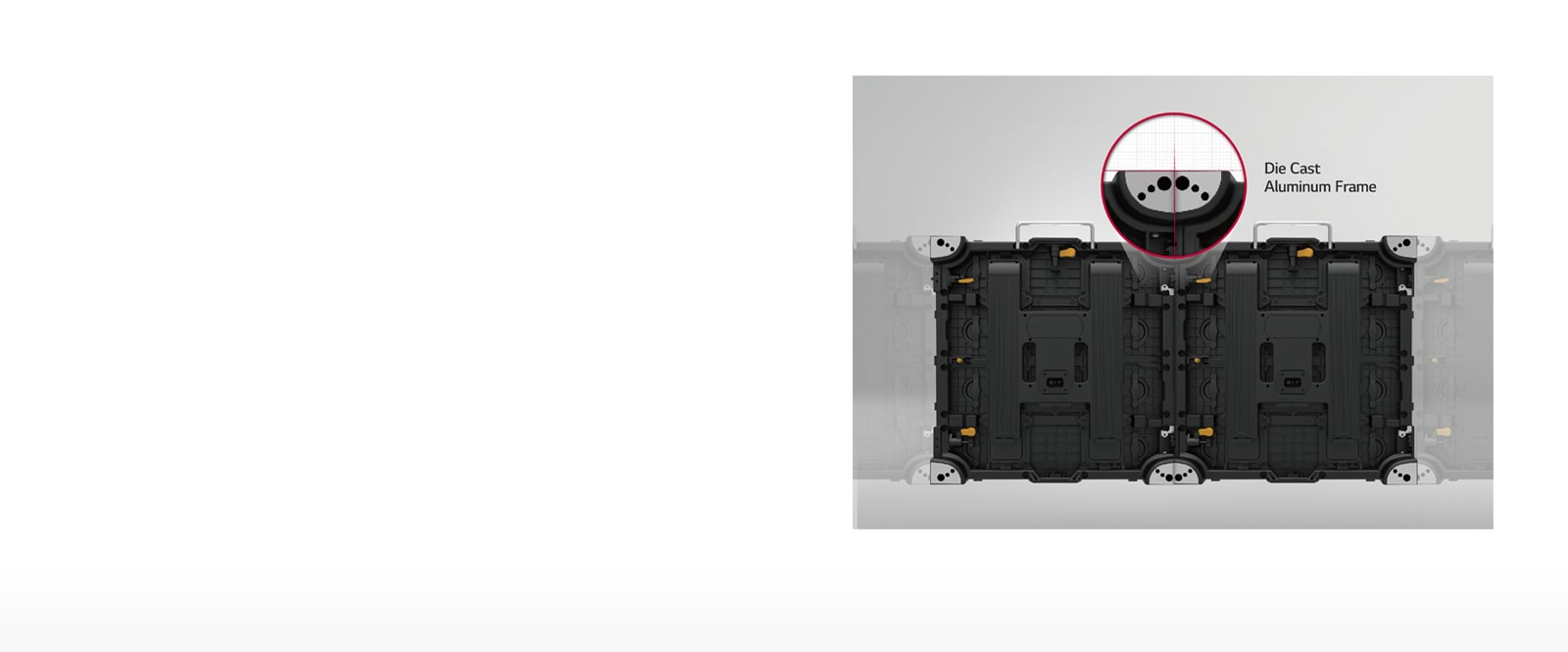

Die Cast Aluminum Frame Design
The unit cases come in clean angles and finishes to ensure seamless screens every time.

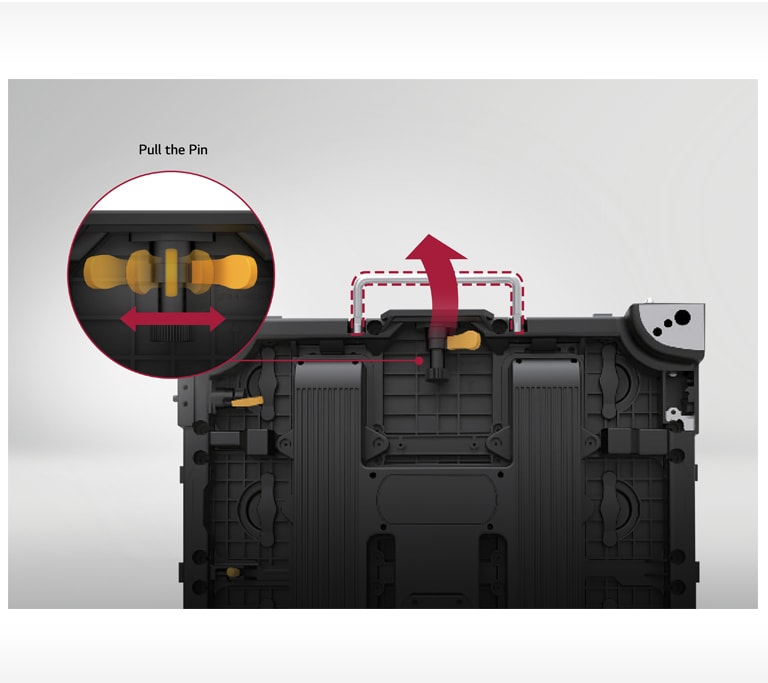

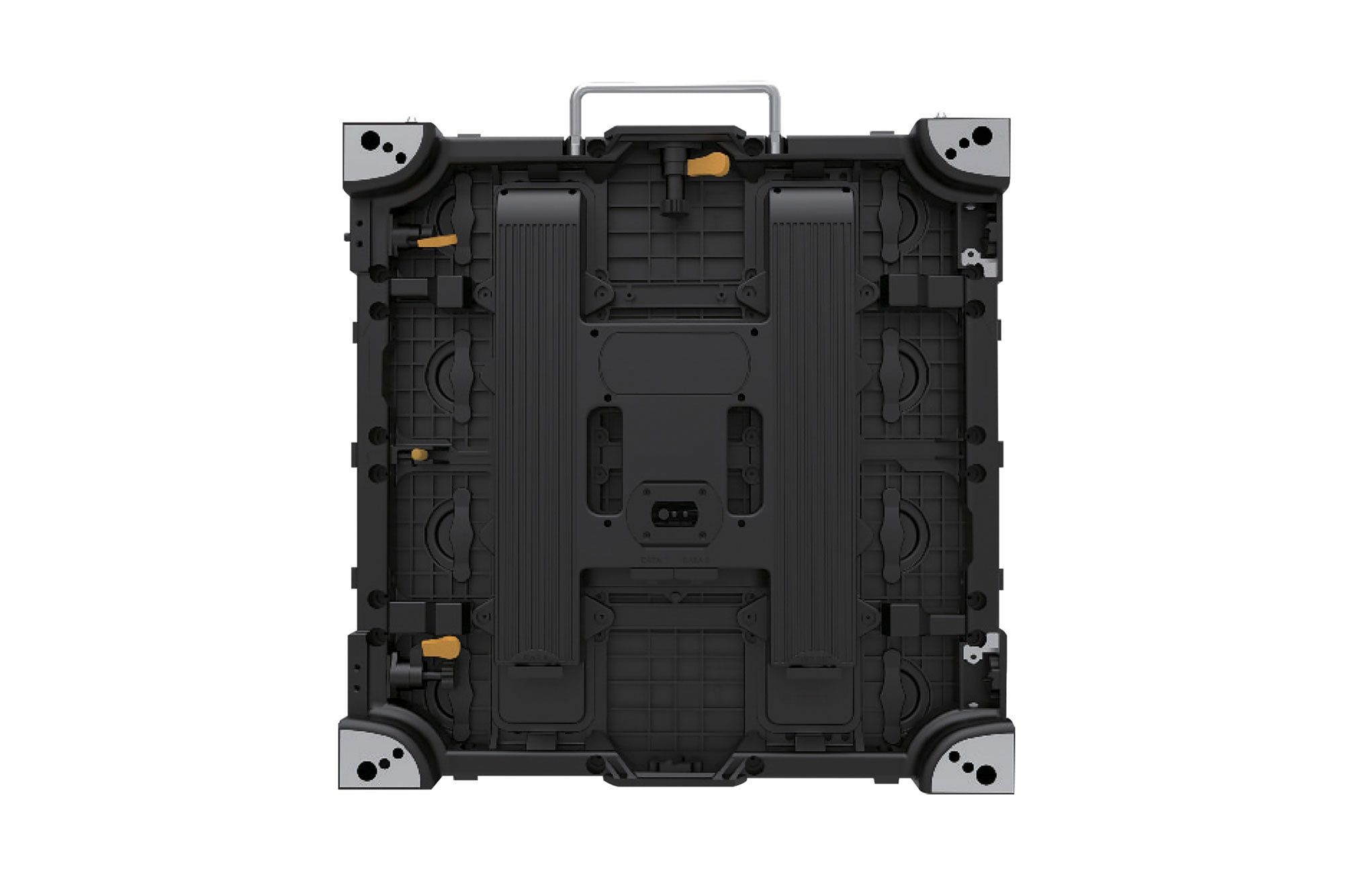

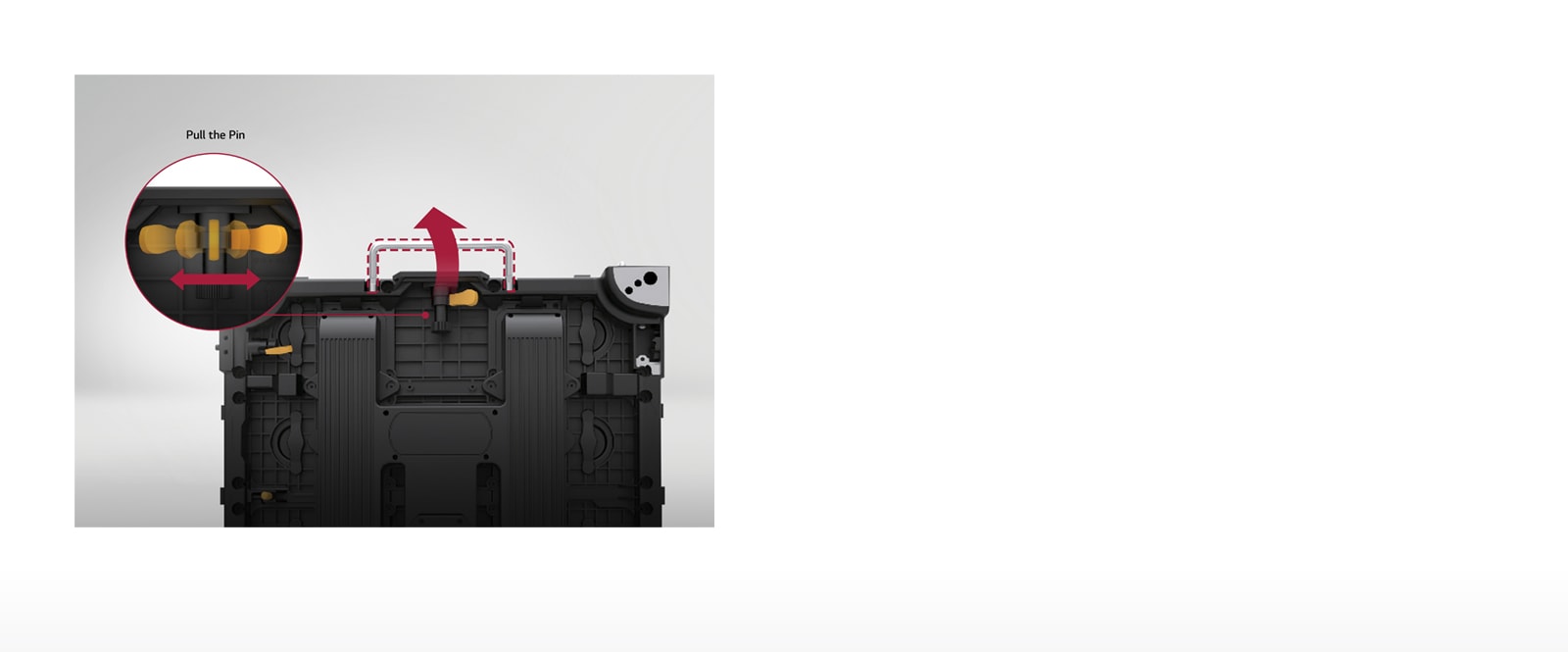

Simple Locking System
No extra tools are needed; each unit case has a lever on the back that easily locks into the unit cases joined to the top and left.

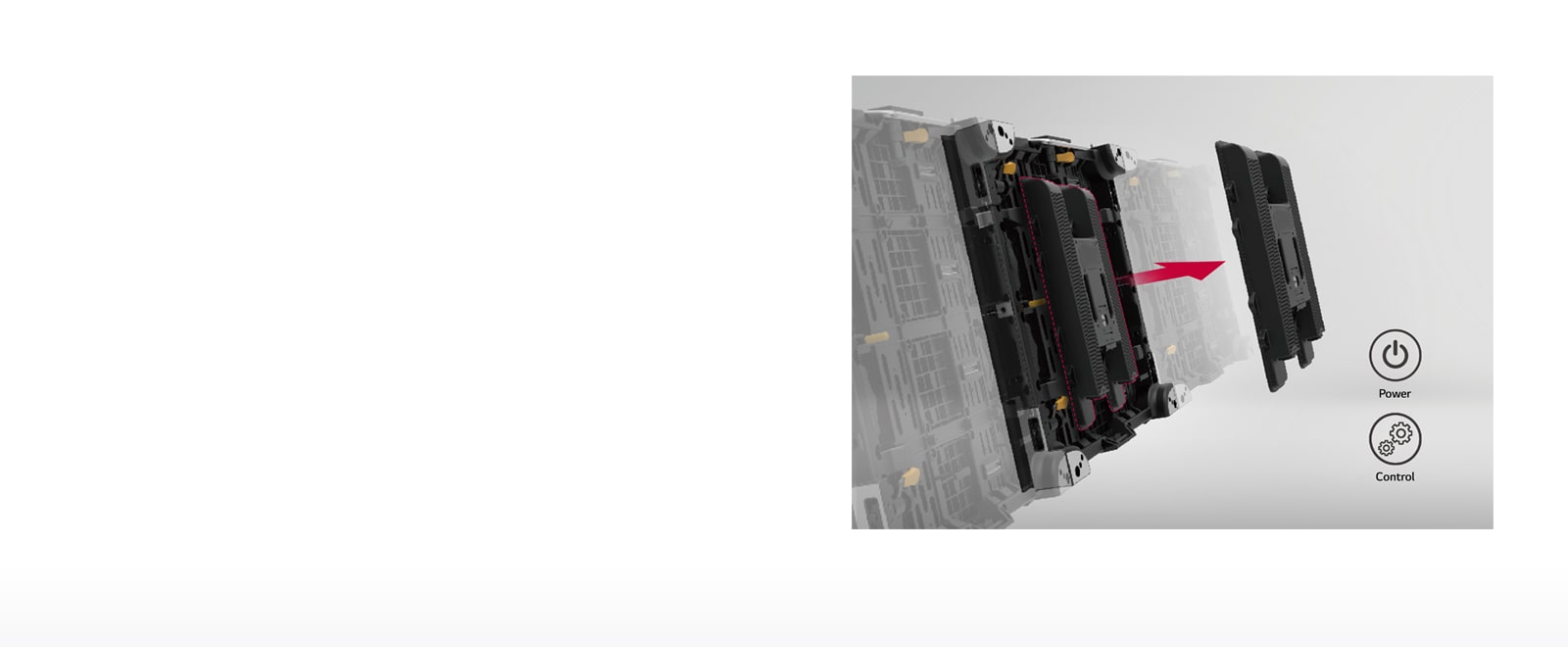

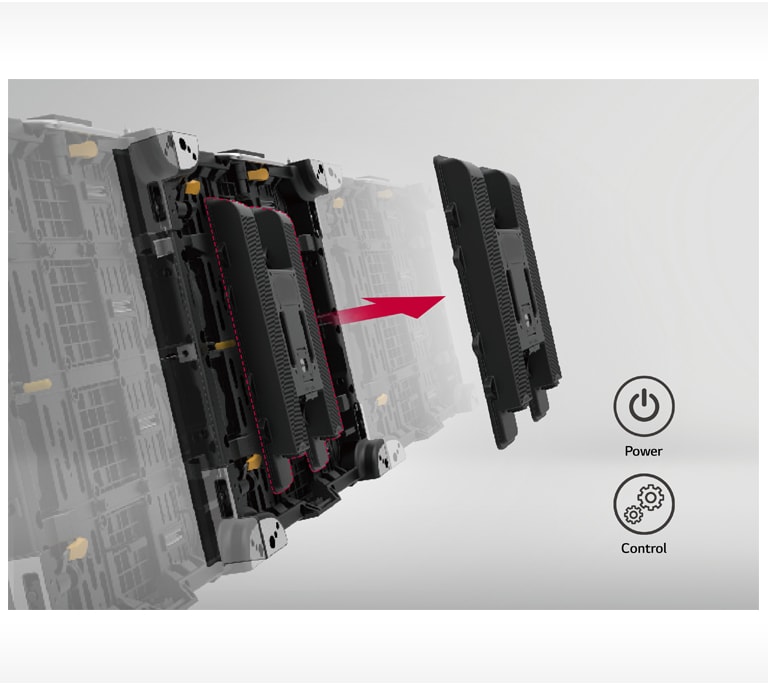

Attachable Power and Control Modules
Power and control modules attached to the unit cases can be removed easily, making it easy to fix problems that may arise.

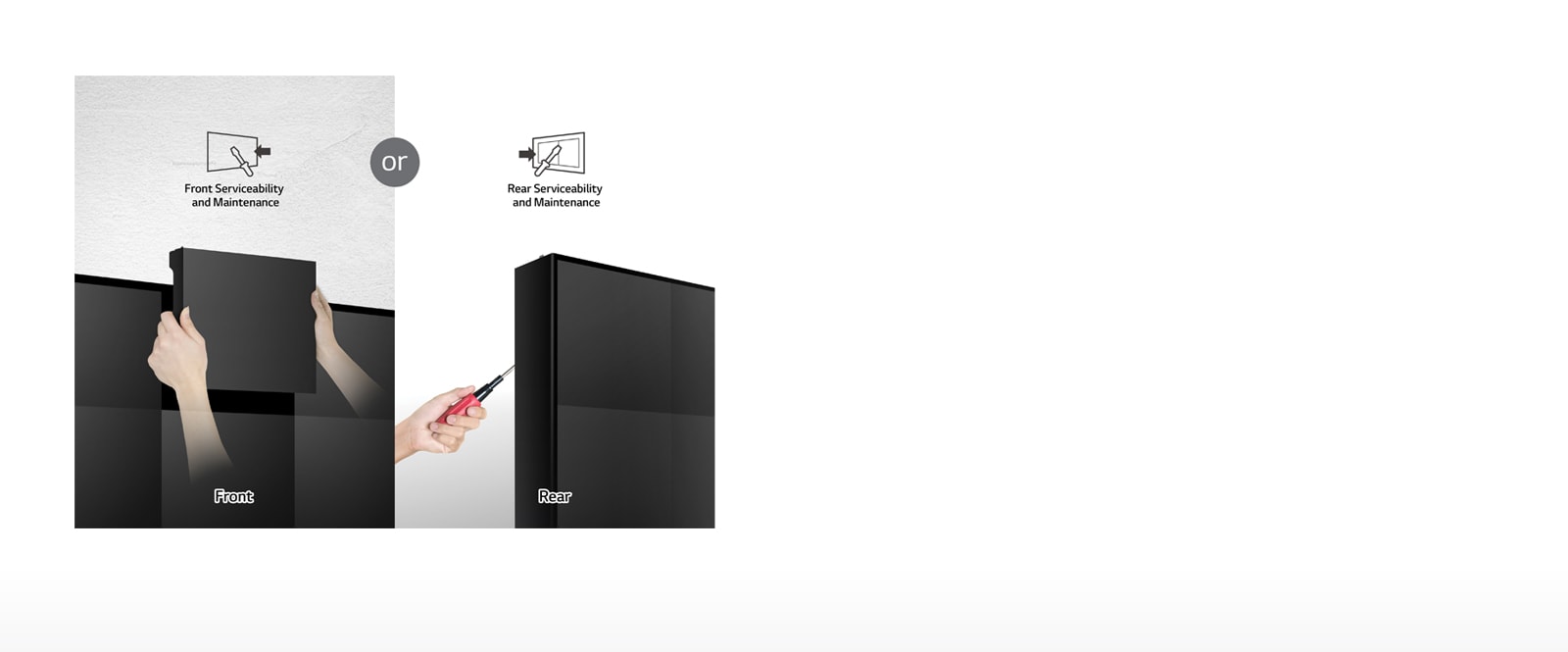

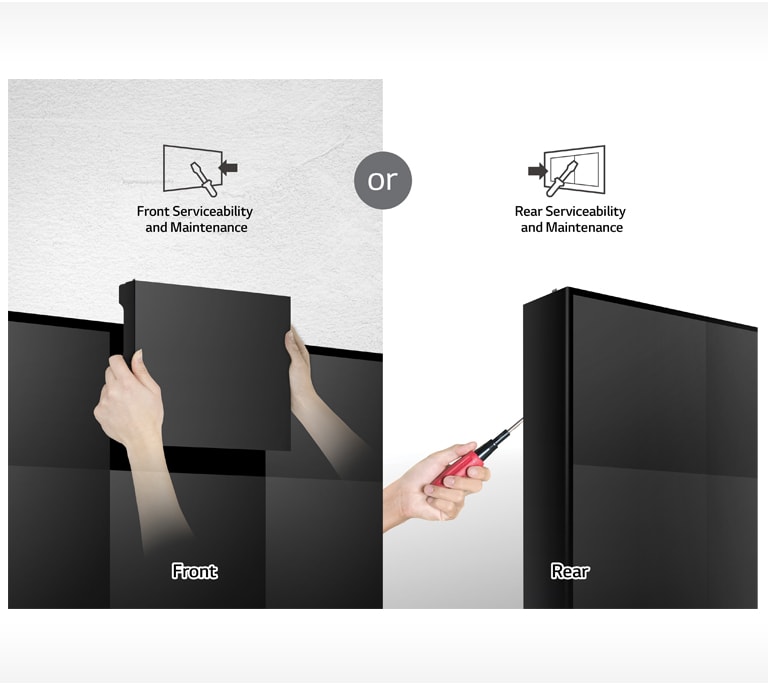

Front or Rear Serviceability and Maintenance
The product offers both front access or rear access, allowing customers to choose according to their installation environment and minimizing limitations in installation and maintenance.
Uniform Picture Quality
Every step from production is strictly managed, while factory calibration ensures consistent quality between the LED units. The display provides seamless content with 97％ brightness uniformity.
Vividness with Color Accuracy
LG’s rigorous quality standards also make LG LED signage reproduce accurate colors, vividly displaying the original colors of objects without distortion.
RoHS Certified Safe Product
Boasting RoHS certification, all LG LED signage models are environmentally-friendly products that do not use materials harmful to the environment and people.
| Model Name | LAE026DD3-Q | LAE026DD4-Q | LAE039DD3-Q | LAE039DD4-Q |
|---|---|---|---|---|
| Pixel Configuration | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD |
| Pixel Pitch(mm) | 2.60 | 2.60 | 3.91 | 3.91 |
| Unit Case Resolution (WxH) |
192x192 | 192x192 | 128x128 | 128x128 |
| Unit Case Dimensions (WxHxD, mm) |
500x500x81 | 500x500x81 | 500x500x81 | 500x500x81 |
| Weight per Unit Case / Square Meter (kg) |
7.5/30.0 | 7.5/30.0 | 7.5/30.0 | 7.5/30.0 |
| Service access | Front or Rear | Front or Rear | Front or Rear | Front or Rear |
| Min. Brightness (After Calibration) |
1,200 | 1,200 | 1,200 | 1,200 |
| Color Temperature | 6,500 | 6,500 | 6,500 | 6,500 |
| Visual Viewing Angle (Horizontal/Vertical) |
160/160 | 160/160 | 160/160 | 160/160 |
| Brightness Uniformity | 97％ | 97％ | 97％ | 97％ |
| Color Uniformity | ±0.003CxCy | ±0.003CxCy | ±0.003CxCy | ±0.003CxCy |
| Contrast Ratio | 5,000 | 5,000 | 5,000 | 5,000 |
| Processing Depth (bit) | 13 | 13 | 13 | 13 |
| Power Consumption (W/Unit, Avg./Max.) |
56/168 | 56/168 | 56/168 | 56/168 |
| Power Consumption (W/m², Max.) |
672 | 672 | 672 | 672 |
| Power Supply (V) | 100 to 240 | 100 to 240 | 100 to 240 | 100 to 240 |
| Refresh Rate (Hz) | 1,920 | 1,920 | 1,920 | 1,920 |
| Lifetime (Half brightness)* |
80,000 | 50,000 | 80,000 | 50,000 |
| Operating Temperature(°C) / Humidity |
-10° to +45°/0-80％RH | -10° to +45°/0-80％RH | -10° to +45°/0-80％RH | -10° to +45°/0-80％RH |
* The Lifetime(Half brightness) spec is subject to LED package spec.
**Models may vary by region. Check with local salesteam for availability.
