Die Cast Aluminum Frame Design
The unit cases come in clean angles and finishes to ensure seamless screens every time.

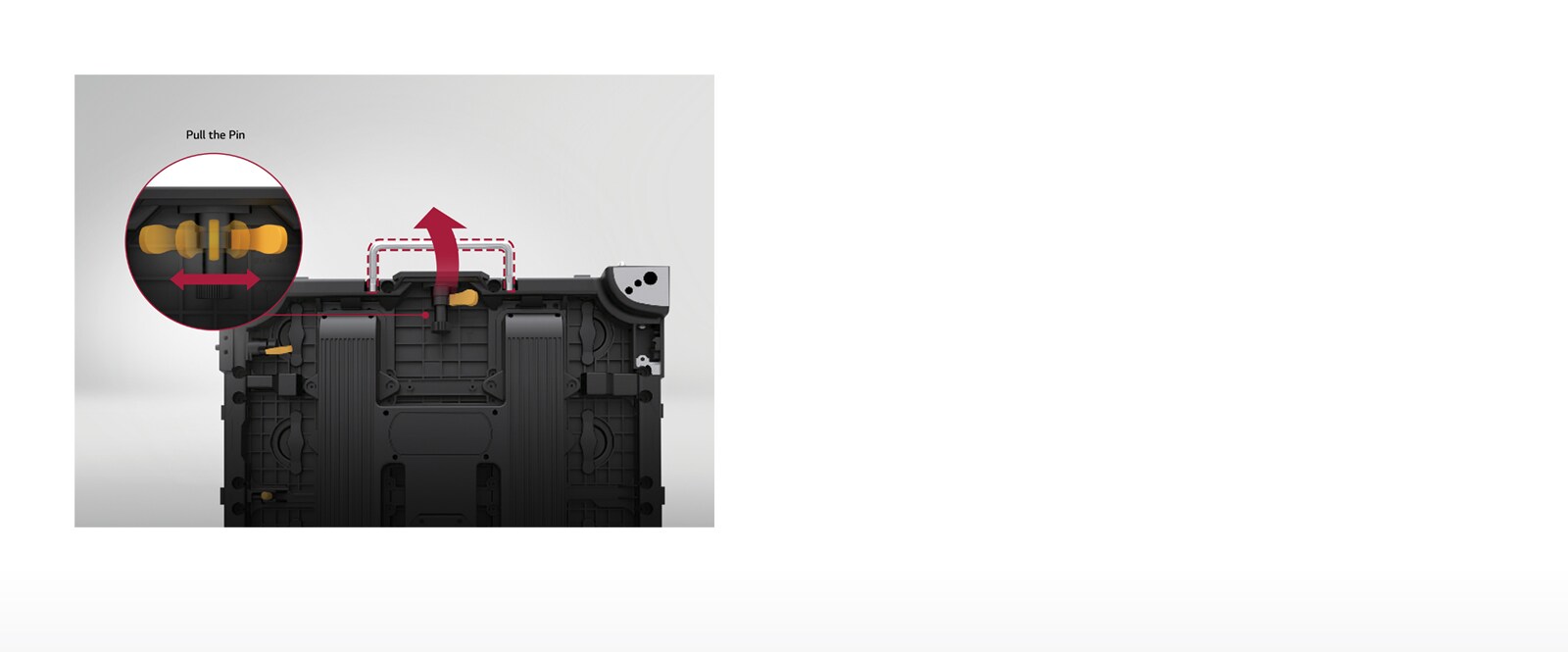

Simple Locking System
No extra tools are needed; each unit case has a lever on the back that easily locks into the unit cases joined to the top and left.

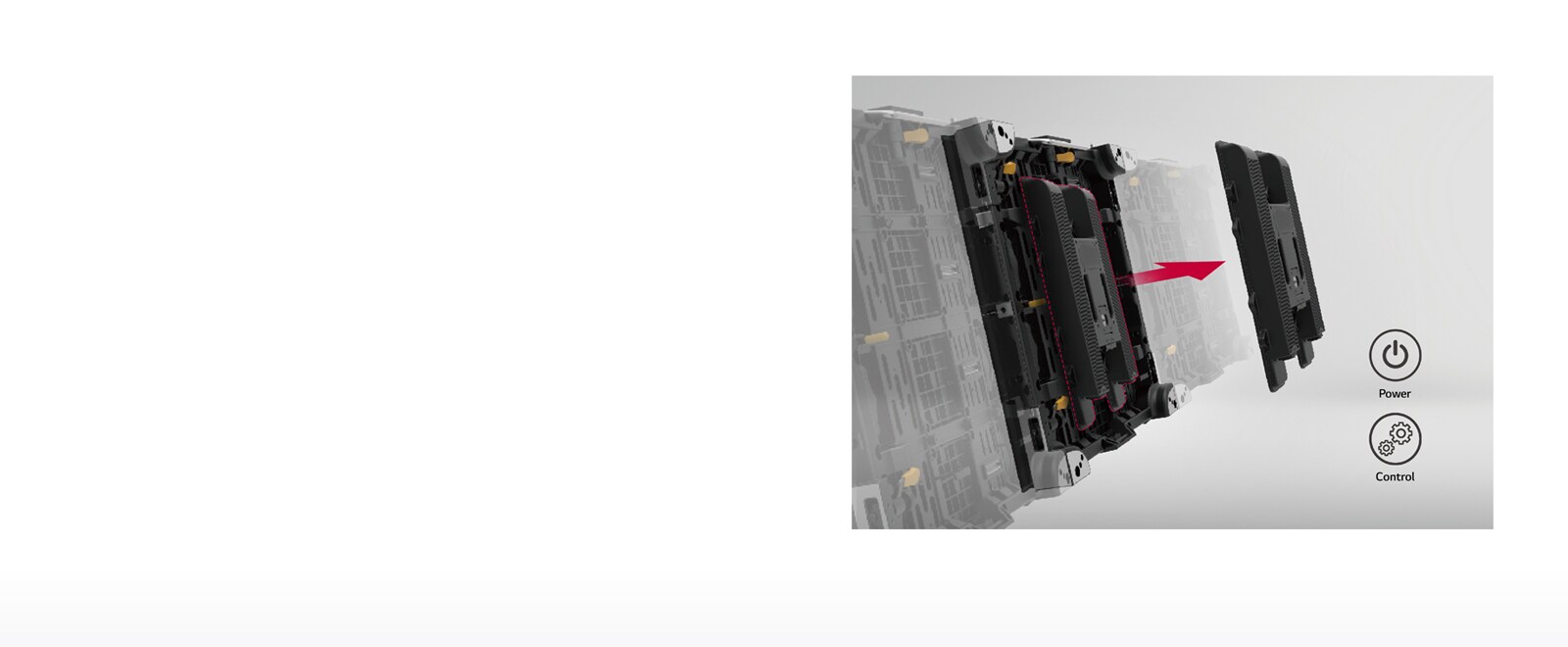

Attachable Power and Control Modules
Power and control modules attached to the unit cases can be removed easily, making it easy to fix problems that may arise.

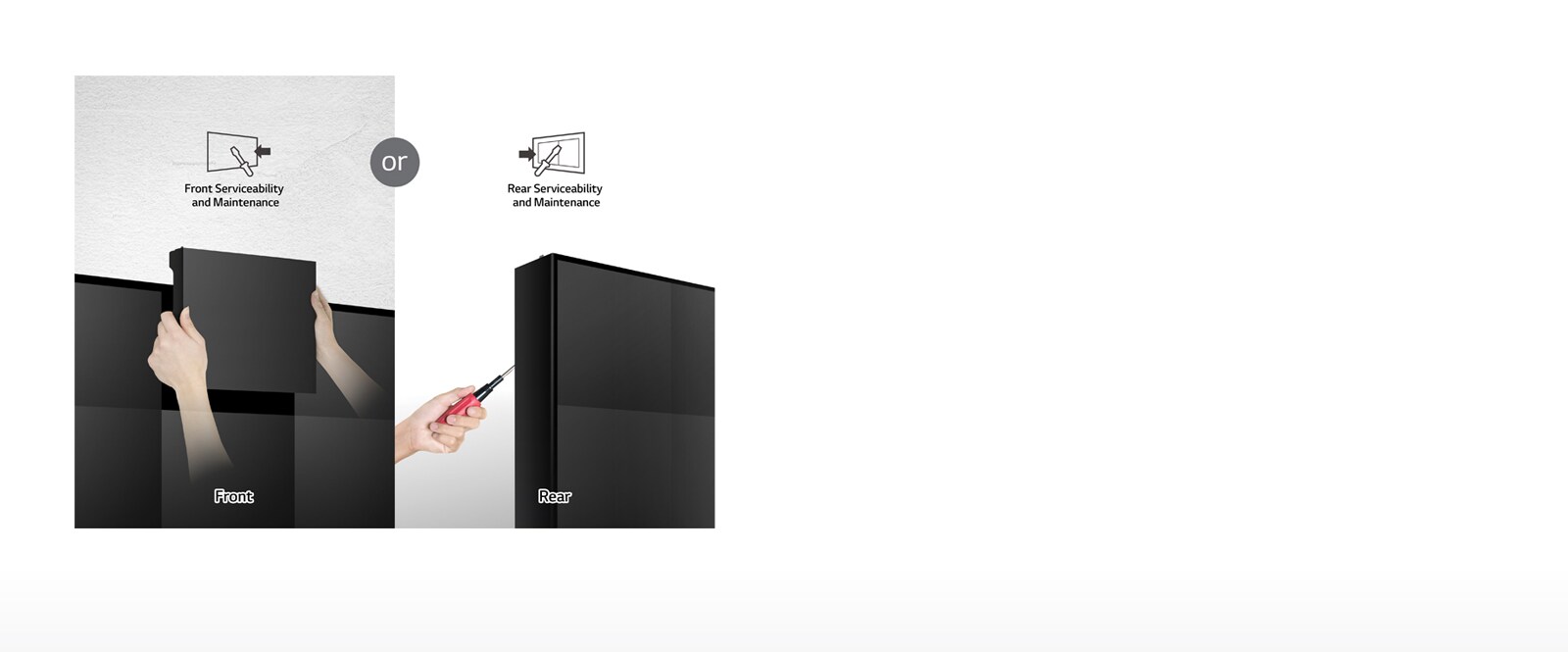

Front or Rear Serviceability and Maintenance
The product offers both front access or rear access, allowing customers to choose according to their installation environment and minimizing limitations in installation and maintenance.
Uniform Picture Quality
Every step from production is strictly managed, while factory calibration ensures consistent quality between the LED units. The display provides seamless content with 97％ brightness uniformity.
Vividness with Color Accuracy
LG’s rigorous quality standards also make LG LED signage reproduce accurate colors, vividly displaying the original colors of objects without distortion.
RoHS Certified Safe Product
Boasting RoHS certification, all LG LED signage models are environmentally-friendly products that do not use materials harmful to the environment and people.
|Pixel Configuration||3 in 1 SMD||3 in 1 SMD||3 in 1 SMD||3 in 1 SMD|
Unit Case Resolution
Unit Case Dimensions
Weight per Unit Case
/ Square Meter (kg)
|Service access||Front or Rear||Front or Rear||Front or Rear||Front or Rear|
Visual Viewing Angle
|Processing Depth (bit)||13||13||13||13|
|Power Supply (V)||100 to 240||100 to 240||100 to 240||100 to 240|
|Refresh Rate (Hz)||1,920||1,920||1,920||1,920|
|Operating Temperature(°C) / Humidity||-10° to +45°/0-80％RH||-10° to +45°/0-80％RH||-10° to +45°/0-80％RH||-10° to +45°/0-80％RH|
**Models may vary by region. Check with local salesteam for availability.
