Model Name | LAS025DB4-V | LAS025DB7-V | LAS039DB4-V | LAS039DB7-V |
---|---|---|---|---|
Pixel Configuration | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD |
Pixel Pitch(mm) | 2.50 | 2.50 | 3.90 | 3.90 |
Unit Case Resolution (WxH) |
200 x 200 | 200x200 | 128 x 128 | 128 x 128 |
Unit Case Dimensions (WxHxD, mm) |
500 x 500 x 74 | 500 x 500 x 74 | 500 x 500 x 74 | 500 x 500 x 74 |
Weight per Unit Case / Square Meter (kg) |
7.0/28.0 | 7.0/28.0 | 7.0/28.0 | 7.0/28.0 |

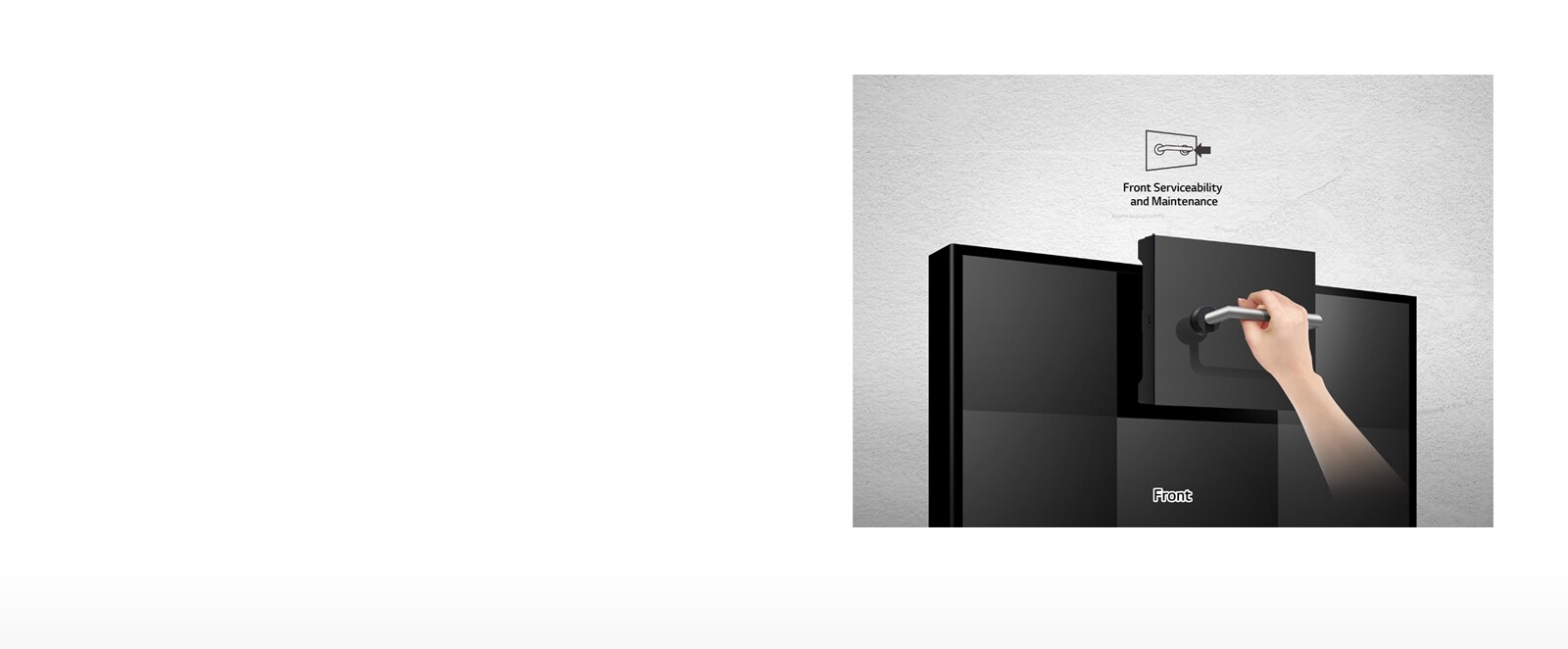

Service access | Front | Front | Front | Front |
Min. Brightness (After Calibration) |
1,000 | 1,000 | 1,000 | 1,000 |
Color Temperature | 3000 - 10000 | 3000 - 10000 | 3000 - 10000 | 3000 - 10000 |
Visual Viewing Angle (Horizontal/Vertical) |
160º/140º | 160º/140º | 160º/140º | 160º/140º |
Brightness Uniformity | 97% | 97% | 97% | 97% |
Color Uniformity | ±0.003Cx,Cy | ±0.003Cx,Cy | ±0.003Cx,Cy | ±0.003Cx,Cy |
Contrast Ratio | 8,000:1 | 8,000:1 | 8,000:1 | 8,000:1 |
Processing Depth (bit) | 16 | 16 | 16 | 16 |
Power Consumption (W/Unit, Avg./Max.) |
95/188 | 95/188 | 95/188 | 95/188 |
Power Consumption (W/m², Max.) |
750 | 750 | 750 | 750 |
Power Supply (V) | 100 to 240 | 100 to 240 | 100 to 240 | 100 to 240 |
Refresh Rate (Hz) | 3,840 | 3,840 | 3,840 | 3,840 |
Lifetime (Half brightness)* |
80,000 | 80,000 | 80,000 | 80,000 |
Operating Temperature(°C) / Humidity |
-10° to 40°/10-80%RH | -10° to 40°/10-80%RH | -10° to 40°/10-80%RH | -10° to 40° C/10-80%RH |
