LBE Standard
The LBS DOOH can withstand harmful outdoor environments and harsh weather & it stands out even on the sunniest of days. Learn more about the LBS DOOH below.
LBE Standard
The LBE Standard series is reasonable and provides versatile performance. It is available in various creative and user-friendly designs for convenient installation and maintenance.

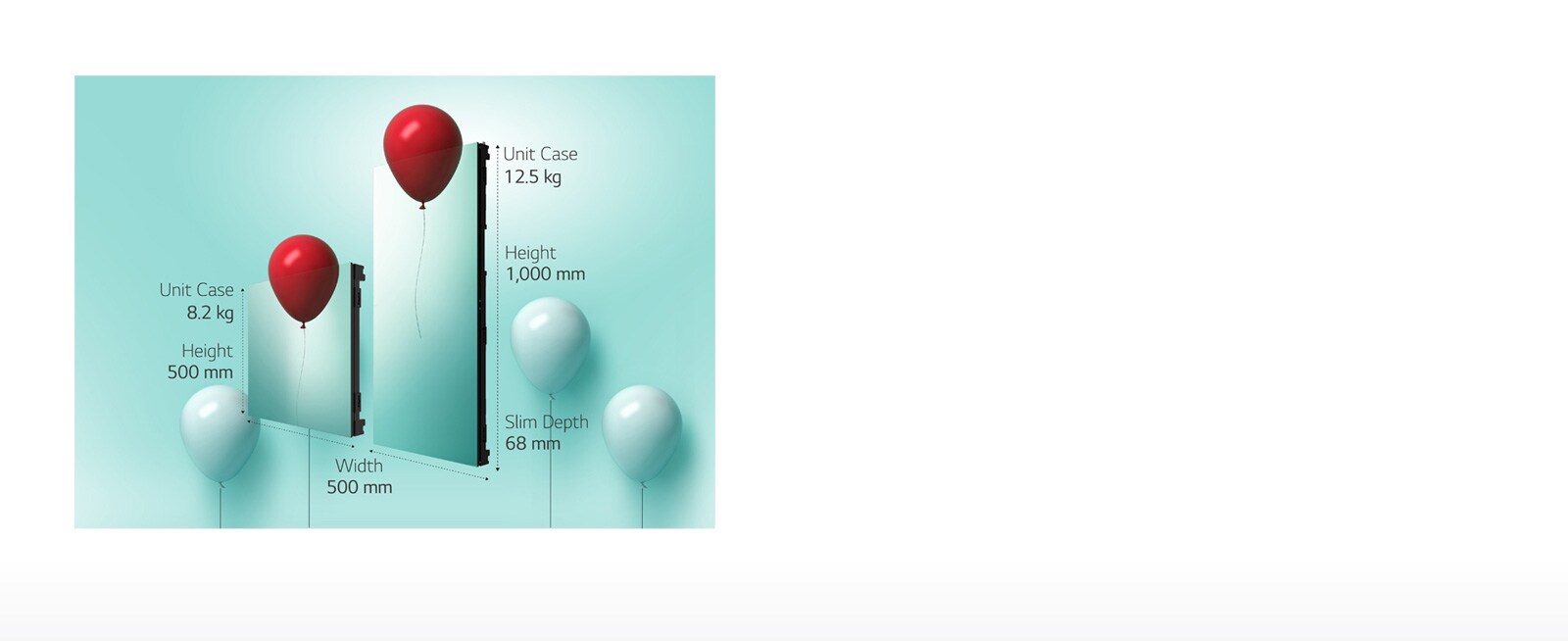

Lightweight and Slim Design
Each unit case weighs 8.2 kg or 12.5 kg, with a depth of 68 mm. This makes the screens easy to install, minimizes damage during installation, and reduces strain on the structure holding them.

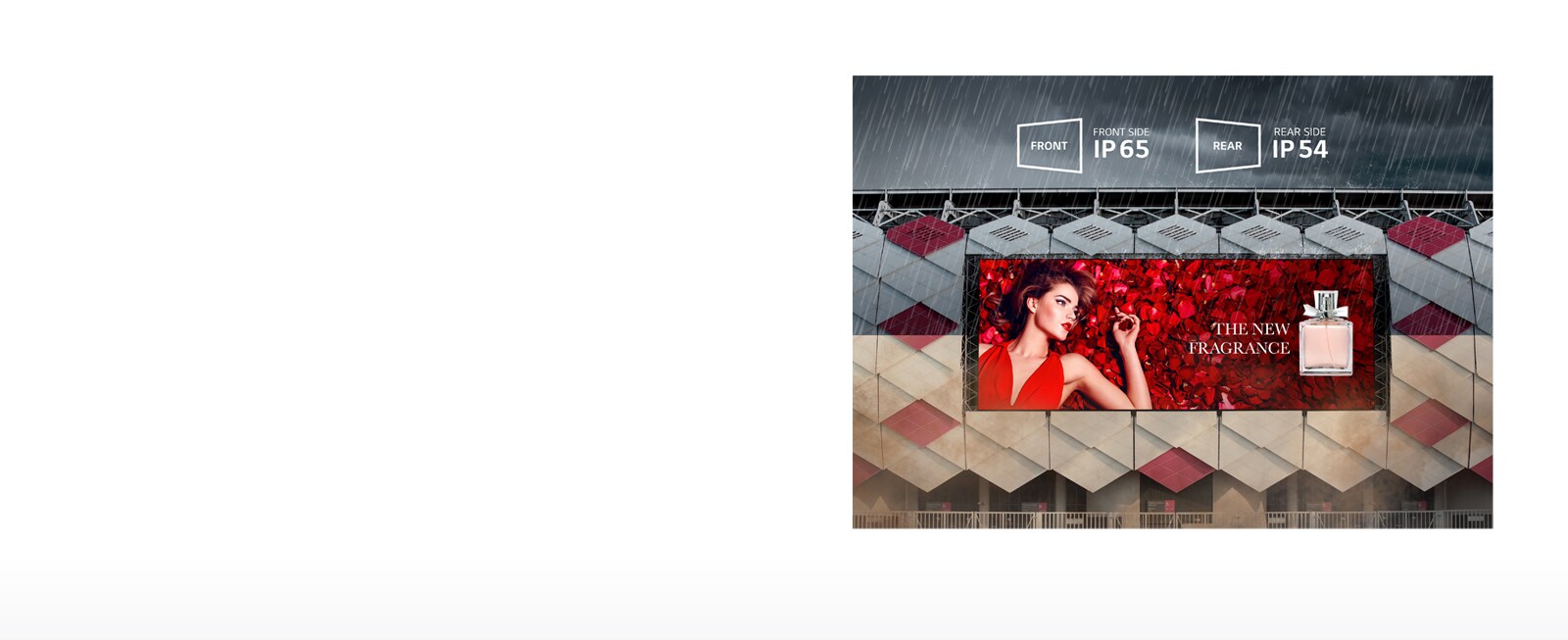

Reliable Weatherproof Design
The front and back of the unit case are IP65- and IP54-certified, respectively, allowing stable operation unaffected by weather and harmful outdoor environments.

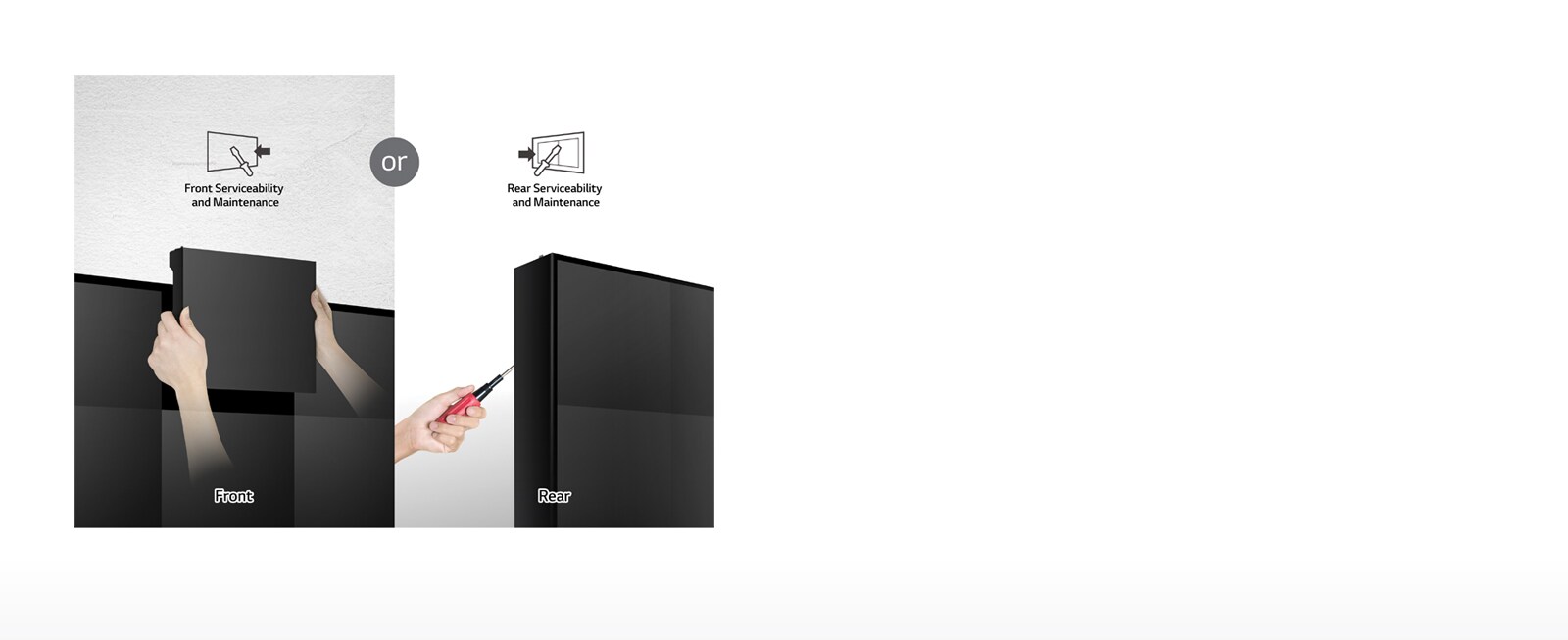

Front or Rear Serviceability
The product offers either front access or rear access, allowing customers to choose according to their installation environment and minimizing limitations in installation and maintenance.
*Support may differ by model
*Support may differ by model

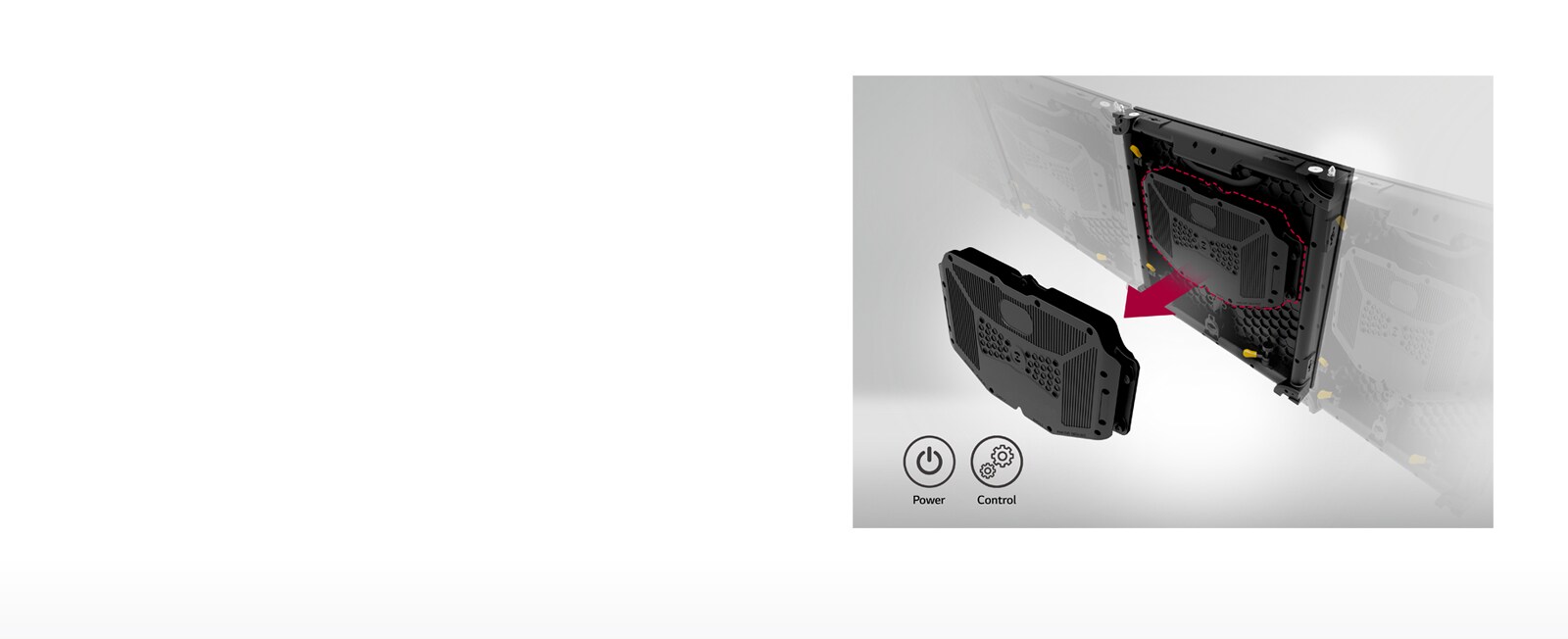

Easy Maintenance
Power and control modules attached to the unit cases can be removed easily, making it easy to fix problems that may arise.

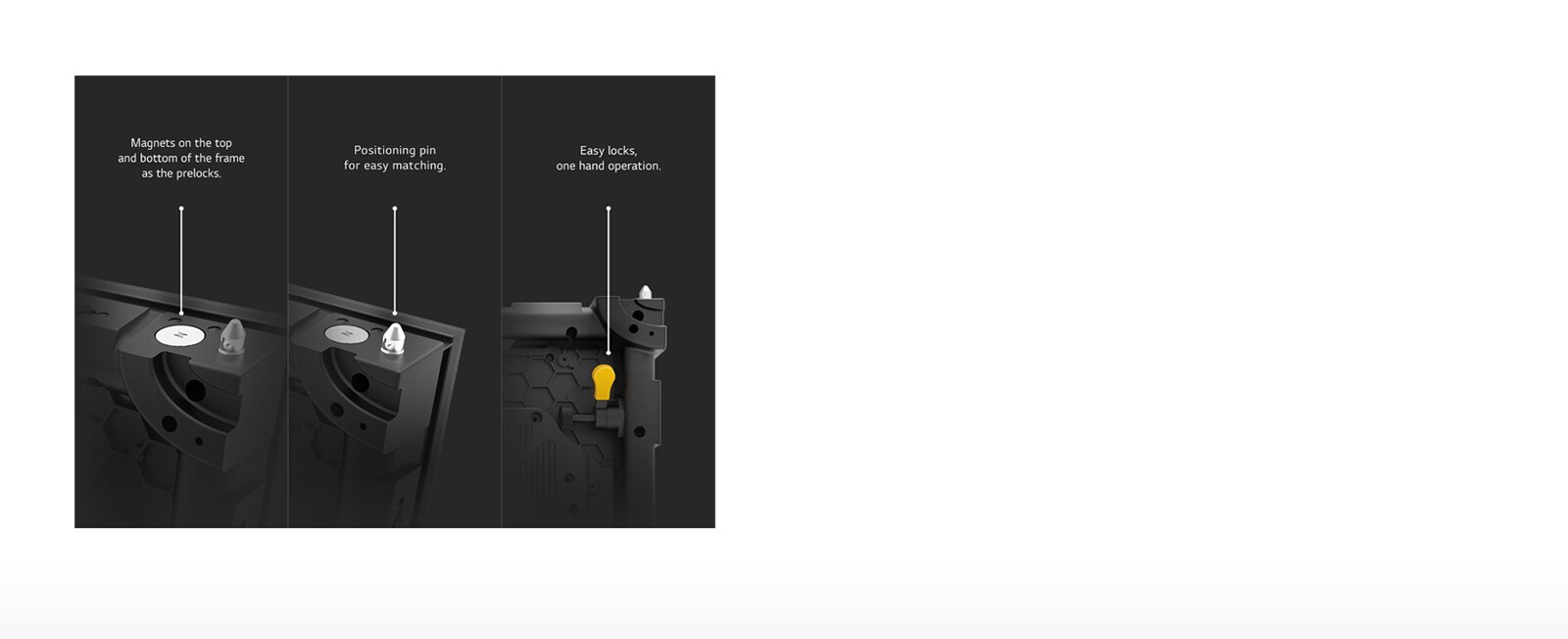

Easy Installation
Various factors including magnets on the top and bottom, positioning pins, and easy locks help installers easily set up and dismantle the screens.
Uniform Picture Quality
Every step from production is strictly managed, while factory calibration ensures consistent quality between the LED units. The display provides seamless content with 97％ brightness uniformity.
Vividness with Color Accuracy
LG’s rigorous quality standards also make LG LED signage reproduce accurate colors, vividly displaying the original colors of objects without distortion.
RoHS Certified Safe Product
Boasting RoHS certification, all LG LED signage models are environmentally-friendly products that do not use materials harmful to the environment and people.
| Model Name | LBE039DD3D | LBE039DD3 | LBE039DD4D | LBE039DD4 |
|---|---|---|---|---|
| Pixel Configuration | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD |
| Pixel Pitch(mm) | 3.91 | 3.91 | 3.91 | 3.91 |
| Unit Case Resolution (WxH) |
128x128 | 128x256 | 128x128 | 128x256 |
| Unit Case Dimensions (WxHxD, mm) |
500x500x68 | 500x1000x68 | 500x500x68 | 500x1000x68 |
| Weight per Unit Case / Square Meter (kg) |
8.2/32.8 | 12.5/25.0 | 8.2/32.8 | 12.5/25.0 |
| Service access | Front or Rear | Front or Rear | Front or Rear | Front or Rear |
| Min. Brightness (After Calibration) |
5,500 | 5,500 | 5,000 | 5,000 |
| Color Temperature | 6,500 | 6,500 | 6,500 | 6,500 |
| Visual Viewing Angle (Horizontal/Vertical) |
160/120 | 160/120 | 160/120 | 160/120 |
| Brightness Uniformity / Color Uniformity | 97％/±0.003Cx,Cy | 97％/±0.003Cx,Cy | 97％/±0.003Cx,Cy | 97％/±0.003Cx,Cy |
| Contrast Ratio | 5,000 | 5,000 | 5,000 | 5,000 |
| Processing Depth (bit) | 14 | 14 | 14 | 14 |
| Power Consumption (W/Unit, Avg./Max.) |
53/160 | 110/330 | 53/160 | 110/330 |
| Power Consumption (W/m², Max.) |
640 | 660 | 640 | 660 |
| Power Supply (V) | 100 to 240 | 100 to 240 | 100 to 240 | 100 to 240 |
| Refresh Rate (Hz) | 3,840 | 3,840 | 3,840 | 3,840 |
| Lifetime (Half brightness)* |
80,000 | 80,000 | 50,000 | 50,000 |
| Operating Temperature(°C) / Humidity | -10° to +45°/0-80％RH | -10° to +45°/0-80％RH | -10° to +45°/0-80％RH | -10° to +45°/0-80％RH |
| IP rating Front / Rear | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 |
* The Lifetime(Half brightness) spec is subject to LED package spec.
**Models may vary by region. Check with local salesteam for availability.
**Models may vary by region. Check with local salesteam for availability.
| Model Name | LBE046DD3D | LBE046DD3 | LBE046DD4D | LBE046DD4 |
|---|---|---|---|---|
| Pixel Configuration | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD |
| Pixel Pitch(mm) | 4.63 | 4.63 | 4.63 | 4.63 |
| Unit Case Resolution (WxH) |
108x108 | 108x216 | 108x108 | 108x216 |
| Unit Case Dimensions (WxHxD, mm) |
500x500x68 | 500x1000x68 | 500x500x68 | 500x1000x68 |
| Weight per Unit Case / Square Meter (kg) |
8.2/32.8 | 12.5/25.0 | 8.2/32.8 | 12.5/25.0 |
| Service access | Rear | Rear | Rear | Rear |
| Min. Brightness (After Calibration) |
5,500 | 5,500 | 5,000 | 5,000 |
| Color Temperature | 6,500 | 6,500 | 6,500 | 6,500 |
| Visual Viewing Angle (Horizontal/Vertical) |
160/120 | 160/120 | 160/120 | 160/120 |
| Brightness Uniformity / Color Uniformity | 97％/±0.003Cx,Cy | 97％/±0.003Cx,Cy | 97％/±0.003Cx,Cy | 97％/±0.003Cx,Cy |
| Contrast Ratio | 5,000 | 5,000 | 5,000 | 5,000 |
| Processing Depth (bit) | 14 | 14 | 14 | 14 |
| Power Consumption (W/Unit, Avg./Max.) |
53/160 | 110/330 | 53/160 | 110/330 |
| Power Consumption (W/m², Max.) |
640 | 660 | 640 | 660 |
| Power Supply (V) | 100 to 240 | 100 to 240 | 100 to 240 | 100 to 240 |
| Refresh Rate (Hz) | 3,840 | 3,840 | 3,840 | 3,840 |
| Lifetime (Half brightness)* |
80,000 | 80,000 | 50,000 | 50,000 |
| Operating Temperature(°C) / Humidity | -10° to +45°/0-80％RH | -10° to +45°/0-80％RH | -10° to +45°/0-80％RH | -10° to +45°/0-80％RH |
| IP rating Front / Rear | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 |
* The Lifetime(Half brightness) spec is subject to LED package spec.
**Models may vary by region. Check with local salesteam for availability.
**Models may vary by region. Check with local salesteam for availability.
| Model Name | LBE069DD3D | LBE069DD3 | LBE069DD4D | LBE069DD4 |
|---|---|---|---|---|
| Pixel Configuration | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD |
| Pixel Pitch(mm) | 6.94 | 6.94 | 6.94 | 6.94 |
| Unit Case Resolution (WxH) |
72x72 | 72x144 | 72x72 | 72x72 |
| Unit Case Dimensions (WxHxD, mm) |
500x500x68 | 500x1000x68 | 500x500x68 | 500x1000x68 |
| Weight per Unit Case / Square Meter (kg) |
8.2/32.8 | 12.5/25.0 | 8.2/32.8 | 12.5/25.0 |
| Service access | Rear | Rear | Rear | Rear |
| Min. Brightness (After Calibration) |
5,500 | 5,500 | 5,000 | 5,000 |
| Color Temperature | 6,500 | 6,500 | 6,500 | 6,500 |
| Visual Viewing Angle (Horizontal/Vertical) |
160/120 | 160/120 | 160/120 | 160/120 |
| Brightness Uniformity / Color Uniformity | 97％/±0.003Cx,Cy | 97％/±0.003Cx,Cy | 97％/±0.003Cx,Cy | 97％/±0.003Cx,Cy |
| Contrast Ratio | 5,000 | 5,000 | 5,000 | 5,000 |
| Processing Depth (bit) | 14 | 14 | 14 | 14 |
| Power Consumption (W/Unit, Avg./Max.) |
53/160 | 110/330 | 53/160 | 110/330 |
| Power Consumption (W/m², Max.) |
640 | 660 | 640 | 660 |
| Power Supply (V) | 100 to 240 | 100 to 240 | 100 to 240 | 100 to 240 |
| Refresh Rate (Hz) | 3,840 | 3,840 | 3,840 | 3,840 |
| Lifetime (Half brightness)* |
80,000 | 80,000 | 50,000 | 50,000 |
| Operating Temperature(°C) / Humidity | -10° to +45°/0-80％RH | -10° to +45°/0-80％RH | -10° to +45°/0-80％RH | -10° to +45°/0-80％RH |
| IP rating Front / Rear | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 |
* The Lifetime(Half brightness) spec is subject to LED package spec.
**Models may vary by region. Check with local salesteam for availability.
**Models may vary by region. Check with local salesteam for availability.
