LBE DOOH

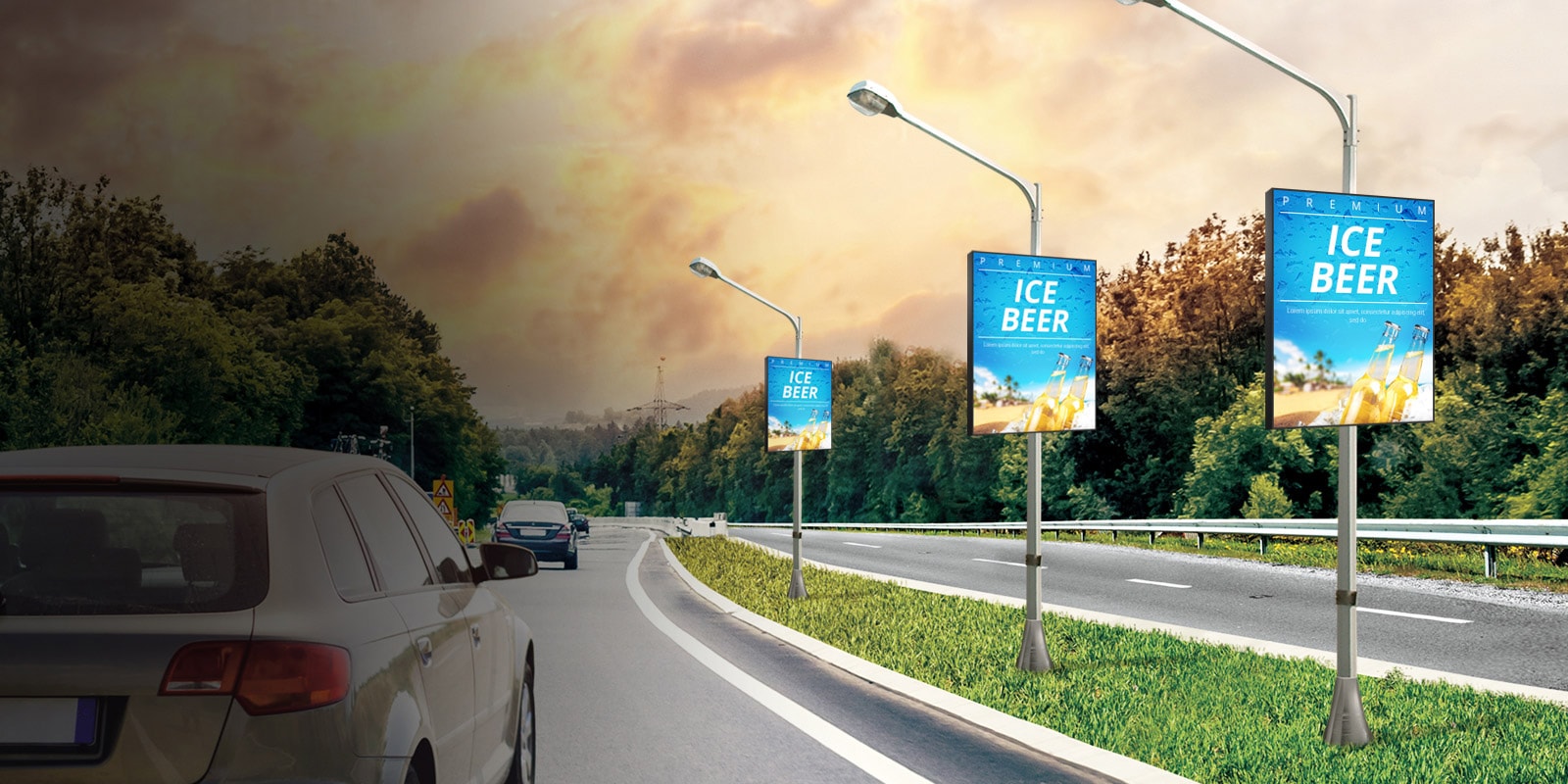

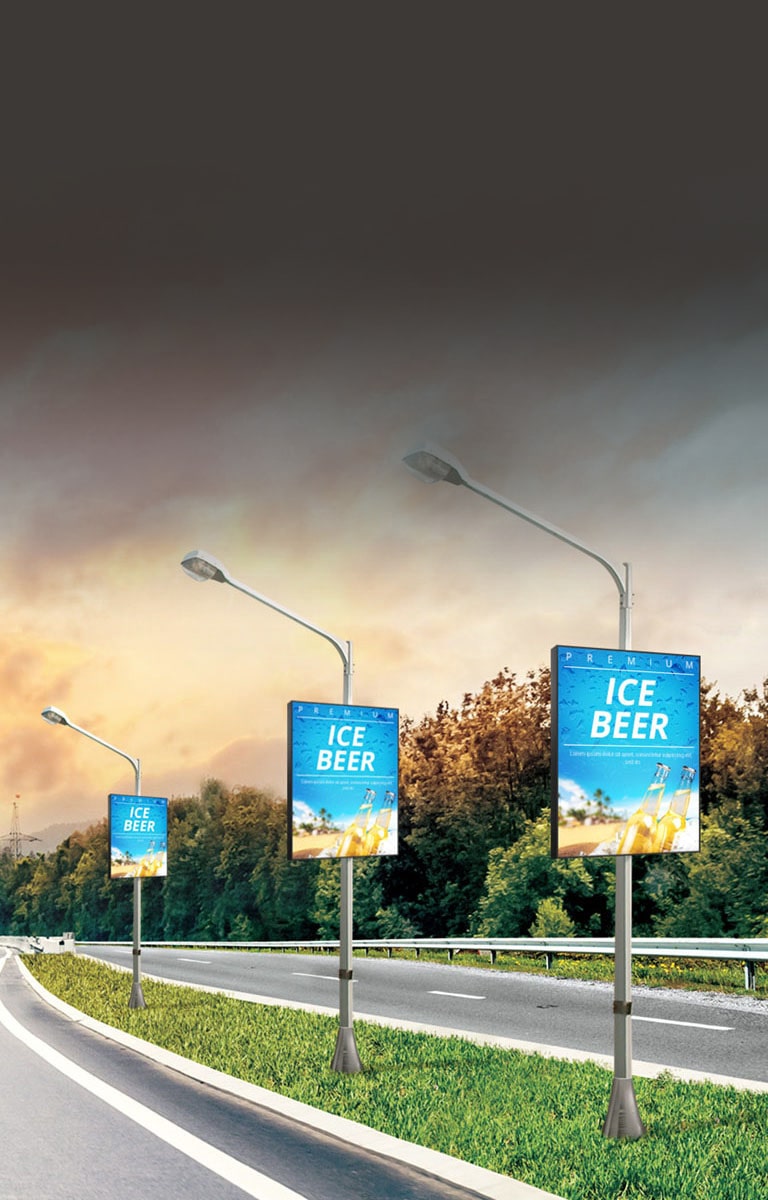

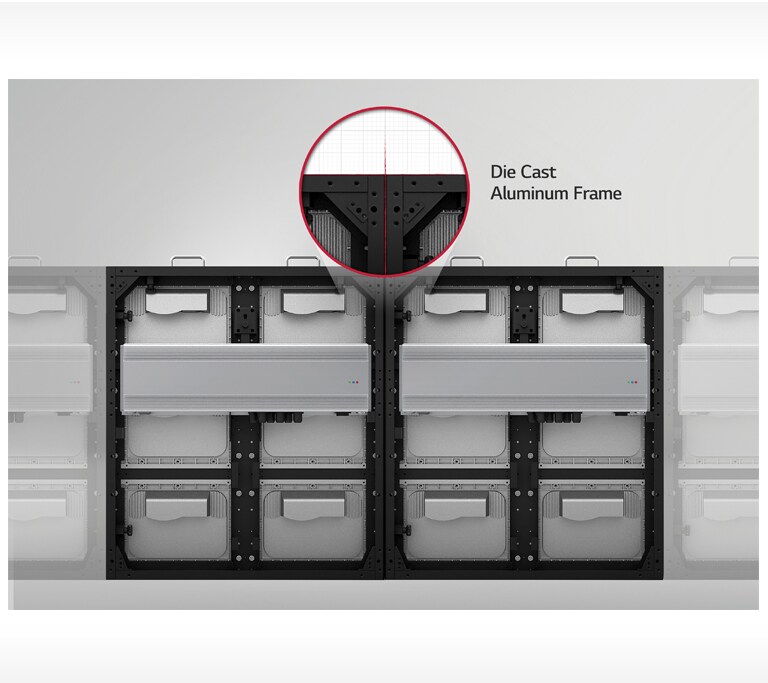

RoHS compliant, the LBE DOOH is a great outdoor digital signage display. Panels attach to each other seamlessly, offering a uniform picture quality. Learn more below.

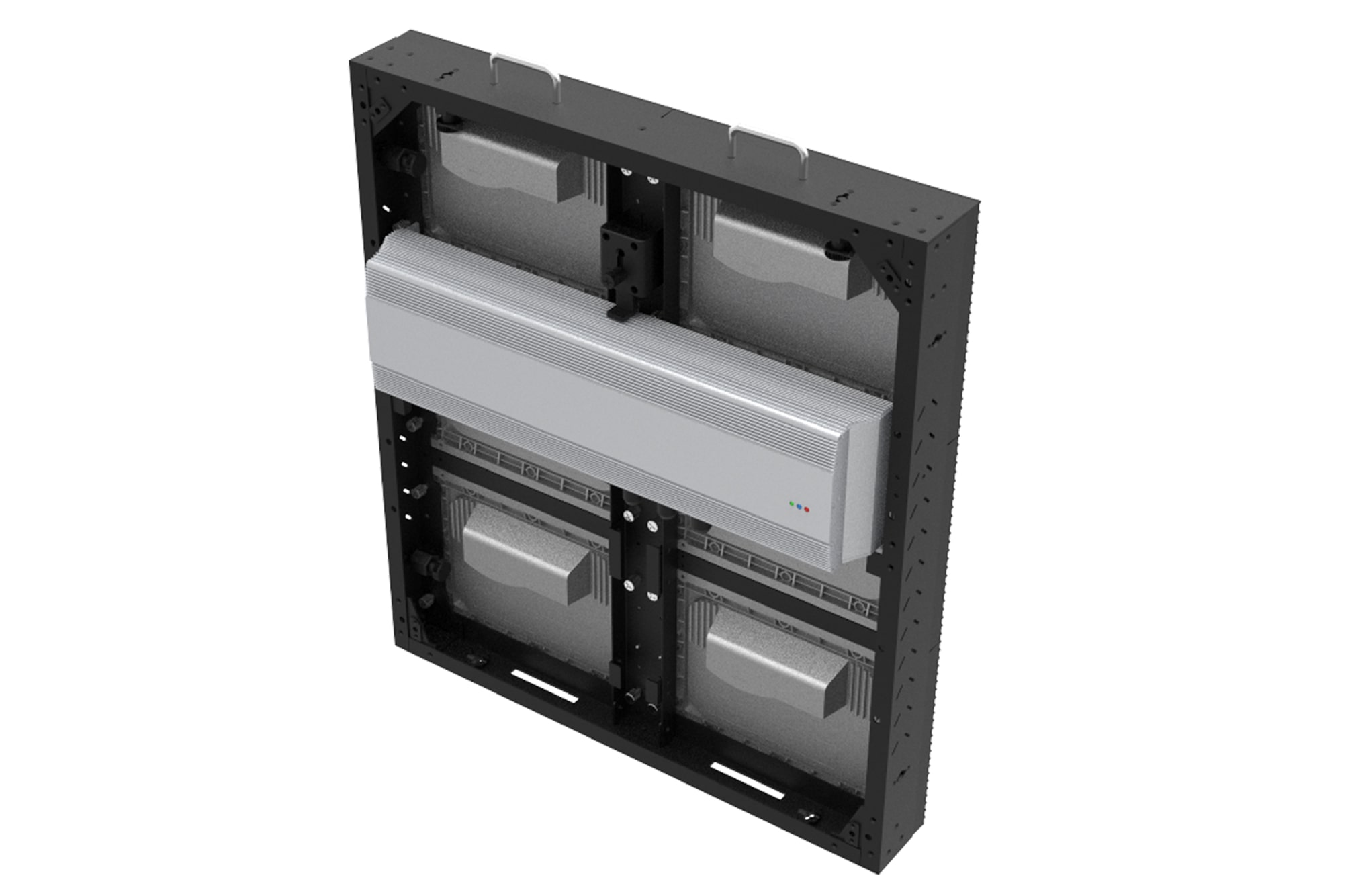

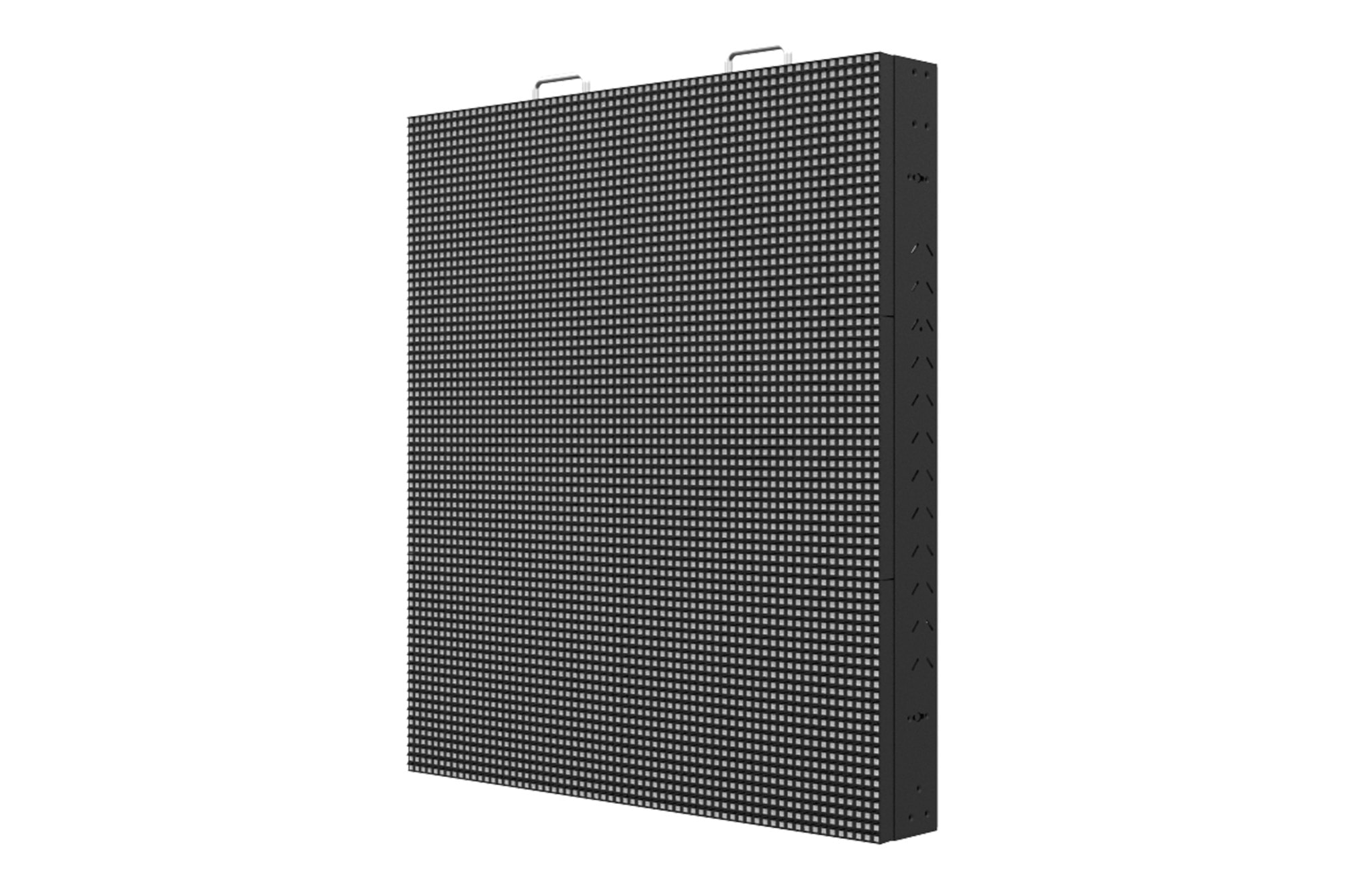

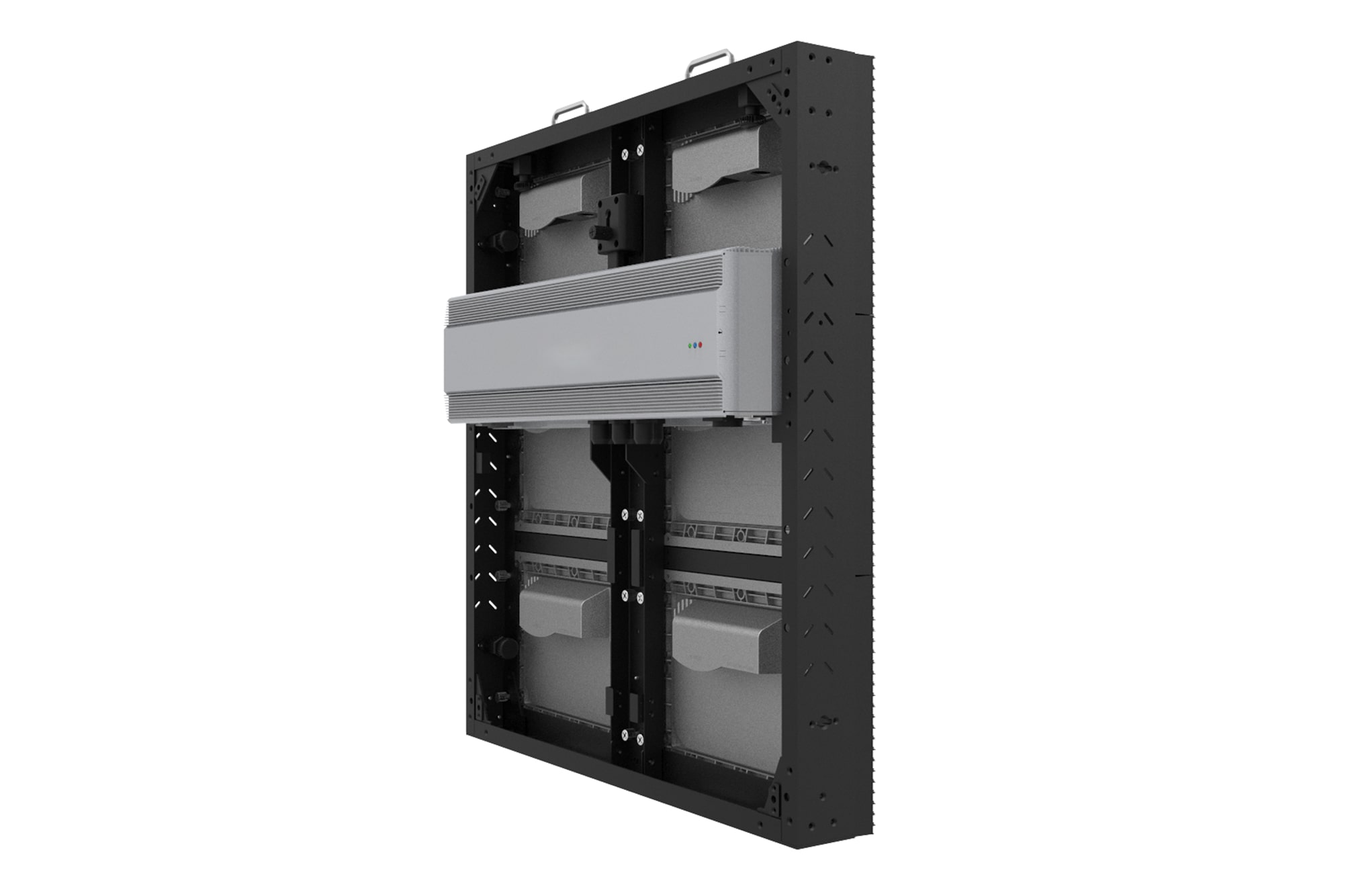

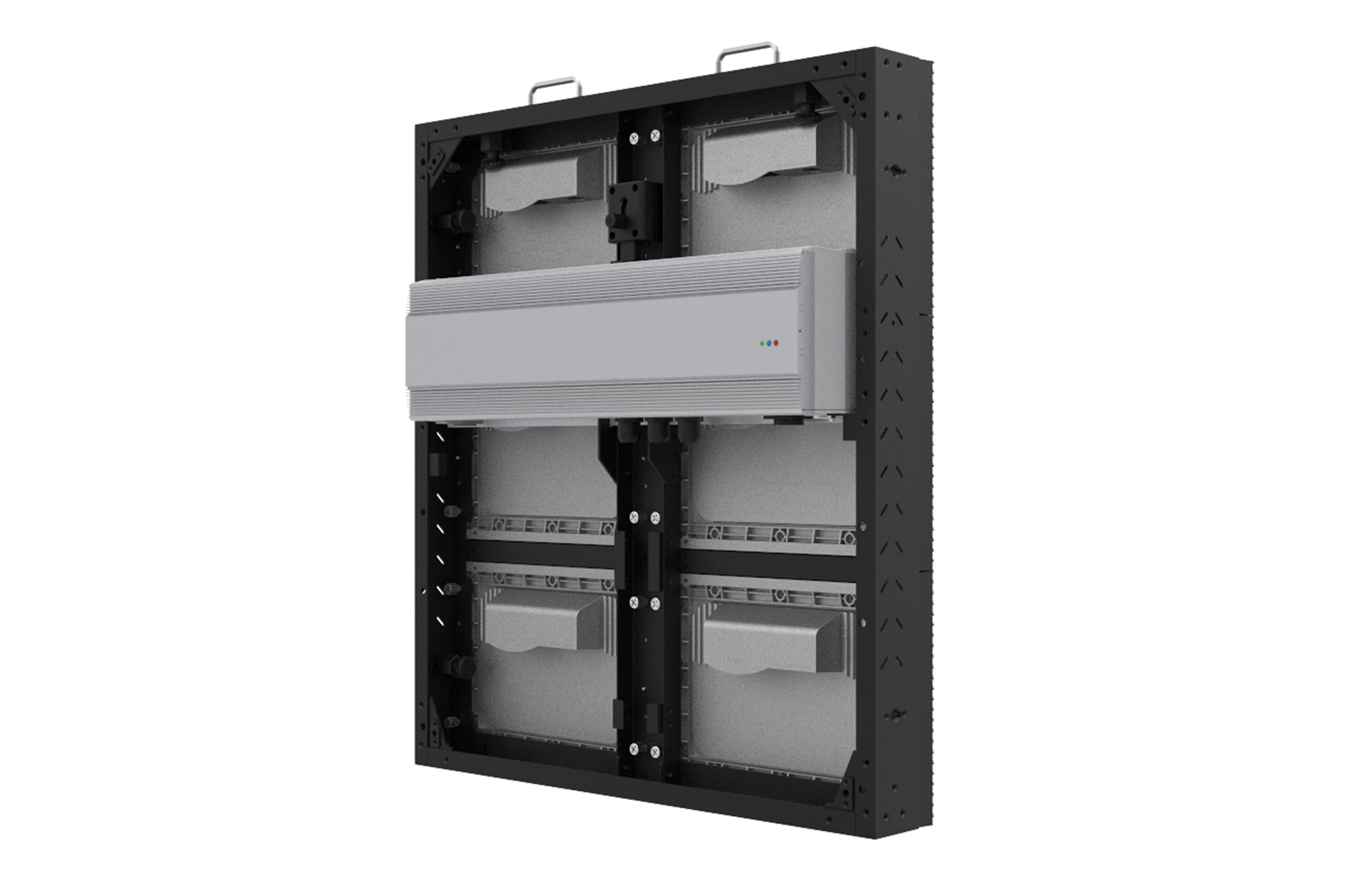

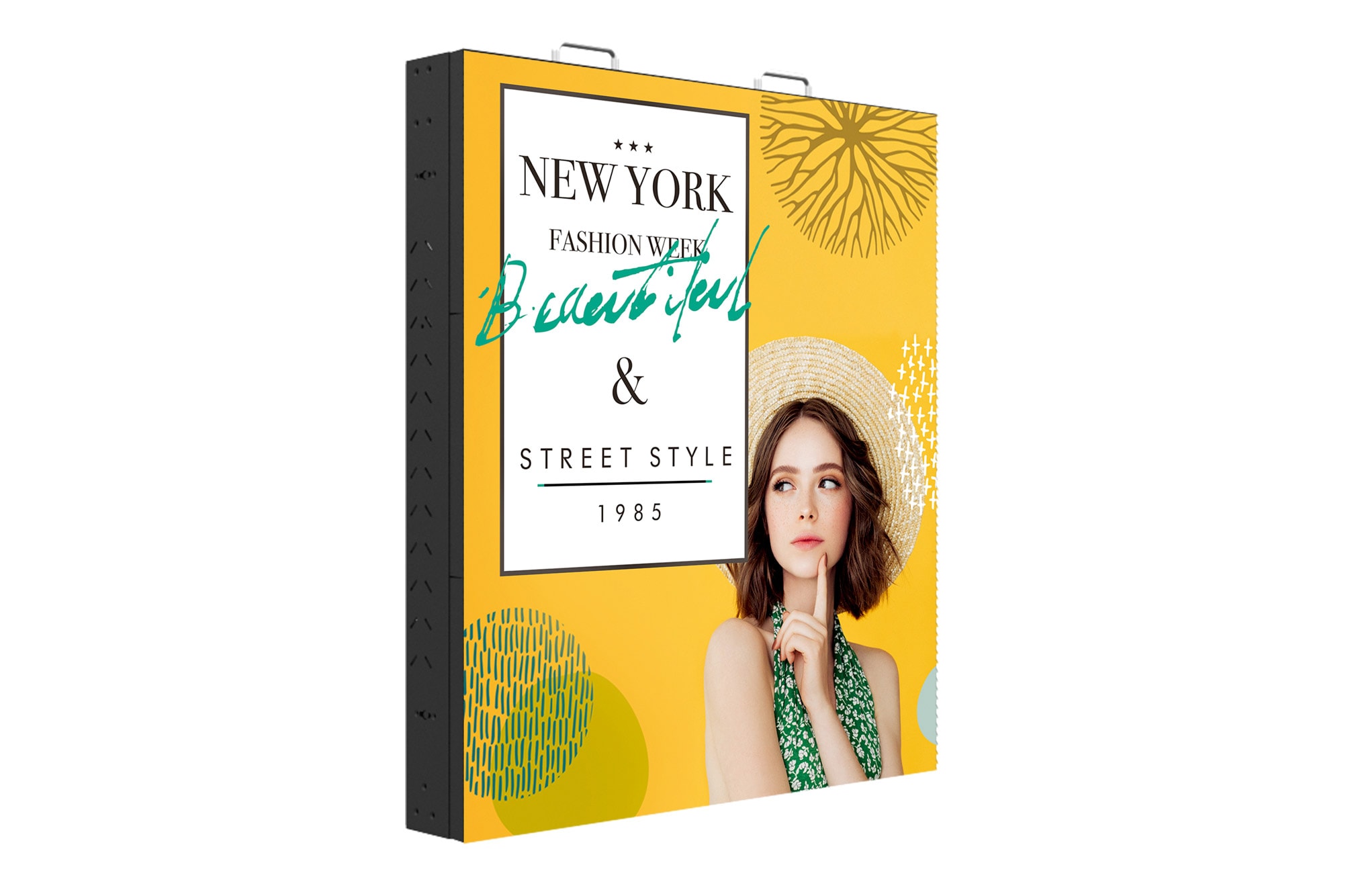

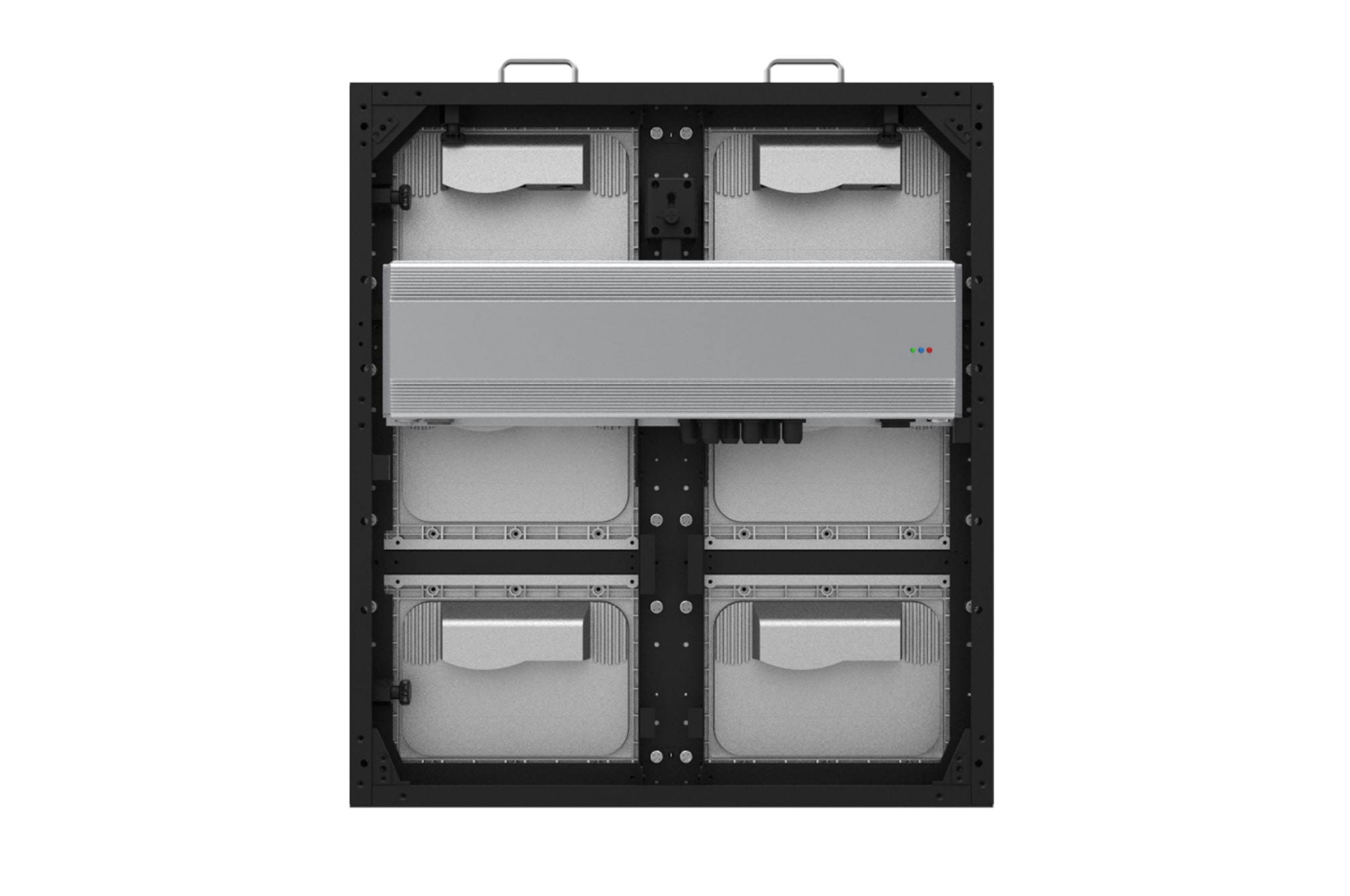

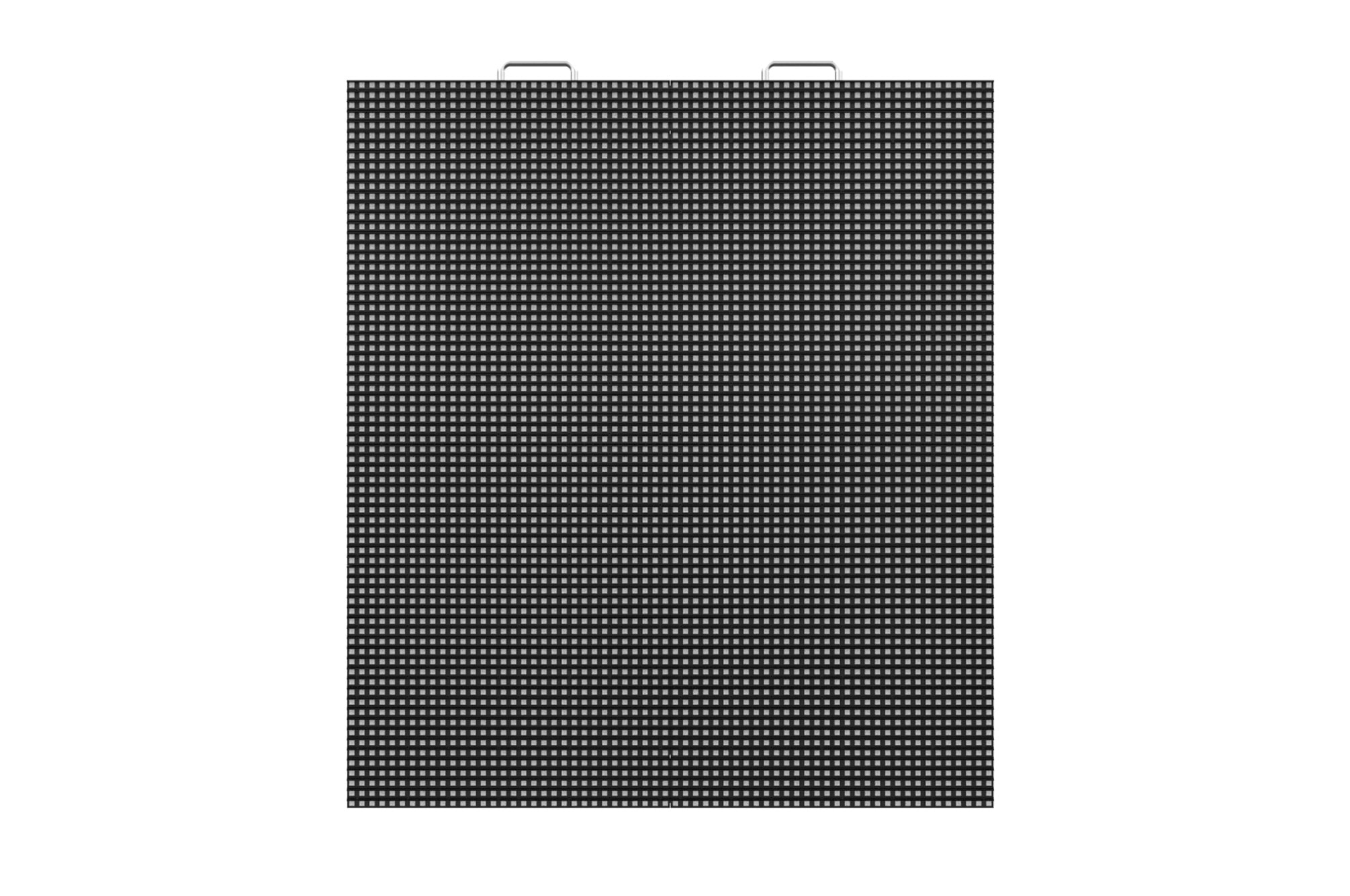

Gallery
Model Name LBE040DD4 LBE080DD3 LBE080DD4
Pixel Configuration 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD
Pixel Pitch(mm) 4.00 8.00 8.00
Unit Case Resolution
(WxH)
160x180 80x90 80x90
Unit Case Dimensions
(WxHxD, mm)
640x720x90 640x720x90 640x720x90
Weight per Unit Case
/ Square Meter (kg)
17.0/36.9 17.0/36.9 17.0/36.9

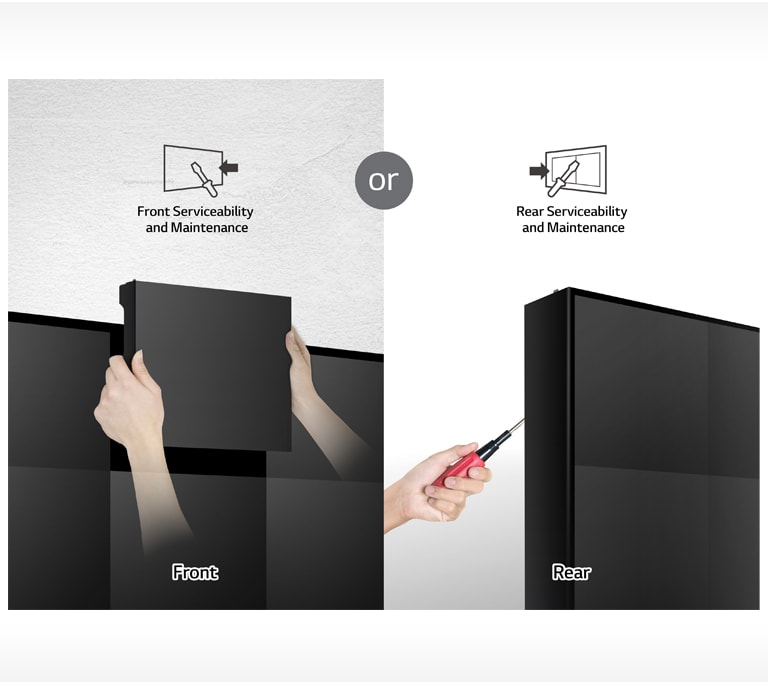

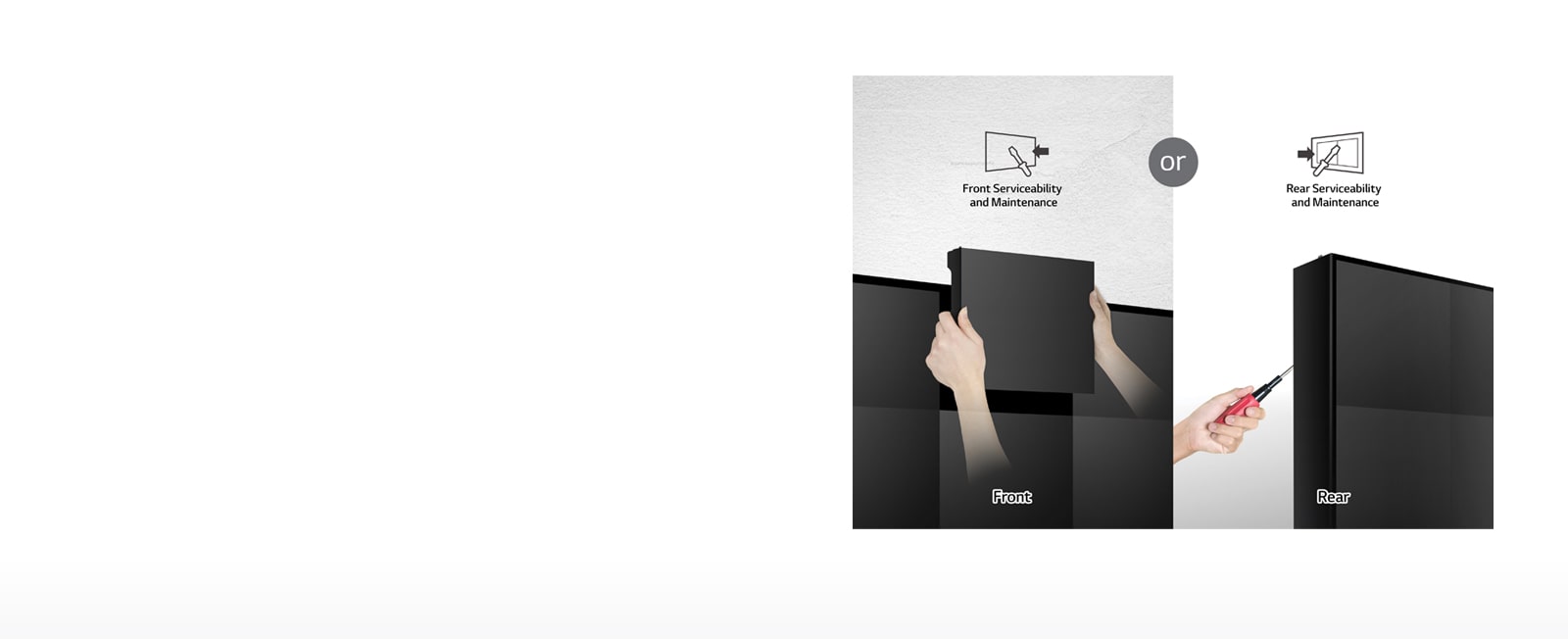

Service access Rear Front or Rear Front or Rear
Min. Brightness
(After Calibration)
5,000 5,500 5,000
Color Temperature 6,500 6,500 6,500
Visual Viewing Angle
(Horizontal/Vertical)
160/120 160/120 160/120
Brightness Uniformity / Color Uniformity ≥97%/±0.003Cx,Cy ≥97%/±0.003Cx,Cy ≥97%/±0.003Cx,Cy
Contrast Ratio 5,000 5,000 5,000
Processing Depth (bit) 14 14 14
Power Consumption
(W/Unit, Avg./Max.)
120/360 110/330 110/330
Power Consumption
(W/m², Max.)
780 720 720
Power Supply (V) 100 to 240 100 to 240 100 to 240
Refresh Rate (Hz) 3,840 3,840 3,840
Lifetime (Half brightness)* 50,000 80,000 50,000
Operating Temperature(°C) /
Humidity
-10° to 45°/0-80%RH -10° to 45°/0-80%RH a -10° to 45°/0-80%RH

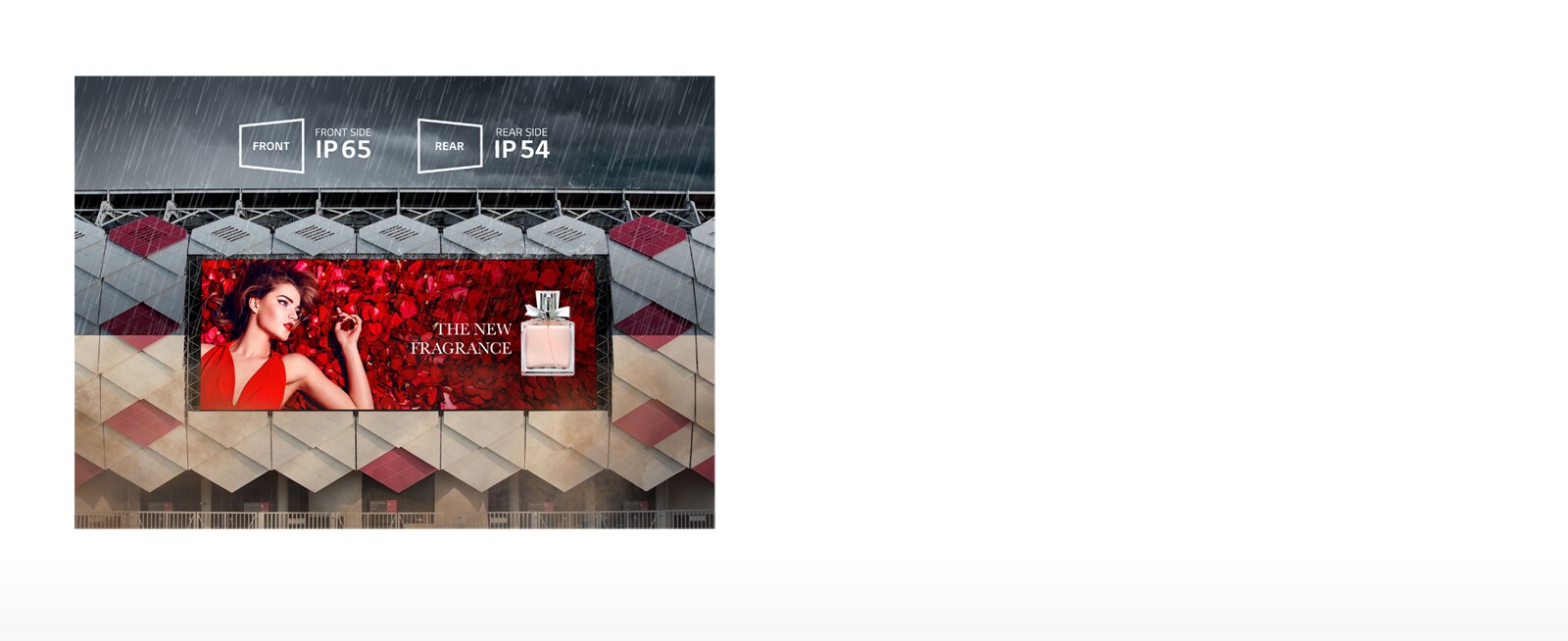

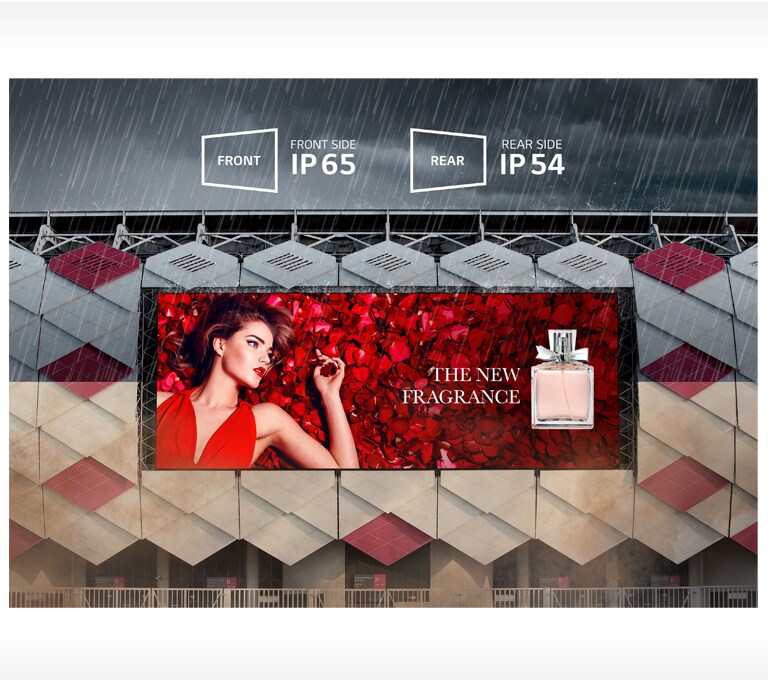

IP rating Front / Rear IP65/IP54 IP65/IP54 IP65/IP54
* The Lifetime(Half brightness) spec is subject to LED package spec.
**Models may vary by region. Check with local salesteam for availability.
Model Name LBE100DD3 LBE100DD4
Pixel Configuration 3 in 1 SMD 3 in 1 SMD
Pixel Pitch(mm) 10.00 10.00
Unit Case Resolution
(WxH)
64x72 64x72
Unit Case Dimensions
(WxHxD, mm)
640x720x90 640x720x90
Weight per Unit Case
/ Square Meter (kg)
17.0/36.9 17.0/36.9
Service access Front or Rear Front or Rear
Min. Brightness
(After Calibration)
5,500 5,000
Color Temperature 6,500 6,500
Visual Viewing Angle
(Horizontal/Vertical)
160/120 160/120
Brightness Uniformity / Color Uniformity ≥97%/±0.003Cx,Cy ≥97%/±0.003Cx,Cy
Contrast Ratio 5,000 5,000
Processing Depth (bit) 14 14
Power Consumption
(W/Unit, Avg./Max.)
110/330 110/330
Power Consumption
(W/m², Max.)
720 720
Power Supply (V) 100 to 240 100 to 240
Refresh Rate (Hz) 3,840 3,840
Lifetime
(Half brightness)*
80,000 50,000
Operating Temperature(°C) /
Humidity
-10° to 45°/0-80%RH -10° to 45°/0-80%RH
IP rating Front / Rear IP65/IP54 IP65/IP54
* The Lifetime(Half brightness) spec is subject to LED package spec.
**Models may vary by region. Check with local salesteam for availability.
