LBH High Brightness

The LBE Standard comes with a weatherproof design & is lightweight & slim, making it perfect for use outdoors. Find out more about the LBE standard display below.

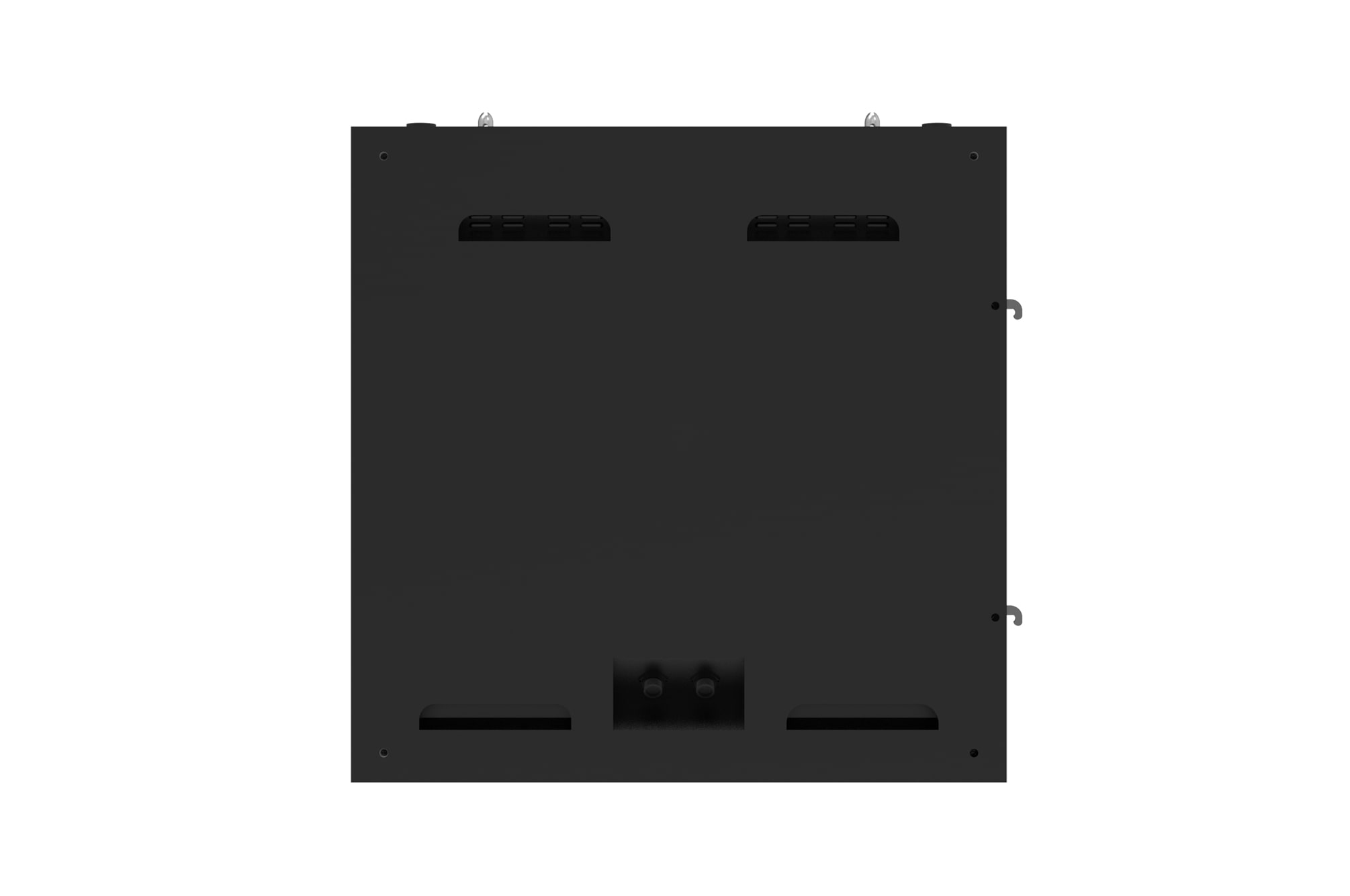

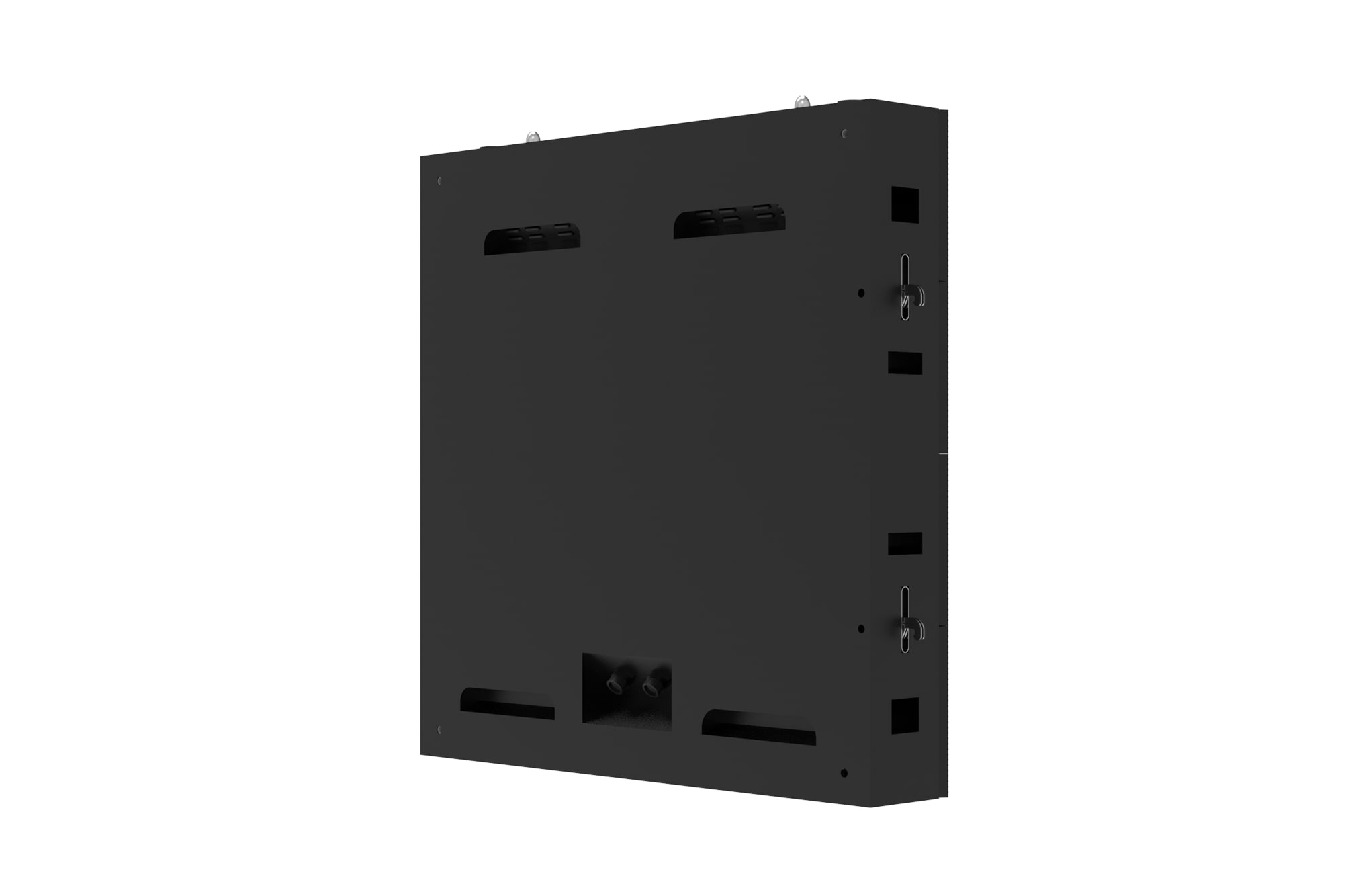

Gallery
Vertical Table
Model Name LBH062DD5-B
(LBE062DD5-B)
LBH106VD3-B
(LBE106VD3-B)
LBH160VD3DB
(LBE160VD3DB)
Pitch Name P6.25 P10 P16
Pixel Configuration 3 in 1 SMD Oval Oval
Pixel Pitch(mm) 6.25 10.66 16.00
Module Resolution (WxH) 40x40 24x24 16x16
Module Dimensions(WxH,mm) 250x250 256x256 256x256
Weight per Module (kg) 1.00 1.60 1.60
LED Package Manufacturer Nationstar-RS Multicolor Multicolor
No. of Modules per Unit Case
(WxH)
4x4 4x4 4x4
Unit Case Resolution (WxH) 160x160 96x96 64x64
Unit Case Dimensions (W x H x D, mm) 1000x1000x172 1024x1024x150 1024x1024x150
Unit Case Surface Area (㎡) 1.000 1.048 1.048
Weight per Unit Case (kg/unit) 60.0 47.0 47.0
Weight per Square Meter (kg/㎡) 60.0 45.0 45.0
Physical Pixel Density (pixels/㎡) 25,600 8,789 3,906
Flatness of Unit Case (mm) ±0.5 ±0.5 ±0.5
Unit Case material Aluminum Aluminum Aluminum
Service access Front Front or Rear Front or Rear
Min. Brightness (After Calibration) 6,000 6,000 8,000
Color Temperature 6,500 6,500 6,500
Vertical Table
Visual Viewing Angle
(Horizontal)
110 160 110
Visual Viewing Angle (Vertical) 110 120 60
Brightness Uniformity 97% 97% 97%
Color Uniformity ±0.003Cx,Cy ±0.003Cx,Cy ±0.003Cx,Cy
Contrast Ratio 5000 5000 5000
Processing Depth (bit) 14 14 16
Power Consumption (W/Unit, Max.) 650 682 650
Power Consumption (W/Unit, Avg.) 220 220 220
Power Consumption (W/㎡, Max.) 650 650 650
Power Supply (V) 100 to 240 100 to 240 100 to 240
Frame Rate (Hz) 50 / 60 50 / 60 50 / 60
Refresh Rate (Hz) 3,000 3,840 3,000
Lifetime (Half brightness) 80,000 80,000 80,000
Operating Temperature(℃) -10∘to +55∘ -10∘to +45∘ -10∘to +55∘
Operating Humidity 0-80%RH 0-80%RH 0-80%RH
IP rating Front IP65 IP65 IP65
IP rating Rear IP54 IP54 IP54
*The Lifetime(Half brightness) spec is subject to LED package spec.
**Models may vary by region. Check with local salesteam.
