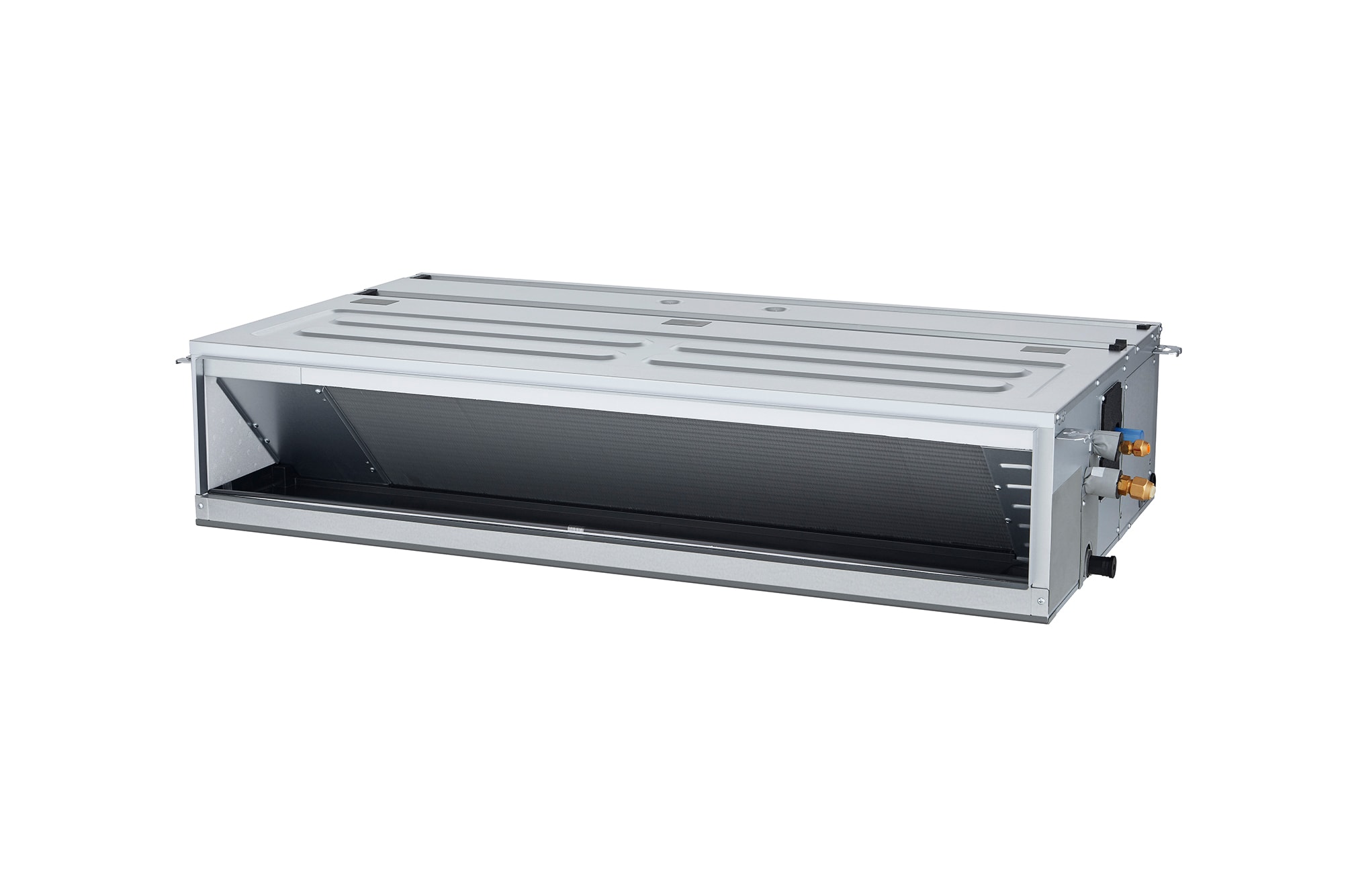

ARNU42GM2A4

component-OBScountrySelectDesc

CAPACITY

  • Cooling - kW
    12.3
    Cooling - kcal/h
    10,600
  • Cooling - Btu/h
    42,000
    Heating - kW
    13.8
  • Heating - kcal/h
    11,800
    Heating - Btu/h
    47,000

POWER INPUT

  • Power Input(H / M / L) - W
    231 / 162 / 111

CASING

  • Casing
    Galvanized Steel Plate

DIMENSIONS (W × H × D)

  • Body - ㎜
    1,250 × 270 × 700
    Body - inch
    49-7/32 × 10-5/8 × 27-9/16

COIL

  • Rows × Columns × FPI
    3 × 13 × 18
    Face Area - m²
    0.27

FAN

  • Type
    Sirocco Fan
    Motor Output × Number - W × No.
    350 × 1
  • Running Current - A
    2.3
    Air Flow Rate(H / M / L) (High Mode-Factory Set) - m³/min
    38.0 / 33.0 / 28.0
  • Air Flow Rate(H / M / L) (High Mode-Factory Set) - ft³/min
    1,342 / 1,165 / 989
    External Static Pressure (High Mode) - ㎜Aq(Pa)
    6 (59)
  • Air Flow Rate (H / M / L) (Standard Mode) - m³/min
    38.0 / 33.0 / 28.0
    Air Flow Rate (H / M / L) (Standard Mode) - ft³/min
    1,342 / 1,165 / 989
  • External Static Pressure (Standard Mode) - ㎜Aq(Pa)
    5 (49)
    Drive
    Direct
  • Motor type
    BLDC

TEMPERATURE CONTROL

  • Temperature Control
    Microprocessor, Thermostat for cooling and heating

SOUND ABSORBING THERMAL INSULATION MATERIAL

  • Sound Absorbing Thermal Insulation Material
    Foamed polystyrene

SAFETY DEVICE

  • Safety Device
    Fuse

PIPE CONNECTIONS

  • Liquid Side - ㎜(inch)
    Ø 9.52 (3/8)
    Gas Side - ㎜(inch)
    Ø 15.88 (5/8)
  • Drain Pipe(Internal Dia.) - ㎜(inch)
    Ø 25 (1)

NET WEIGHT

  • Body - kg(lbs)
    39.5 (87)

SOUND PRESSURE LEVELS

  • H / M / L - dB(A)
    42 / 41 / 39

SOUND POWER LEVELS

  • H / M / L - dB(A)
    62 / 61 / 60

POWER SUPPLY

  • Power Supply - Ø, V, Hz
    1, 220-240, 50
    1, 220, 60

REFRIGERANT CONTROL

  • Refrigerant Control
    EEV

TRANSMISSION CABLE

  • Transmission Cable - ㎟ × Cores
    1.0-1.5 × 2C
