ARNU96GB8A4

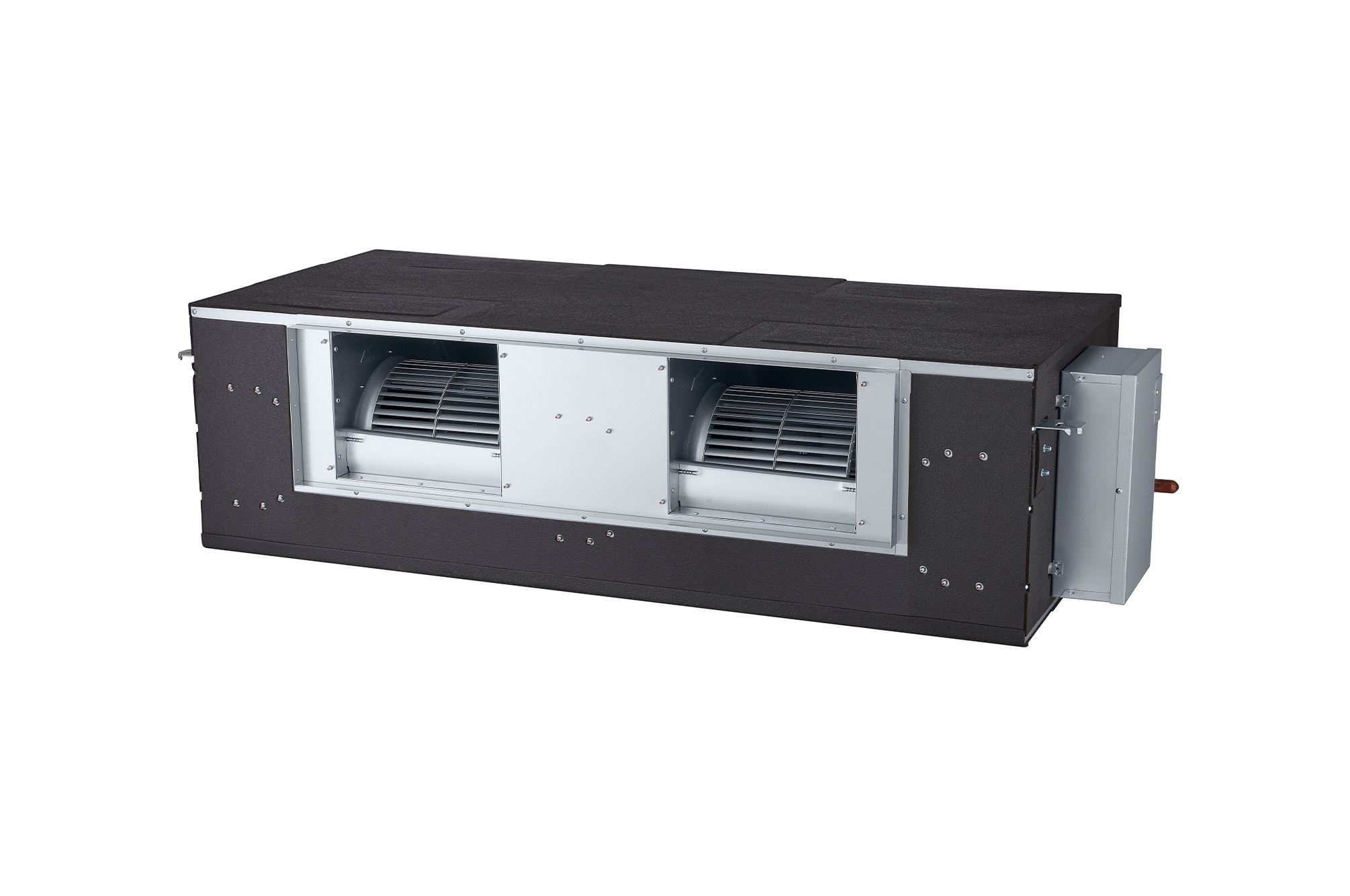

Ceiling Concealed AC 28 KW ARNU96GB8A4 Series

component-OBScountrySelectDesc

Ceiling Concealed AC 28 KW ARNU96GB8A4 Series
CAPACITY
  • Cooling - kW
    28.0
    Cooling - kcal/h
    24,100
  • Cooling - Btu/h
    95,900
    Heating - kW
    31.5
  • Heating - kcal/h
    27,100
    Heating - Btu/h
    107,500
POWER INPUT
  • Power Input(H / M / L) - W
    800 / 750 / 750
CASING
  • Casing
    Galvanized Steel Plate
DIMENSIONS (W × H × D)
  • Body - ㎜
    1,562 × 460 × 688
    Body - inch
    61-1/2 × 18-1/8 × 27-3/32
COIL
  • Rows × Columns × FPI
    3 × 21 × 19
    Face Area - m²
    0.59
FAN
  • Type
    Sirocco Fan
    Motor Output × Number - W × No.
    375 × 2
  • Running Current - A
    5.2
    Air Flow Rate(H / M / L) (High Mode-Factory Set) - m³/min
    72.0 / 64.0 / 64.0
  • Air Flow Rate(H / M / L) (High Mode-Factory Set) - ft³/min
    2,542 / 2,260 / 2,260
    External Static Pressure (High Mode) - ㎜Aq(Pa)
    22 (216)
  • Air Flow Rate (H / M / L) (Standard Mode) - m³/min
    76.0 / 64.0 / 64.0
    Air Flow Rate (H / M / L) (Standard Mode) - ft³/min
    2,684 / 2,260 / 2,260
  • External Static Pressure (Standard Mode) - ㎜Aq(Pa)
    15 (147)
    Drive
    Direct
  • Motor type
    BLDC
TEMPERATURE CONTROL
  • Temperature Control
    Microprocessor, Thermostat for cooling and heating
SOUND ABSORBING THERMAL INSULATION MATERIAL
  • Sound Absorbing Thermal Insulation Material
    Foamed polystyrene
SAFETY DEVICE
  • Safety Device
    Fuse
PIPE CONNECTIONS
  • Liquid Side - ㎜(inch)
    Ø 9.52 (3/8)
    Gas Side - ㎜(inch)
    Ø 22.2 (7/8)
  • Drain Pipe(Internal Dia.) - ㎜(inch)
    Ø 25 (1)
NET WEIGHT
  • Body - kg(lbs)
    87.0 (192)
SOUND PRESSURE LEVELS
  • H / M / L - dB(A)
    47 / 42 / 41
SOUND POWER LEVELS
  • H / M / L - dB(A)
    68 / 64 / 62
POWER SUPPLY
  • Power Supply - Ø, V, Hz
    1, 220-240, 50
    1, 220, 60
REFRIGERANT CONTROL
  • Refrigerant Control
    EEV
TRANSMISSION CABLE
  • Transmission Cable - ㎟ × Cores
    1.0-1.5 × 2C
  • Catalog
    • 2020_MEA_MULTI_V_catalog_Long version.pdf
    • 21_CAC_Retrofit_Sales Guide Book_v10_High.pdf
    • FINAL_AC_Catalogue_ M_Eng_low res.pdf
