ARNU96GB8Z4

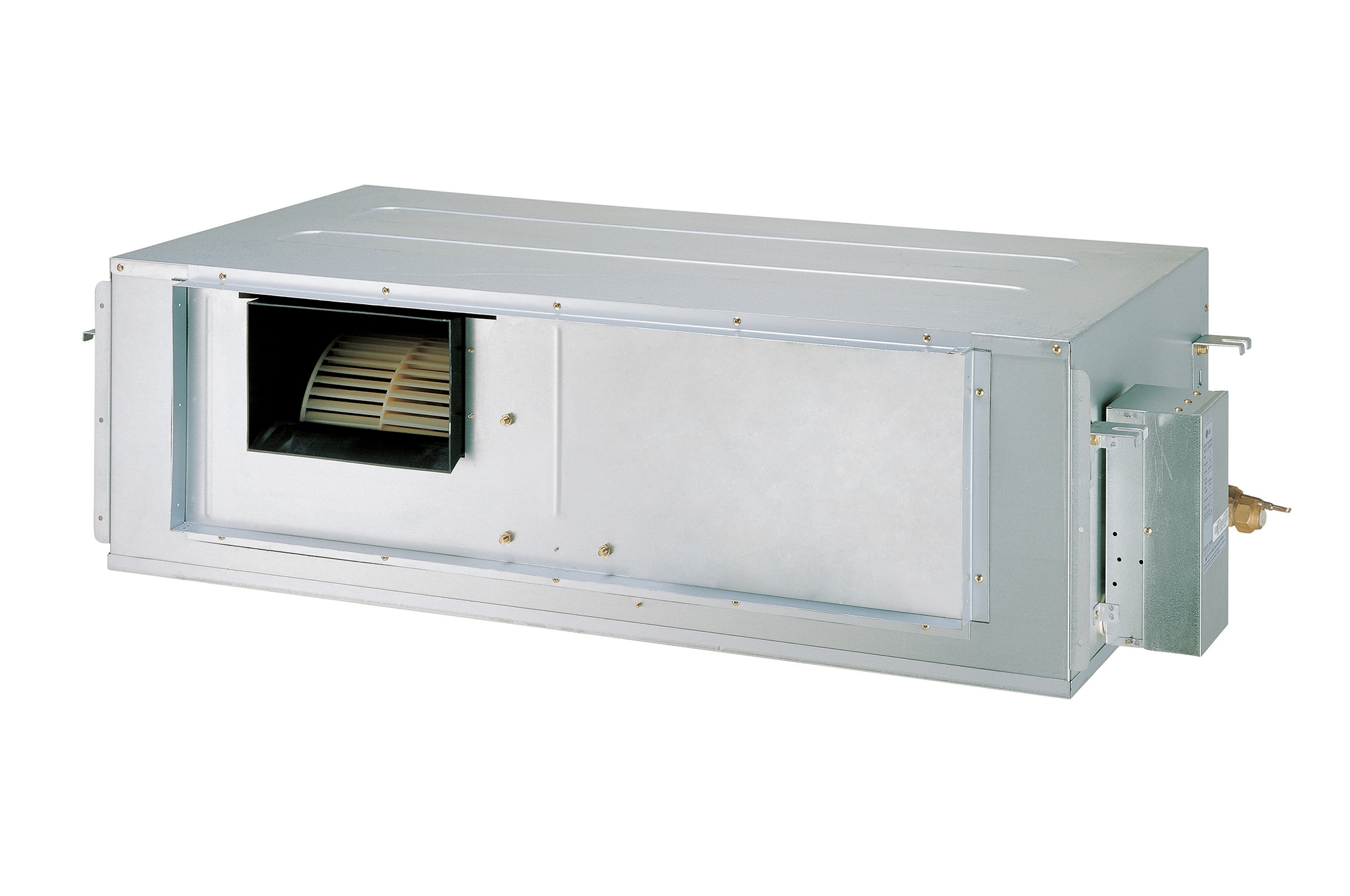

Ceiling Concealed AC 28 KW ARNU96GB8Z4 Series

component-OBScountrySelectDesc

Ceiling Concealed AC 28 KW ARNU96GB8Z4 Series
CAPACITY
  • Cooling - kW
    28.0
    Cooling - kcal/h
    24,100
  • Cooling - Btu/h
    95,900
    Heating - kW
    26.7
  • Heating - kcal/h
    23,000
    Heating - Btu/h
    91,360
POWER INPUT
  • Power Input(H / M / L) - W
    360 / 230 / 230
CASING
  • Casing
    Galvanized Steel Plate
DIMENSIONS (W × H × D)
  • Body - ㎜
    1,562 × 460 × 688
    Body - inch
    61-1/2 × 18-1/8 × 27-3/32
COIL
  • Rows × Columns × FPI
    3 × 20 × 19
    Face Area - m²
    0.59
FAN
  • Type
    Sirocco Fan
    Motor Output × Number - W × No.
    375 × 1
  • Running Current - A
    2.15
    Full Load Amperes - A
    2.15
  • Air Flow Rate(H / M / L) (High Mode-Factory Set) - m³/min
    35.7 / 23.7 / 23.7
    Air Flow Rate(H / M / L) (High Mode-Factory Set) - ft³/min
    1,261 / 837 / 837
  • External Static Pressure (High Mode) - ㎜Aq(Pa)
    22 (216)
    Drive
    Direct
  • Motor type
    BLDC
TEMPERATURE CONTROL
  • Temperature Control
    Microprocessor, Thermostat for cooling and heating
SOUND ABSORBING THERMAL INSULATION MATERIAL
  • Sound Absorbing Thermal Insulation Material
    Foamed polystyrene
AIR FILTER
  • Air Filter
    Long Life Filter
SAFETY DEVICE
  • Safety Device
    Fuse
PIPE CONNECTIONS
  • Liquid Side - ㎜(inch)
    Ø 9.52 (3/8)
    Gas Side - ㎜(inch)
    Ø 22.2 (7/8)
  • Drain Pipe(Internal Dia.) - ㎜(inch)
    Ø 25 (1)
NET WEIGHT
  • Body - kg(lbs)
    73.0 (161)
SOUND PRESSURE LEVELS
  • H / M / L - dB(A)
    47 / 45 / 45
SOUND POWER LEVELS
  • H / M / L - dB(A)
    72 / 70 / 70
POWER SUPPLY
  • Power Supply - Ø, V, Hz
    1, 220-240, 50
    1, 220, 60
REFRIGERANT CONTROL
  • Refrigerant Control
    EEV
TRANSMISSION CABLE
  • Transmission Cable - ㎟ × Cores
    1.0-1.5 × 2C
