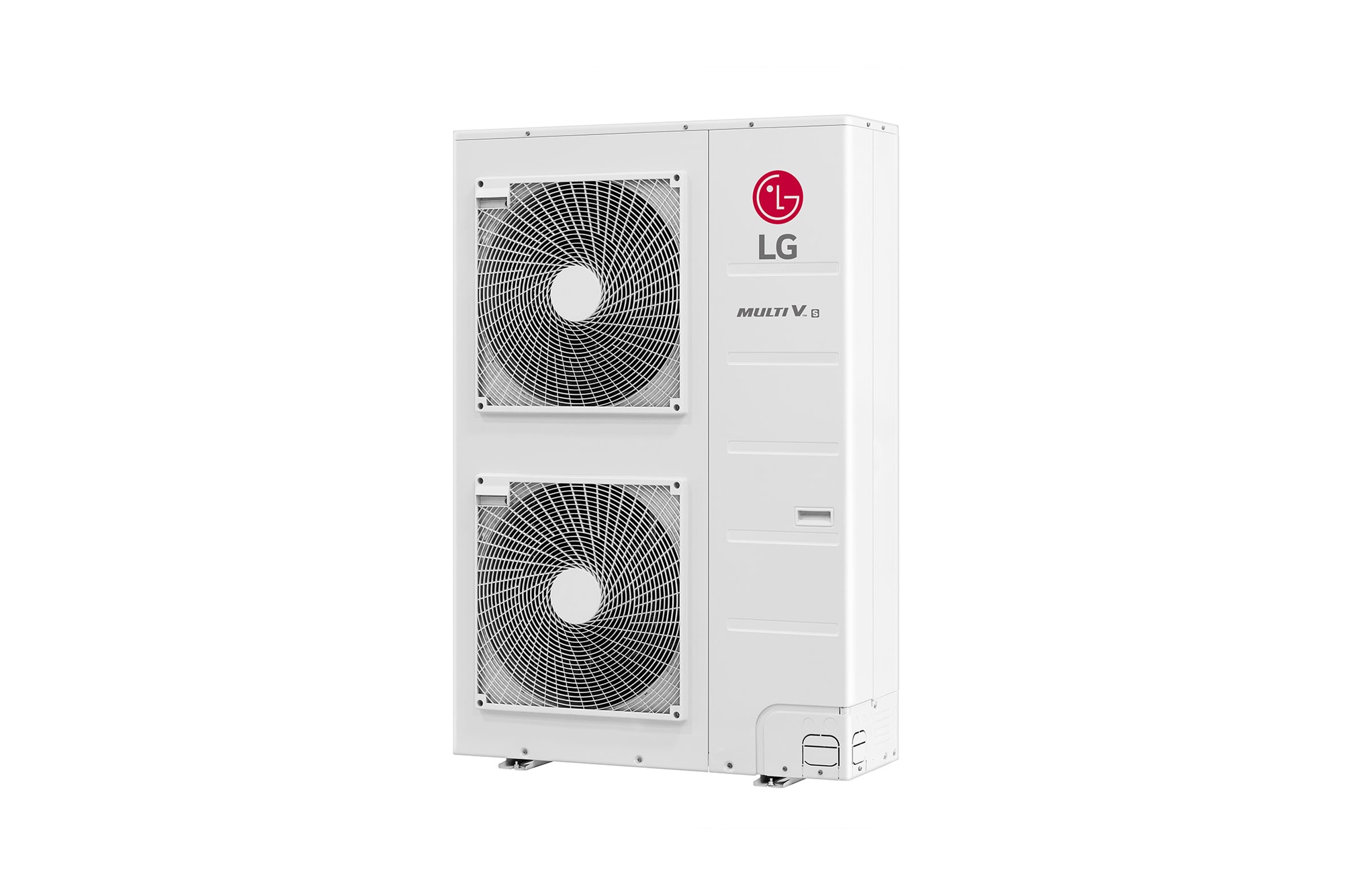

ARUN080LSH0
Multi V S VRF 6.4 TR, Maximized Efficiency, Compact Outdoor, Smart Load Control
  • MULTI V S
  • Maximized Efficiency
  • LG's 4th Generation Inverter
  • Smart Load Control
  • MULTI V S Line Up
Multi V S VRF 6.4 TR, Maximized Efficiency, Compact Outdoor, Smart Load Control
MSRP AED
  • Quick Operating Response1 Quick Operating Response2

    Quick Operating Response

    Operation response gets faster and more accurate with pressure sensor. Pressure control gets 14% faster in cooling mode, improving user comfort.

  • Optimal Heat Exchanger Circuit 1 Optimal Heat Exchanger Circuit 2

    Optimal Heat Exchanger Circuit

    The variable heat exchanger circuit intelligently selects optimal paths for both heating and cooling operation. This increases efficiency up to 5%.

  • Heat Exchanger with Wide Louver Plus Fin1 Heat Exchanger with Wide Louver Plus Fin2

    Heat Exchanger with Wide Louver Plus Fin

    Heat exchanger efficiency is improved up to 7% with wide louver plus fin by slowing down the frosting and postponing the defrosting operation.

  • World's Best Class Compressor Speed1

    World's Best Class Compressor Speed

    With wider frequency range from 15Hz to 150Hz, MULTI V S improves part load efficiency, enhancing the rapid response capability. The concentrated motor provides compact core design for compressor.

  • High Pressure Compressor1

    High Pressure Compressor

    Due to high temperature and pressure, viscosity of oil is secured, thus there is no need for oil pump. This eventually increases compressor efficiency.

  • 6 By-pass Valve1

    6 By-pass Valve

    Compressor reliability is maximized with 6 by-pass valve as it prevents compressor damage caused by excessively compressed refrigerant.

  • High Reliability at All Capacity1

    High Reliability at All Capacity

    For models with capacity below 7HP, rotary compressor is installed while scroll compressor is applied for models with more than 7HP capacity, making it highly reliable and efficient.

  • Smart Load Control

    MULTI V S controls refrigerant temperature according to indoor, outdoor and setting temperatures. This optimizes energy efficiency by saving up to 13% and maximizes indoor comfort level in cooling/heating modes.

  • MULTI_V_S_06_1525310815780_1 MULTI_V_S_06_M_1525310821684_1

CAPACITY

  • Cooling(Rated) T1 35°C - RT
    6.4
    Cooling(Rated) T1 35°C - ㎾
    22.4
  • Cooling(Rated) T1 35°C - Btu/h
    76,400
    Cooling(Rated) T3 46°C - RT
    5.4
  • Cooling(Rated) T3 46°C - ㎾
    19.0
    Cooling(Rated) T3 46°C - Btu/h
    64,900
  • Heating(Rated) - RT
    7.2
    Heating(Rated) - ㎾
    25.2
  • Heating(Rated) - Btu/h
    86,000

INPUT

  • Cooling(Rated) T1 35°C - ㎾
    5.60
    Cooling(Rated) T3 46°C - ㎾
    5.94
  • Heating(Rated) - ㎾
    5.86

COP

  • Cooling T1 35°C - ㎾ / ㎾
    4.00
    Cooling T3 46°C - ㎾ / ㎾
    3.20
  • Heating - ㎾ / ㎾
    4.30

POWER FACTOR

  • Rated
    0.93

DIMENSIONS (W × H × D)

  • Dimensions(W × H × D) - ㎜
    1,090 × 1,625 × 380
    Dimensions(W × H × D) - inch
    42-29/32 × 63-31/32 × 14-31/32

POWER SUPPLY

  • Power Supply - Ø, V, Hz
    380-415, 3, 50
    400, 3, 60
