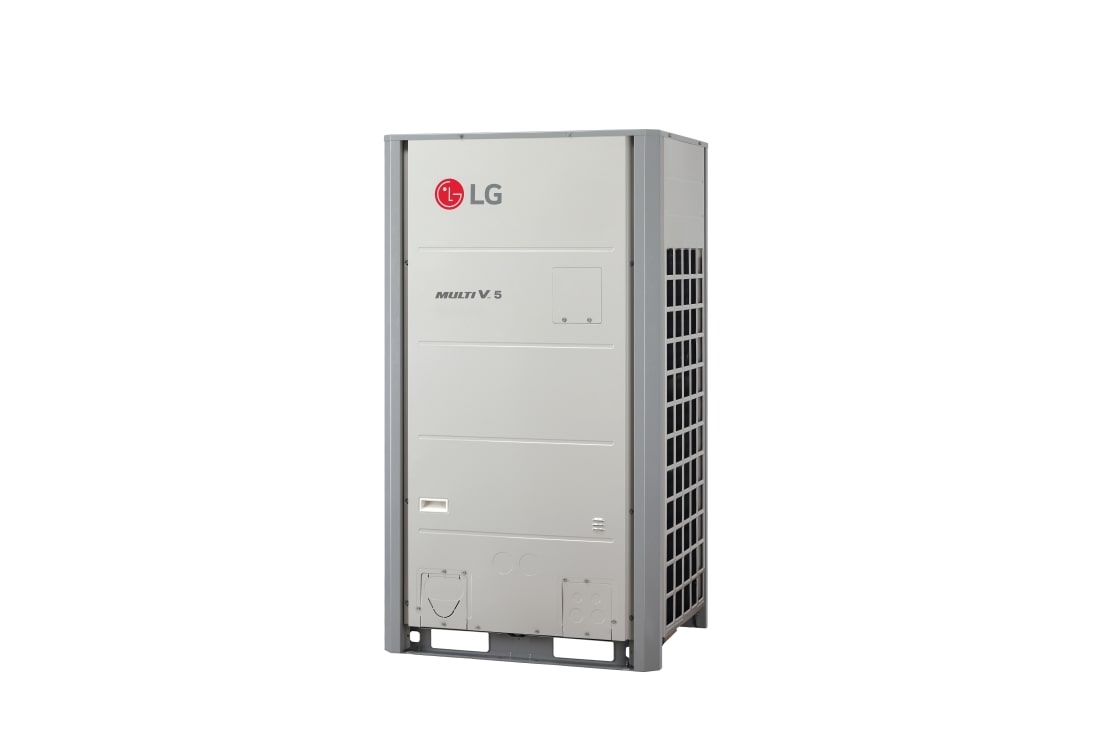

Multi V5 VRF 9.5 TR, Ultimate Efficiency, Dual Sensing Control, Ocean Black Fin

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (ARUN120LTH5)
    AED
    AED
    LG Members Price
Total

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (ARUN120LTH5)
    AED
    AED
    LG Members Price
Total
Multi V5 VRF 9.5 TR, Ultimate Efficiency, Dual Sensing Control, Ocean Black Fin
  • Smart Load Control1

    Smart Load Control

    It manages cooling load by sensing both temperature and humidity to increase energy efficiency.

  • Comfort Cooling1

    Comfort Cooling

    It keeps the operation at mild cooling mode without stopping in between operations.

  • Enhanced Heating1

    Enhanced Heating

    Increased heating hour with delay in frosting of heat exchanger due to precise dew point prediction.

  • Enhanced Bearing with PEEK Material

    Enhanced Bearing with PEEK Material

    Enhanced bearing with PEEK (Polyetheretherketone) material increases durability and reliability of compressor via lubricative bearing material and refined shape.

  • Vapor Injection

    Vapor Injection

    Two-stage compression effect provides efficient heating operation in low temperature conditions.

  • Smart Oil Management

    Smart Oil Management

    Oil sensor runs oil recovery operation only if necessary to increase compressor efficiency. It also balances and manages oil level in both compressors.

  • HiPOR™

    HiPOR™

    HiPOR™ (High Pressure Oil Return) minimizes energy loss with direct oil return.

  • Biomimetics Technology1

    Biomimetics Technology

    Enhanced fans increase air flow rate up to 10% while reducing power consumption up to 20%.

  • Increased Air Flow Rate1

    Increased Air Flow Rate

    Extended shroud provides higher heat exchanging capacity to increase air flow rate.

  • 4-sided Heat Exchanger1

    4-sided Heat Exchanger

    It improves heat transfer up to 20% which eventually enhances capacity and performance.

CAPACITY
  • Cooling(Rated) T1 35°C - RT
    9.5
    Cooling(Rated) T1 35°C - ㎾
    33.6
  • Cooling(Rated) T1 35°C - Btu/h
    114,600
    Cooling(Rated) T3 46°C - RT
    8.9
  • Cooling(Rated) T3 46°C - ㎾
    31.2
    Cooling(Rated) T3 46°C - Btu/h
    106,500
  • Heating(Rated) - RT
    10.7
    Heating(Rated) - ㎾
    37.8
  • Heating(Rated) - Btu/h
    129,000
INPUT
  • Cooling(Rated) T1 35°C - ㎾
    8.00
    Cooling(Rated) T3 46°C - ㎾
    9.54
  • Heating(Rated) - ㎾
    8.06
COP
  • Cooling T1 35°C - ㎾ / ㎾
    4.20
    Cooling T3 46°C - ㎾ / ㎾
    3.27
  • Heating - ㎾ / ㎾
    4.69
POWER FACTOR
  • Rated
    0.93
DIMENSIONS (W × H × D)
  • Dimensions(W × H × D) - ㎜
    (930 × 1,690 × 760) × 1
    Dimensions(W × H × D) - inch
    (36-5/8 × 66-17/32 × 29-29/32) × 1
POWER SUPPLY
  • Power Supply - Ø, V, Hz
    380-415, 3, 50
    400, 3, 60
