Discontinued
BX286
LG BX286 Projector

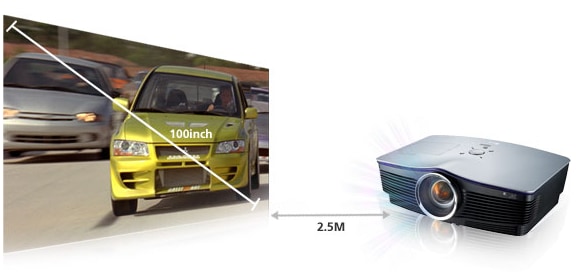

  • Short Projection Distance
  • No Colour Decay & Cost Saving
  • XGA Native Resolution
  • Brilliant Color
LG BX286 Projector

ACCESSORY

  • Cable
    D-sub, Power cord
    CD Manual
    Yes
  • Remote control
    Yes
    Safety Regulation
    UL&cUL/FCC/CB/TUV-GS/CE/C-Tick/CCC/KC Gost-R/NOM/SASO

ADDED FEATURES

  • 3D Ready
    Yes
    Auto Sleep (Off)
    Yes
  • Auto Source Detection
    Yes
    Blank
    Yes
  • Brilliant Color™
    Yes
    Color Temperature
    Yes
  • Digital Keystone Correction
    Yes
    Expert control (RGBCMY Gain/Sat/Hue Adjustment)
    Yes
  • Image Flip
    Yes - Vertical/Horizontal
    Picture Still
    Yes
  • VIDI™
    Uni-Shape(for OSRAM)

DESIGN

  • Cabinet Color
    Yes
    Kensington Lock
    Yes
  • Local Key
    Yes
    Lamp
    Bottom Side

GENERAL SPECIFICATION

  • Aspect Ratio Control
    Native 4:3, Support 16:9I/16:9II/Native/Auto
    Dimension (mm)
    306 x 99 x 224
  • Input Signal Compatibility
    Digital(HDMI): 1080i/720p/576p/480p, up to SXGA+(1400x1050@60Hz), RGB up to SXGA+(1400x1050@60Hz), Component Video 1080i/720p/576p/576i/480p/480i, Composite Video NTSC-M/NTSC 4.43/PAL/PAL-M/PAL-N/ SECAM
    Power Consumption
    295W(Normal), 243W(Eco)
  • Power Supply
    AC 100 ~ 240V(Free Voltage), 50Hz/60Hz
    Sound
    5W Speaker x 1
  • Weight (kg)
    3.1

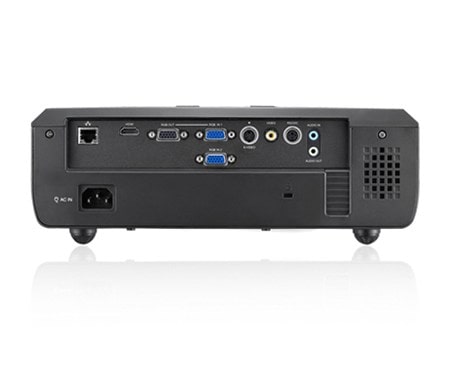

INPUT/OUTPUT TERMINALS

  • Audio in
    PC Audio in
    Component (YPbPr)
    2 (thru RGB)
  • Composite(AV) in
    1
    HDMI
    1
  • RGB in
    2xRGB in
    RS232C
    1 (Mini Din 3Pin)
  • RGB Out
    1xRGB out
    USB(SVC,Interactive)
    1

PROJECTION SYSTEM

  • Brightness(ANSI-Lumens)
    2800
    Colour wheel
    5 segment (RGBWYC)
  • Contrast Ratio (FIFO)
    2100:1
    Display Technology
    0.55" DMD S450(DDP2431)
  • Lamp Power (W)
    230W
    Lamp - Life Time
    2500 Hrs
  • Native Resolution
    XGA (1024x768)
    Noise (dB)
    High Brightness: 34, Economic: 30
  • Projection Lens - Focus
    Focus: Manual, Zoom: Fixed
    Projection Offset
    115% +/-5%
  • Projection Image
    Standard: 78.6" @1 m, Throw Ratio(Wide/Tele): 0.626
    Uniformorty(min)JBMA
    65%
