BH7540TW

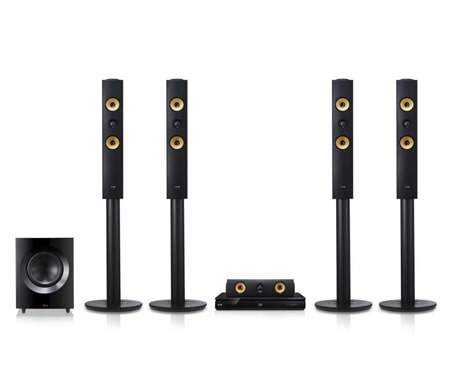

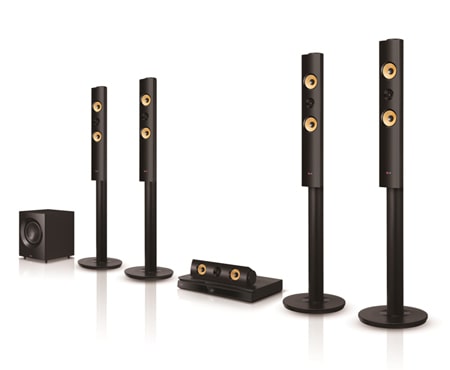

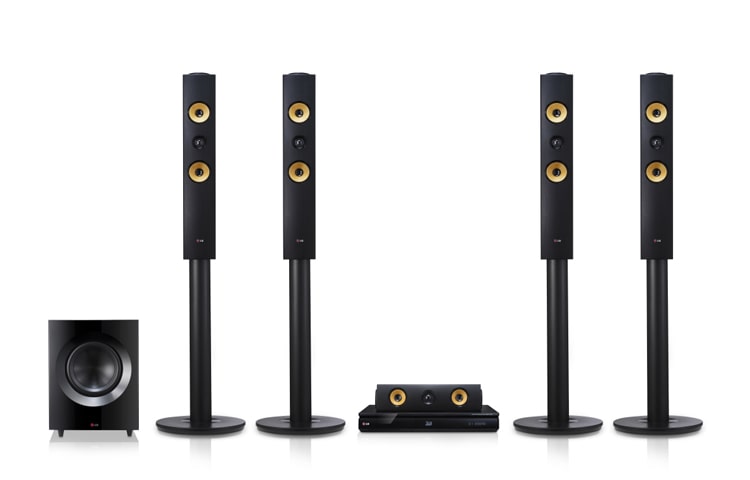

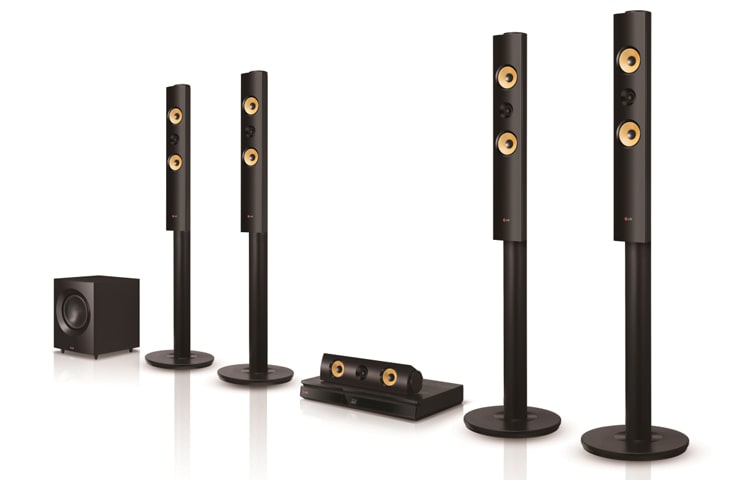

LG 5.1 CH SMART 3D BLU-RAY™HOME THEATER WITH ARAMID FIBER

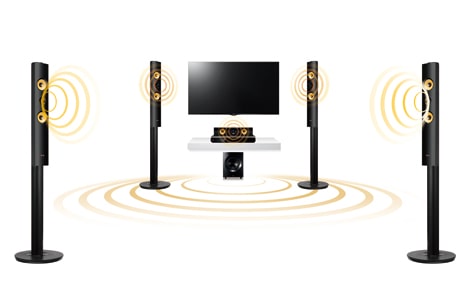

  • 5.1 CHANNEL, FULL WIRELESS, 1200W

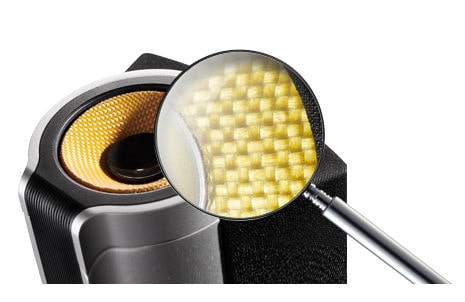

  • ARAMID FIBER
  • 3D BLU-RAY
  • LG SMART TV

component-OBScountrySelectDesc

LG 5.1 CH SMART 3D BLU-RAY™HOME THEATER WITH ARAMID FIBER

DESIGN

  • Top & Bottom cabinet (slot)
    Yes

LG SMART TV

  • All-in-One Search
    CP/ Apps/ WEB
    Full Browser
    Flash 10 / HTML 5 support
  • Premium Contents
    Yes
    LG Apps
    Yes

CONNECTIVITY

  • DLNA(Smart Share)
    DMP/ DMR(Mobile to TV Streaming)
    Wi-Fi Direct
    Yes
  • Wi-Fi Built-in
    Yes
    Wired (Ethernet)
    Yes

PHYSICAL

  • Size (W x H x D) mm - Center Speaker
    342.5x86x87
    Size (W x H x D) mm - Main
    440 X 65 X 298
  • Size (W x H x D) mm - Front Speaker
    290x1150x290
    Size (W x H x D) mm - Rear Speaker
    290x1150x290
  • Size (W x H x D) mm - Subwoofer
    251x336x310

AMPLIFIER

  • CH
    5.1
    Power Output Center
    194W
  • Power Output - Subwoofer
    230W
    Power Output Wireless Rear L/R
    194WX2
  • Power Output - Total
    1200W
    Power Output Front L/R
    194WX2

3D COMPATIBILITY

  • 3D / 2D
    Yes / Yes
    2D to 3D converting (Video)
    Yes

IN & OUT

  • Front-Display
    FLD
    Front-USB
    1
  • R/Panel Terminal Type
    Push in (Spring)
    R/Panel-Audio Input-Audio L/R
    Yes
  • R/Panel-Audio Input-Optical
    1
    R/Panel-HDMI-Out
    1
  • R/Panel-HDMI-Input
    2
    R/Panel-Radio Antenna-FM
    Yes
  • R/Panel-Speaker Terminal-Composing of channel
    5.1
    R/Panel-Ethernet
    Yes
  • R/Panel USB
    1
    R/Panel-Wireless speaker Tx dongle
    Yes

CONVENIENCE

  • Private Sound Mode
    Yes
    Auto Volume Level
    Yes
  • A/V Sync Delay(Audio Delay)
    Yes
    Booting-Time
    5 sec↓
  • Dimmer
    Yes
    Dynamic Range Control
    Yes
  • External HDD Playback
    Yes
    Firmware update by network
    Yes
  • Instant tray open
    2 sec↓
    Loading Time
    10 sec↓
  • Mute
    Yes
    Progress Bar
    Yes
  • Simplink
    Yes
    Sleep
    Yes
  • Smart phone remote App
    Yes
    Speaker Distance(channel delay)
    Yes
  • Speaker Level Trim
    Yes
    Test Tone
    Yes
  • TV Sound (direct key)
    Yes
    Thumbnail Movie/Photo
    No / Yes
  • Thumbnail 1:1 Rx module Type (Wireless Kit for rear)
    Yes
    USB Direct Recording
    Yes
  • Volume on TV
    Yes
    Warm booting
    3 sec↓

BD

  • BD ROM profile
    5.0
    MHP-Like Interactivity
    Yes
  • Mixed Presentation of Dual Audio
    Yes
    Simultaneous Playback of HD & SD Video Drip
    Yes
  • Still Picture
    PNG, JPEG, GIF
    ULTRA HD Up-scaling
    Yes

DISC (BD, DVD, CD) PLAYBACK

  • Auto Power Off
    Yes
    Initial logo
    Yes
  • Parental Lock
    Yes
    Screen Saver
    Yes

DISC & AV FORMAT

  • BD-ROM
    Yes
    BD-R
    Yes
  • BD-RE
    Yes
    DVD(NTSC)
    Yes
  • DVD(PAL)
    Yes
    DVD-R
    Yes
  • DVD-RW(Video/VR Mode)
    Yes
    DVD+R
    Yes
  • DVD+RW(Video mode)
    Yes
    Audio CD
    Yes
  • DTS-CD
    Yes
    CD-R/CD-RW
    Yes
  • MPEG2
    Yes
    MPEG4 AVC (H.264)
    Yes
  • SMPTE VC1 (VC-9)
    Yes
    DivX
    Yes
  • DivX HD
    Yes
    MKV
    Yes
  • AVCHD
    Yes
    M4V
    Yes
  • FLV
    Yes
    WMV
    Yes
  • 3GP
    Yes
    MPEG-1
    Yes
  • MP4
    Yes
    MOV
    Yes
  • VOB
    Yes
    LPCM
    LPCM
  • Dolby Digital
    Yes
    Dolby Digital Plus
    Yes
  • Dolby TrueHD
    Yes
    DTS
    Yes
  • DTS-HD High Resolution Audio
    Yes
    DTS-HD Master Audio
    Yes
  • MPEG 1/2 L2
    Yes
    MP3/ID3 Tag
    Yes/Yes
  • WMA
    Yes
    AAC
    Yes
  • FLAC
    Yes

DVD

  • 1080p Upscaling
    Yes

POWER

  • Power Consumption
    90
    Power off consumption
    0.5W ↓
  • SMPS
    110-240, 50/60Hz

RADIO

  • Tuner Type
    PLL
    Tuning Up/Down
    Yes
  • Preset Up/Down
    Yes
    Band FM
    Yes
  • Preset Memory
    50 Station

REPEAT PLAY

  • A-B
    Yes
    Chapter
    Yes
  • CD-DA, MP3/WMA
    Yes
    Random Play Mode
    Yes
  • Title/Track
    Yes
    Resume Stop
    Yes

SEARCH

  • Chapter
    Yes
    Time
    Yes
  • Title/Track
    Yes

SPEAKER

  • Model Name(front)
    S74T1-S
    Front - SPL
    82dB
  • Front - System
    Closed type
    Front - Tweeter Unit
    20mm (1ea)
  • Front - Woofer Unit
    3" Aramid (2EA)
    Front - Impedance
  • Front - Magnetic Shielding
    No Shield
    SPL (Rear)
    82dB
  • System (Rear)
    closed type
    Tweeter Unit (Rear)
    20mm (1ea)
  • Woofer Unit (Rear)
    3" Aramid (2EA)
    Impedance (Rear)
  • Magnetic Shielding (Rear)
    Non-Shielded
    SPL (Center)
    82dB
  • System (Center)
    Closed Type
    Tweeter Unit (Center)
    20mm (1ea)
  • Woofer Unit (Center)
    2.5" Aramid (2EA)
    Impedance (Center)
  • Model Name(Rear)
    S74T1-S
    Model Name(Center)
    S74T1-C
  • Subwoofer - System
    Bass Reflex
    Model Name(Subwoofer)
    S74T1-S
  • Subwoofer - Woofer Unit
    7" PP
    Magnetic Shielding(Center)
    Non-Shielded
  • Magnetic Shielding(Subwoofer)
    Non-shield
    Subwoofer - Impedance
  • SPL (Subwoofer)
    83dB
    Rear Wireless Kit-Name
    W4-2

VIDEO

  • ARC
    Yes
    Deep Colour
    Yes
  • GUI/ Menu
    Option
    HDMI 1.4
    Yes
  • Last Scene memory
    Yes
    NTSC/PAL Hz
    60Hz / 50Hz
  • NTSC⇔PAL Conversion
    Yes
    Photo Zoom
    Yes
  • Resolution
    upto 1080p24/60Hz
    VBI
    WSS/CGMS-A/Closed Caption/Macrovsion
  • Video DAC
    148MHZ/12bit
    Video Enhancement
    Yes
  • xvYCC
    Yes

TRICK PLAY

  • Fast Back
    Yes
    Fast Forward
    Yes
  • Forward Step
    Yes
    Forword Slow
    Yes
  • Pause
    Yes
