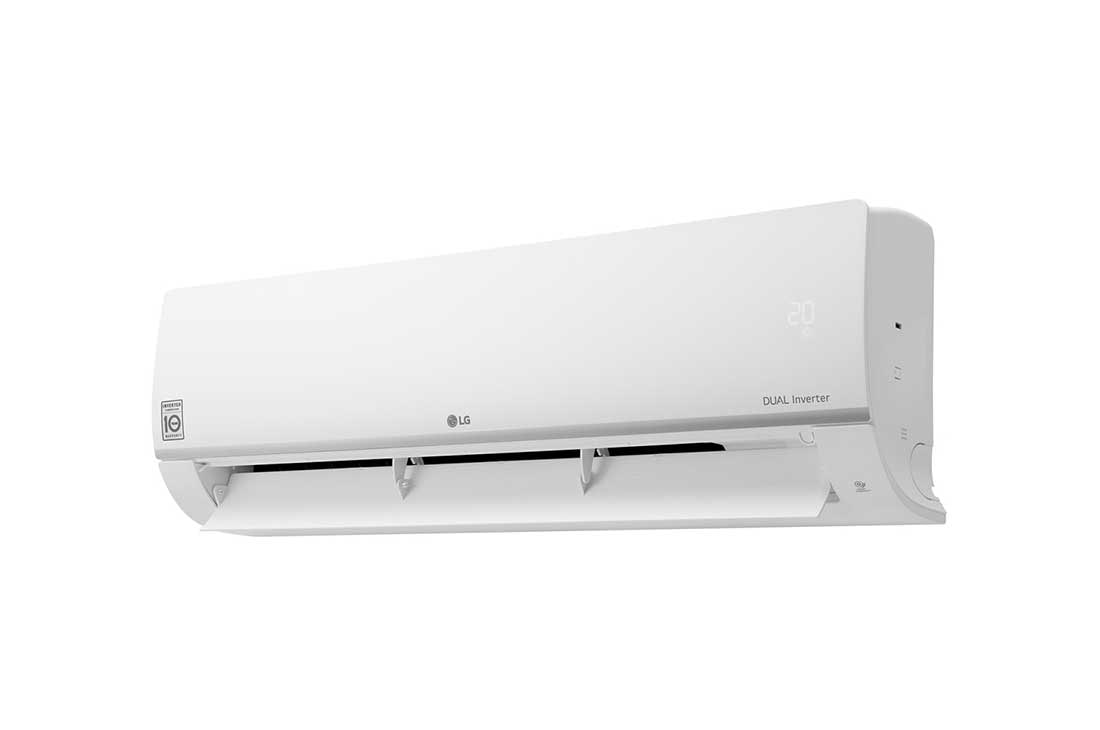

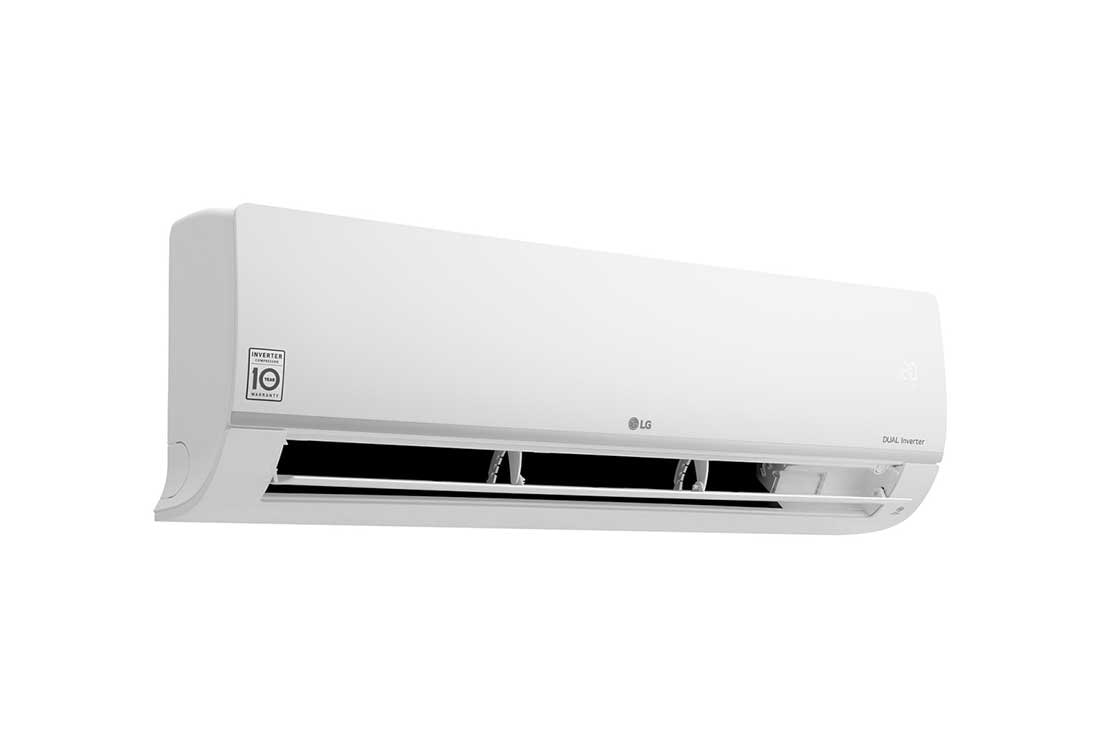

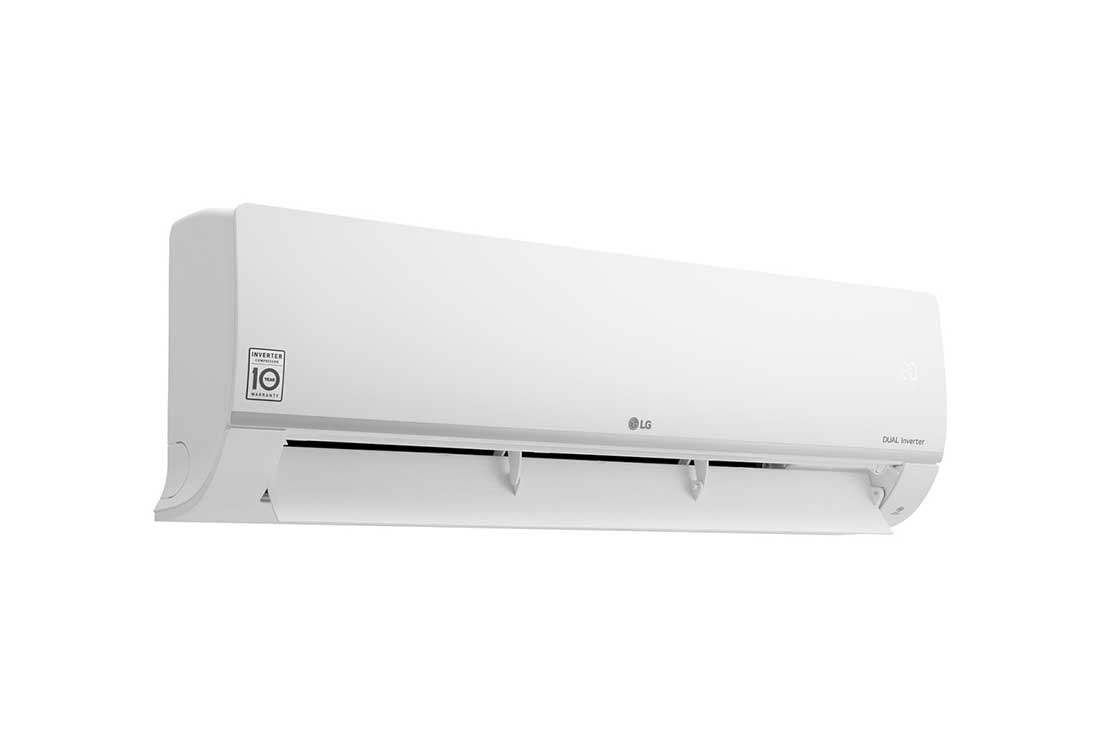

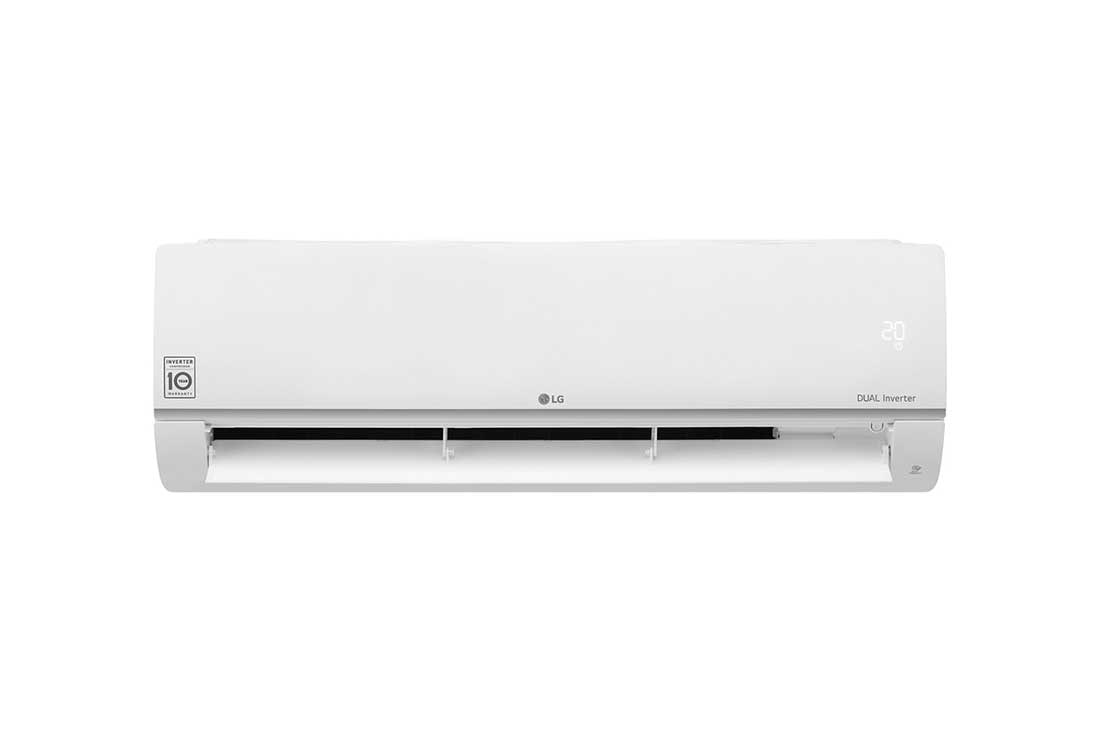

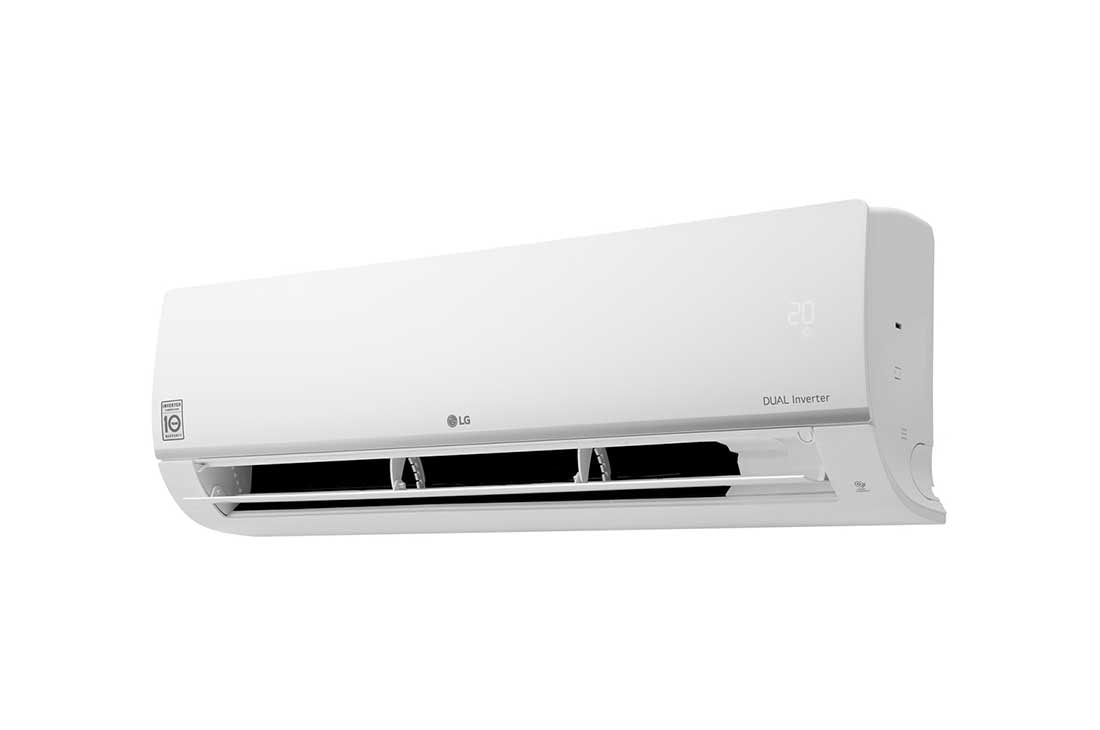

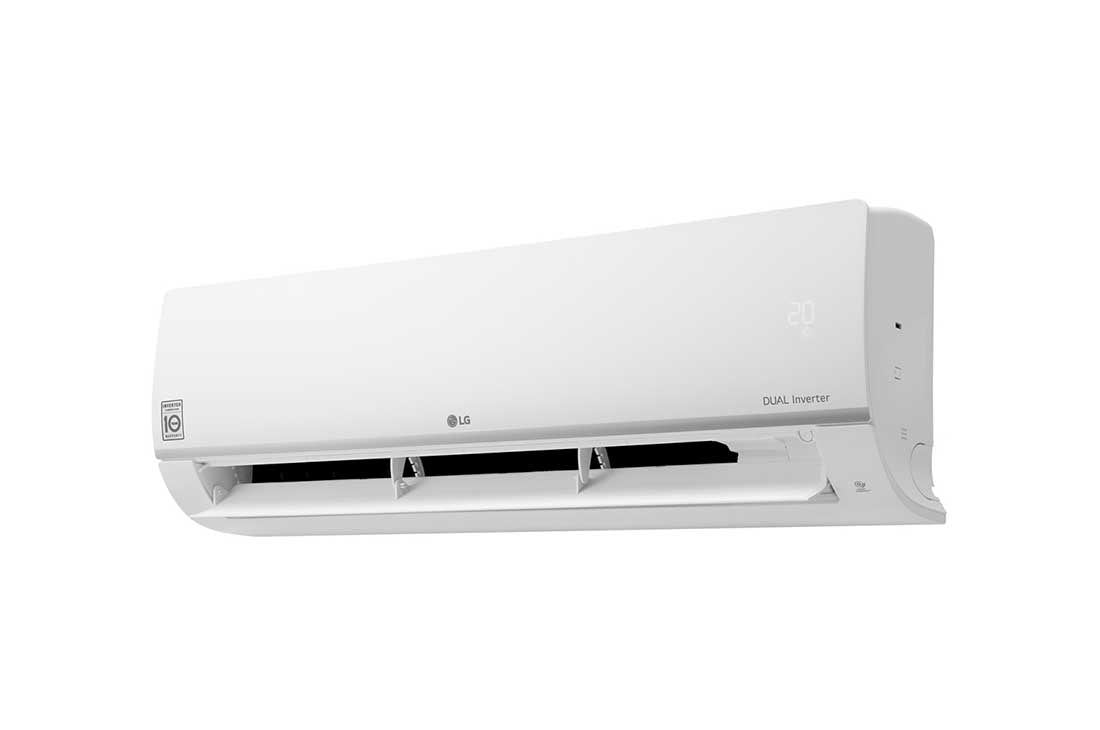

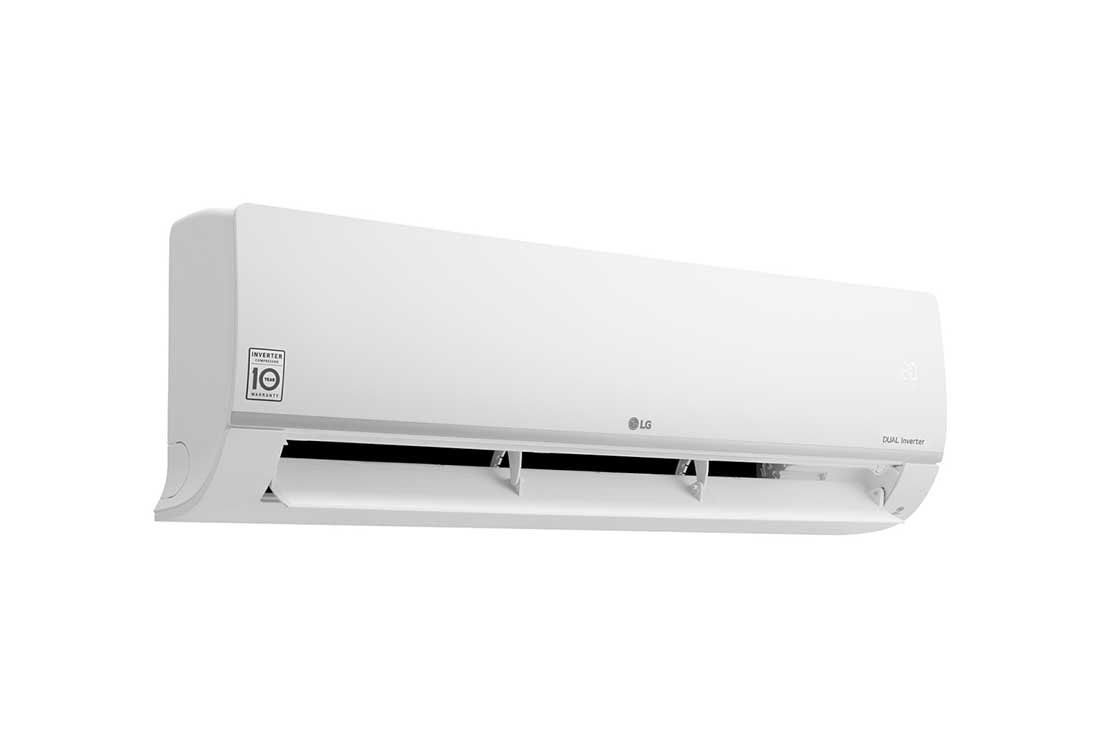

LG 2 Ton Inverter Split AC with Heating Unit

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (I24CFH)
    AED
    AED
    LG Members Price
Total

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (I24CFH)
    AED
    AED
    LG Members Price
Total
LG 2 Ton Inverter Split AC with Heating Unit
  •  Dual Inverter Compressor™1

    Dual Inverter Compressor™

    A compressor with a wider rotational frequency saves more energy and has a faster cooling range.

  • 10 Year Warranty1

    10 Year Warranty

    Verification obtained from TUV Rheinland for 10-year product life cycle.

  • TUV Rheinland1

    TUV Rheinland

    TUV Rheinland, Verification on Fast Cooling & Power Saving Rate(US-W242Kxy0/TS-H2465DA0).

  • Vertical 6 Steps Louver Control1

    Vertical 6 Steps Louver Control

    Users can choose the vane direction among 6 preset positions to meet the exact wind blow direction you desire.

  • Dual Protection Filter1

    Dual Protection Filter

    The Dual Protection Filter captures dust size over 10㎛ and bacteria.

Comfort Sleep1

Comfort Sleep

Comfort Sleep mode ensures the utmost comfort sleep environment by automatically adjusting 3 different functions(Indirect airflow/7hr off time set/Soft wind & sleep time logic) ,with the simple click of one button.
  • Auto Cleaning1

    Auto Cleaning

    The comprehensive auto cleaning function prevents the forming of bacteria and mold on the heat exchanger and thus provides a more pleasant and comfortable environment for the user.

  • Gold Fin™1

    Gold Fin™

    The Gold Fin™ ensures that the surface is more resistant to corrosion and enhances the durability of heat exchanger for a much longer period.

  • Jet Dry1

    Jet Dry

    Jet Dry technology places priority in dehumidification for areas with high humidity levels to keep your room dry and fresh.

  • Fast Heating1

    Fast Heating

    4 Way Auto Swing adjusts airflow based on the surrounding environment, allowing for optimal distribution of warm air to living areas and enabling quick heating.

Recommended Products

  I24CGH A24CMH
I24CGH
A24CMH
Features
DUALCOOL Inverter AC 2 Ton, Dual Inverter Compressor, Faster Cooling, Low noise
ARTCOOL DUAL Inverter AC 2 Ton, Faster Cooling, ThinQ, Dual Inverter Compressor
Capacity 2 Ton 2 Ton
Dimension Indoor 998 × 345 × 210 / Outdoor 870 × 655 × 320 Indoor 998 × 345 × 212 / Outdoor 870 × 655 × 320
Dual Inverter Compressor™ Yes Yes
Faster Cooling Yes Yes
ThinQ NA Yes
  where to buy where to buy


Features
Capacity
Dimension
Dual Inverter Compressor™
Faster Cooling
ThinQ

I24CGH A24CMH
I24CGH
A24CMH
DUALCOOL Inverter AC 2 Ton, Dual Inverter Compressor, Faster Cooling, Low noise
ARTCOOL DUAL Inverter AC 2 Ton, Faster Cooling, ThinQ, Dual Inverter Compressor
2 Ton 2 Ton
Indoor 998 × 345 × 210 / Outdoor 870 × 655 × 320 Indoor 998 × 345 × 212 / Outdoor 870 × 655 × 320
Yes Yes
Yes Yes
NA Yes
where to buy where to buy

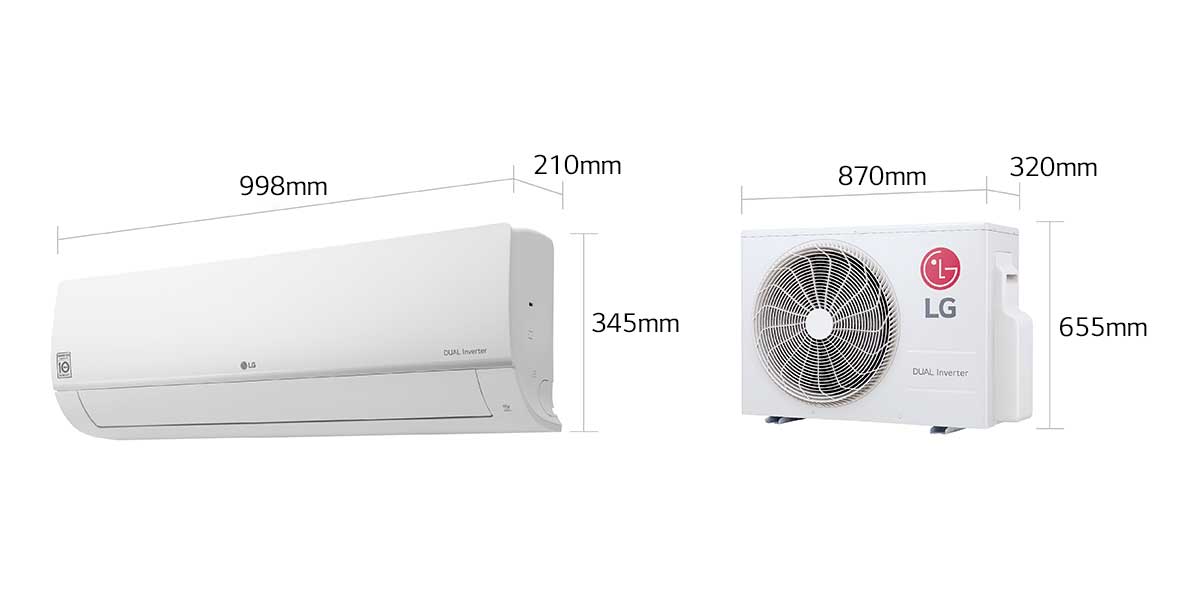

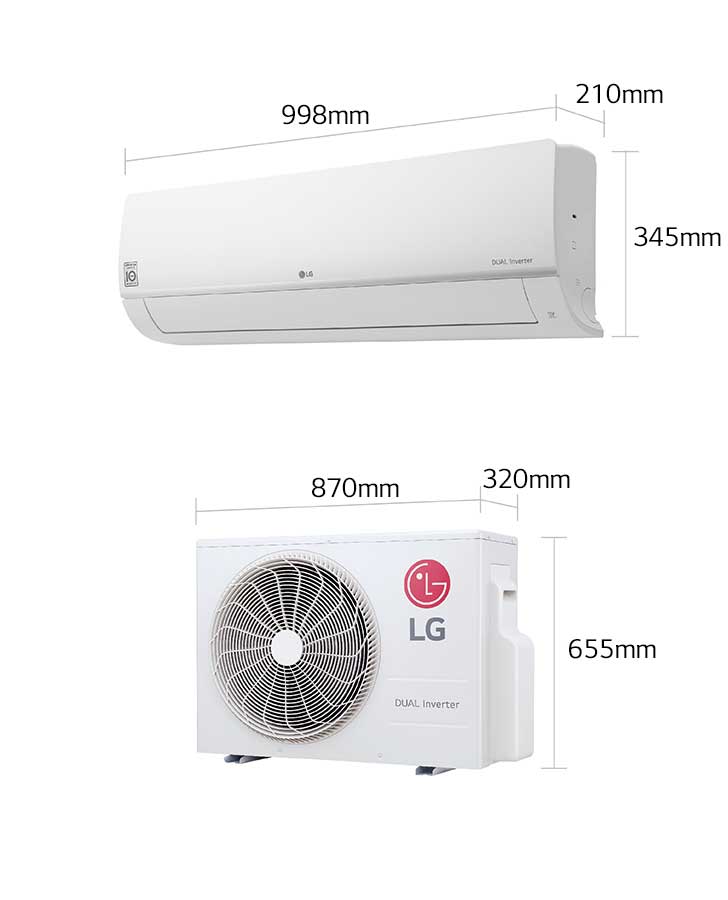

Dimensions
I24CFH I24CFH
SPEC SUMMARY
  • Capacity
    2 Ton
  • Dimension (W x H x D) mm
    Indoor 998 × 345 × 210 / Outdoor 870 × 655 × 320
  • Main Technology
    Dual Inverter Compressor™ With 10 Year Warranty
  • Additional Benefit
    Dual Inverter Compressor™
CAPACITY
  • Cooling - Min ~ Rated ~ Max(kW)
    1.03/6.45/7.18
    Cooling - Min ~ Rated ~ Max(Btu/h)
    3,500/22,000/24,500
  • Heating - Min ~ Rated ~ Max(kW)
    1.03/6.45/7.18
    Heating - Min ~ Rated ~ Max(Btu/h)
    3,500/22,000/24,500
POWER INPUT
  • Cooling - Min ~ Rated ~ Max(W)
    240/2,010/2,420
    Heating - Min ~ Rated ~ Max(W)
    240/1,890/2,500
RUNNING CURRENT
  • Cooling - Min ~ Rated ~ Max(A)
    1.14/9.60/11.46
    Heating - Min ~ Rated ~ Max(A)
    1.14/9.10/11.84
EER
  • EER(W/W)
    3.21
    EER((Btu/h)/W)
    10.95
COP
  • COP(W/W)
    3.41
    COP((Btu/h)/W)
    11.64
POWER SUPPLY
  • Ø, V, Hz
    1, 220~240, 50
AVAILABLE VOLTAGE RANGE
  • Available Voltage Range(V)
    187 ~ 276
POWER FACTOR
  • Cooling/Heating(%)
    95/95
MOISTURE REMOVAL
  • Moisture Removal(l/h)
    2.00
INDOOR
  • Air Flow Rate - Cooling, Max/H/M/L(m³/min)
    21/15/12/9
    Air Flow Rate - Heating, Max/H/M/L(m³/min)
    21/16/13/9.5
  • Sound Pressure Level - Cooling, H/M/L/SL(dB(A))
    56/48/43/38/32
    Sound Pressure Level - Heating, Max/H/M/L(dB(A))
    57/48/43/38
  • Dimensions (W×H×D) - Net(mm)
    998 × 345 × 210
    Dimensions (W×H×D) - Shipping(mm)
    1080×422×281
  • Weight - Net(kg)
    13
    Weight - Shipping(kg)
    15.1
  • Exterior Color Code
    Munsell 7.5BG 10/2 (RAL 9016)
OUTDOOR
  • Air Flow Rate - Max(㎥/min)
    50.0
    Fan Motor Speed - Cooling, Min ~ Max(rpm)
    190 ~ 800
  • Fan Motor Speed - Heating, Min ~ Max(rpm))
    190 ~ 840
    Sound Pressure Level - Cooling, Rated(dB(A))
    56
  • Sound Pressure Level - Heating, Rated(dB(A))
    58
    Dimensions (W×H×D) - Net(mm)
    870 × 655 × 320
  • Dimensions (W×H×D) - Shipping(mm)
    1017 × 718.6 × 432
    Weight - Net(kg)
    42.7
  • Weight - Shipping(kg)
    50.0
    Max. Fuse Size(A)
    20
  • Exterior Color Code
    Munsell 9.54Y 8.34/1.31 (RAL 9001)
    Operation Range - Cooling(℃ DB)
    18 ~ 48
  • Operation Range - Heating(°C DB)
    -5 ~ 24
    Dimensions (W × H × D) - Net(mm)
    870 x 650 x 330
  • Operation Range - Heating(℃ WB)
    -5 ~ 18
CIRCUIT BREAKER
  • Circuit Breaker(A)
    20
POWER SUPPLY CABLE
  • Power Supply Cable(No. x mm²)
    3 × 1.5
POWER SUPPLY TO UNIT
  • Power Supply to Unit
    Outdoor
POWER AND COMMUNICATION CABLE
  • Power and Communication Cable(No.×mm²)
    4 × 0.75
CONNECTIONS
  • WiFi
    Yes
PIPING
  • Size - Liquid(mm)
    Ø 6.35
    Size - Gas(mm)
    Ø 15.88
  • Connections Method - Indoor/Outdoor
    Flared/Flared
DRAIN HOSE SIZE
  • O.D, I.D(mm)
    21.5, 16.0
BETWEEN INDOOR & OUTDOOR
  • Piping Length - Min/Standard/Max(m)
    3.6/5/20
    Piping Length - No Charge(m)
    5.0
  • Max. Elevation Difference(m)
    10
    Piping Connection Heat Insulation
    Both liquid and Gas Pipes
REFRIGERANT
  • Type
    R410A
    Pre Charge(g)
    1400
  • Additional Charge(g/m)
    20
    Control
    Capillary
  • Global Warning Potential
    2087.5
    t-CO₂ eq
    2.923
DEFROST METHOD
  • Defrost Method
    Reverse Cycle
TOOL CODE(CHASSIS)
  • Indoor/Outdoor
    SK/UE
COMPRESSOR
  • Type
    Twin Rotary
    Model
    GAT156MAD
  • Motor Type
    BLDC
    Oil Type/Maker
    POE (RB68A)/Sun Oil or Jx Nippon
  • Oil Charge(cc)
    400
    Manufacturer/Country of Origin
    LG Electronics/China
FAN(INDOOR)
  • Type
    Cross Flow Fan
    Motor Output(W)
    58
FAN(OUTDOOR)
  • Type
    Propeller Fan
    Motor Type
    BLDC
  • Motor Output(W)
    85.5
    Motor Insulation
    Class E
  • Motor Enclosure/Ingress Protection
    TEAO/IPX5
HEAT EXCHANGER
  • Evaporator - Material, Tube/Fin
    Cu/Al
    Evaporator - (ø x Row x Column x FPI x L) x Qty.(#1)
    (ø7 x 2 x 16 x 20 x 744) x 1
  • Evaporator - (ø x Row x Column x FPI x L) x Qty.(#2)
    (ø5 x 1 x 4 x 22 x 744) x 2
    Evaporator - Corrosion Protection
    PCM
  • Evaporator - Fin Type
    Slit
    Condenser - Material, Tube/Fin
    Cu/Al
  • Condenser - (ø x Row x Column x FPI x L) x Qty.(#1)
    (ø7 x 2 x 28 x 18 x 831.5) x 1
    Condenser - Corrosion Protection
    Gold
  • Condenser - Fin Type
    Louver
COUNTRY
  • Country
    Caucasus
