Discontinued
SH8

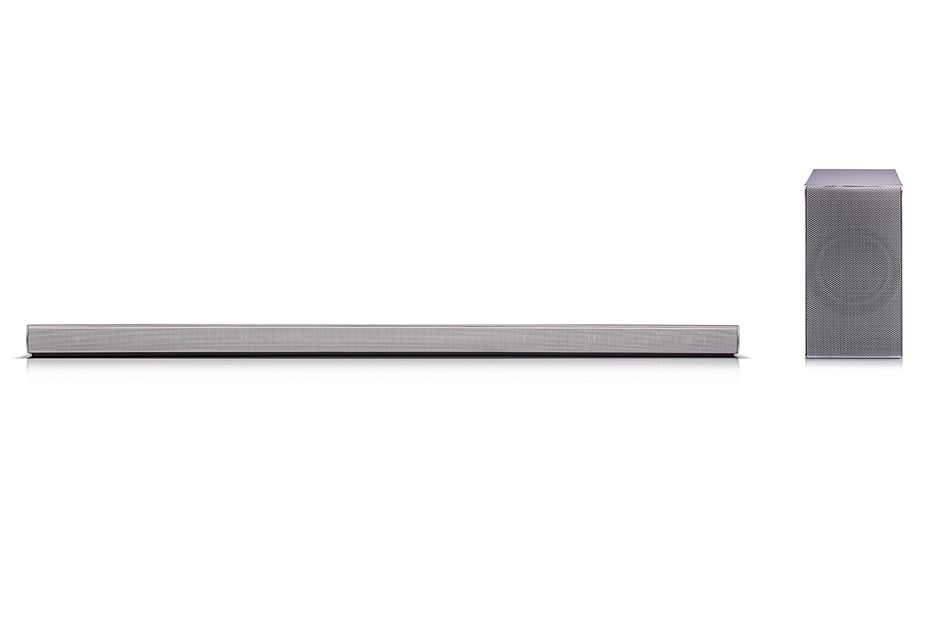

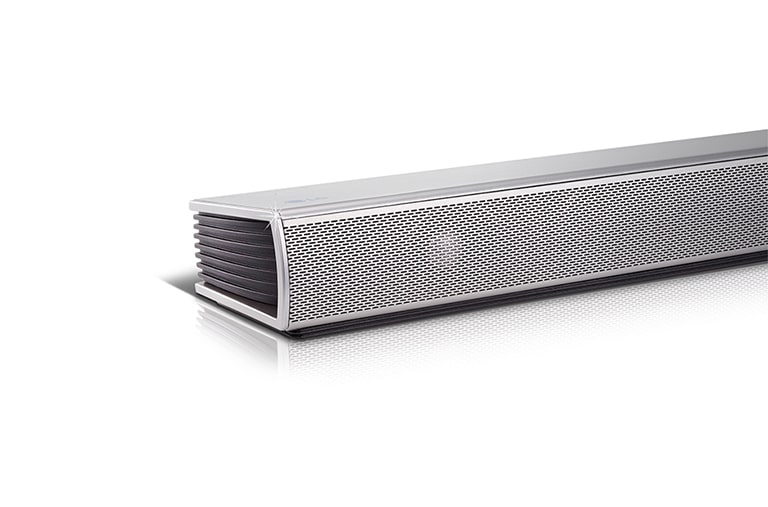

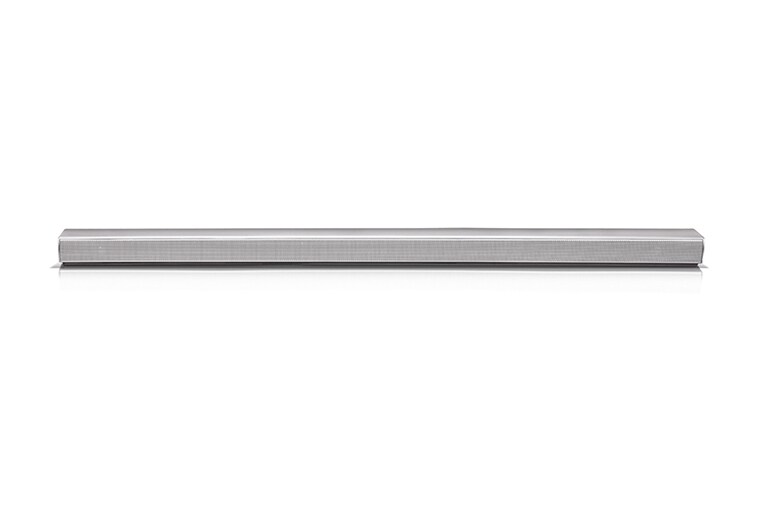

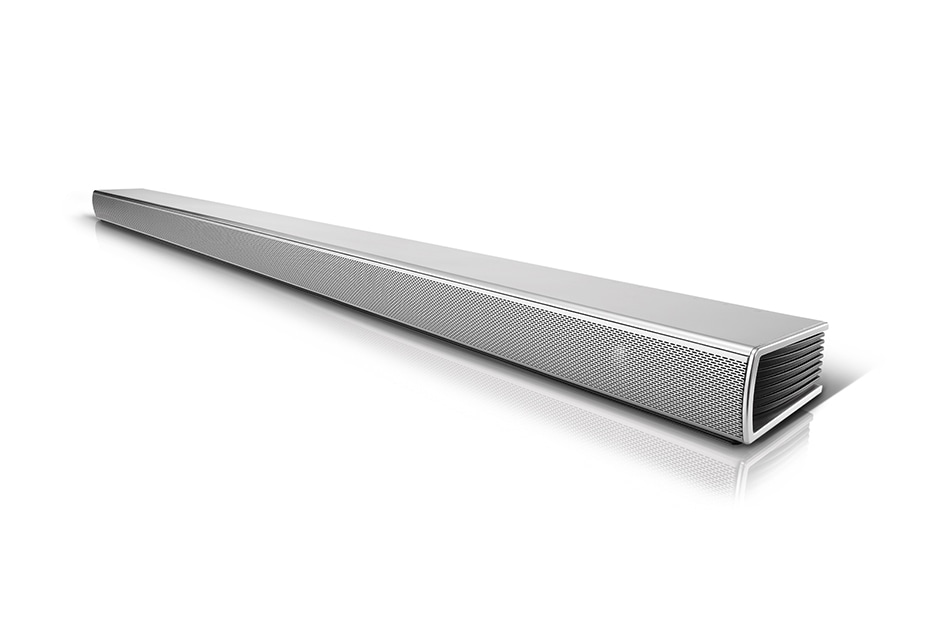

LG Sound Bar SH8

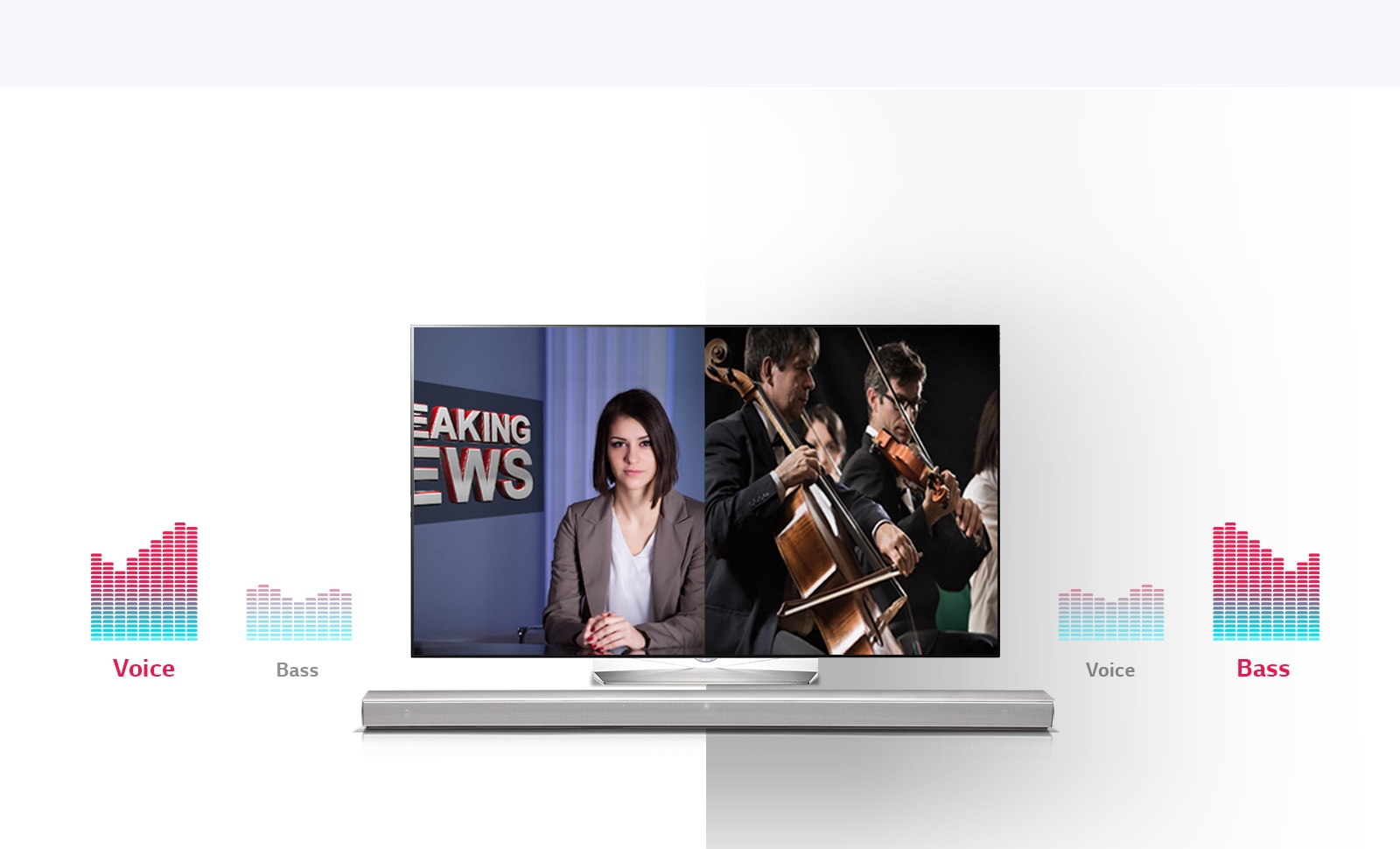

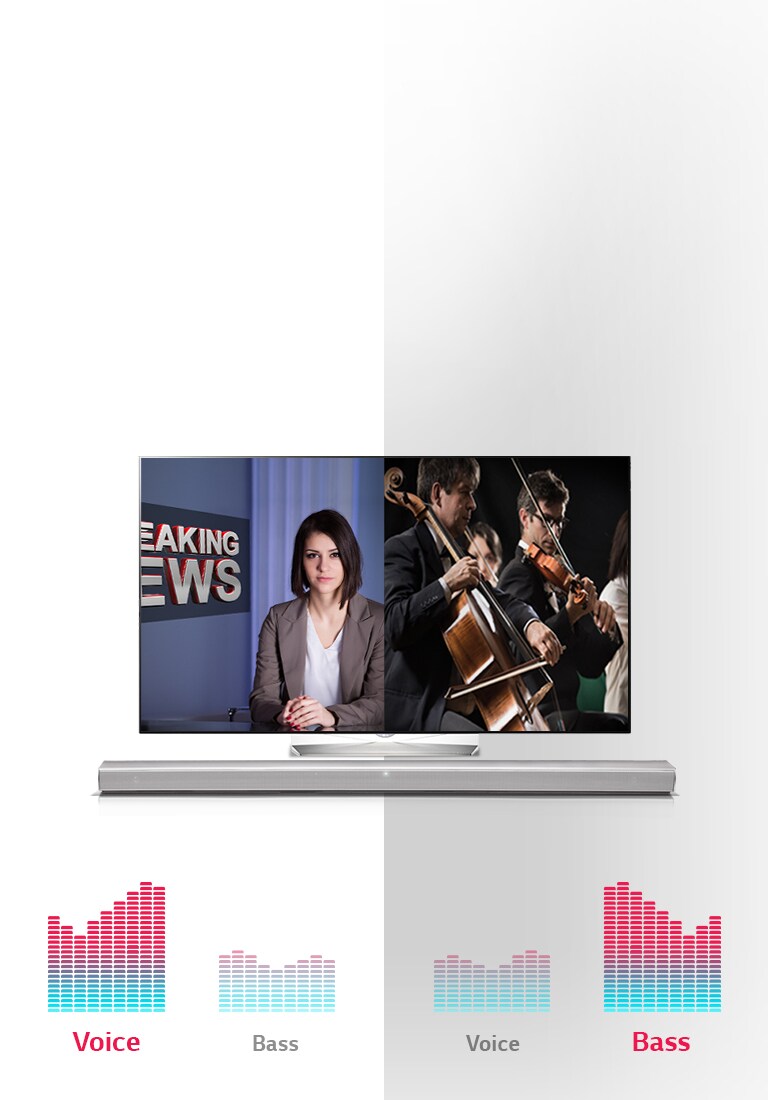

  • Adaptive Sound Control
  • Auto Sound Engine

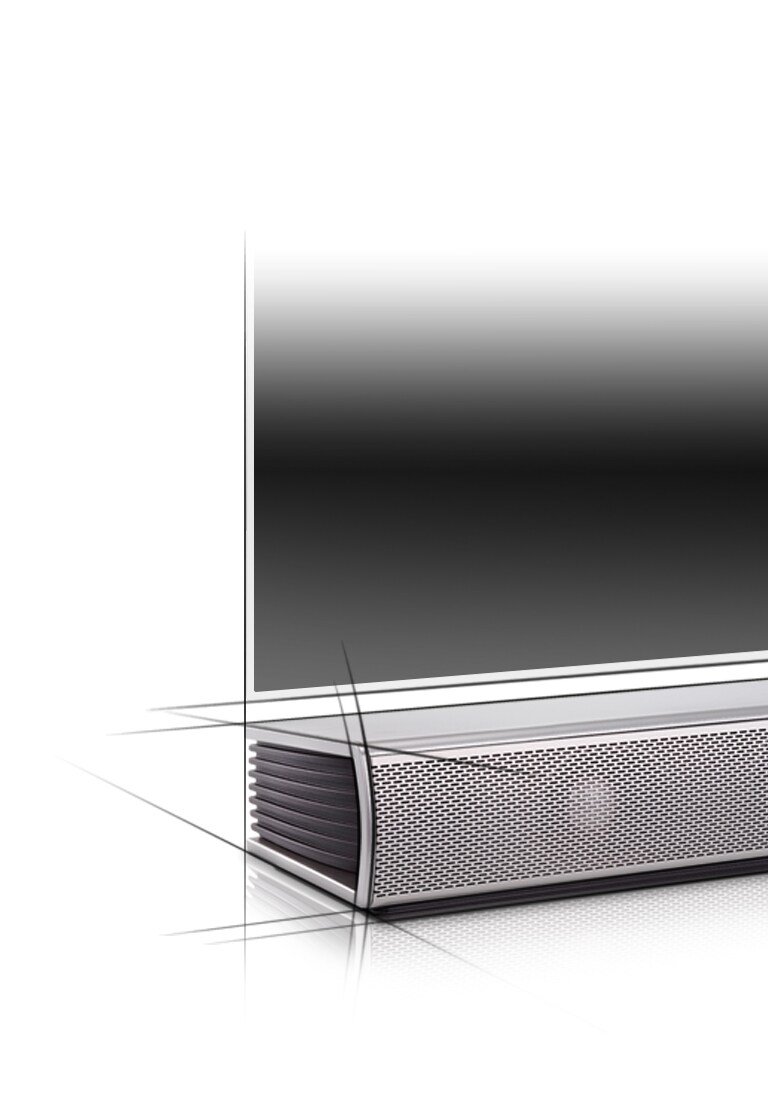

  • TV Matching Design
  • Google Cast™

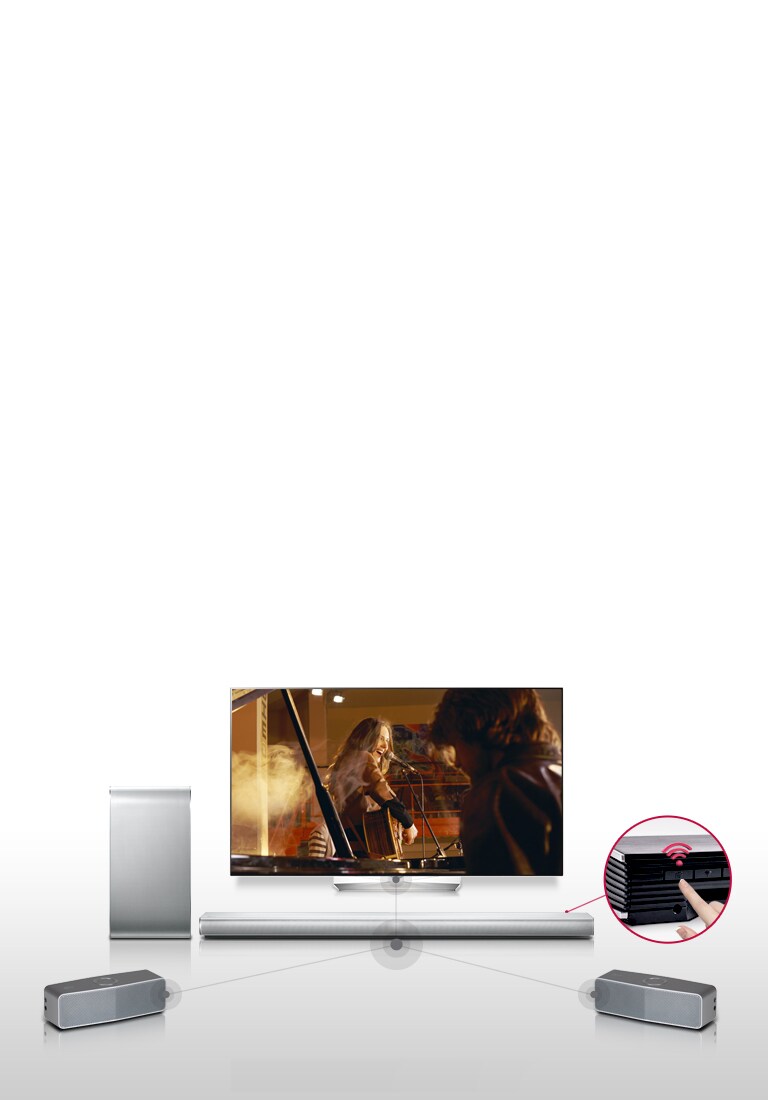

  • Home Cinema Setup with One Button

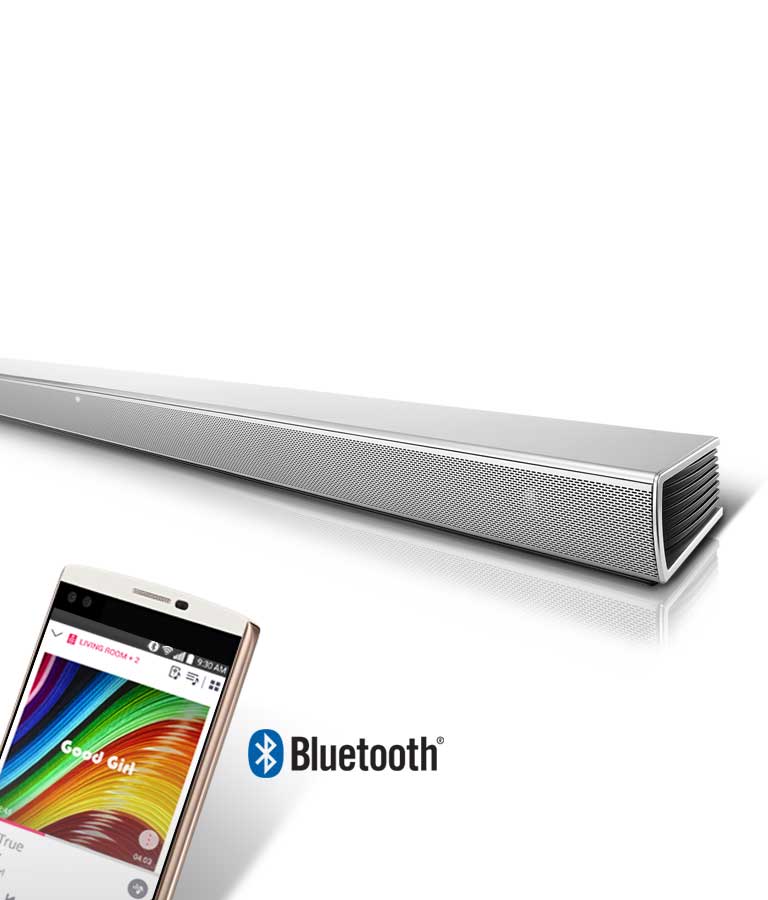

  • Bluetooth Stand-by

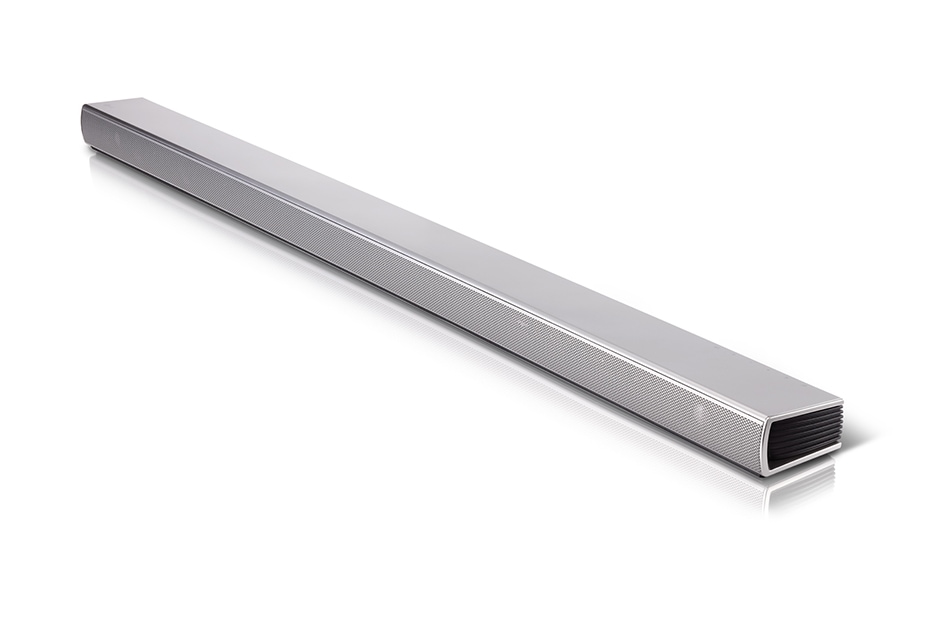

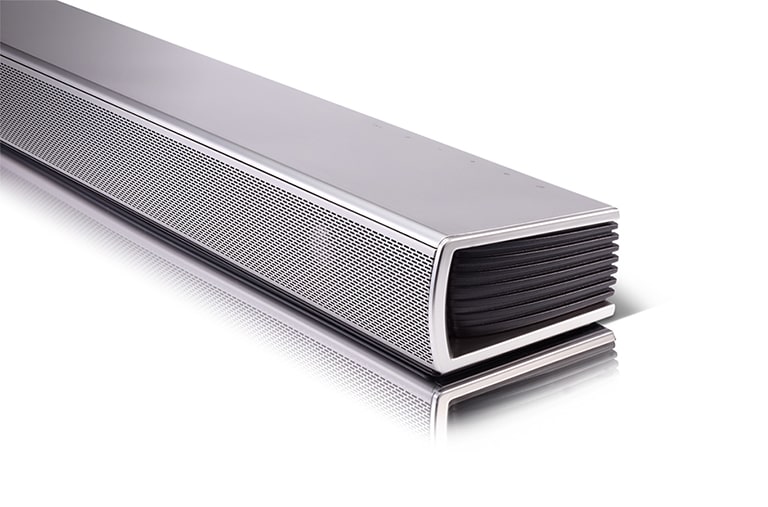

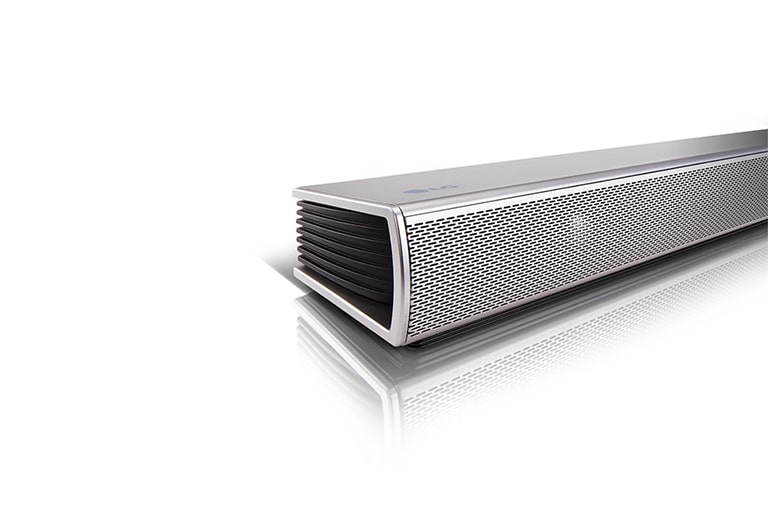

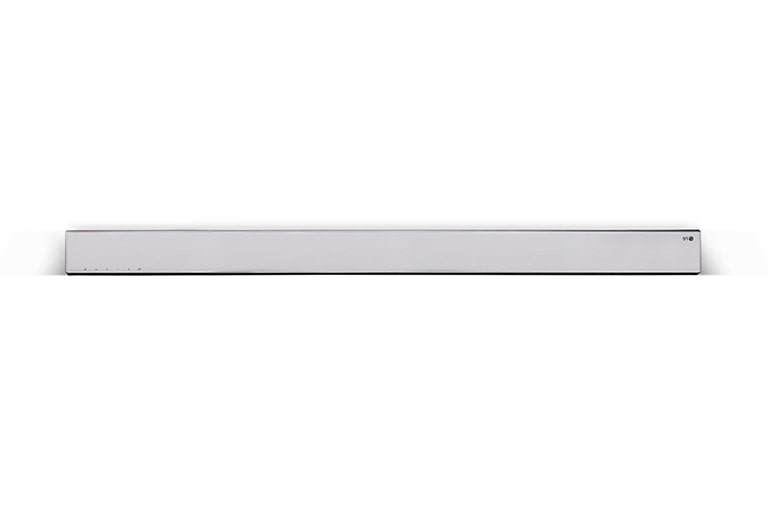

LG Sound Bar SH8

PHYSICAL

  • Size (W x H x D) mm Main (w/o foot ) mm
    1,200 x 53 x 85
    Size (W x H x D) mm Main (w/o foot ) mm Matching TV size ('16 New Designed LG TV)
    55 inch ↑
  • Size (W x H x D) mm Main (w/o foot ) mm Built-in Foot (H) mm
    2mm

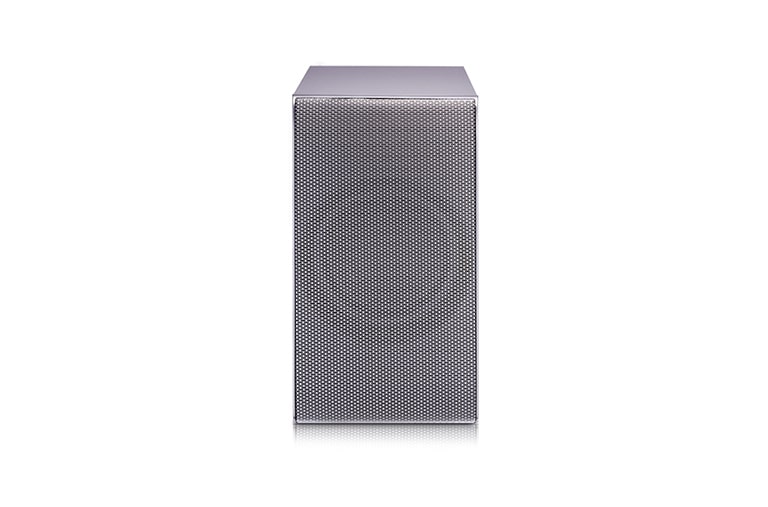

    Size (W x H x D) mm Subwoofer
    171x320x252
  • Material Mainset Front
    SECC
    Material Mainset Top / Bottom
    ABS
  • Material Subwoofer Front
    SECC
    Material Subwoofer Body
    Wood
  • Net Weight (Kg) Main
    3.52Kg
    Net Weight (Kg) Subwoofer
    4.3kg
  • Carton Size (W x H x D) mm
    1266 x 373 x 223
    Carton Type
    Offset
  • Gross Weight (Kg)
    11.28Kg
    Container Q'ty 20ft
    251
  • Container Q'ty 40ft
    551
    40ft (HC)
    641

CHANNEL/OUTPUT POWER

  • Channel
    4.1 ch Speaker System
    Output Power (THD 10%) Total
    420W
  • Output Power (THD 10%) Front
    70W X 2
    Output Power (THD 10%) Surround
    40Wx2
  • Output Power (THD 10%) Subwoofer
    200W(Wireless)

SPEAKER

  • Main SPL
    82dB
    Main System
    Closed
  • Main Tweeter Unit - Front Only
    20mm(PPS) Dome
    Main Woofer Unit
    40 x 100 (Track)
  • Main Impedance
    4ohm
    Main Magnetic Shielding
    Non-shield
  • Subwoofer Model Name
    SPH7-W
    Subwoofer SPL
    85dB
  • Subwoofer System
    Bass Reflex
    Subwoofer Woofer Unit
    6 inch
  • Subwoofer Impedance
    3 ohm
    Subwoofer Magnetic Shielding
    non-Shield

NETWORK

  • WiFi Band Width 2,4G / 5G
    Yes
    Mesh network
    Yes
  • Media Server
    Yes

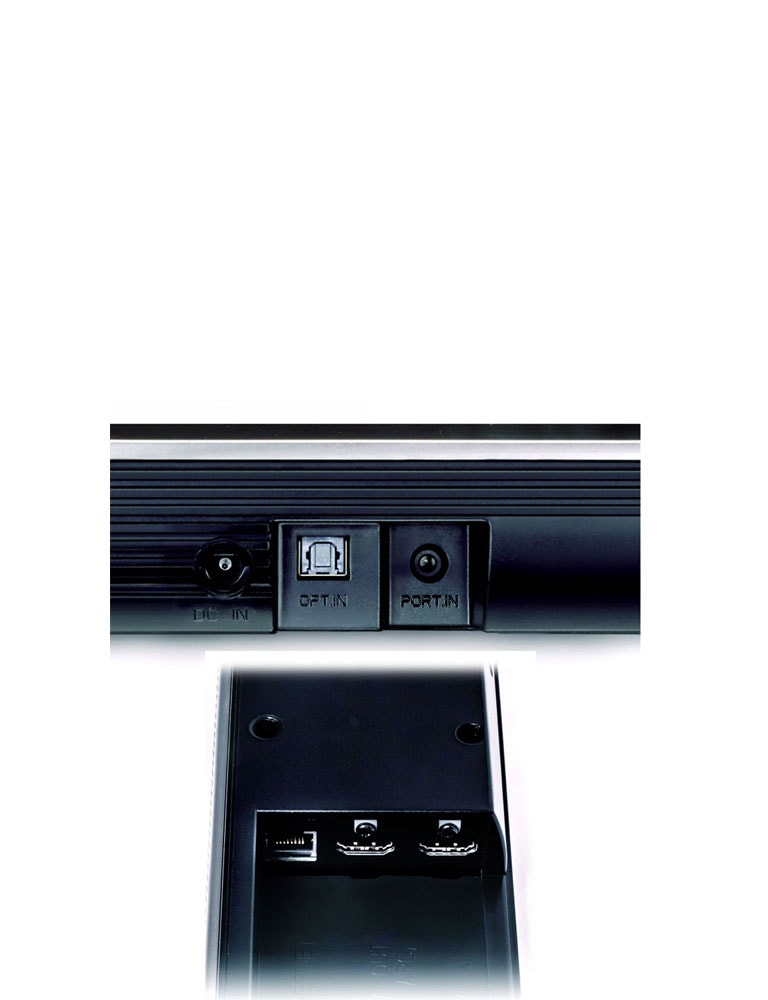

CONNECTIVITY

  • General Audio Input Portable In (3.5Ø)
    Yes
    General Optical
    Yes(1)
  • HDMI 2.0 (HDCP 1.4) In / Out
    Yes(1) / Yes(1)
    General USB
    Yes (Service Only)
  • Wireless Bluetooth (ver. 4.0)
    Yes
    Wireless Etherner port
    Yes
  • Wireless WiFi
    Yes
    Optional by model MIC Input
    Yes

INFORMATION DISPLAY

  • Display Type
    LCD (8 Char.)
    LED indicator Color
    7 Color w/ 1ea 3 color LED
  • Auto Display Off (incl. LED)
    Yes

SOUND MODE

  • LG Music Flow Home Cinema Mode
    Yes
    LG Music Flow Home Cinema Mode Channel
    4.1ch
  • LG Music Flow Group Play Mode (one source --> multi speaker)
    Yes

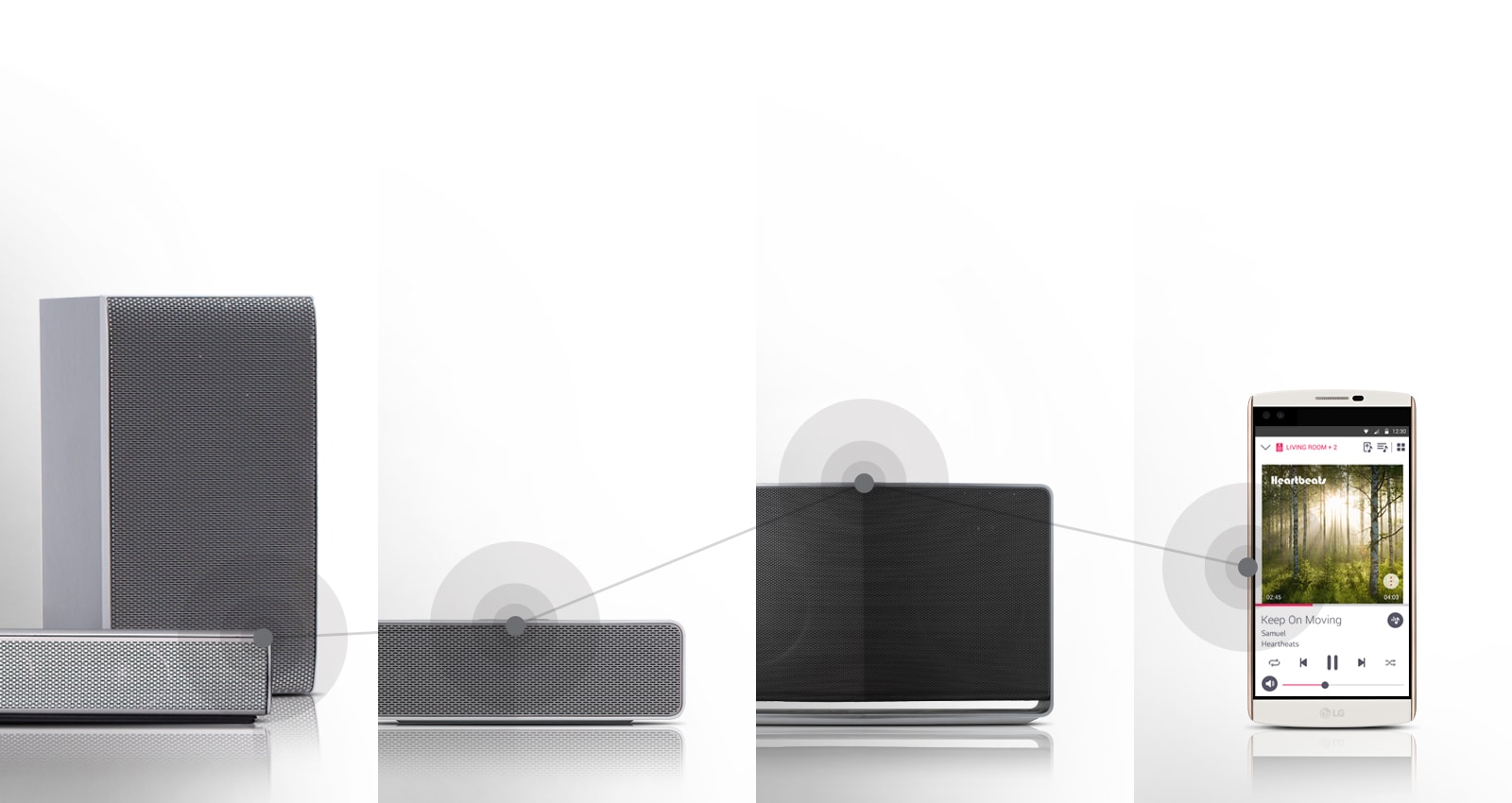

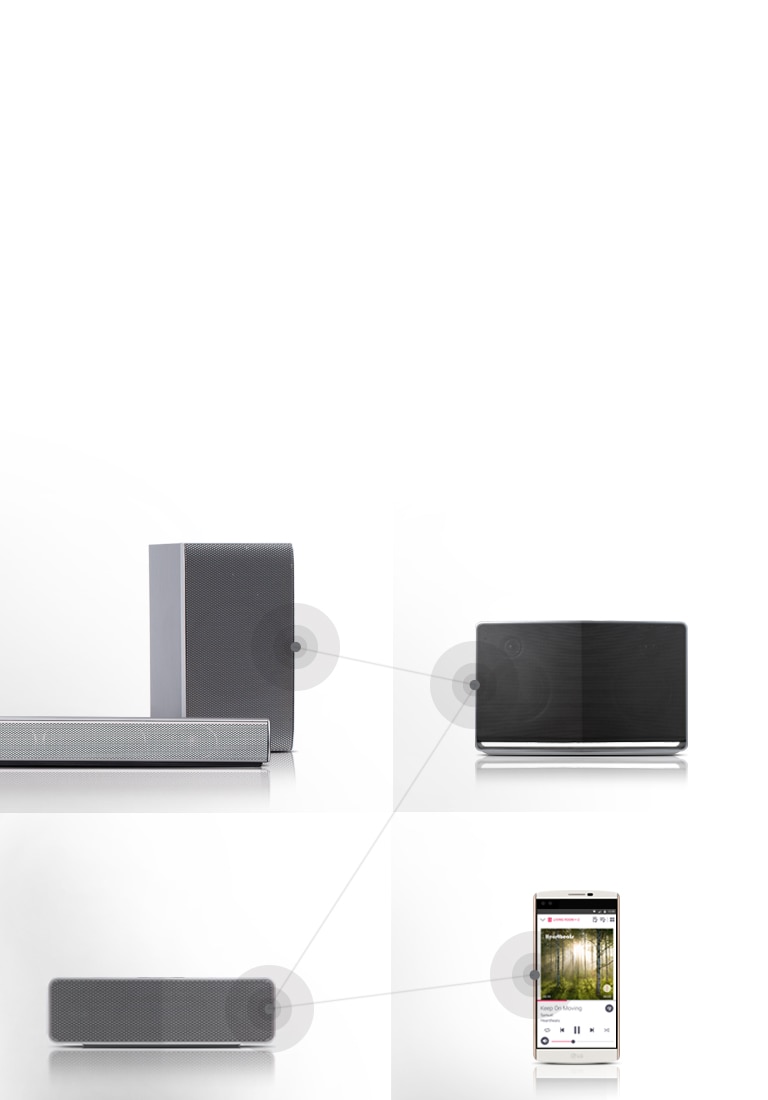

    LG Music Flow Multi Room Mode (multi source --> Multi speaker)
    Yes
  • LG Music Flow Audio Contents Flow
    Yes
    Sound Effect ASC (Adaptvie Sound Control : Default)
    Yes
  • Sound Effect Standard
    Yes
    Sound Effect Cinema
    Yes
  • User EQ
    Yes
    Night Mode On/Off
    Yes
  • Auto Sound Engine Default
    Yes
    SFX Default
    Yes
  • Dynamic Range Control On/Off
    Yes
    Auto Volume Leveler On/Off
    Yes

CONVENIENCE

  • OS Support(Window / Mac / iOS / Android)
    (Yes/Yes/Yes/Yes)
    Smart Phone Media Server
    Yes
  • Smart Phone / Tablet Remote App
    Yes
    Smart Phone / Tablet Remote App Universal Search
    Yes
  • Smart Phone / Tablet Remote App Mood Station
    Yes

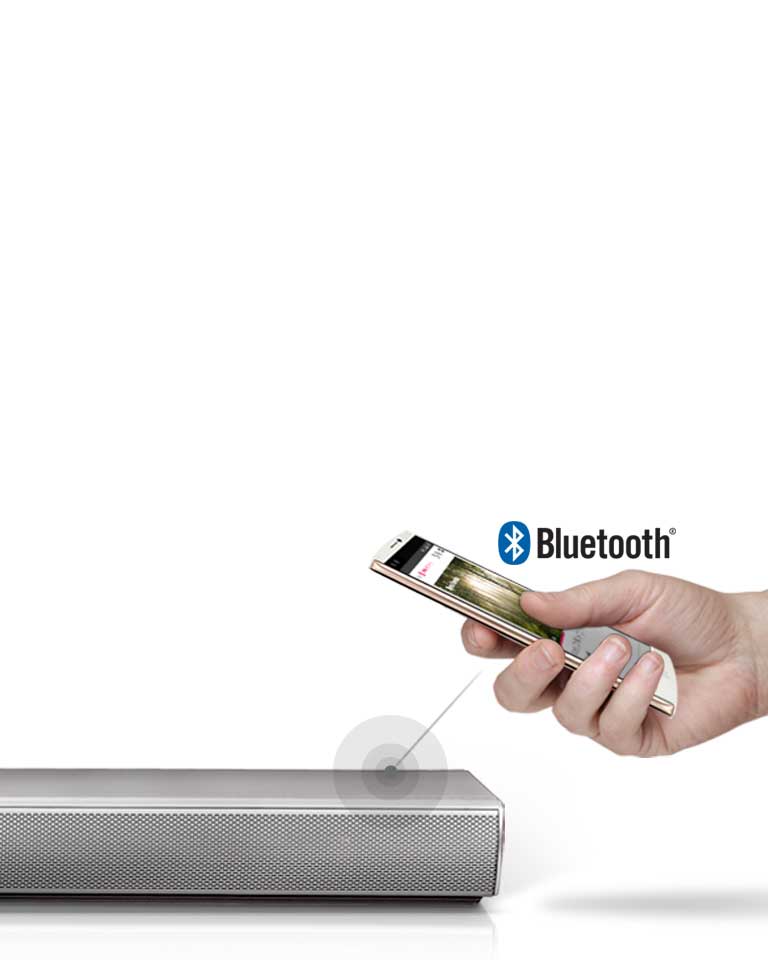

    Smart Phone / Tablet Remote App Auto Music Play
    Yes
  • Smart Phone / Tablet Remote App Auto Music Play Auto Sync
    Yes
    Smart Phone / Tablet Remote App Auto Music Play ROF
    Yes
  • EZ setup (BLE)
    Yes
    Phone Roaming
    Yes
  • BT-Fi
    Yes
    1 botton home cinema setup
    Yes
  • Home Chat
    Yes
    NSU(Network Software Update)
    Yes
  • Control with your TV Remote Vol + , - , Mute
    Yes

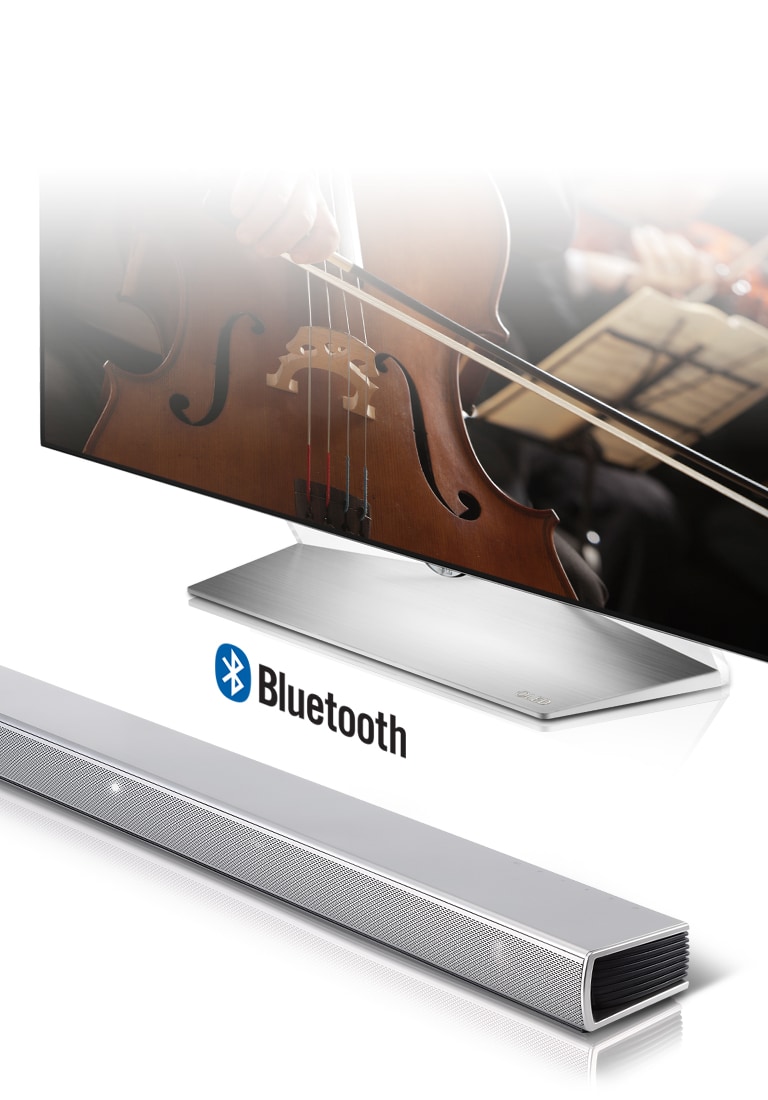

    Sound Sync Bluetooth (LG TV)
    Yes
  • Sound Sync Optical
    Yes
    Automatic Power on/off Bluetooth (LG TV)
    Yes
  • Automatic Power on/off Optical
    Yes
    A/V Sync 0~300ms
    Yes
  • SIMPLINK
    Yes
    3D Video Signal Pass Through
    Yes
  • Audio Return Channel (ARC)
    Yes
    Woofer Level -15~+6dB
    Yes
  • Mute
    Yes
    Dimmer
    Yes
  • Sleep
    Yes
    Alram
    Yes

AUDIO FORMAT

  • LPCM
    Yes
    Dolby Digital
    Yes
  • DTS Digital Surround
    Yes
    FLAC Up to 192kHz
    Yes
  • OGG Up to 48kHz
    Yes
    WAV
    Yes
  • ALAC
    Yes
    WMA
    Yes
  • MP3
    Yes
    AAC(MPEG4)
    Yes
  • AAC+
    Yes
    AIFF
    Yes

AUDIO STREAMING SERVICE

  • Google Cast
    Yes
    Spotify Connect
    Yes
  • Embbeded Service
    Yes

POWER CONSUMPTION

  • Main Type
    Adaptor (25V, 2A)
    Main Power Off Consumption
    0.5W ↓
  • Main Power Consumption
    30W
    Subwoofer Type SMPS
    100~240V, 50/60Hz
  • Subwoofer Power Off Consumption
    0.5W Under
    Power Consumption
    33W
  • Wireless Frequency
    5GHz

TOP FEATURE LIST OUTSIDE ACCESSORY KIT

  • Owners Manual Web (w/ Simple Manual)
    Yes
    Wall Mount Guide
    Yes
  • Wireless Speaker Reset Guide
    Yes
    Open Source : No / Yes (Full / Simple)
    Yes (Full)
  • PC SW Web
    Yes
    Remote Control Unit Model
    MA5
  • Remote Control Unit Battery(Size)
    AAA
    Batteries
    2ea
  • Warranty Card
    Yes
    Optical Cable
    Yes
  • LAN Cable
    Yes
    Wall Mount Bracket
    Yes
  • Cable Management
    Yes
