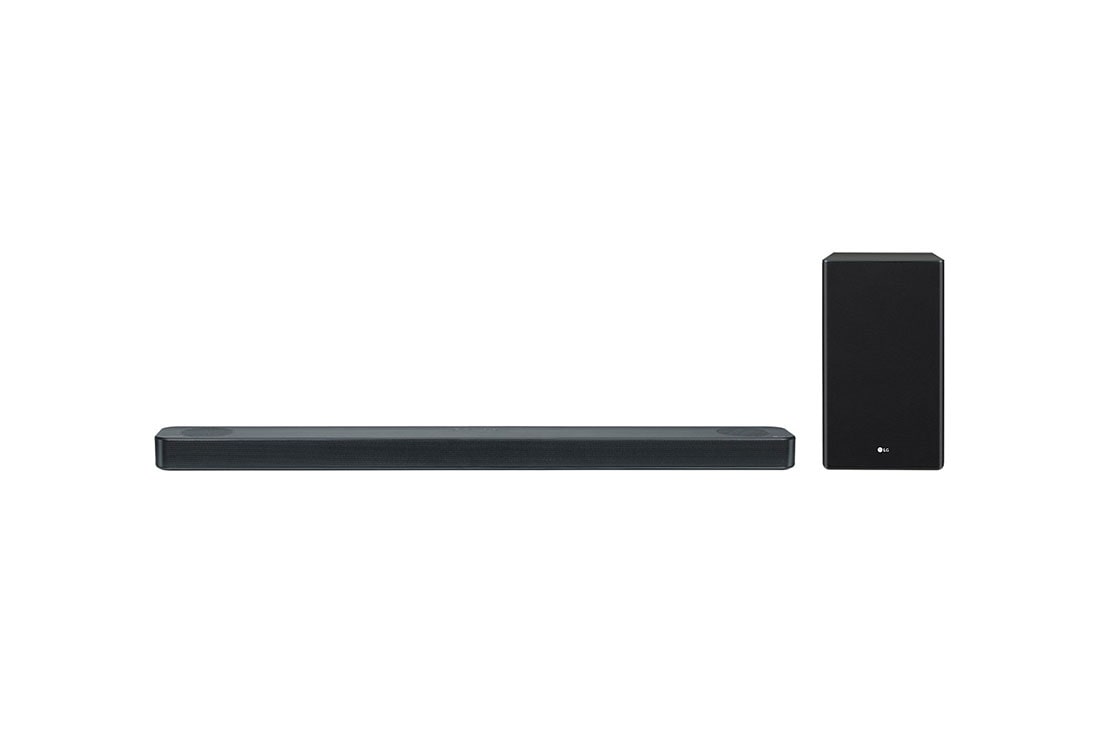

LG Sound Bar

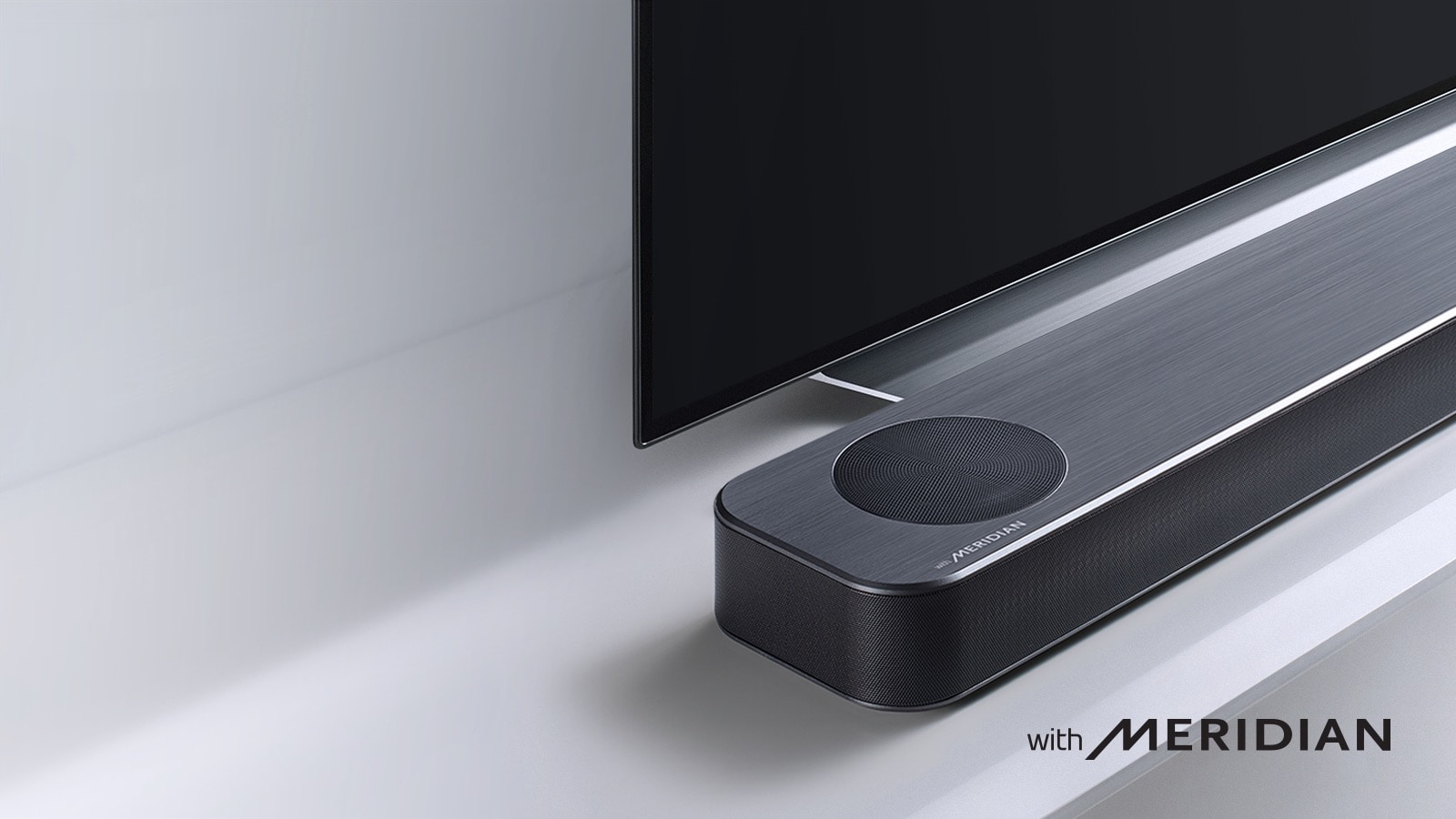

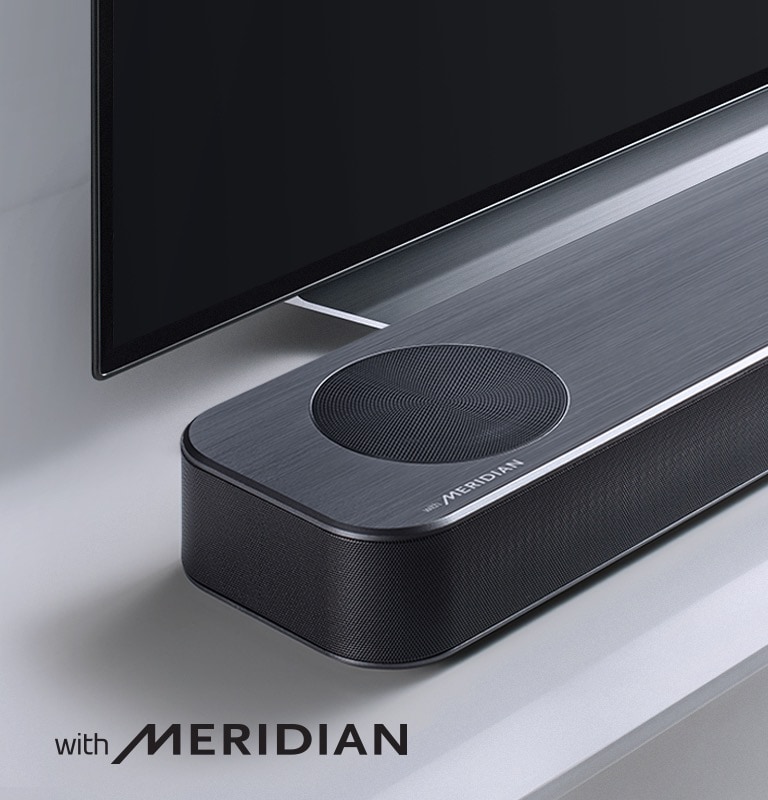

  • with MERIDIAN Technology

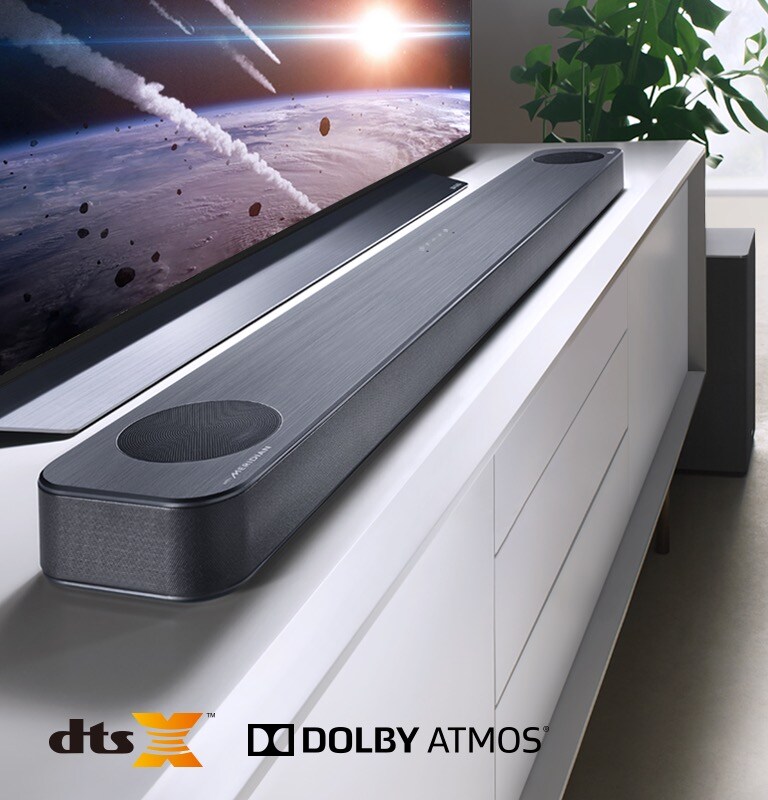

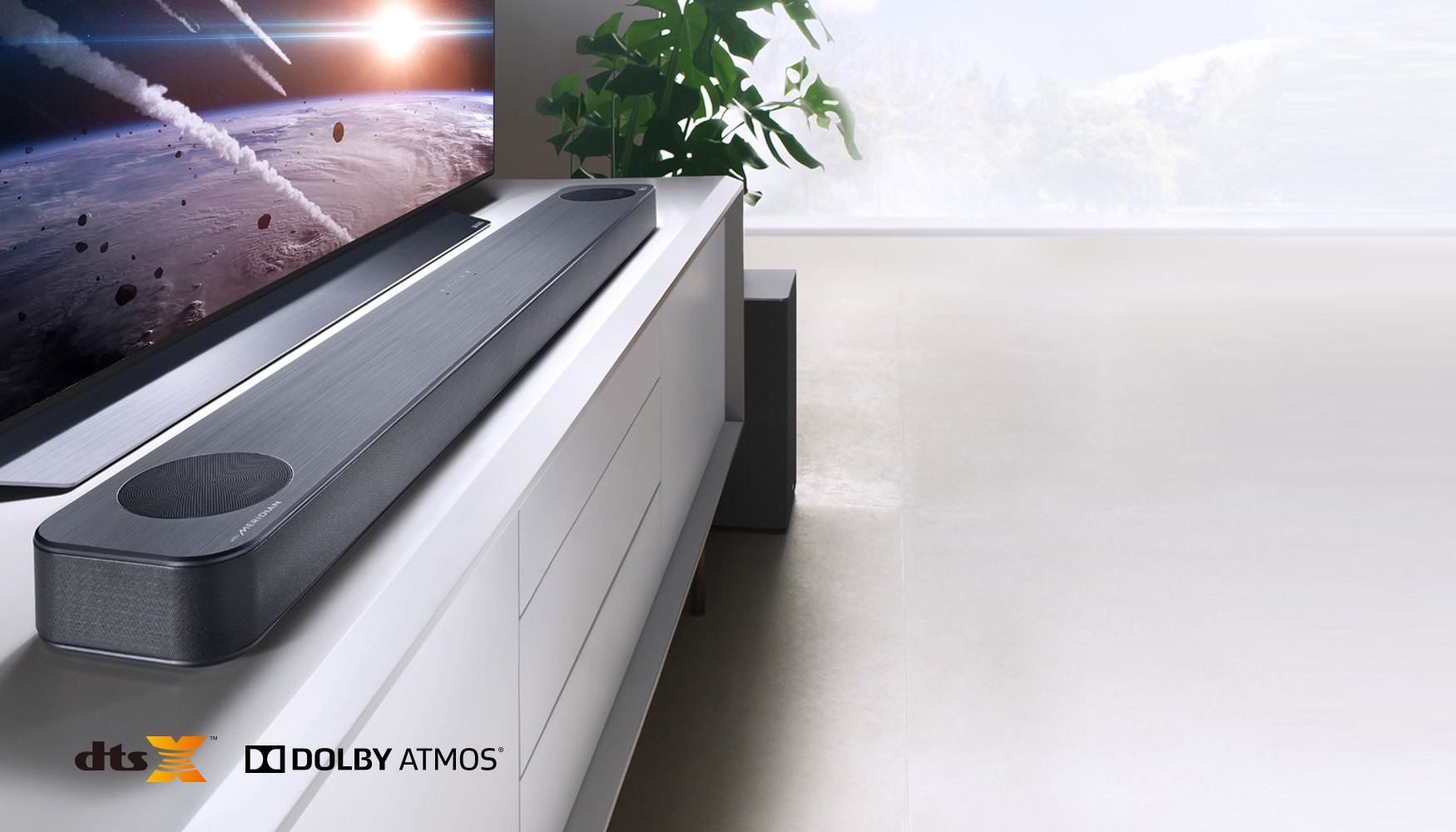

  • Dolby Atmos / DTS:X

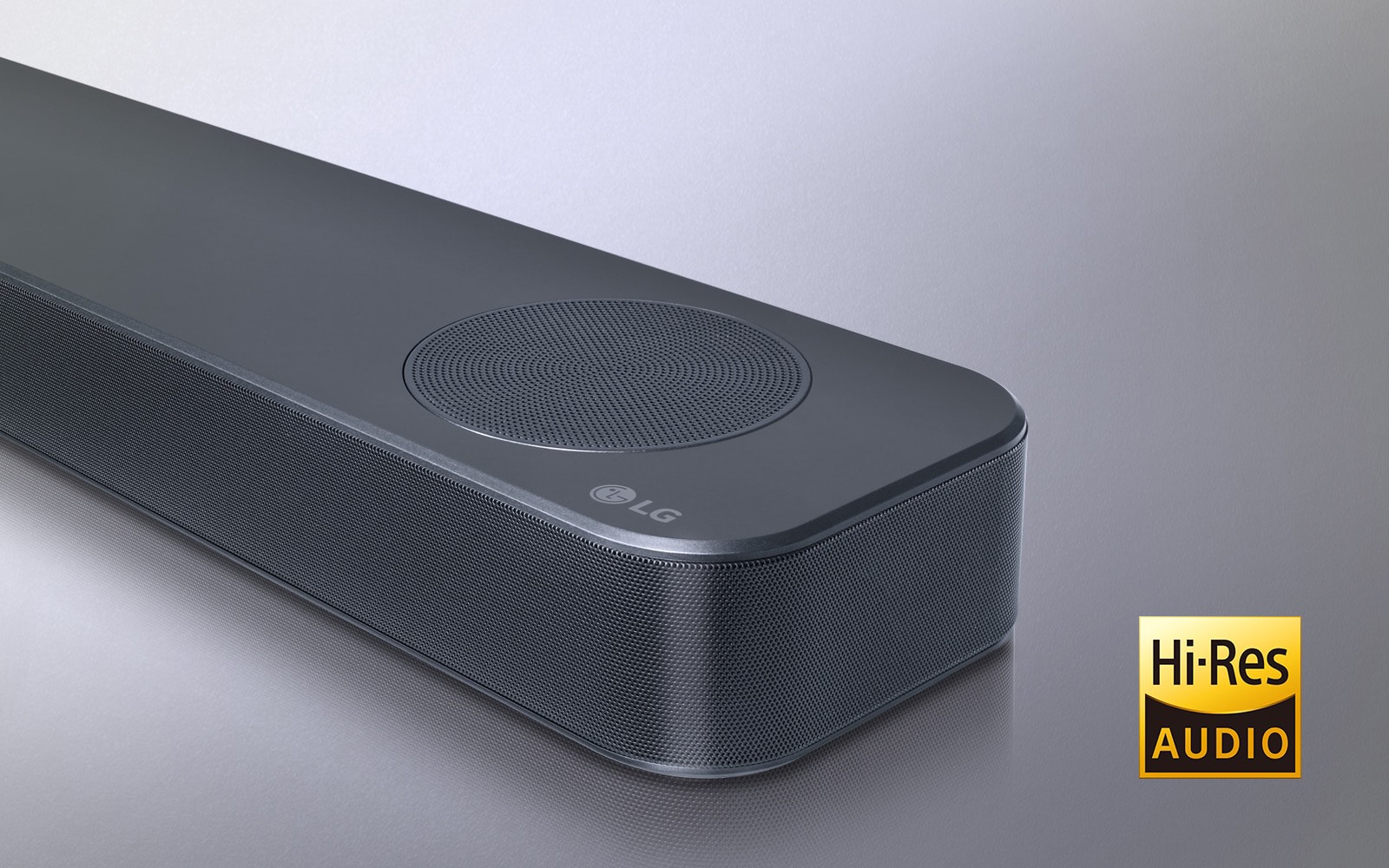

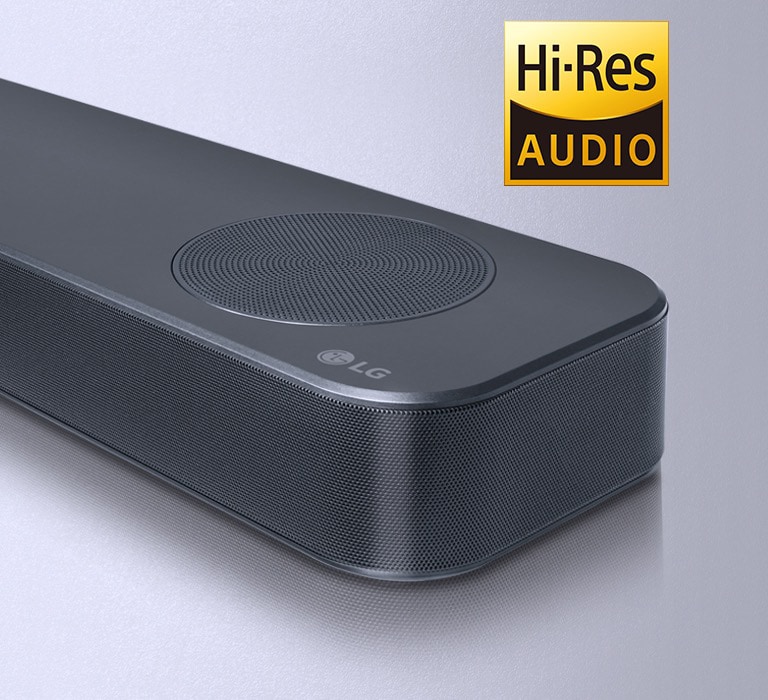

  • High Resolution Audio

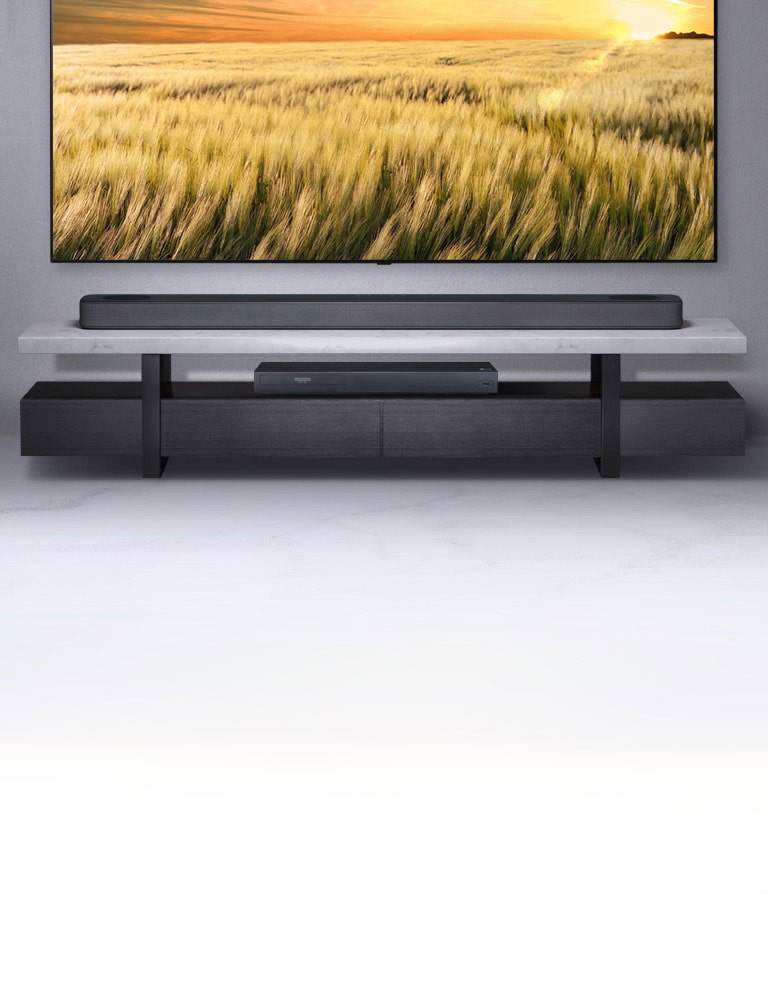

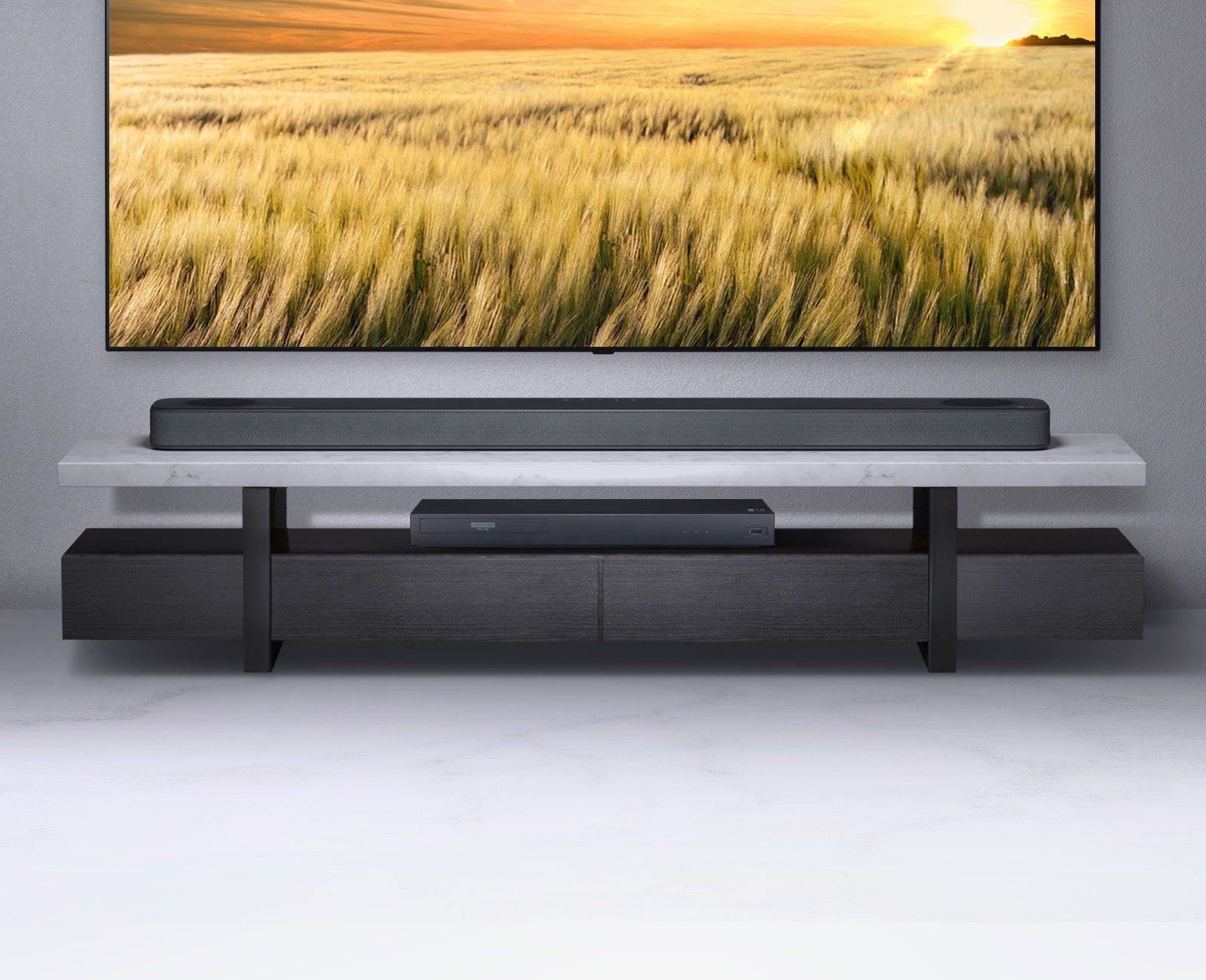

  • 4K Pass Through

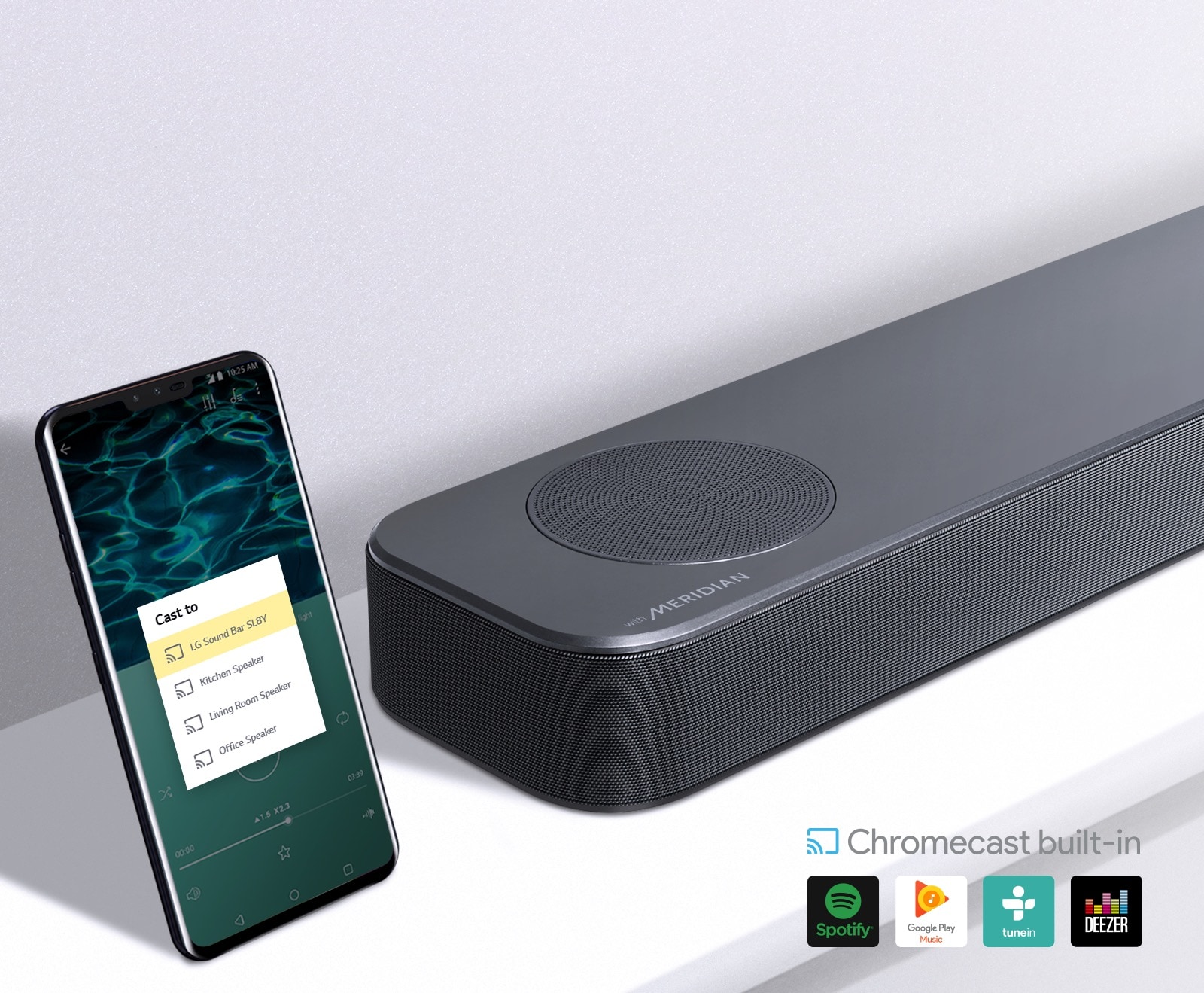

  • Chromecast built-in

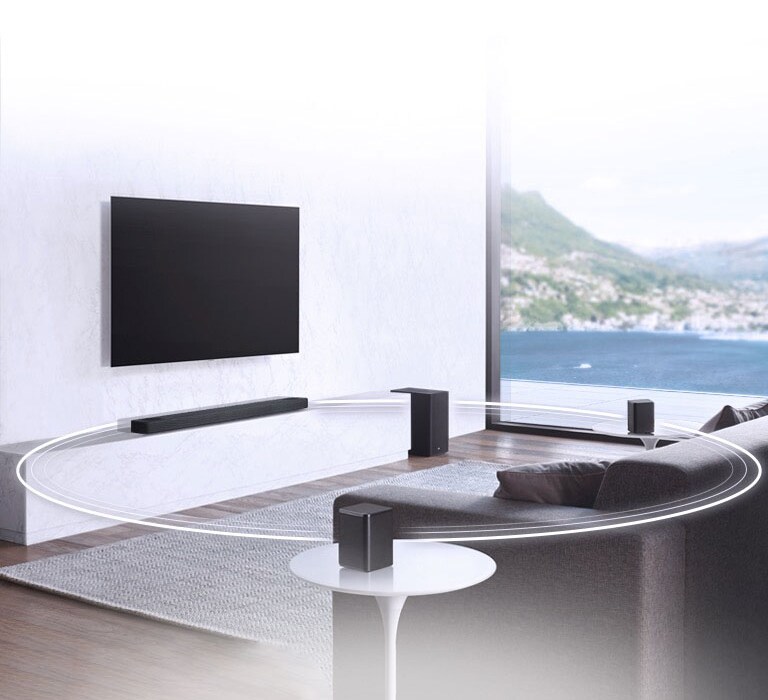

  • Wireless Rear Speaker Ready

component-OBScountrySelectDesc

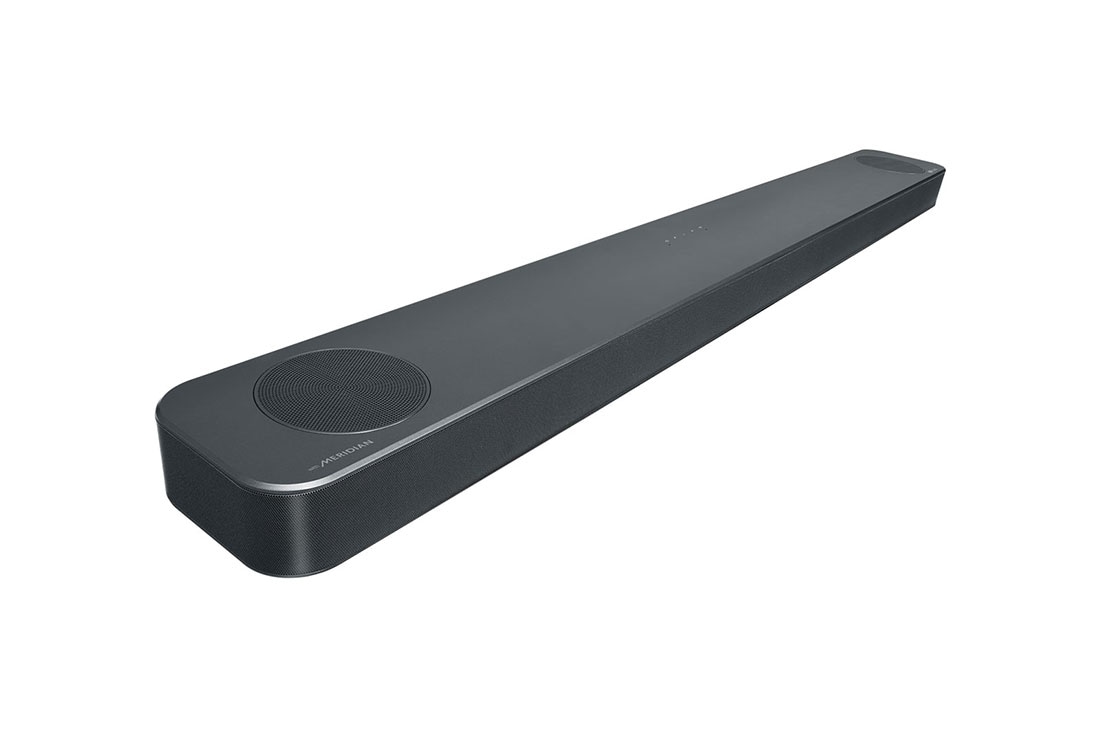

LG Sound Bar
PHYSICAL

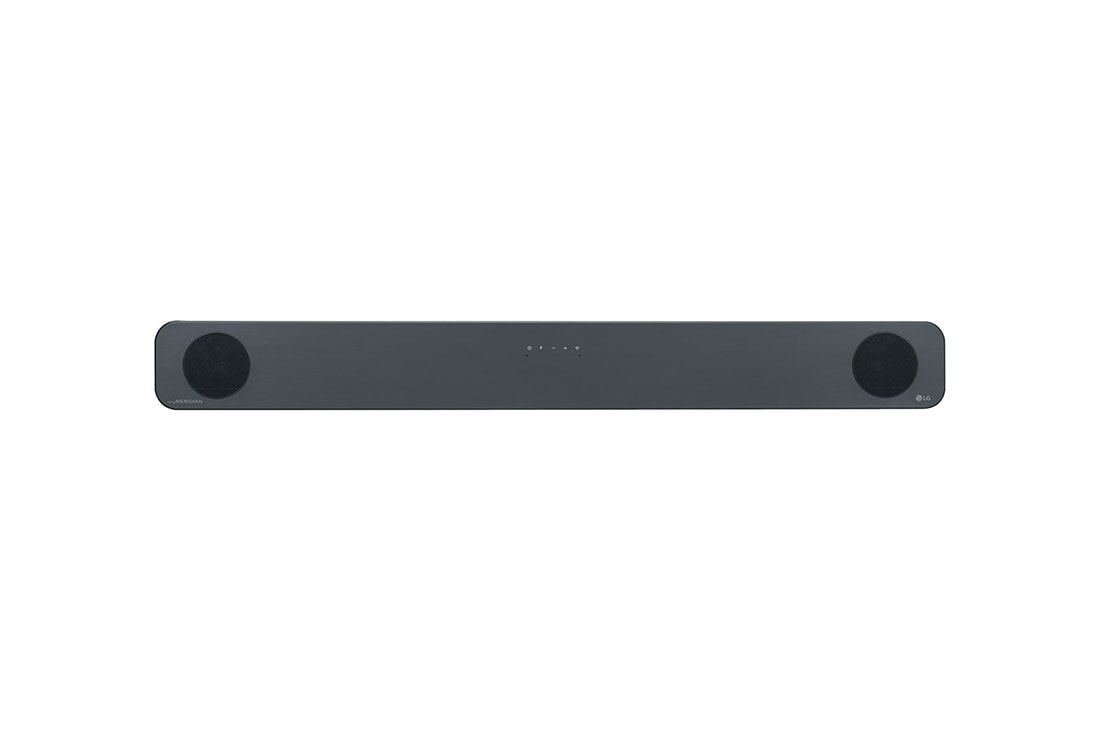

  • Size (W x H x D) mm - Main (w/ foot ) mm
    1060 x 57 x 119
    Size (W x H x D) mm - Main (w/ foot ) mm - Matching TV size ('19 New Designed LG TV)
    49 inch ↑
  • Size (W x H x D) mm - Main (w/ foot ) mm - Matching TV size ('19 New Designed LG TV) - Addtional Foot (H) mm
    14mm

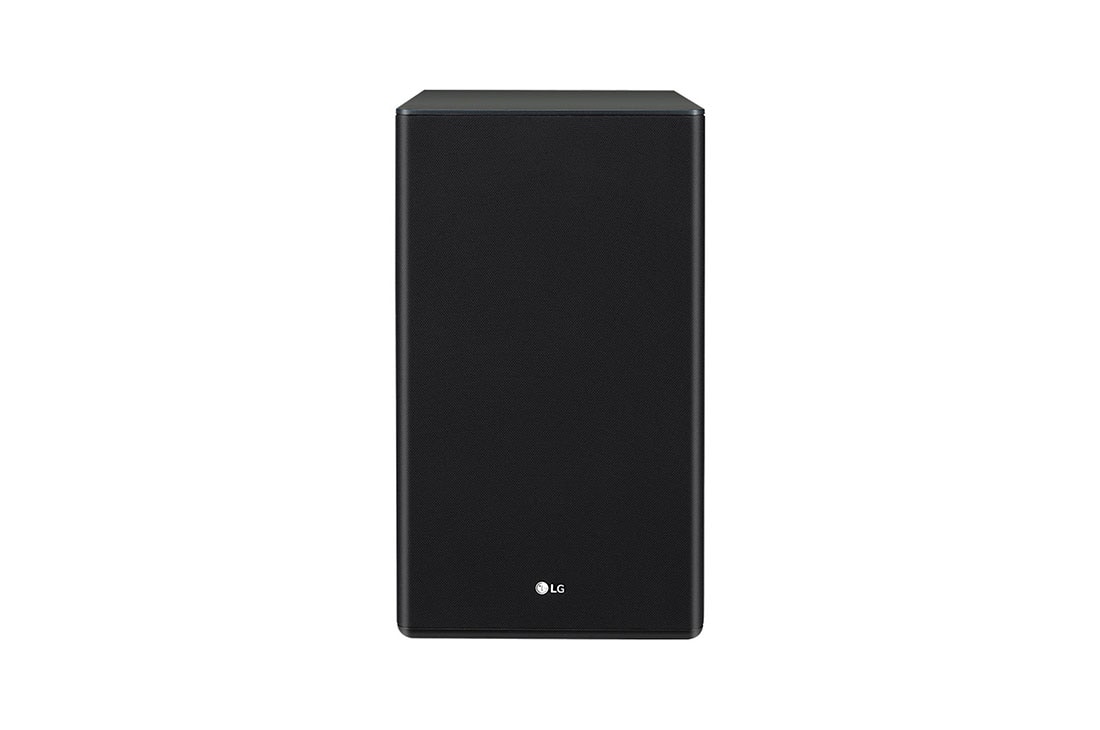

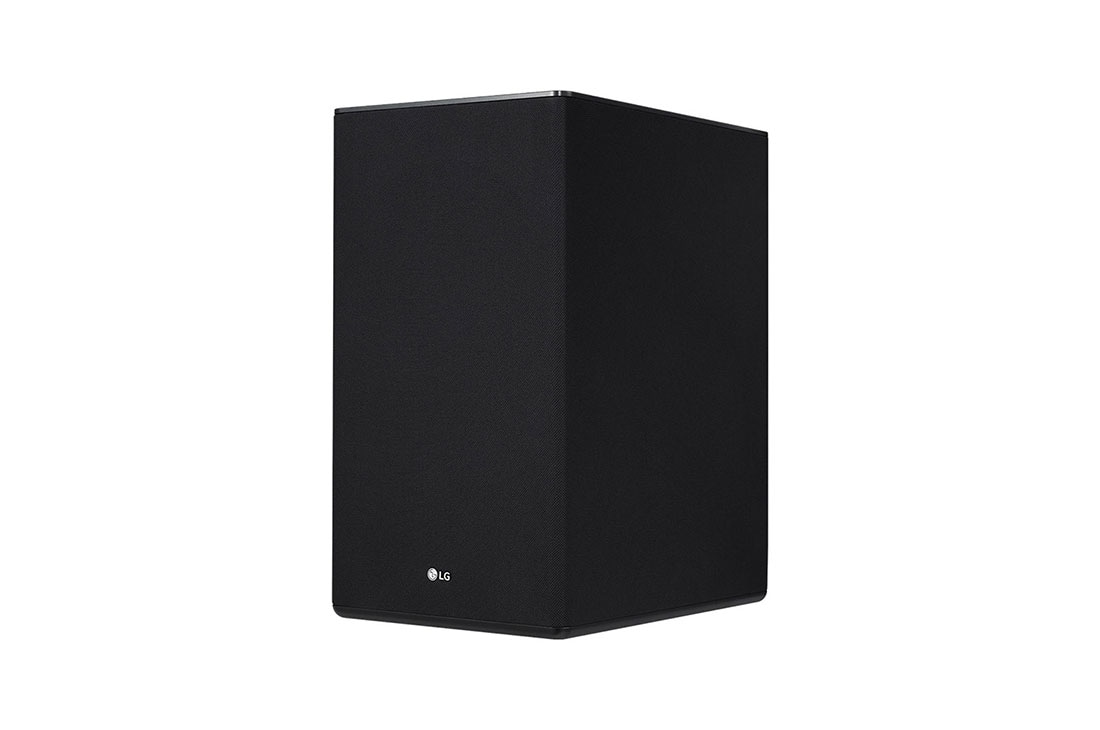

    Size (W x H x D) mm - Subwoofer
    221.0 x 390.0 x 312.8
  • Material - Mainset - Front
    Metal Grille
    Material - Mainset - Top / Bottom
    Mold/Mold
  • Material - Subwoofer - Front
    Jersey
    Material - Subwoofer - Body
    Wood
  • Net Weight (Kg) - Main
    4.4Kg
    Net Weight (Kg) - Subwoofer
    7.8Kg
  • Carton Size (W x H x D) mm
    1155 x 280 x 587
    Carton Type
    Offset (L)
  • Gross Weight (Kg)
    15.34Kg
    Container Q'ty - 20ft
    240
  • Container Q'ty - 40ft
    480
    Container Q'ty - 40ft (HC)
    640
CHANNEL/OUTPUT POWER
  • Channel
    3.1.2ch
    Output Power (THD 10%) - Total
    440W
  • Output Power (THD 10%) - Front
    50W x 2
    Output Power (THD 10%) - Center
    40W
  • Output Power (THD 10%) - Top
    40W x 2
    Output Power (THD 10%) - Subwoofer
    220W (Wireless)
  • Audio DAC - 24bit/96kHz
    Yes
SPEAKER
  • Main - SPL
    82dB
    Main - System
    Closed
  • Main - Tweeter Unit - Front Only
    20mm Silk Dome
    Main - Woofer Unit
    40x100mm
  • Main - Impedance
    4ohm
    Main - Magnetic Shielding
    non-Shield
  • Top - SPL
    83dB
    Top - System
    Closed
  • Top - Woofer Unit
    2.5"
    Top - Impedance
    4ohm
  • Top - Magnetic Shielding
    non-Shield
    Subwoofer - SPL
    85dB
  • Subwoofer - System
    Bass Reflex
    Subwoofer - Woofer Unit
    7inch
  • Subwoofer - Impedance
    3ohm
    Subwoofer - Magnetic Shielding
    Non-shield
NETWORK
  • WiFi Band Width - 2.4G / 5G
    Yes

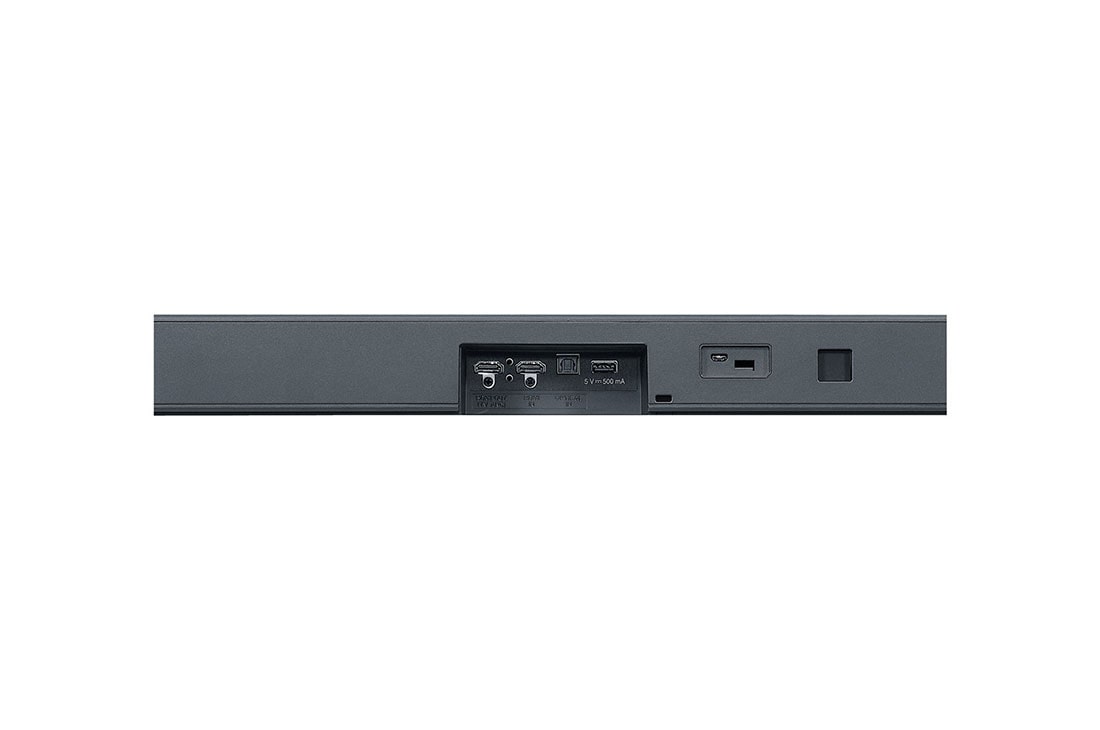

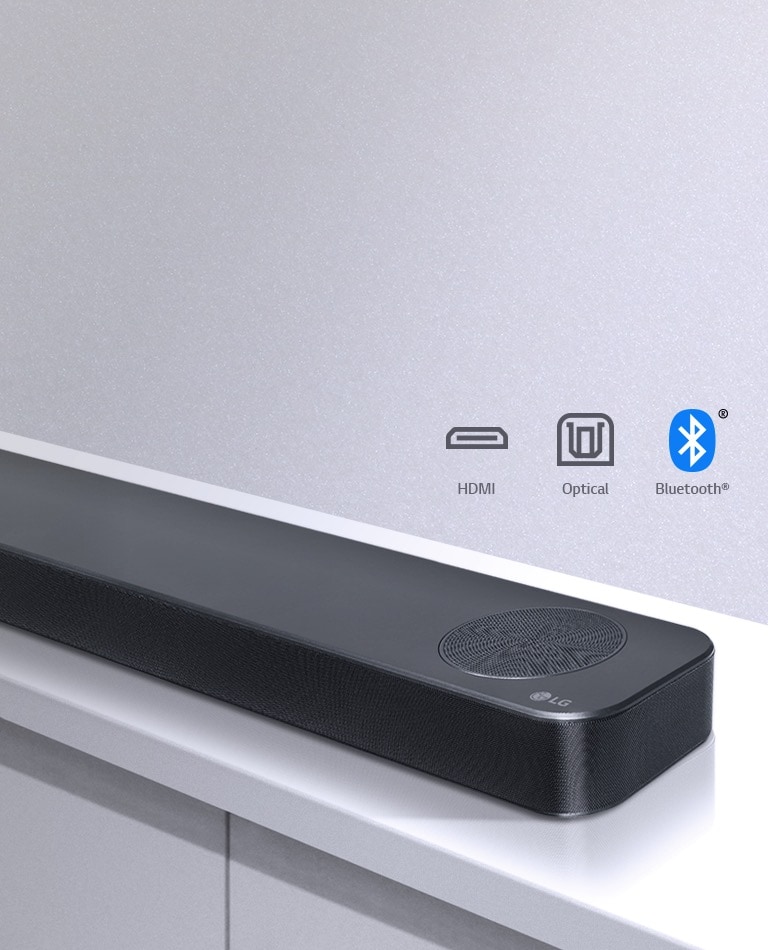

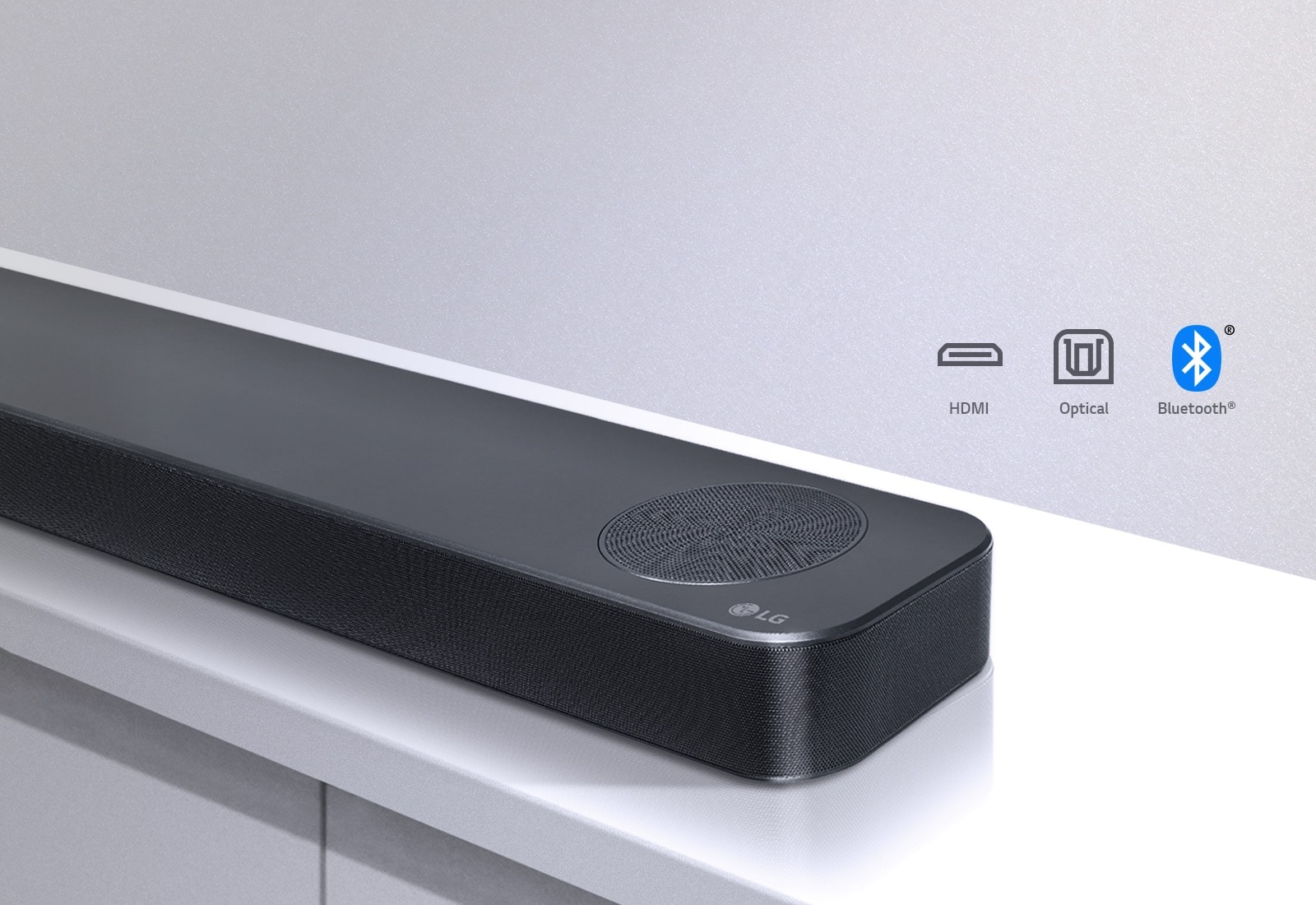

CONNECTIVITY
  • General - Optical
    Yes (1)
    General - HDMI 2.0 (HDCP 2.2): 4K pass through - In / Out
    Yes(1) / Yes(1)
  • General - USB
    Yes
    Wireless - Bluetooth (ver)
    5.0
  • Wireless - Bluetooth (ver) - Bluetooth Codec (SBC)
    Yes
    Wireless - WiFi
    Yes
INFORMATION DISPLAY
  • Display Type
    LCD (5 Char.)
SOUND MODE

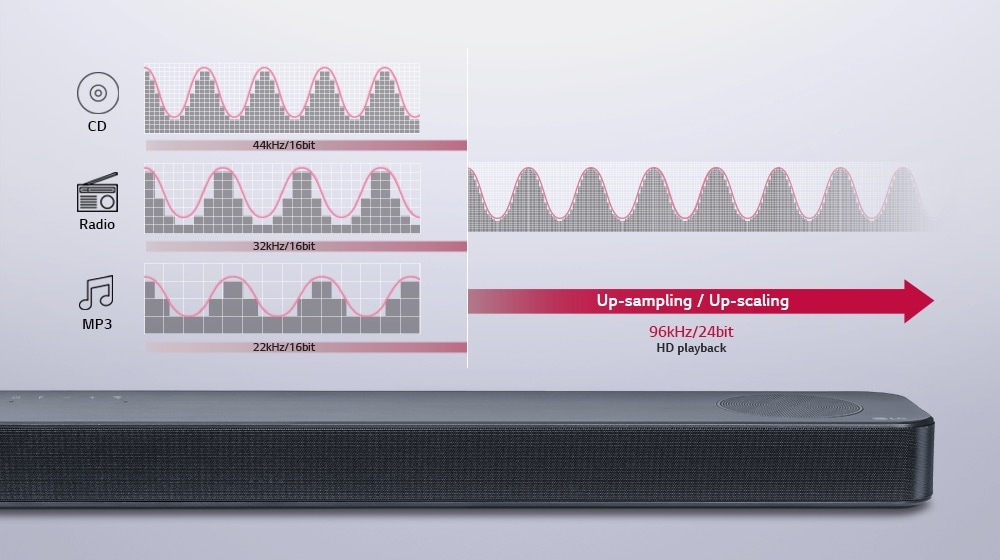

  • Hi-Res Audio - Sampling - 24bit/96kHz
    Yes
    Hi-Res Audio - Upbit/upsampling to - 24bit/96kHz
    Yes
  • Google Multi Zone - Group Play Mode (one source - multi speaker)
    Yes
    Sound Effect - Standard (Meridian : TBD)
    Yes
  • Sound Effect - ASC (Adaptvie Sound Control)
    Yes
    Sound Effect - Music
    Yes
  • Sound Effect - Bass Blast / Bass Blast +
    Yes
    Sound Effect - Movie (TBD : Dolby Surround)
    Yes
  • Sound Effect - Dolby ATMOS
    Yes
    Sound Effect - DTS:X
    Yes
  • Tone control - User EQ (RCU / App)
    Yes
    Night Time - On/Off (App)
    Yes
  • Dynamic Range Control - On/Off (App)
    Yes
    Auto Volume Leveler - On/Off (App)
    Yes
CONVENIENCE
  • Smart Phone & Tablet Remote App - iOS / Android OS
    Yes
    Smart Phone File Playback
    Yes
  • EZ setup (BLE)
    Yes
    Works with the Google Assistant - Controllee
    Yes
  • NSU(Network Software Update)
    Yes
    Control with your TV Remote - Vol + , - , Mute
    Yes
  • Sound Sync - Optical
    Yes
    Automatic Power on/off - Optical
    Yes
  • A/V Sync - 0~300ms (App)
    Yes
    SIMPLINK
    Yes
  • Audio Return Channel (ARC)
    Yes
    Woofer Level - -15~+6 (Step)
    Yes
  • Channel Level - -6~+6 (Step) - Top / Center / Side / Surround
    Yes
    Mute
    Yes
  • Auto Dimmer
    Yes
    Sleep Timer - (App)
    Yes
  • USB Host
    Yes

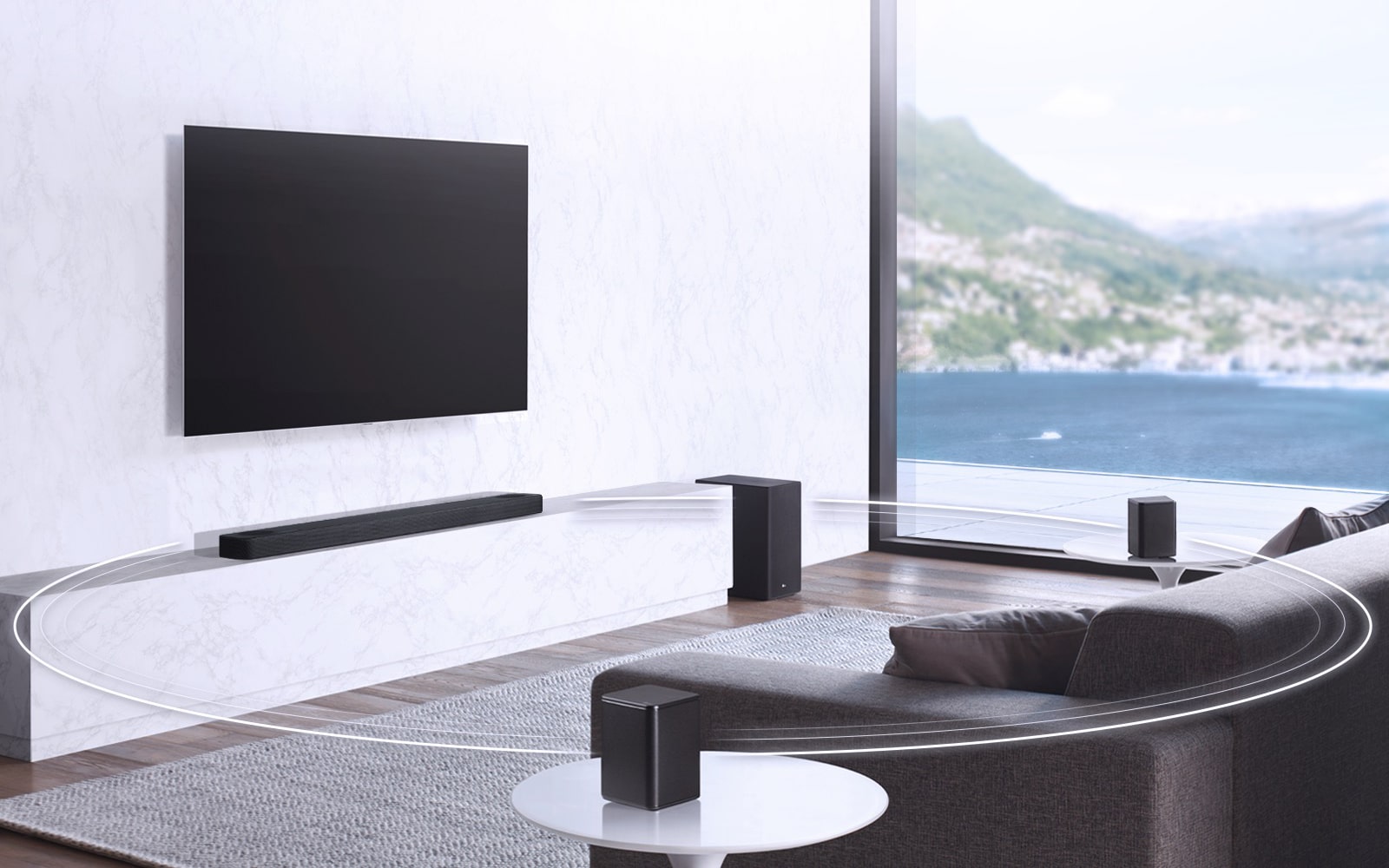

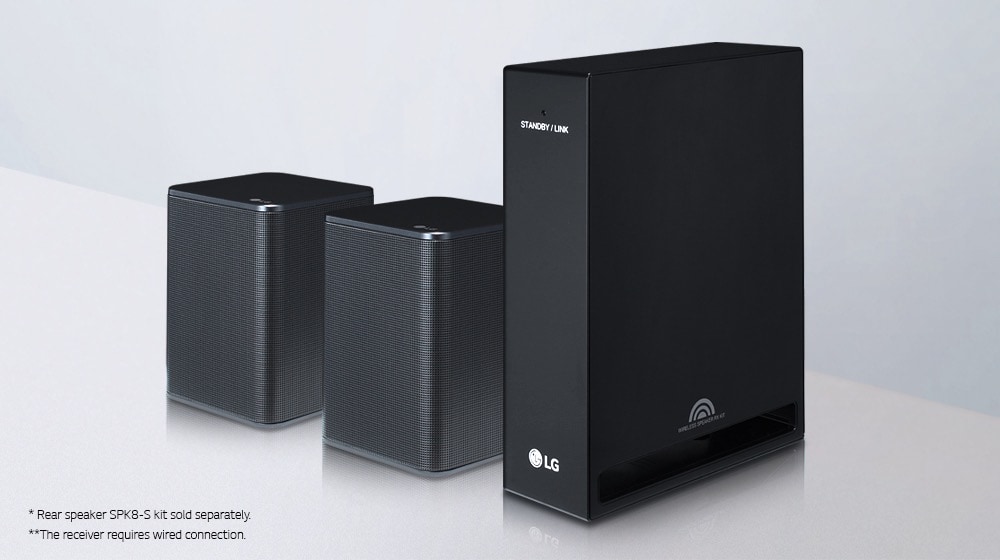

    Wireless Rear Speaker Ready - 1:1 Rx module Type (Wireless Kit for rear)
    Yes
AUDIO FORMAT
  • LPCM
    Yes
    Dolby Atmos
    Yes
  • Dolby TrueHD
    Yes
    Dolby Digital Plus
    Yes
  • Dolby Digital
    Yes
    DTS Digital Surround
    Yes
  • DTS Virtual X
    Yes
    DTS-HD Master Audio
    Yes
  • DTS-HD High Resolution
    Yes
    DTS X
    Yes
  • AAC / AAC+
    Yes
FILE FORMAT
  • FLAC - Up to 192kHz - C4A
    Yes
    OGG - Up to 48kHz - C4A / USB
    Yes
  • WAV - C4A
    Yes
    MP3 - C4A / USB
    Yes
  • AAC - C4A / USB
    Yes
AUDIO STREAMING SERVICE

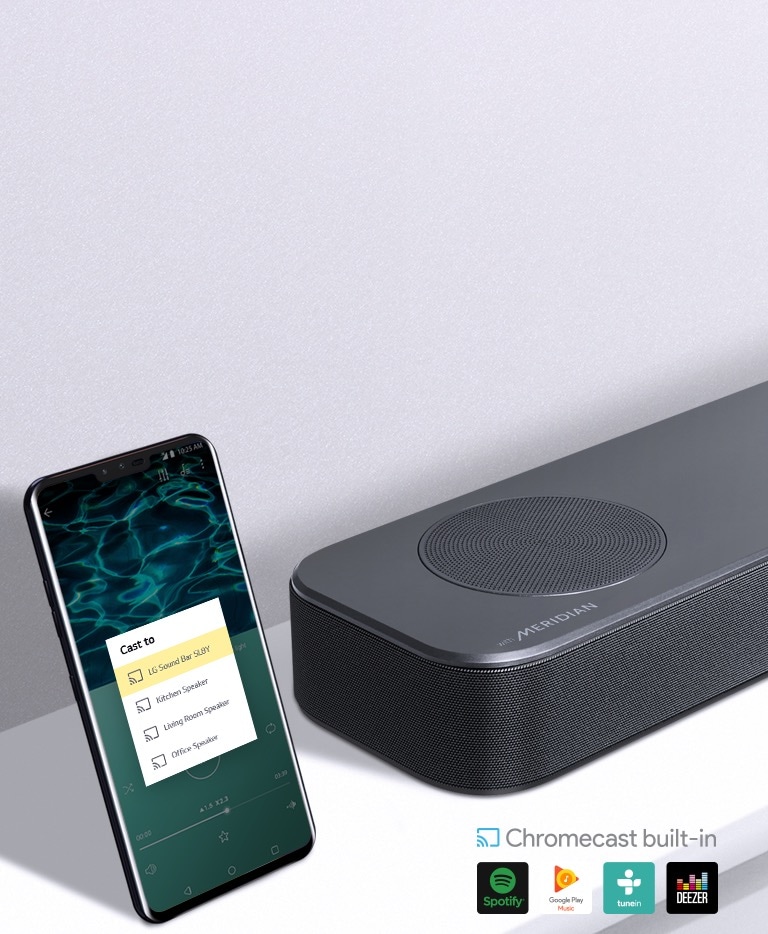

  • Chromecast
    Yes
POWER CONSUMPTION
  • Main - Type - Adaptor
    25V, 2A
    Main - Power Off Consumption
    0.5W ↓
  • Main - Power Consumption
    45W
    Subwoofer - Type - SMPS
    100~240V, 50/60Hz
  • Subwoofer - Power Off Consumption
    0.5W ↓
    Subwoofer - Power Consumption
    38W
  • Subwoofer - Wireless Frequency
    5.8GHz
FEATURE LIST ACCESSORY KIT
  • Owners Manual - Web (w/ Simple Manual)
    Yes (Full)
    Owners Manual - Book
    Simple / Yes
  • Owners Manual - Wall Mount Guide
    Yes
    Owners Manual - Open Source : X / Yes (Full / Simple)
    Yes (Full)
  • Remote Control Unit - Model Name
    MA7
    Remote Control Unit - Battery(Size)
    AAA x 2
  • Batteries
    Yes
    Warranty Card
    Yes
  • Optical Cable
    Yes
    Wall Mount Bracket
    Yes
  • Cable Management (Tie)
    Yes
    Additional Foot
    Yes
  • Box Type
    Offset (L)
