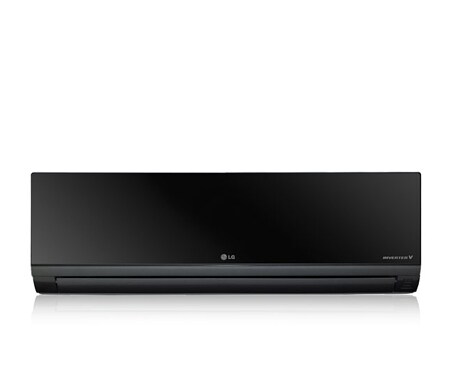

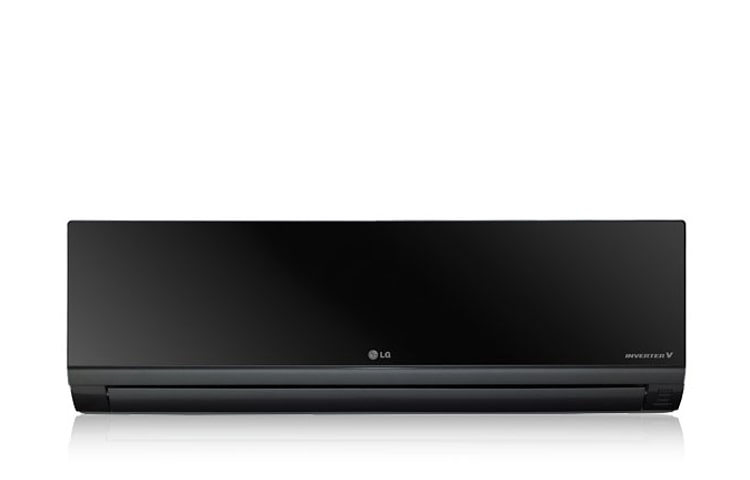

AV096MTQ
Cooling & Heating
  • Auto Cleaning
  • Deodorizing_Triple Filter
  • Jet Cool
  • 10m windblast

component-OBScountrySelectDesc

Cooling & Heating

BASIC SPECIFICATION

  • Color
    Mirror
    Cooling Capacity(kW)
    0.89~2.50~3.70
  • Heating Capacity(kW)
    0.89~3.20~4.10
    Low Temp. Heating Capacity (-7℃)(kW)
    3.00

ELECTRICAL DATA

  • Power Input (Cooling / Heating)(W)
    600 / 770
    Running Current (Cooling / Heating)(A)
    2.66 / 3.40
  • Starting Current (Cooling / Heating)(A)
    2.66 / 3.40
    Max Current (Cooling / Heating)(A)
    10.0
  • EER (W/W)
    4.17
    EER (Btu/h.W)
    14.2
  • COP (W/W)
    4.16
    Annual Energy Consumption (Cooling)(kWh)
    300
  • Power Supply (Ø / V Hz)
    1 / 220-240 / 50
    Power Factor (%)
    98.0

AIR FLOW RATE

  • Indoor, Max (m3 / min(CFM))
    12.0(423)
    Outdor, Max (m3 / min(CFM))
    27(953)

MOISTURE REMOVAL

  • l/h.
    1.1

SOUND PRESSURE LEVEL

  • Indoor, H/M/L/Sleep (dB(A)±3)
    38 / 33 / 23 / 19
    Outdoor, Max (dB(A)±3)
    47

SOUND POWER LEVEL

  • Indoor, Max (dB(A))
    57
    Outdoor, Max (dB(A))
    65

REFRIGERANT & CHARGE (AT 7.5 M)

  • g(oz)
    R410A, 900(31.75)

ADDITIONAL REFRIGERANT CHARGE

  • g/m (oz/ft)
    20(0.22)

COMPRESSOR

  • Type
    Rotary
    Model
    GA102DBA
  • Motor Type
    Brushless DC Motor
    Oil Type
    FVC68D
  • Oil Charge (cc)
    310

FAN(INDOOR)

  • Type
    Cross Flow Fan
    Motor Output (W)
    20

FAN(OUTDOOR)

  • Type
    Propeller
    Motor Type
    BLDC
  • Motor Output (W)
    43

CIRCUIT BREAKER*

  • A
    15

POWER SUPPLY CABLE

  • No.*mm²
    3 x 1.0

POWER AND TRANSMISSION CABLE NO. *MM²

  • No.*mm²
    4 x 1.0 (Including Earth)

PIPING CONNECTIONS

  • Liquid Side (mm(in))
    6.35(1/4)
    Gas Side (mm(in))
    9.52(3/8)
  • Drain Hose(O.D / I.D) (mm(in))
    21.5 / 16.0 (0.85 / 0.63)

DIMENSIONS

  • Indoor(W*H*D)(mm)
    885*285*210
    Indoor(W*H*D)(inch)
    35.2*11.2*8.3
  • Outdoor(W*H*D)(mm)
    717*483*230
    Outdoor(W*H*D)(inch)
    28.2*19.0*9.1

NET WEIGHT

  • Indoor (kg(lbs))
    11(24.5)
    Outdoor (kg(lbs))
    28(61.7)

OPERATION RANGE

  • Cooling (outdoor) °C
    -5 ~ 48
    Heating (outdoor) °C
    -10 ~ 24

PIPING LEGTH (MIN/MAX)

  • m(ft)
    3(9.84) / 15(49.2)

MAX. ELEVATION DIFFERENCE

  • m(ft)
    7(23.0)

TOOL CODE(CHASSIS)

  • Indoor + Outdoor
    SB + UA3

FUNCTIONS

  • Temperature Control
    Thermistor
    Auto Clean
    Yes
  • CHAOS Wind (Auto Wind)
    Yes
    Steps, Fan/Cool/Heat
    3/4/3
  • Airflow Direction Control(Up & Down)
    Auto
    Airflow Direction Control(Left & Right)
    Auto
  • Remote Controller Type
    Wireless LCD
    Setting Temperature Range_Cooling
    16°C ~ 30°C
  • Setting Temperature Range_Heating
    1
    Timer
    24h, On/Off
  • Sleep Operation
    Yes
    Soft Dry Operation
    Yes
  • Restart Delay (minute)
    3
    Hot Start
    Yes
  • Jet Cool
    Yes
    Low Ambient Operation
    Yes
  • Plasma Filter
    Yes
    Prefilter(washable / anti fungus)
    Yes
  • Anti Allergy Filter
    Yes
    Deodorizer Filter (Triple Filter)
    Yes
  • H1N1 Filter
    Yes
    Device Control (Defrost)
    Yes
