Discontinued

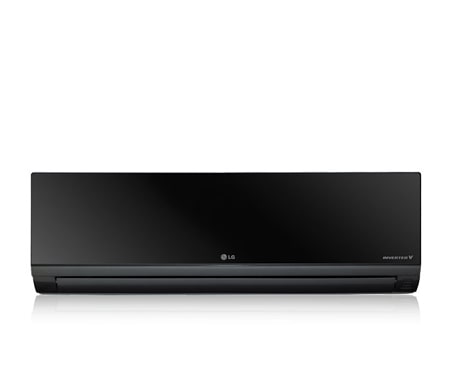

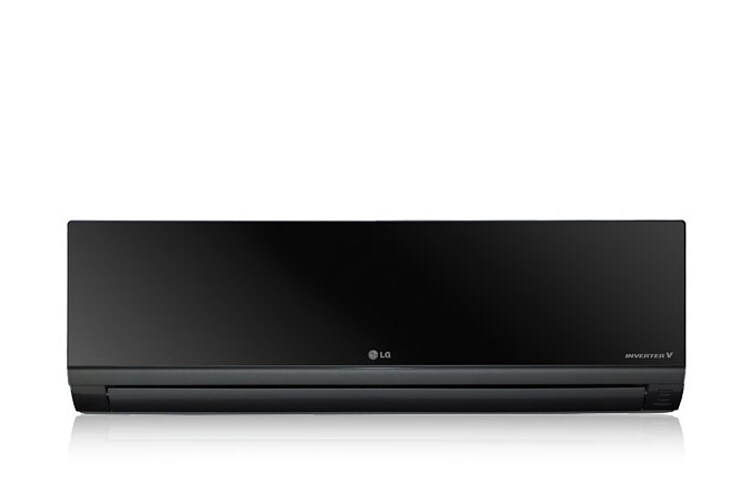

AV186MTQ
Cooling & heating
  • Auto Cleaning
  • Deodorizing_Triple Filter
  • Jet Cool
  • 10m windblast

component-OBScountrySelectDesc

Cooling & heating

BASIC SPECIFICATION

  • Color
    Mirror
    Cooling Capacity(kW)
    0.90 ~ 5.20 ~ 6.00
  • Heating Capacity(kW)
    0.90 ~ 6.30 ~ 9.00
    Low Temp. Heating Capacity (-7℃)(kW)
    5.50

ELECTRICAL DATA

  • Power Input (Cooling / Heating)(W)
    1,500 / 1,650
    Running Current (Cooling / Heating)(A)
    6.6 / 7.3
  • Starting Current (Cooling / Heating)(A)
    6.6 / 7.3
    Max Current (Cooling / Heating)(A)
    12.5
  • EER (W/W)
    3.47
    EER (Btu/h.W)
    11.8
  • COP (W/W)
    3.82
    Annual Energy Consumption (Cooling)(kWh)
    750
  • Power Supply (Ø / V Hz)
    1 / 220-240 / 50
    Power Factor (%)
    98.8

AIR FLOW RATE

  • Indoor, Max (m3 / min(CFM))
    19.5(689)
    Outdor, Max (m3 / min(CFM))
    50(1,766)

MOISTURE REMOVAL

  • l/h.
    1.9

SOUND PRESSURE LEVEL

  • Indoor, H/M/L/Sleep (dB(A)±3)
    42 / 40 / 35 / 29
    Outdoor, Max (dB(A)±3)
    51

SOUND POWER LEVEL

  • Indoor, Max (dB(A))
    63
    Outdoor, Max (dB(A))
    70

REFRIGERANT & CHARGE (AT 7.5 M)

  • g(oz)
    R410A, 1,350(47.62)

ADDITIONAL REFRIGERANT CHARGE

  • g/m (oz/ft)
    20(0.22)

COMPRESSOR

  • Type
    Twin Rotary
    Model
    GKT141DAA
  • Motor Type
    Brushless DC Motor
    Oil Type
    FVC68D
  • Oil Charge (cc)
    570

FAN(INDOOR)

  • Type
    Cross Flow Fan
    Motor Output (W)
    30

FAN(OUTDOOR)

  • Type
    Propeller
    Motor Type
    BLDC
  • Motor Output (W)
    84

CIRCUIT BREAKER*

  • A
    20

POWER SUPPLY CABLE

  • No.*mm²
    3 x 1.5

POWER AND TRANSMISSION CABLE NO. *MM²

  • No.*mm²
    4 x 1.0 (Including Earth)

PIPING CONNECTIONS

  • Liquid Side (mm(in))
    6.35(1/4)
    Gas Side (mm(in))
    12.70(1/2)
  • Drain Hose(O.D / I.D) (mm(in))
    21.5 / 16.0 (0.85 / 0.63)

DIMENSIONS

  • Indoor(W*H*D)(mm)
    1,030*325*250
    Indoor(W*H*D)(inch)
    40.6*12.8*9.84
  • Outdoor(W*H*D)(mm)
    870*655*320
    Outdoor(W*H*D)(inch)
    34.3*25.8*12.6

NET WEIGHT

  • Indoor (kg(lbs))
    17(37.5)
    Outdoor (kg(lbs))
    46(101.4)

OPERATION RANGE

  • Cooling (outdoor) °C
    -10 ~ 48
    Heating (outdoor) °C
    -10 ~ 24

PIPING LEGTH (MIN/MAX)

  • m(ft)
    - / 20(65.6)

MAX. ELEVATION DIFFERENCE

  • m(ft)
    15(49.2)

TOOL CODE(CHASSIS)

  • Indoor + Outdoor
    SC + UE

FUNCTIONS

  • Temperature Control
    Thermistor
    Auto Clean
    Yes
  • CHAOS Wind (Auto Wind)
    Yes
    Steps, Fan/Cool/Heat
    3/4/3
  • Airflow Direction Control(Up & Down)
    Auto
    Airflow Direction Control(Left & Right)
    Auto
  • Remote Controller Type
    Wireless LCD
    Setting Temperature Range_Cooling
    16°C ~ 30°C
  • Setting Temperature Range_Heating
    1
    Auto Changeover (Micom Control)
    Yes
  • Self Diagnosis
    Yes
    Timer
    24h, On/Off
  • Sleep Operation
    Yes
    Soft Dry Operation
    Yes
  • Restart Delay (minute)
    3
    Hot Start
    Yes
  • Jet Cool
    Yes
    Low Ambient Operation
    Yes
  • Plasma Filter
    Yes
    Prefilter(washable / anti fungus)
    Yes
  • Anti Allergy Filter
    Yes
    Deodorizer Filter (Triple Filter)
    Yes
  • H1N1 Filter
    Yes
    Device Control (Defrost)
    Yes
