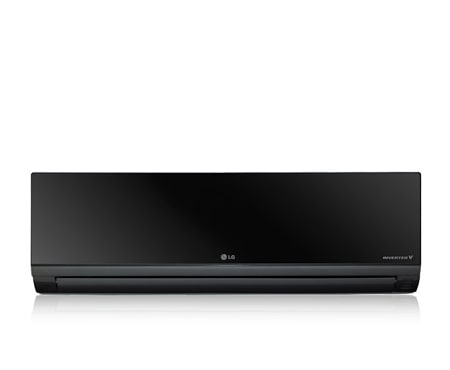

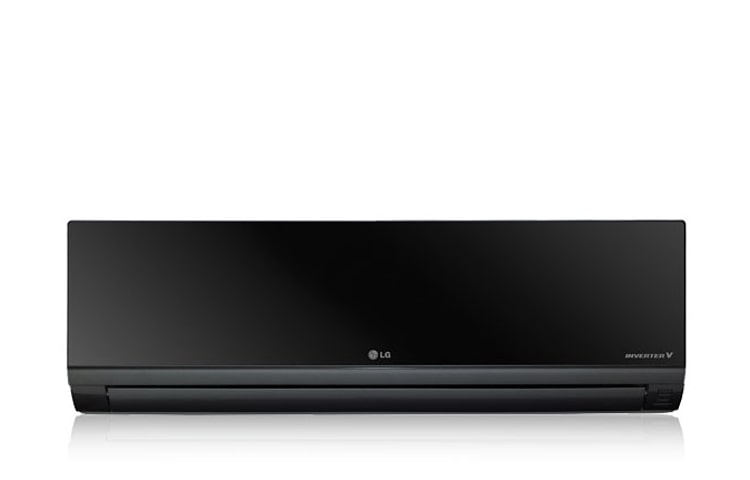

AV246MTQ
cooling & heating
  • Auto Cleaning
  • Deodorizing_Triple Filter
  • Jet Cool
  • 10m windblast

component-OBScountrySelectDesc

cooling & heating

BASIC SPECIFICATION

  • Color
    Mirror
    Cooling Capacity
    0.90 ~ 7.03 ~ 8.65
  • Heating Capacity
    0.90 ~ 8.44 ~ 11.40
    Low Temp. Heating Capacity (-7℃)
    8.50

ELECTRICAL DATA

  • Power Input (Cooling / Heating)(W)
    2,190 / 2,330
    Running Current (Cooling / Heating)(A)
    9.8 / 10.4
  • Starting Current (Cooling / Heating)(A)
    9.8 / 10.4
    Max Current (Cooling / Heating)(A)
    19.0
  • EER (W/W)
    3.21
    EER (Btu/h.W)
    11.0
  • COP (W/W)
    3.62
    Annual Energy Consumption (Cooling)(kWh)
    1095
  • Power Supply (Ø / V Hz)
    1 / 220-240 / 50
    Power Factor (%)
    98.2

AIR FLOW RATE

  • Indoor, Max (m3 / min(CFM))
    22(777)
    Outdor, Max (m3 / min(CFM))
    60(2,119)

MOISTURE REMOVAL

  • l/h.
    2.6

SOUND PRESSURE LEVEL

  • Indoor, H/M/L/Sleep (dB(A)±3)
    45 / 40 / 35 /29
    Outdoor, Max (dB(A)±3)
    53

SOUND POWER LEVEL

  • Indoor, Max (dB(A))
    65
    Outdoor, Max (dB(A))
    70

REFRIGERANT & CHARGE (AT 7.5 M)

  • g(oz)
    R410A, 1800(63.49)

ADDITIONAL REFRIGERANT CHARGE

  • g/m (oz/ft)
    35(0.37)

COMPRESSOR

  • Type
    Twin Rotary
    Model
    GJT240DAA
  • Motor Type
    Brushless DC Motor
    Oil Type
    FVC68D
  • Oil Charge (cc)
    900

FAN(INDOOR)

  • Type
    Cross Flow Fan
    Motor Output (W)
    30

FAN(OUTDOOR)

  • Type
    Propeller
    Motor Type
    BLDC
  • Motor Output (W)
    124

CIRCUIT BREAKER*

  • A
    25

POWER SUPPLY CABLE

  • No.*mm²
    3 x 2.5

POWER AND TRANSMISSION CABLE NO. *MM²

  • No.*mm²
    4 x 1.0 (Including Earth)

PIPING CONNECTIONS

  • Liquid Side (mm(in))
    9.52(3/8)
    Gas Side (mm(in))
    15.88(5/8)
  • Drain Hose(O.D / I.D) (mm(in))
    21.5 / 16.0 (0.85 / 0.63)

DIMENSIONS

  • Indoor(W*H*D)(mm)
    1,030*325*250
    Indoor(W*H*D)(inch)
    40.6*12.8*9.84
  • Outdoor(W*H*D)(mm)
    870*800*320
    Outdoor(W*H*D)(inch)
    34.3*31.8*12.6

NET WEIGHT

  • Indoor (kg(lbs))
    17(37.5)
    Outdoor (kg(lbs))
    60(132)

OPERATION RANGE

  • Cooling (outdoor) °C
    -10 ~ 48
    Heating (outdoor) °C
    -10 ~ 24

PIPING LEGTH (MIN/MAX)

  • m(ft)
    - / 30(98.4)

MAX. ELEVATION DIFFERENCE

  • m(ft)
    15(49.2)

TOOL CODE(CHASSIS)

  • Indoor + Outdoor
    SD + UE1 Plus

FUNCTIONS

  • Temperature Control
    Thermistor
    Auto Clean
    Yes
  • CHAOS Wind (Auto Wind)
    Yes
    Steps, Fan/Cool/Heat
    3/4/3
  • Airflow Direction Control(Up & Down)
    Auto
    Airflow Direction Control(Left & Right)
    Auto
  • Remote Controller Type
    Wireless LCD
    Setting Temperature Range_Cooling
    16°C ~ 30°C
  • Setting Temperature Range_Heating
    1
    Auto Changeover (Micom Control)
    Yes
  • Self Diagnosis
    Yes
    Timer
    24h, On/Off
  • Sleep Operation
    Yes
    Soft Dry Operation
    Yes
  • Restart Delay (minute)
    3
    Hot Start
    Yes
  • Jet Cool
    Yes
    Low Ambient Operation
    Yes
  • Prefilter(washable / anti fungus)
    Yes
    Anti Allergy Filter
    Yes
  • Deodorizer Filter (Triple Filter)
    Yes
    H1N1 Filter
    Yes
  • Device Control (Defrost)
    Yes
