Discontinued

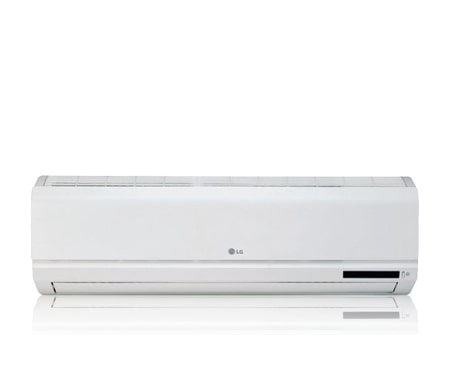

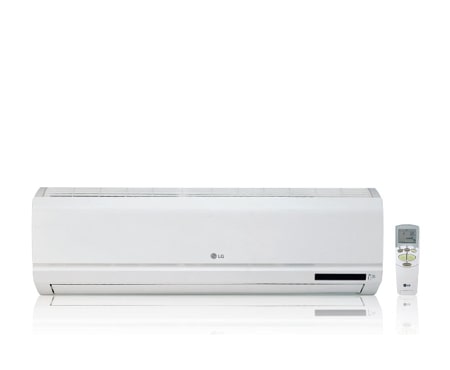

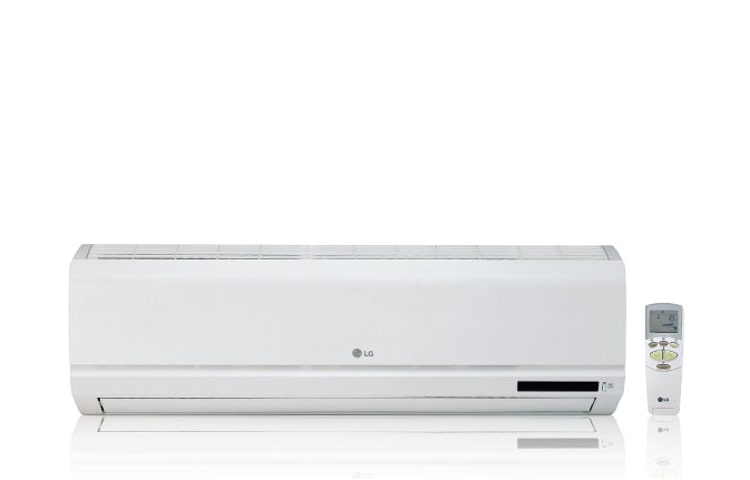

FS-C1865DA0
cooling only

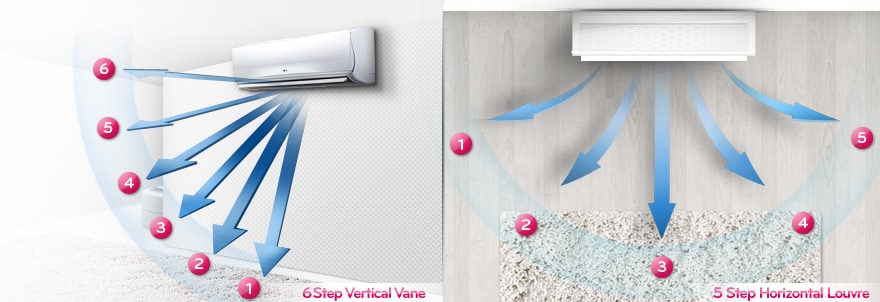

  • Jet Cool
  • Tropical Compressor
  • New Corrosion Resistance

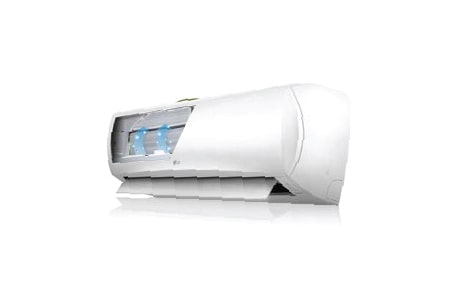

  • PlasMaster Auto Cleaning

component-OBScountrySelectDesc

cooling only

DIMENSION

  • Indoor (W*H*D)(mm)
    1085*300*191
    Indoor (W*H*D)(inch)
    42.7*11.8*7.5
  • Outdoor (W*H*D)(mm)
    840*577*276
    Outdoor (W*H*D)(inch)
    33.0*22.7*10.9

FILTER

  • Prefilter(washable/anti-fungus)
    Yes

HIGHLIGHTS

  • Cooling (Min / Rated / Max) T1
    5.20 KW , 17,745 Btu/h
    Heating (Min / Rated / Max) T3
    4.4 KW , 15,000 Btu/h
  • Power Input (Cooling) T1-W
    2000
    Power Input (Cooling) T3-W
    2450
  • Power Supply
    1 / 220-240 / 50 - Ø / V / Hz
    Running Current (Cooling) T1-A
    9.5
  • Running Current (Cooling) T3-A
    10.9

NET WEIGHT

  • Indoor (kg(lbs))
    14 (30.9)
    Outdoor (kg(lbs))
    50 (110.2)

OPERATION RANGE

  • Cooling (outdoor) °C(°F)
    21~54(69.8~129.2)

OTHER FUNCTIONS

  • Additional Refrigerant charge
    30 g/m
    Circuit Breaker
    15 A
  • Max. Elevation Difference
    15 (49.2) m(ft)
    Max. Piping Length
    20 (65.6) m(ft)
  • Moisture Removal
    2.0 l/h
    Refrigerant & Charge
    R407C, 1000 (35.3) g(oz)

PERFORMANCE

  • Air Flow Rate (Indoor, Max)
    12.6 (445) m3/min(CFM)
    Air Flow Rate (Outdoor, Max)
    40 m3/min(CFM)
  • EER
    2.6 T1 W/W , 8.9 T1 Btu/h.w , 1.8 T3 W/W , 6.1 Btu/h.W
    Noise Level © (Indoor,H / M / L / LL)
    45 dB(A)±3
  • Noise Level © (Outdoor, Max)
    56 dB(A)±3

PIPING CONNECTIONS

  • Liquid Side (mm(in))
    9.52 (3/8)
    Gas Side (mm(in))
    15.88(5/8)
