I22TFC

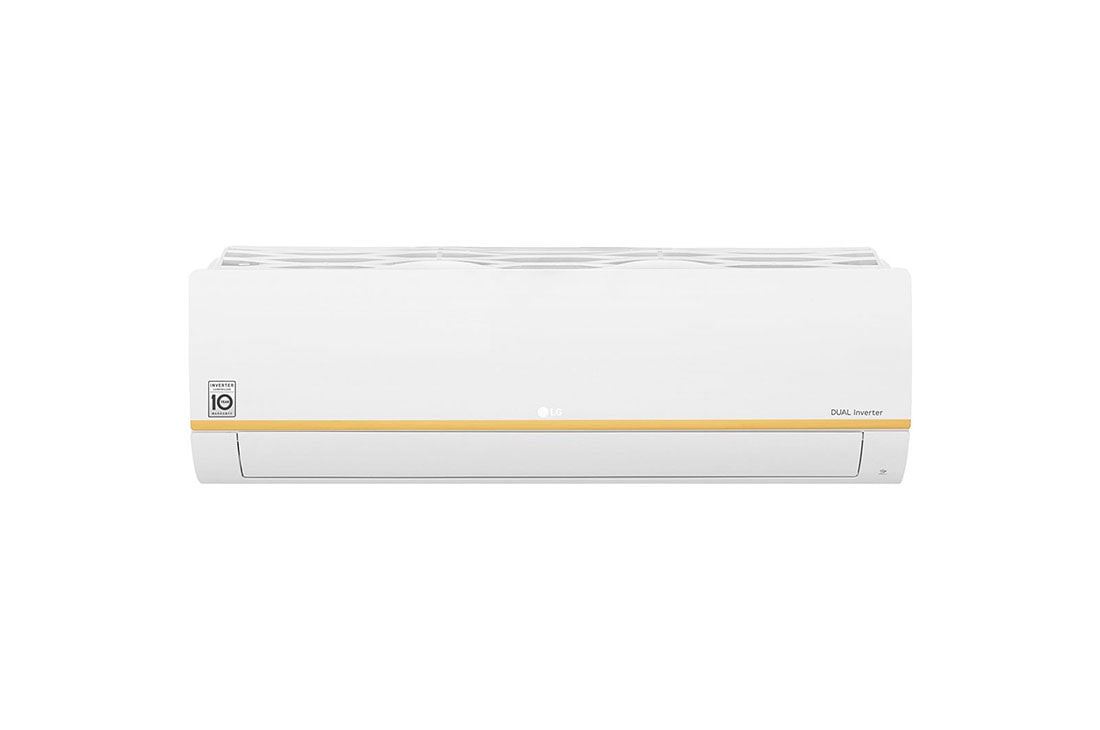

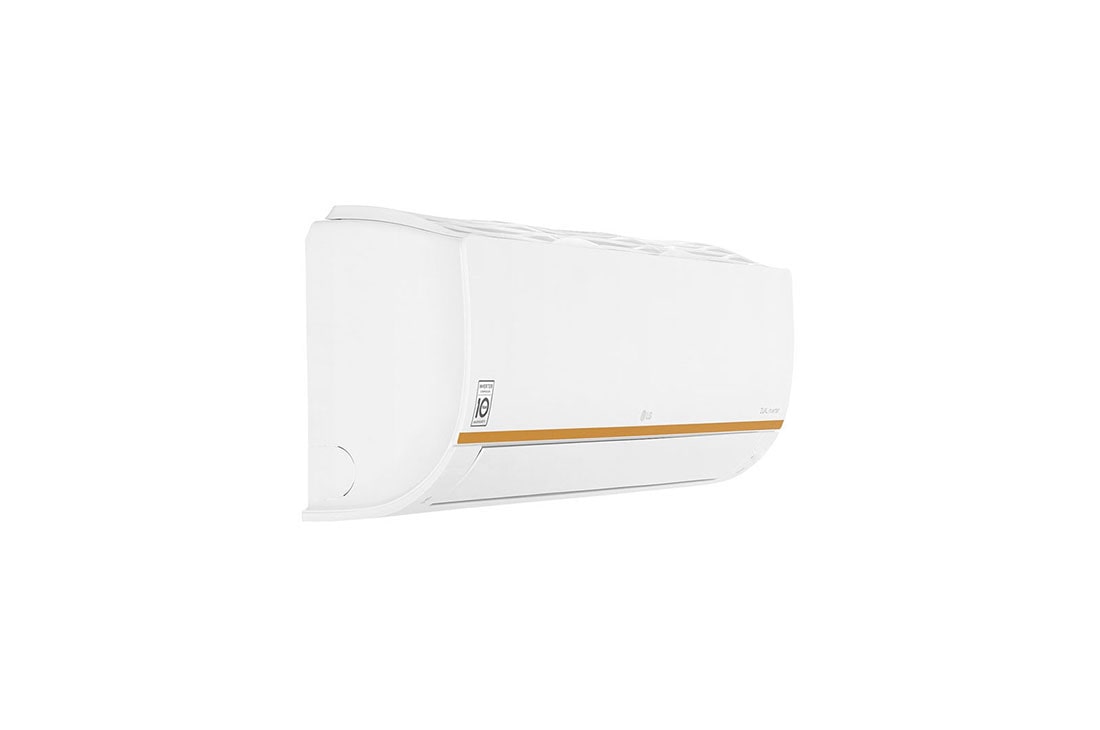

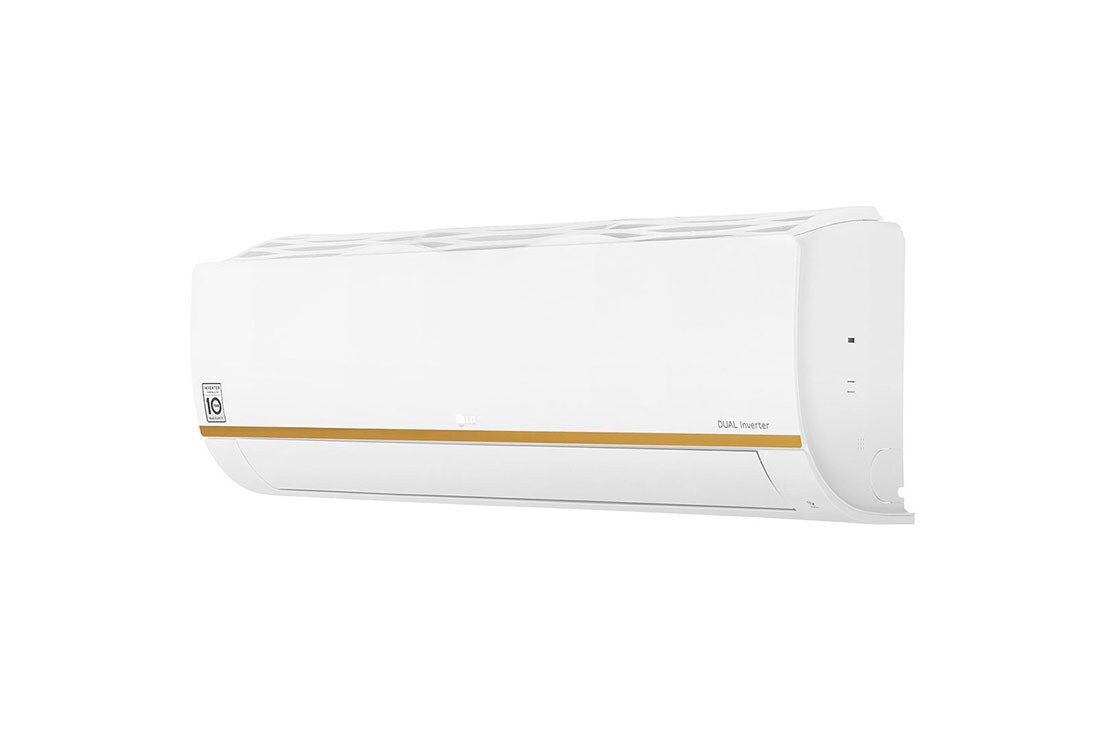

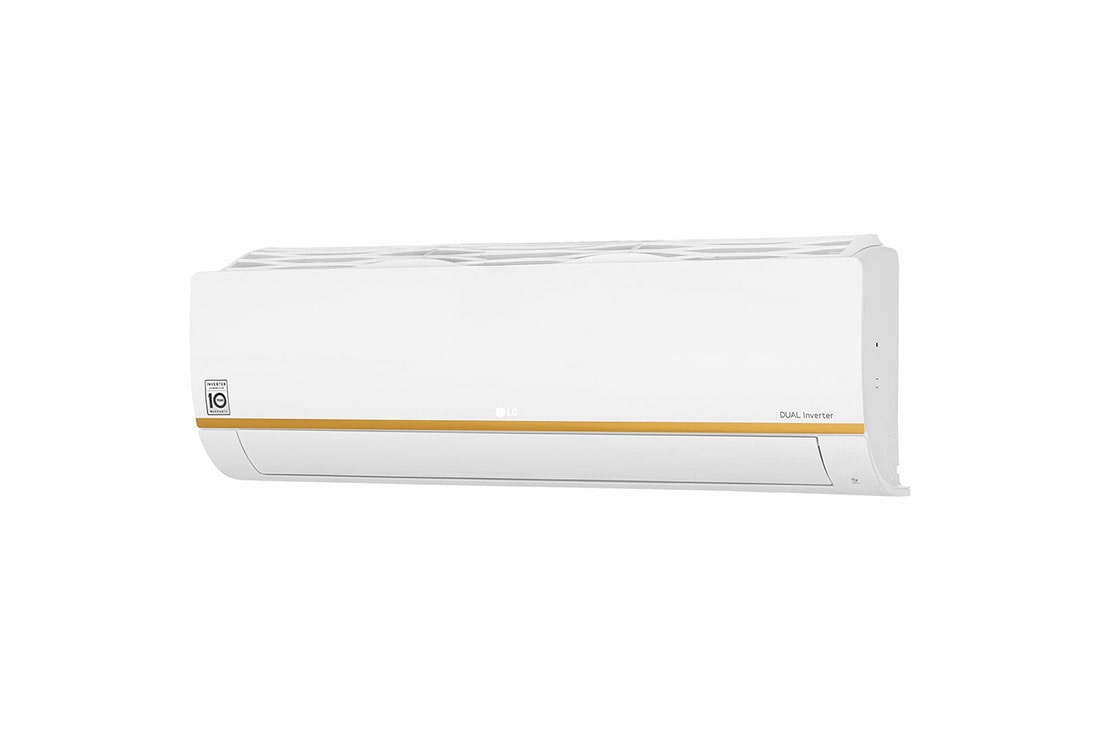

All New Air Conditioner, LG DUALCOOL Inverter
  • 65°C Dual Inverter Compressor™
  • 10 Year Warranty
  • 60% Faster Cooling
  • 65% Energy Saving
  • Comfort Sleep
  • Gold Fin™

component-OBScountrySelectDesc

All New Air Conditioner, LG DUALCOOL Inverter

CAPACITY

  • Cooling - Min ~ Rated ~ Max(kW)
    0.90 / 5.27 / 6.33
    Cooling - Min ~ Rated ~ Max(Btu/h)
    3,070 / 18,000 / 21,600
  • Cooling (T3) - Min ~ Rated ~ Max(kW)
    0.79 / 4.78 / 5.56
    Cooling (T3) - Min ~ Rated ~ Max(Btu/h)
    2,700 / 16,300 / 19,000

POWER INPUT

  • Cooling - Min ~ Rated ~ Max(W)
    352 / 1,645 / 3,080
    Cooling (T3) - Min ~ Rated ~ Max(W)
    352 / 2,010 / 3,080

RUNNING CURRENT

  • Cooling - Min ~ Rated ~ Max(A)
    1.60 / 7.40 / 15.40
    Cooling (T3) - Min ~ Rated ~ Max(A)
    1.60 / 9.40 / 15.40

EER

  • EER(W/W)
    3.21
    EER((Btu/h)/W)
    10.94

EER(T3)

  • EER (T3)(W/W)
    2.38
    EER (T3)((Btu/h)/W)
    8.11

ENERGY LABEL GRADE

  • Cooling / Heating
    3 / -

ANNUAL ENERGY CONSUMPTION (UAE)

  • Cooling / Heating
    2,010 / -

POWER SUPPLY

  • Ø, V, Hz
    1, 220-240, 50

AVAILABLE VOLTAGE RANGE

  • Available Voltage Range(V)
    187 ~ 276

POWER FACTOR

  • Cooling / Heating(%)
    96.7 / -

MOISTURE REMOVAL

  • Moisture Removal(l/h)
    2.5

INDOOR

  • Air Flow Rate - Cooling, Max / H / M / L(㎥/min)
    18.5 / 14.0 / 12.5 / 10.0
    Sound Pressure Level - Cooling, Max / H / M / L / SL(dB(A))
    - / 44 / 41 / 37 / 28
  • Dimensions (W × H × D) - Net(mm)
    998 × 345 × 210
    Dimensions (W × H × D) - Shipping(mm)
    1068 × 425 × 279
  • Weight - Net(kg)
    11.0
    Weight - Shipping(kg)
    12.8
  • Exterior Color Code
    Munsell 7.5BG 10/2 (RAL 9016)

OUTDOOR

  • Air Flow Rate - Max(㎥/min)
    49.0
    Sound Pressure Level - Cooling, Rated(dB(A))
    52
  • Dimensions (W × H × D) - Net(mm)
    870 × 650 × 330
    Dimensions (W × H × D) - Shipping(mm)
    1040 × 710 × 455
  • Weight - Net(kg)
    39.0
    Weight - Shipping(kg)
    43.0
  • Max. Fuse Size(A)
    25
    Exterior Color Code
    Munsell 9.54Y 8.34/1.31 (RAL 9001)
  • Operation Range - Cooling(℃ DB)
    18 ~ 54

COMPRESSOR

  • Type
    Dual Inverter Compressor™
    Model
    GAT156MAD
  • Motor Type
    BLDC
    Oil Type / Maker
    POE (RB68A) / Sun Oil or Jx Nippon
  • Oil Charge (cc)
    400
    Manufacturer / Country of Origin
    LG Electronics / China

FAN(INDOOR)

  • Type
    Cross Flow Fan
    Motor Output (W)
    30

FAN(OUTDOOR)

  • Type
    Propeller Fan
    Motor Type
    BLDC
  • Motor Output (W)
    85
    Motor Insulation
    Class E
  • Motor Enclosure / Ingress Protection
    TEAO / IPX4

HEAT EXCHANGER

  • Evaporator - Material, Tube / Fin
    Cu / Al
    Evaporator - (Φ x Row x Column x FPI/FPDM x L) x Qty.(W)
    (Φ7 x 2 x 16 x 20FPI x 744) x 1
  • Evaporator - Corrosion Protection
    PCM
    Condenser - Material, Tube / Fin
    Cu /Al
  • Condenser - (Φ x Row x Column x FPI/FPDM x L) x Qty.(#3)
    (Φ7 x 2 x 28 x 18FPI x 940) x 1
    Condenser - Corrosion Protection
    Gold Fin™

CIRCUIT BREAKER

  • Circuit Breaker(A)
    25

POWER SUPPLY CABLE

  • Power Supply Cable(No. × ㎟)
    3 × 2.5

POWER SUPPLY TO UNIT

  • Power Supply to Unit
    Outdoor

POWER AND COMMUNICATION CABLE

  • Power and Communication Cable(No. × ㎟)
    4 × 1.0

PIPING

  • Size - Liquid(mm)
    Ø 6.35
    Size - Gas(mm)
    Ø 12.7
  • Connections Method - Indoor / Outdoor
    Flared / Flared

DRAIN HOSE SIZE

  • O.D, I.D(mm)
    21.5, 16.0

BETWEEN INDOOR & OUTDOOR

  • Piping Length - Min / Standard / Max(m)
    3 / 7.5 / 20
    Piping Length - No Charge(m)
    7.5
  • Max. Elevation Difference(m)
    15

REFRIGERANT

  • Type
    R410A
    Pre Charge(g)
    1350
  • Additional Charge(g/m)
    20
    Control
    Capillary

TOOL CODE(CHASSIS)

  • Indoor / Outdoor
    SK / U24A

FEATURE

  • Air Flow - 4way Swing
    Yes
    Air Flow - Jetcool
    Yes
  • Air Flow - Comfort Air
    Yes
    Air Purifying - Dual Protection Filter
    Yes
  • Air Purifying - Auto Cleaning
    Yes
    Convenience - Comfort Sleep
    Yes
  • Convenience - Smart Diagnosis
    Yes
    Special Function - Wi-Fi ²
    Yes
