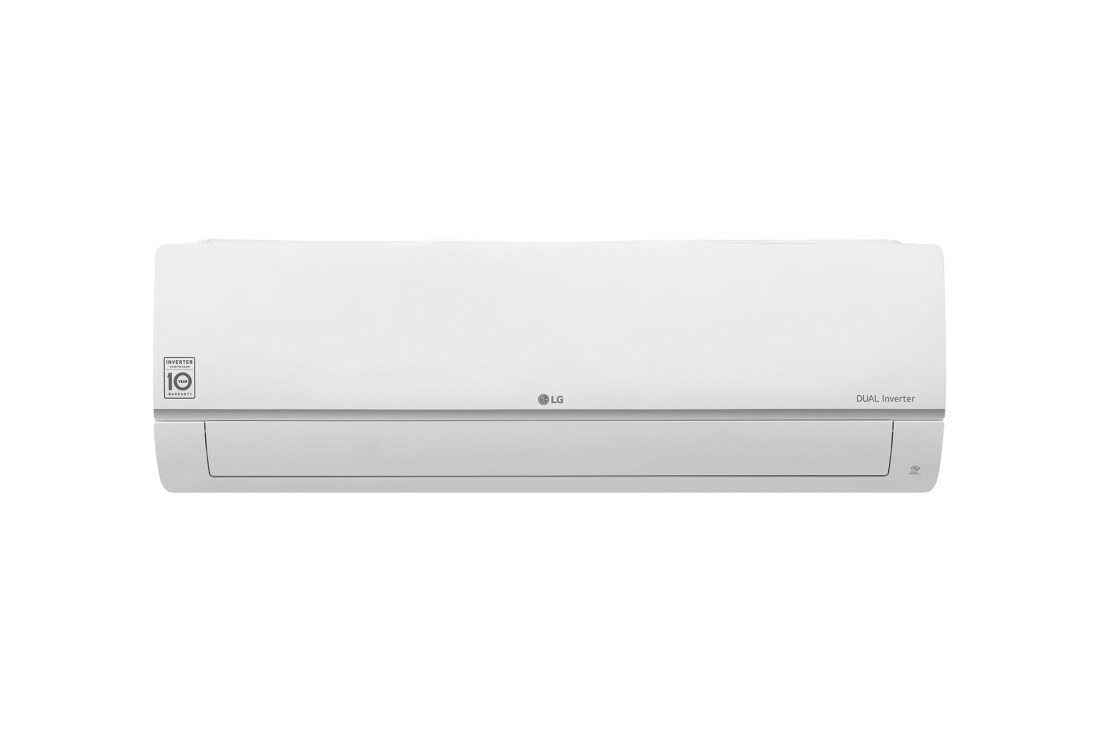

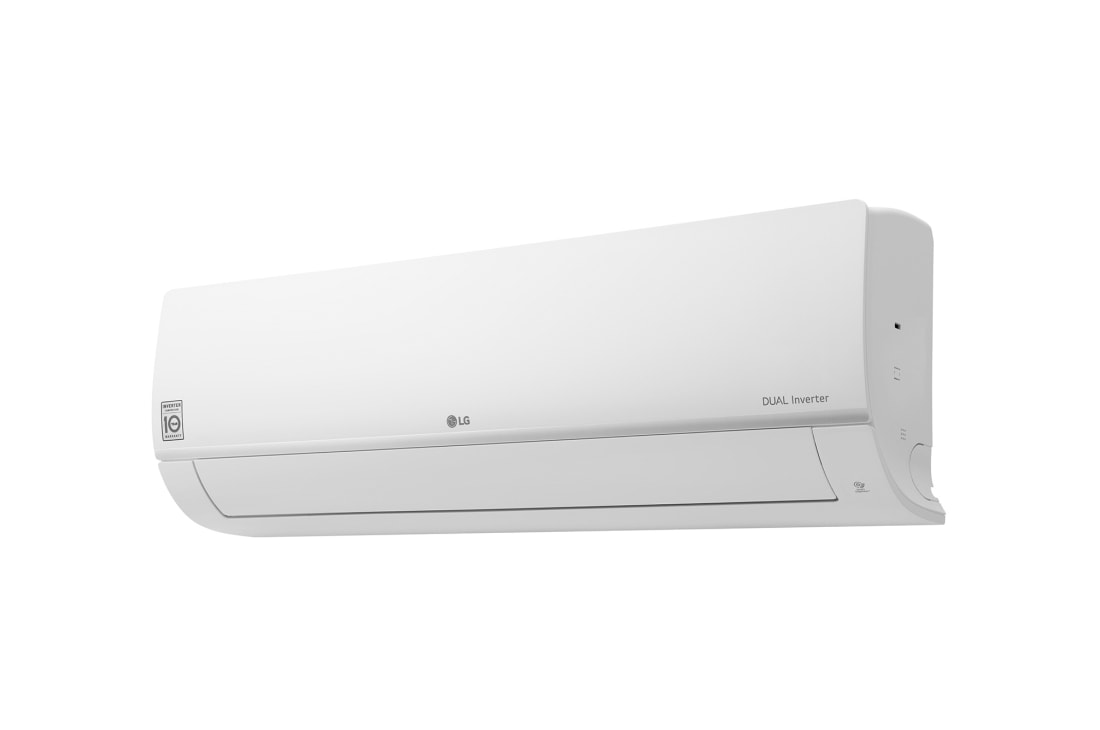

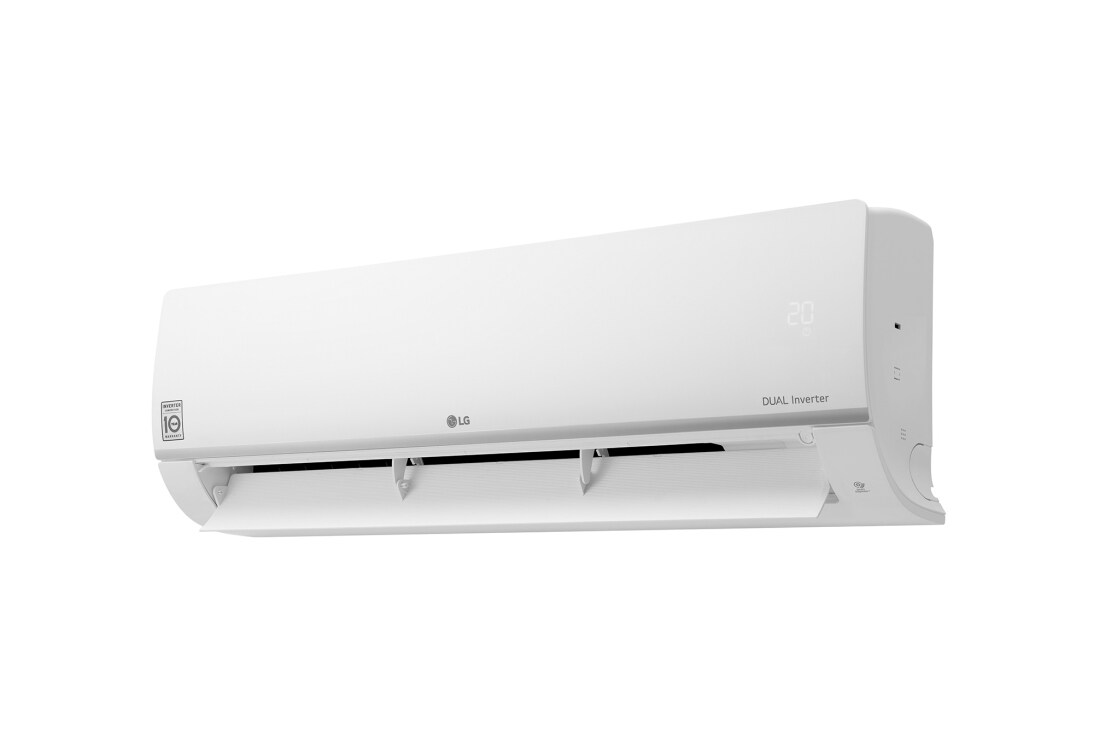

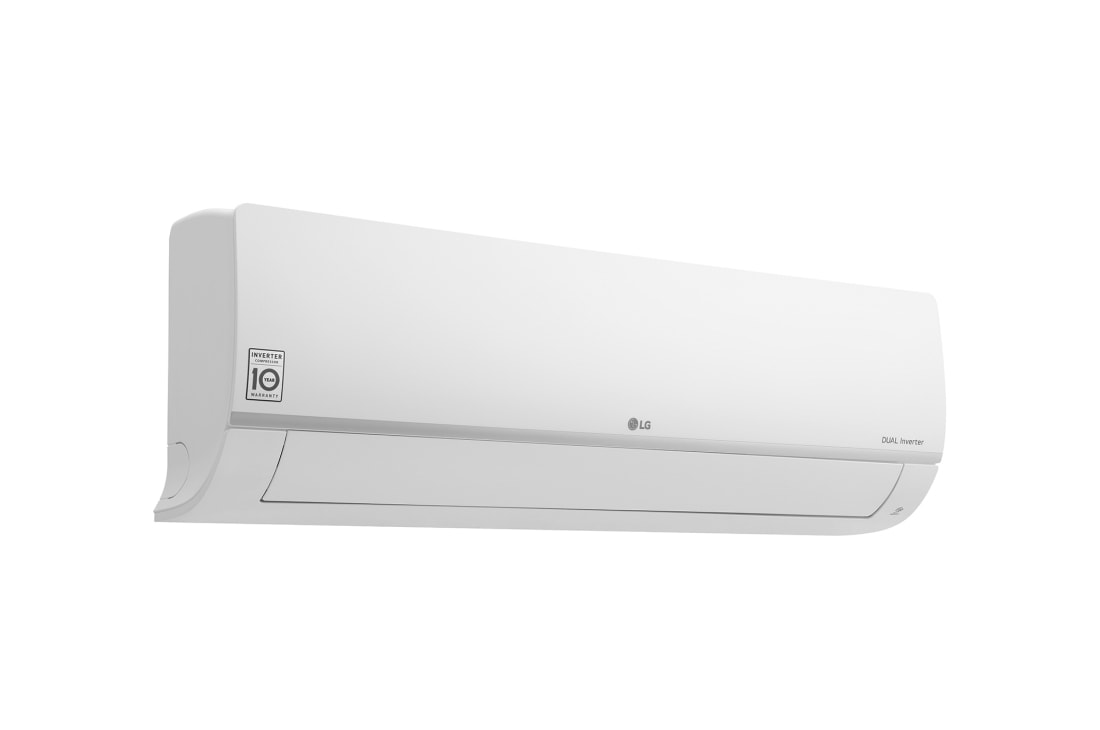

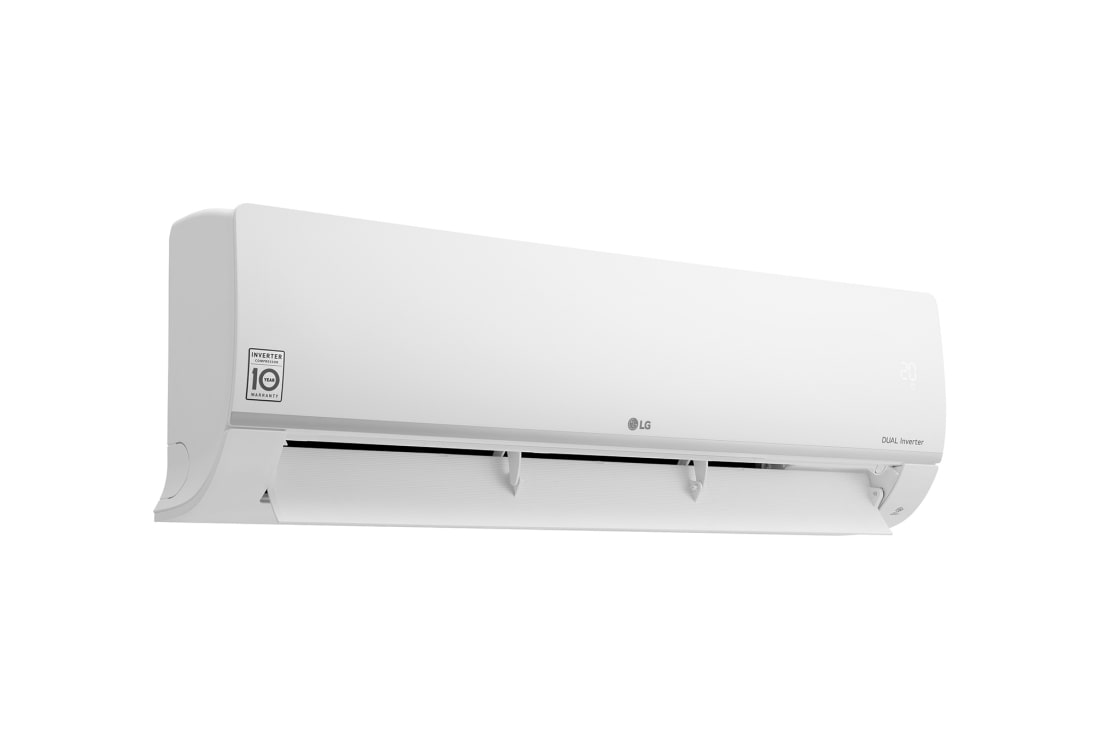

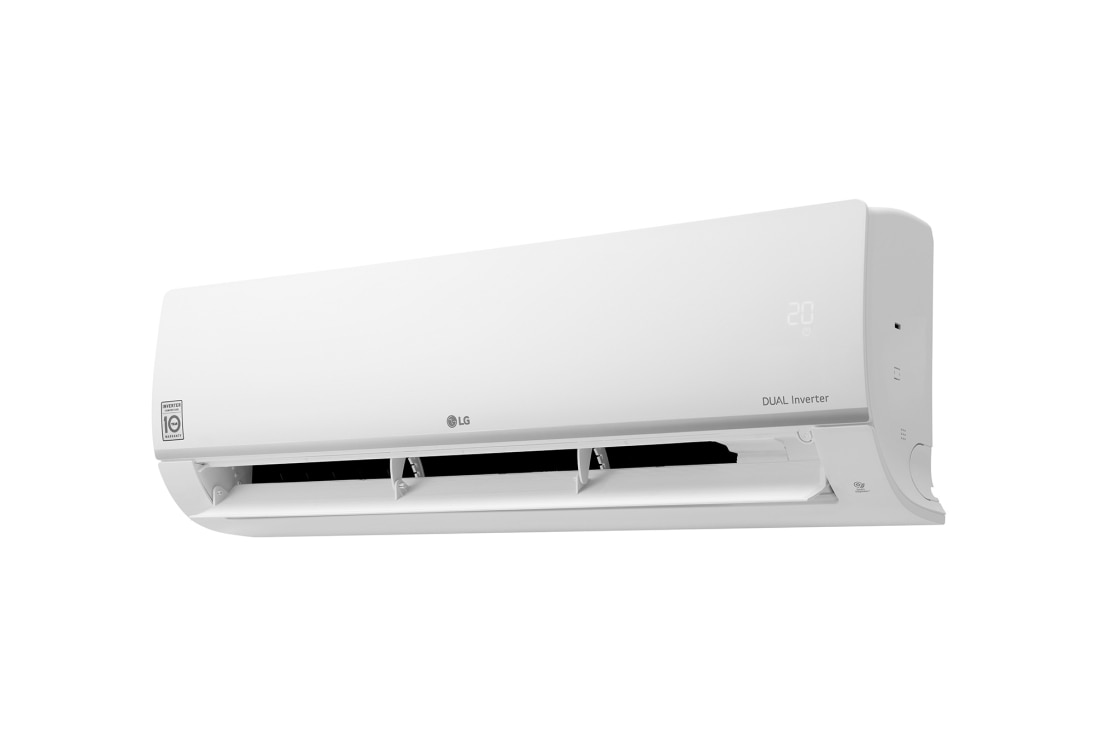

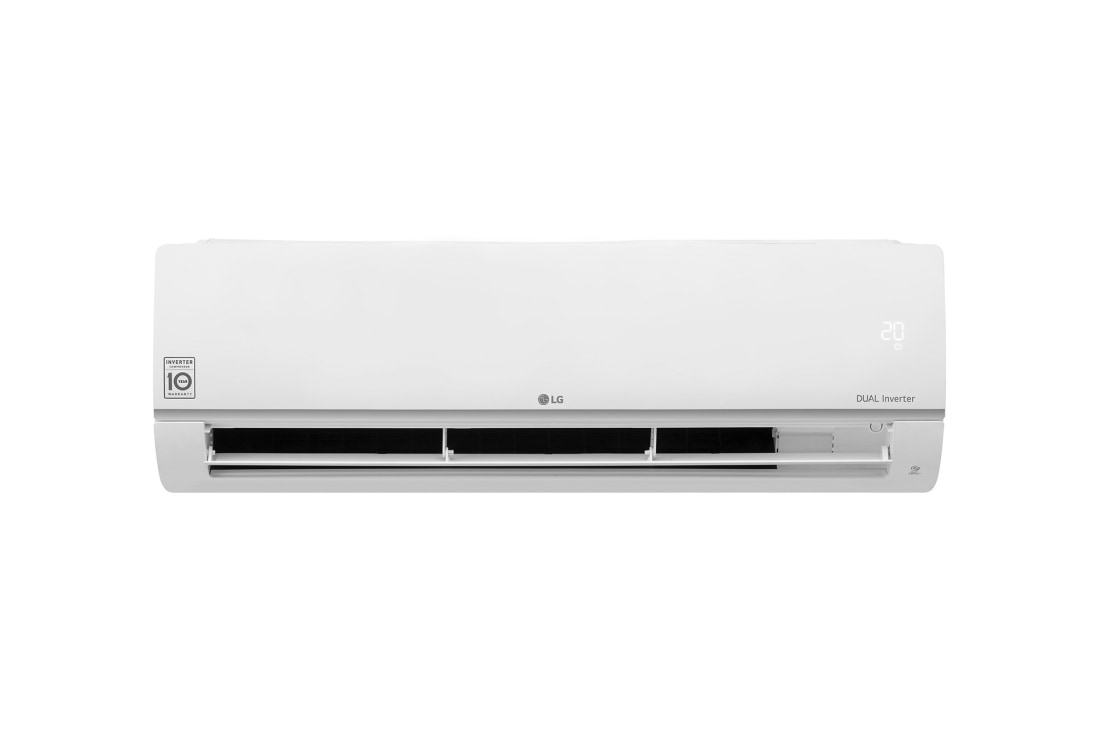

LG DUALCOOL Inverter AC 1.5 Ton, 60% Faster cooling

Key Features

component-OBScountrySelectDesc

LG DUALCOOL Inverter AC 1.5 Ton, 60% Faster cooling
Dimensions
SPEC SUMMARY
  • Capacity
    1.5 Ton

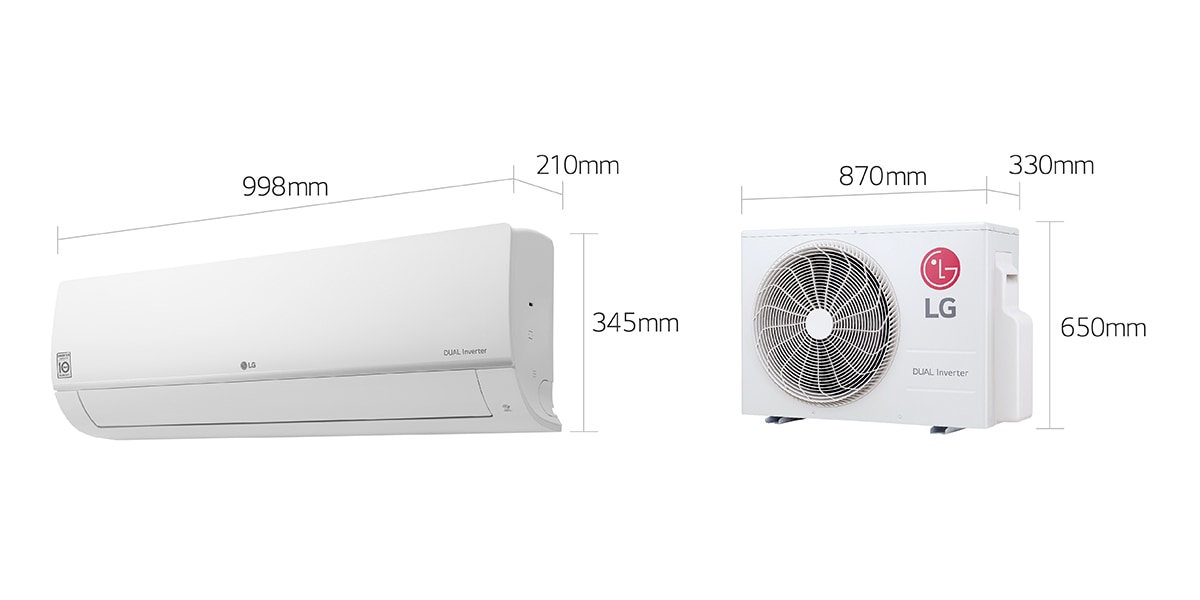

  • Dimension (W x H x D) mm
    Indoor 998 x 345 x 210 / Outdoor 870 x 650 x 330
  • Main Technology

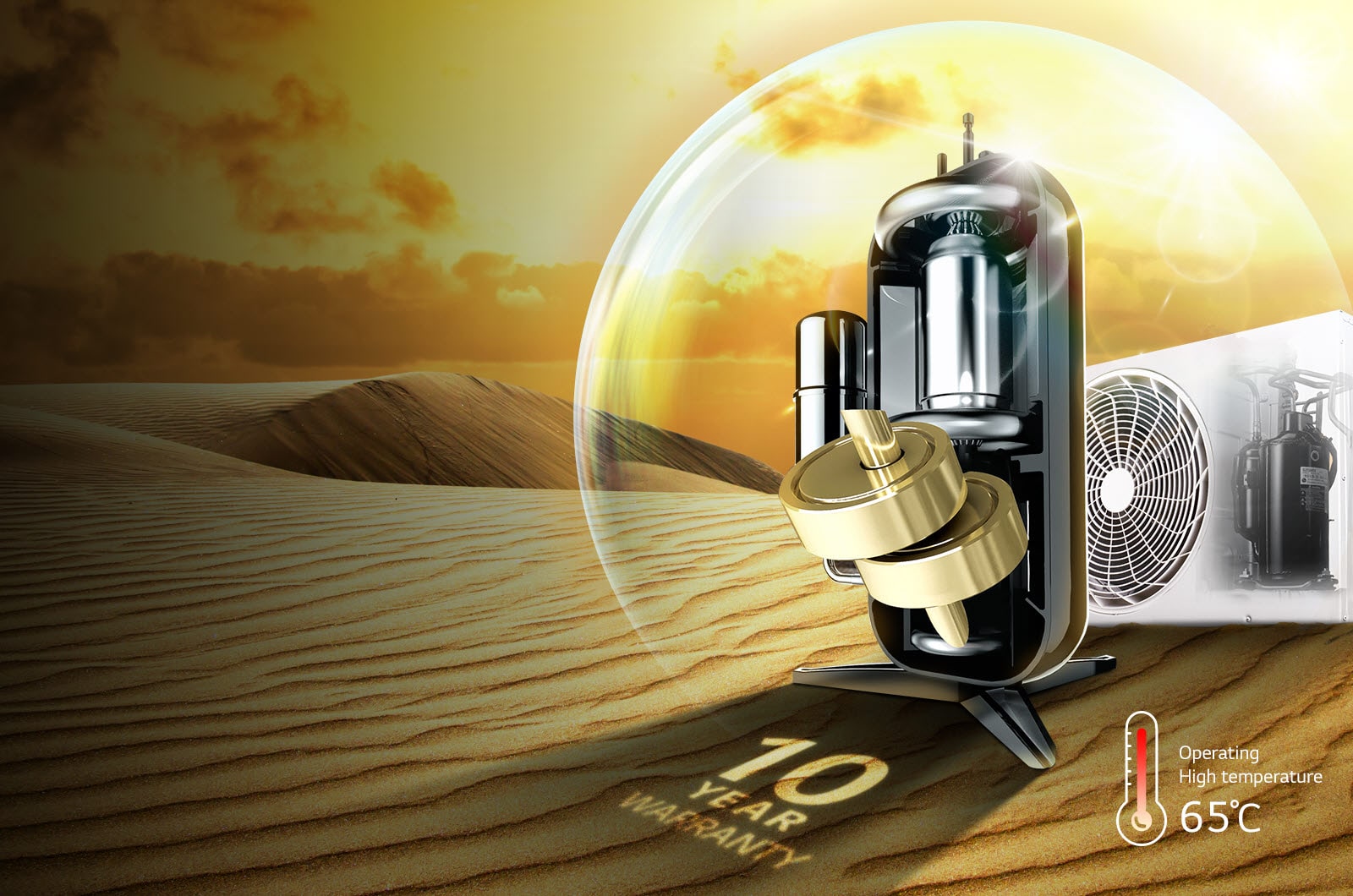

    65°C Dual Inverter Compressor™
  • Additional Benefit
    10 Year Warranty
CAPACITY
  • Cooling - Min ~ Rated ~ Max(kW)
    0.90/5.28/6.89
    Cooling - Min ~ Rated ~ Max(Btu/h)
    3,070/18,000/23,500
  • Cooling (T3) - Min ~ Rated ~ Max(kW)
    0.79/4.5/6.15
    Cooling (T3) - Min ~ Rated ~ Max(Btu/h)
    2,700/15,300/21,000
POWER INPUT
  • Cooling - Min ~ Rated ~ Max(W)
    320/1452/2900
    Cooling (T3) - Min ~ Rated ~ Max(W)
    374/1759/2900
RUNNING CURRENT
  • Cooling - Min ~ Rated ~ Max(A)
    1.45/6.5/14
    Cooling (T3) - Min ~ Rated ~ Max(A)
    1.77/7.8/14
EER
  • EER(W/W)
    3.64
    EER((Btu/h)/W)
    12.4
EER(T3)
  • EER (T3)(W/W)
    2.56
    EER (T3)((Btu/h)/W)
    8.7
ENERGY LABEL GRADE
  • Cooling / Heating
    4
POWER SUPPLY
  • Ø / V / Hz
    1 , 220 ~ 240 ,50
AVAILABLE VOLTAGE RANGE
  • Available Voltage Range(V)
    187 ~ 253
POWER FACTOR
  • Cooling / Heating(%)
    97.1 / -
MOISTURE REMOVAL
  • Moisture Removal(l/h)
    2.5
INDOOR
  • Air Flow Rate - Cooling, Max / H / M / L(㎥/min)
    19.0/14.5/13.0/10.5
    Sound Pressure Level - Cooling, Max / H / M / L / SL(dB(A))
    -/46/42/37/28
  • Dimensions (W × H × D) - Net(mm)
    998 x 345 x 210
    Dimensions (W × H × D) - Shipping(mm)
    1080 x 422 x 281
  • Weight - Net(kg)
    11.3
    Weight - Shipping(kg)
    13.4
  • Exterior Color Code
    Munsell 7.5BG 10/2 (RAL 9016)
OUTDOOR
  • Air Flow Rate - Max(㎥/min)
    49
    Sound Pressure Level - Cooling, Rated(dB(A))
    55
  • Dimensions (W × H × D) - Net(mm)
    870 x 650 x 330
    Dimensions (W × H × D) - Shipping(mm)
    1026 x 693 x 446
  • Weight - Net(kg)
    42
    Weight - Shipping(kg)
    46
  • Max. Fuse Size(A)
    25
    Exterior Color Code
    Munsell 9.54Y 8.34/1.31 (RAL 9001)
  • Operation Range - Cooling(℃ DB)
    18 ~ 54
CIRCUIT BREAKER
  • Circuit Breaker(A)
    25
POWER SUPPLY CABLE
  • Power Supply Cable(No. × ㎟)
    3 x 2.5
POWER SUPPLY TO UNIT
  • Power Supply to Unit
    Outdoor
POWER AND COMMUNICATION CABLE
  • Power and Communication Cable(No. × ㎟)
    4 x 0.75
PIPING
  • Size - Liquid(mm)
    Ø 6.35
    Size - Gas(mm)
    Ø 12.7
  • Connections Method - Indoor / Outdoor
    Flared/Flared
DRAIN HOSE SIZE
  • O.D, I.D(mm)
    21.5 , 16.0
BETWEEN INDOOR & OUTDOOR
  • Piping Length - Min / Standard / Max(m)
    3/5/30
    Piping Length - No Charge(m)
    7.5
  • Max. Elevation Difference(m)
    25
    Piping Connection Heat Insulation
    Both liquid and Gas Pipes
REFRIGERANT
  • Type
    R410A
    Pre Charge(g)
    1300
  • Additional Charge(g/m)
    15
    Control
    Electronics Expansion Valve
TOOL CODE(CHASSIS)
  • Indoor / Outdoor
    SK/U24A
COMPRESSOR
  • Type
    Dual Inverter Compressor
    Model
    GAT156MCA
  • Motor Type
    BLDC
    Oil Type / Maker
    POE (RB68A)/Sun Oil or Jx
    Nippon
  • Oil Charge (cc)
    400
    Manufacturer / Country of Origin
    LG Electronics/China
FAN(INDOOR)
  • Type
    Cross Flow Fan
    Motor Output(W)
    30
FAN(OUTDOOR)
  • Type
    Propeller Fan
    Motor Type
    BLDC
  • Motor Output (W)
    85
    Motor Insulation
    Class E
  • Motor Enclosure / Ingress Protection
    TEAO/IPX4
HEAT EXCHANGER
  • Evaporator - Material, Tube / Fin
    Cu/Al
    Evaporator - Corrosion Protection
    PCM
  • Condenser - Material, Tube / Fin
    Cu/Al
    Condenser - Corrosion Protection
    Gold
  • Condenser - Fin Type
    Louver
