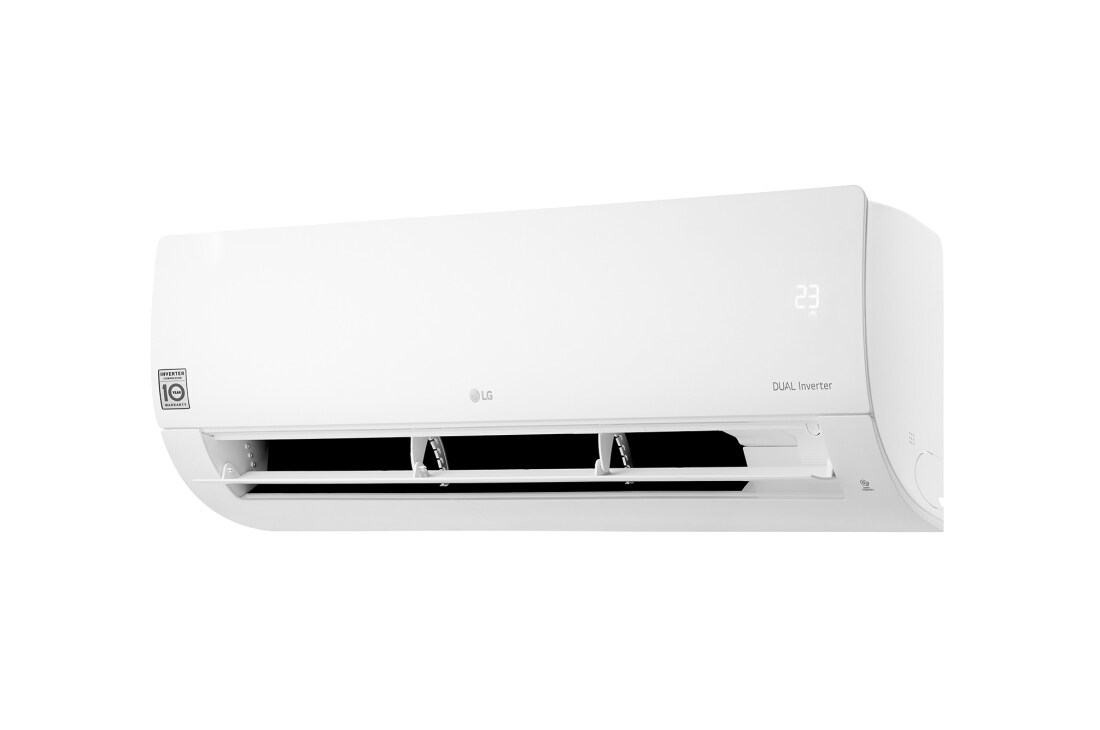

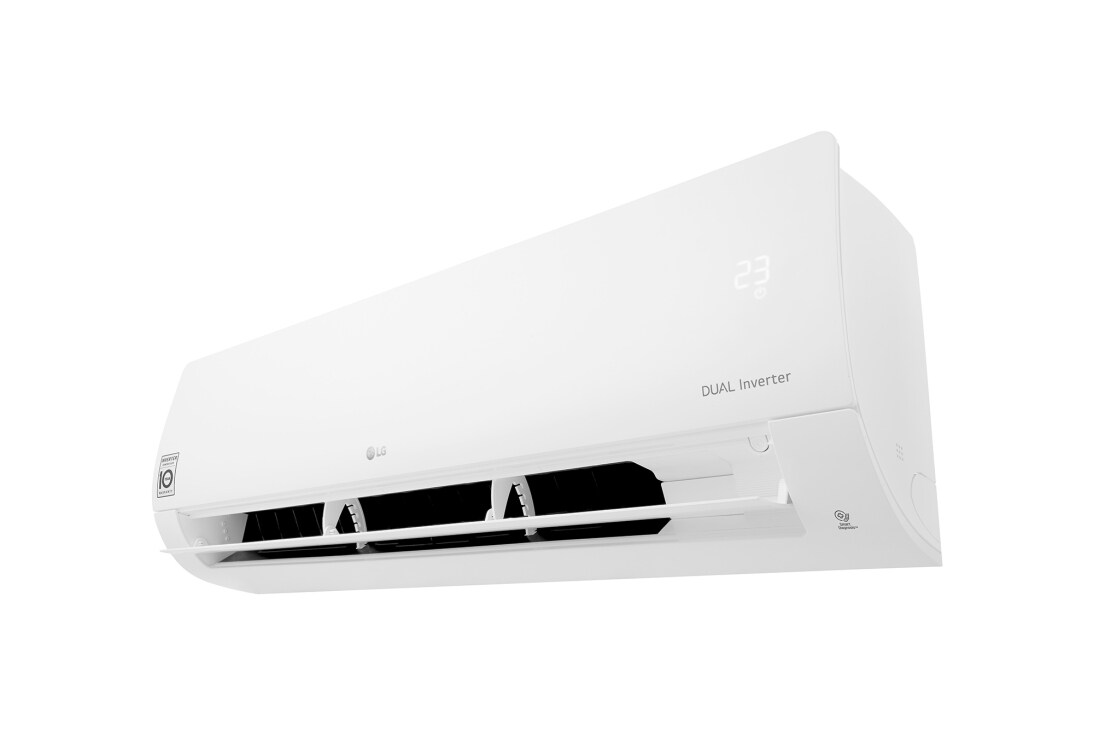

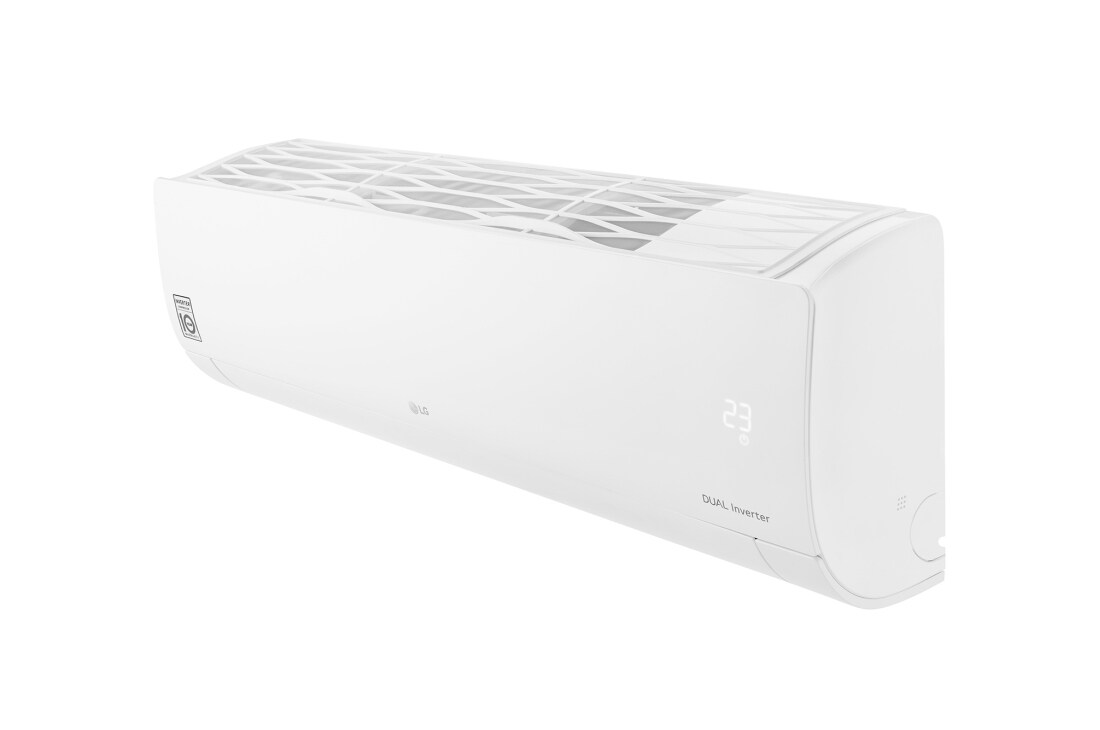

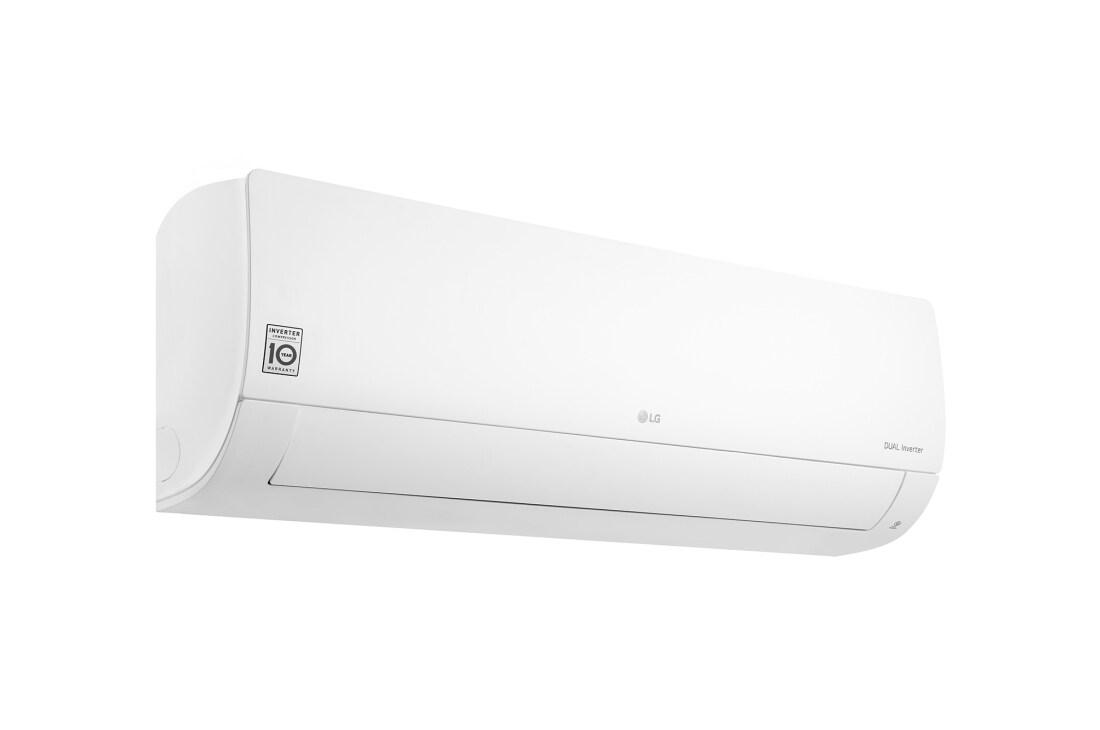

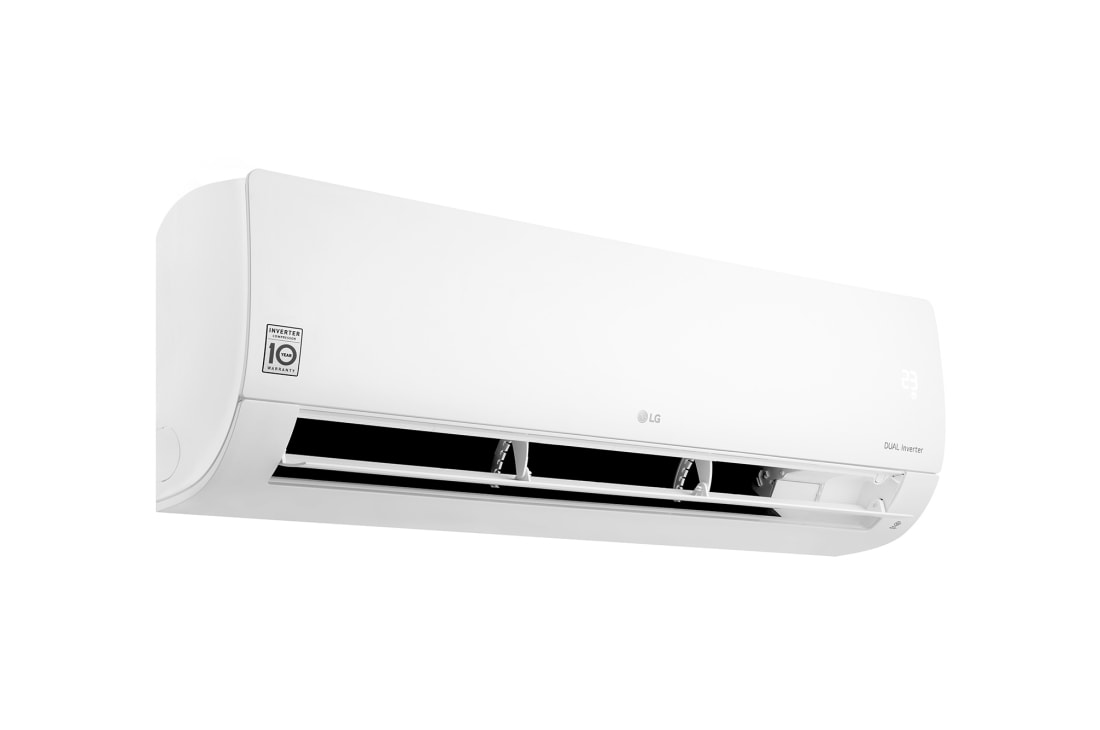

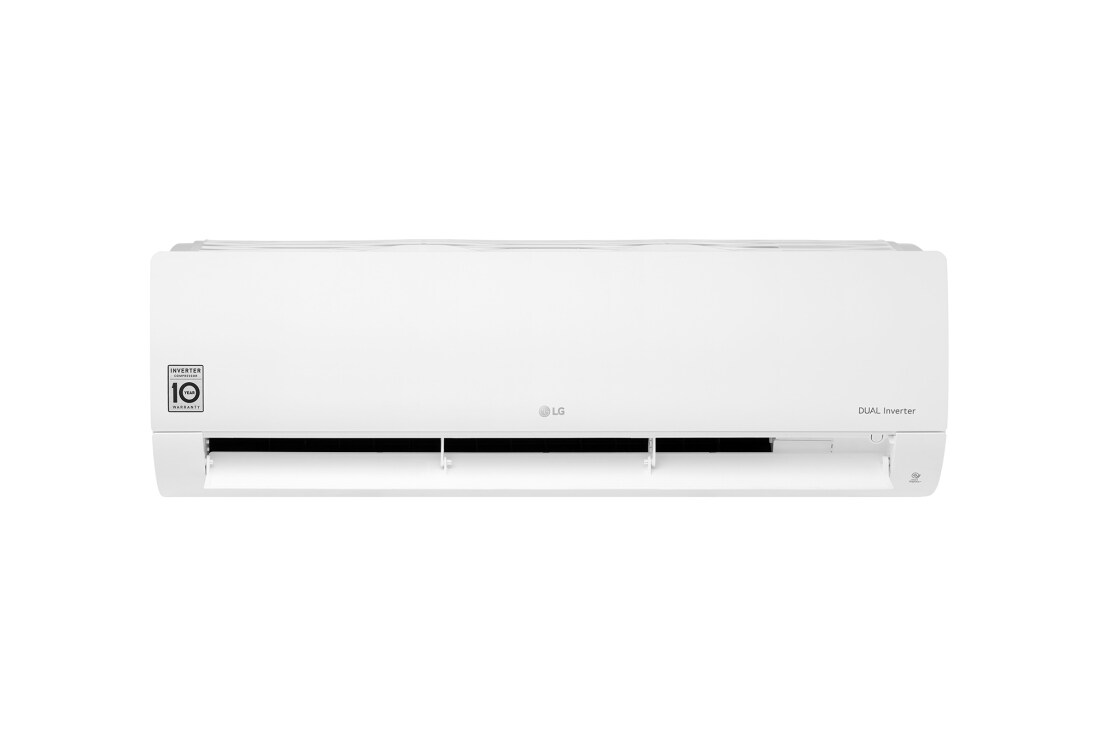

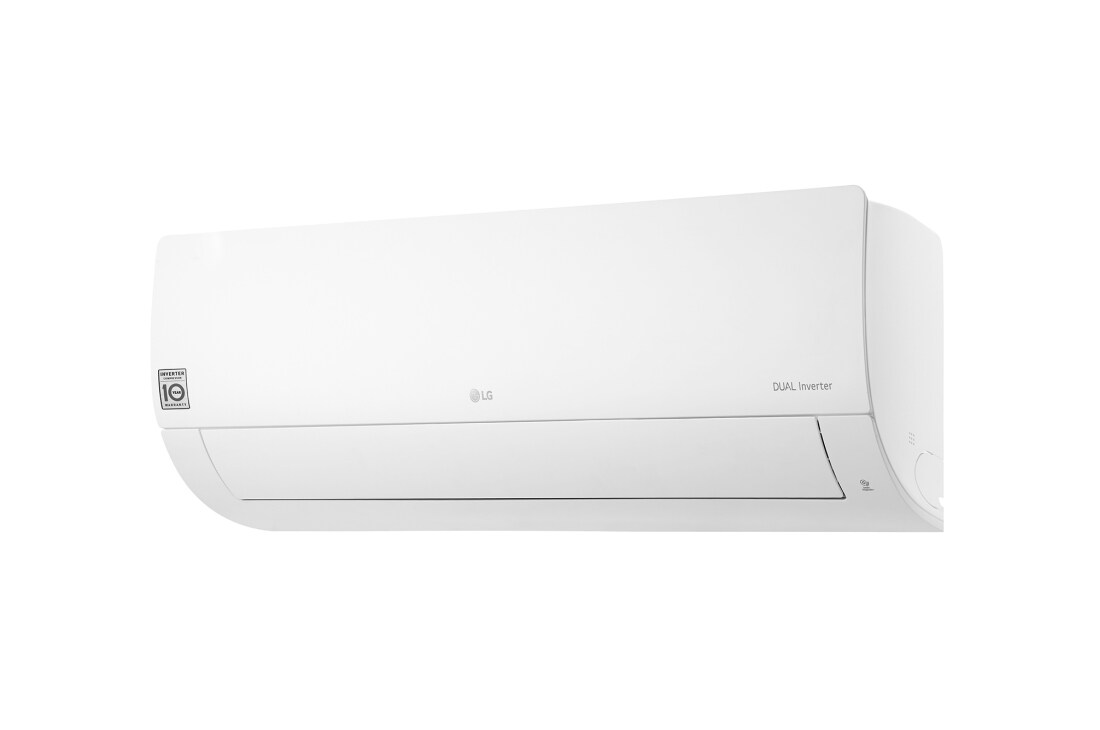

I23TTC
DUALCOOL Inverter AC 1.5 Ton, 65°Operation, 65% Energy Saving, 60% Faster cooling

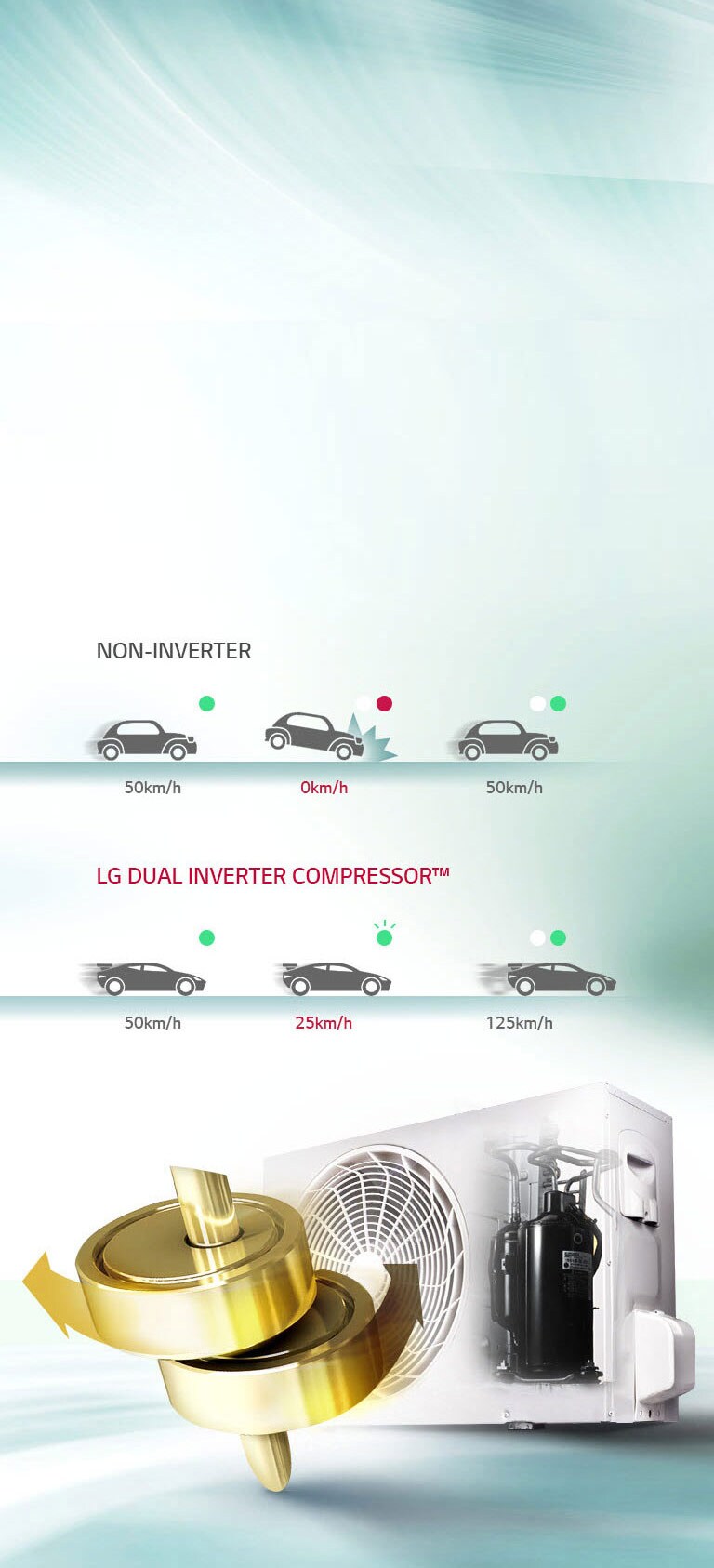

  • 65°C Dual Inverter Compressor™
  • 10 Year Warranty
  • 60% Faster Cooling
  • 65% Energy Saving
  • Comfort Sleep
  • Gold Fin™

component-OBScountrySelectDesc

DUALCOOL Inverter AC 1.5 Ton, 65°Operation, 65% Energy Saving, 60% Faster cooling

Dimensions

SPEC SUMMARY

  • Capacity
    1.5 Ton
  • Dimension (W x H x D) mm
    Indoor 998 x 345 x 210 / Outdoor 870 x 650 x 330
  • Main Technology
    65°C Dual Inverter Compressor™
  • Additional Benefit
    10 Year Warranty

CAPACITY

  • Cooling - Min ~ Rated ~ Max(kW)
    0.90/5.28/6.89
    Cooling - Min ~ Rated ~ Max(Btu/h)
    3,070/18,000/23,500
  • Cooling (T3) - Min ~ Rated ~ Max(kW)
    0.79/4.5/6.15
    Cooling (T3) - Min ~ Rated ~ Max(Btu/h)
    2,700/15,300/21,000

POWER INPUT

  • Cooling - Min ~ Rated ~ Max(W)
    320/1452/2900
    Cooling (T3) - Min ~ Rated ~ Max(W)
    374/1759/2900

RUNNING CURRENT

  • Cooling - Min ~ Rated ~ Max(A)
    1.45/6.5/14
    Cooling (T3) - Min ~ Rated ~ Max(A)
    1.77/7.8/14

EER

  • EER(W/W)
    3.64
    EER((Btu/h)/W)
    12.4

EER(T3)

  • EER (T3)(W/W)
    2.56
    EER (T3)((Btu/h)/W)
    8.7

POWER SUPPLY

  • Ø / V / Hz
    1 , 220 ~ 240 ,50

AVAILABLE VOLTAGE RANGE

  • Available Voltage Range(V)
    187 ~ 253

POWER FACTOR

  • Cooling / Heating(%)
    97.1 / -

MOISTURE REMOVAL

  • Moisture Removal(l/h)
    2.5

INDOOR

  • Air Flow Rate - Cooling, Max / H / M / L(㎥/min)
    19.0/14.5/13.0/10.5
    Sound Pressure Level - Cooling, Max / H / M / L / SL(dB(A))
    -/46/42/37/28
  • Dimensions (W × H × D) - Net(mm)
    998 x 345 x 210
    Dimensions (W × H × D) - Shipping(mm)
    1080 x 422 x 281
  • Weight - Net(kg)
    11.3
    Weight - Shipping(kg)
    13.4
  • Exterior Color Code
    Munsell 7.5BG 10/2 (RAL 9016)

OUTDOOR

  • Air Flow Rate - Max(㎥/min)
    49
    Sound Pressure Level - Cooling, Rated(dB(A))
    55
  • Dimensions (W × H × D) - Net(mm)
    870 x 650 x 330
    Dimensions (W × H × D) - Shipping(mm)
    1026 x 693 x 446
  • Weight - Net(kg)
    42
    Weight - Shipping(kg)
    46
  • Max. Fuse Size(A)
    25
    Exterior Color Code
    Munsell 9.54Y 8.34/1.31 (RAL 9001)
  • Operation Range - Cooling(℃ DB)
    18 ~ 54

CIRCUIT BREAKER

  • Circuit Breaker(A)
    25

POWER SUPPLY CABLE

  • Power Supply Cable(No. × ㎟)
    3 x 2.5

POWER SUPPLY TO UNIT

  • Power Supply to Unit
    Outdoor

POWER AND COMMUNICATION CABLE

  • Power and Communication Cable(No. × ㎟)
    4 x 0.75

PIPING

  • Size - Liquid(mm)
    Ø 6.35
    Size - Gas(mm)
    Ø 12.7
  • Connections Method - Indoor / Outdoor
    Flared / Flared

DRAIN HOSE SIZE

  • O.D, I.D(mm)
    21.5 , 16.0

BETWEEN INDOOR & OUTDOOR

  • Piping Length - Min / Standard / Max(m)
    3/5/30
    Piping Length - No Charge(m)
    7.5
  • Max. Elevation Difference(m)
    25
    Piping Connection Heat Insulation
    Both liquid and Gas Pipes

REFRIGERANT

  • Type
    R410A
    Pre Charge(g)
    1300
  • Additional Charge(g/m)
    15
    Control
    Electronics Expansion Valve

TOOL CODE(CHASSIS)

  • Indoor / Outdoor
    SK / U24A

COMPRESSOR

  • Type
    Dual Inverter Compressor
    Model
    GAT156MCA
  • Motor Type
    BLDC
    Oil Type / Maker
    POE (RB68A) / Sun Oil or Jx
    Nippon
  • Oil Charge (cc)
    400
    Manufacturer / Country of Origin
    LG Electronics/China

FAN(INDOOR)

  • Type
    Cross Flow Fan
    Motor Output(W)
    30

FAN(OUTDOOR)

  • Type
    Propeller Fan
    Motor Type
    BLDC
  • Motor Output (W)
    85
    Motor Insulation
    Class E
  • Motor Enclosure / Ingress Protection
    TEAO/IPX4

HEAT EXCHANGER

  • Evaporator - Material, Tube / Fin
    Cu/Al
    Evaporator - Corrosion Protection
    PCM
  • Condenser - Material, Tube / Fin
    Cu/Al
    Condenser - Corrosion Protection
    Gold
  • Condenser - Fin Type
    Louver

COUNTRY

  • Country
    Kuwait
