I24TGC component-copyModelName
DUALCOOL

Key Features

Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

DUALCOOL
Close
PERFORMANCE
  • Cooling Capacity
    6,448 W
    22,000 Btu/h
    Capacity Rate - Min (Btu/h)
    3,250
  • Capacity Rate - Max (Btu/h)
    24,452
    Power Input - Cooling/Heating (W)
    2,150
  • Power Input - Cooling/Heating (Max) (W)
    2,500
    Running Current - Cooling/Heating (A)
    9.7
  • Running Current - Cooling/Heating (Max) (A)
    12.0
    EER
    3.00 W/W
    10.23 Btu/W.h
  • Power Supply (Ø / V / Hz)
    1 / 220-240V / 50Hz
    Air Flow Rate - Indoor,Max (㎥/min)
    20 (760)
  • Air Flow Rate - Outdoor,Max (㎥/min)
    42 (1483)
    Moisture Removal (l/h.)
    1.70
  • Sound Level - Indoor,H/M/L/SL (dB(A)+3)
    44/ 38/ 34/ 29
    Sound Level - Outdoor,Max (dB(A)+3)
    53/ 56
  • Refrigerant - Type
    R410A
    Refrigerant - Charge (at 7.5 m) (g)
    1,450
  • Additional Refrigerant Charge (g/m)
    20
    Circuit Breaker* (A)
    25
  • Power Supply Cable (No.*mm2)
    3*1.5
    Power and Transmission Cable (No.*mm2)
    4*1.5
  • Piping Connections - Liquid Side (mm)
    9.52
    Piping Connections - Gas Side (mm)
    15.88
  • Drain Hose (O.D / I.D * length) (mm(in) * mm)
    21.5 / 16.0 (0.85 / 0.63) * 350
    Piping Length (Standard / Max) (m(ft))
    7.5 (24.6) / 20 (66.6)
  • Max. Elevation Difference (m(ft))
    7 (23.0)
    Fan(Indoor) - Type
    Cross Flow Fan
  • Fan(Outdoor) - Type
    Fan,Propeller
    Operation Range - Cooling Indoor (oC (oF))
    16 ~ 32 (60.8 ~ 89.6)
  • Operation Range - Cooling Outdoor (oC (oF))
    18 ~ 48 (64.4 ~ 118.4)
    Operation Range - Heating Outdoor (oC (oF))
    No
  • Dimensions - Indoor (W*H*D) (mm)
    998*330*210
    Dimensions - Outdoor (W*H*D) (mm)
    870*660*360
  • Net Weight - Indoor (kg)
    11.6 (25.57)
    Net Weight - Outdoor (kg)
    42.9 (94.58)
APPEARANCE
  • Indoor - Tool Code
    SK
    Indoor - Remote
    (Common) 2 Way + Gen mode
  • Indoor - Remote Controller Type
    Wireless LCD
    AKB74955619
    Indoor - Grille Front Look
    Sirius-E (White)
  • Indoor - Display
    88 Seq
    Outdoor - Tool Code
    UE
  • Outdoor - Panel Type
    Steel
    Outdoor - Condenser Type
    CU
FEATURE & FUNCTION
  • Ionizer - Plasmaster Ionizer
    No
    Pre-Filter (in Front Grille) - Anti bacteria air filter (Stallion Prefilter)
    Yes
  • Pre-Filter (in Front Grille) - Anti bacteria air filter (Standard Prefilter)
    No
    Special Filter - Plasma Filter
    No
  • Special Filter - Micro Dust Filter (single)
    No
    Special Filter - Multi Protection Filter (with case)
    No
  • Special Filter - Triple Filter
    No
    Functions - * Vane Horizontal
    Normal
  • Functions - Temperature Control
    Thermistor
    Functions - Auto Clean
    Yes
  • Functions - Natural Wind
    Yes
    Functions - Fan Speed (SH/H/MH/M/ML/L/SL)
    7
  • Functions - Airflow Direction Control(up & Down)
    Auto
    Functions - Airflow Direction Control(left & right)
    Manual
  • Functions - Setting Temperature Range (Cooling (°C))
    16-30
    Functions - Setting Temperature Range (Heating (°C))
    No
  • Functions - Temperature Increment (°C)
    1
    Functions - Auto Operation (Micom Control)
    Yes
  • Functions - Auto Changeover (Micom Control)
    No
    Functions - Self Diagnosis
    Yes
  • Functions - Timer
    24hr On/Off
    Functions - Sleep Operation
    Yes
  • Functions - Soft Dry Operation
    Yes
    Functions - Restart Delay(minute)
    3
  • Functions - Deice Control(Defrost)
    No
    Functions - Display Light (On/Off)
    Yes
  • Functions - Energy Saving
    Yes
    Functions - Hot Start
    No
  • Functions - Jet Cool
    Yes
    Special Function - Wi-Fi
    No
  • Special Function - Mosquito Away
    No
    Special Function - Voice Mate
    No
  • Special Function - Skin Care
    No
    Special Function - Fresh Dry
    No
  • Special Function - Himalaya Cool
    No
    Special Function - Indirect Air
    Yes
  • Special Function - Active Energy Control
    No
    Special Function - Gen Mode
    Yes
  • Special Function - AVS
    No

Compare

0
Compare 0
*Prices, promotions and availability may vary by store and online. Prices subject to change without notice. Quantities are limited. Check with your local retailers for final price and availability.

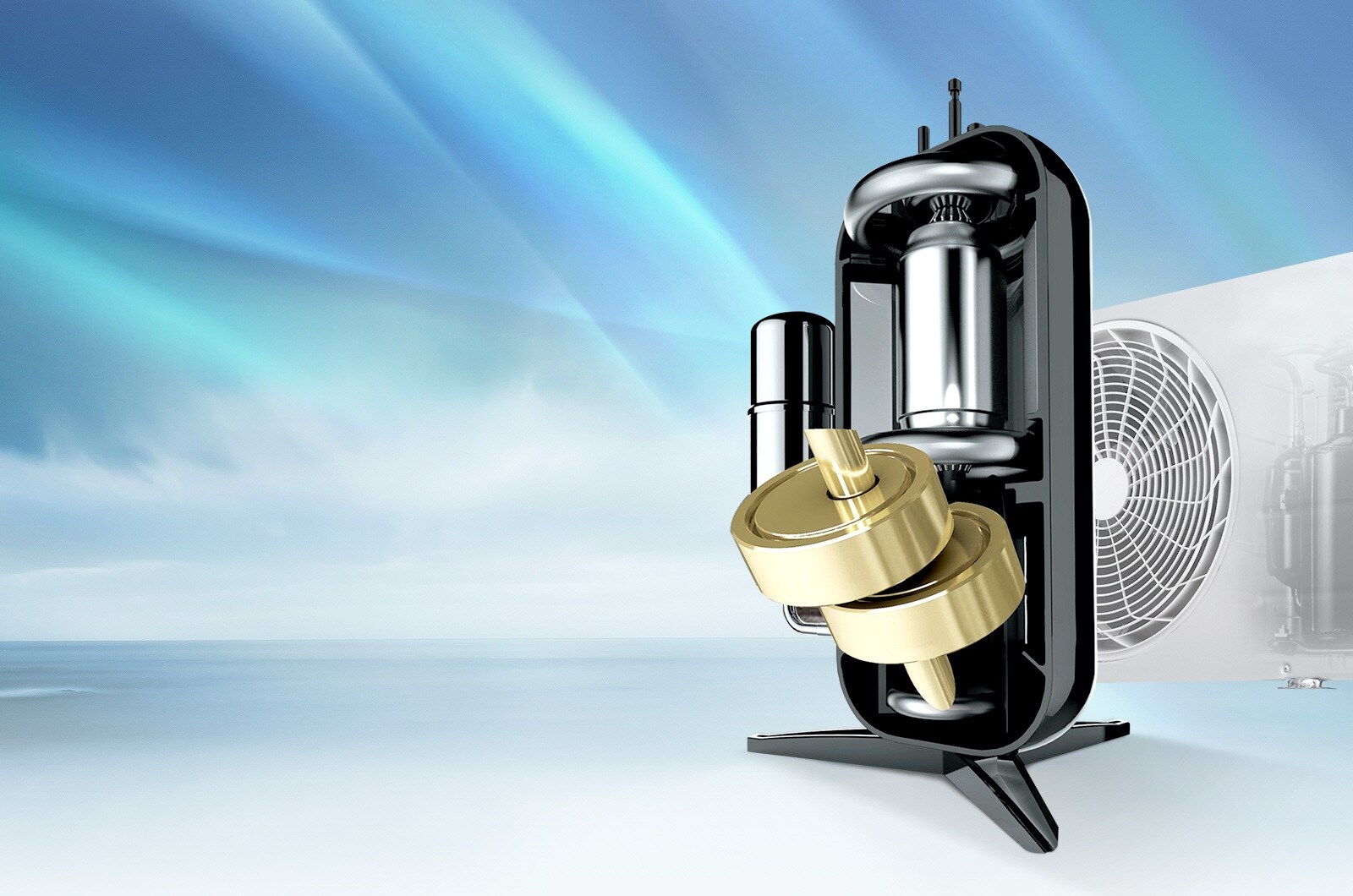

We have a wide range of stylish and innovative split air conditioners. Our LG DUAL Inverter Compressor™ is an example of this and it's innovative technology saves energy and cools faster, giving you a better way to stay cool. Explore our range online.
