Discontinued
I24TTP
DUALCOOL Inverter AC 1.5 Ton, Air Purification, 65°Operation, 65% Energy Saving

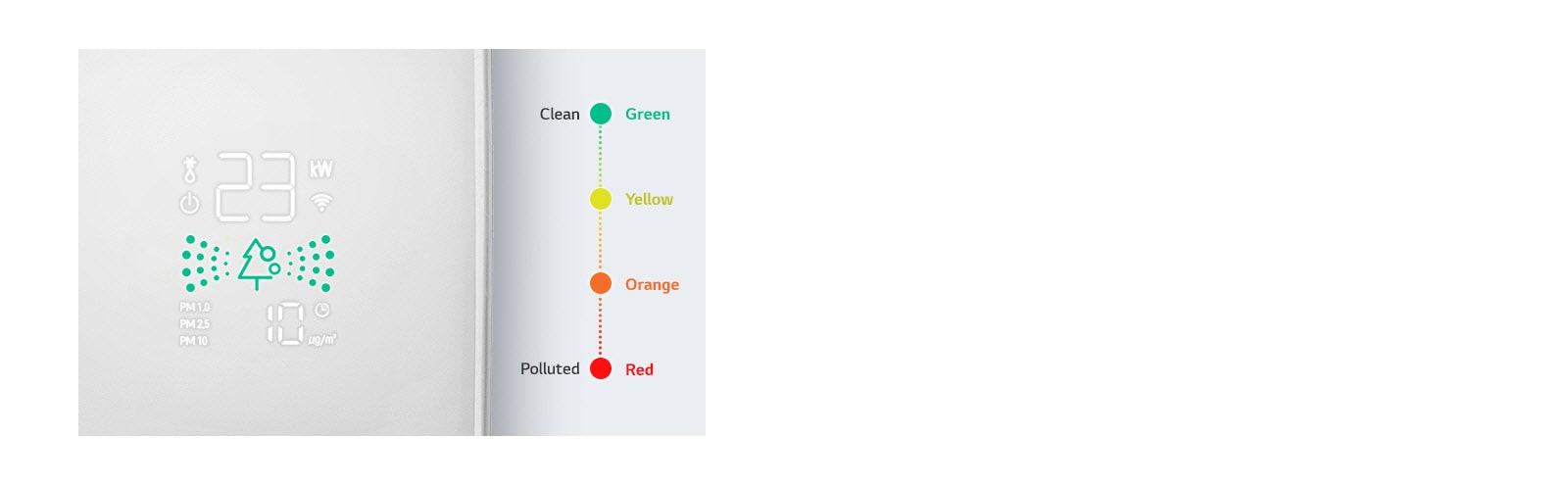

  • Enhanced Air Purification

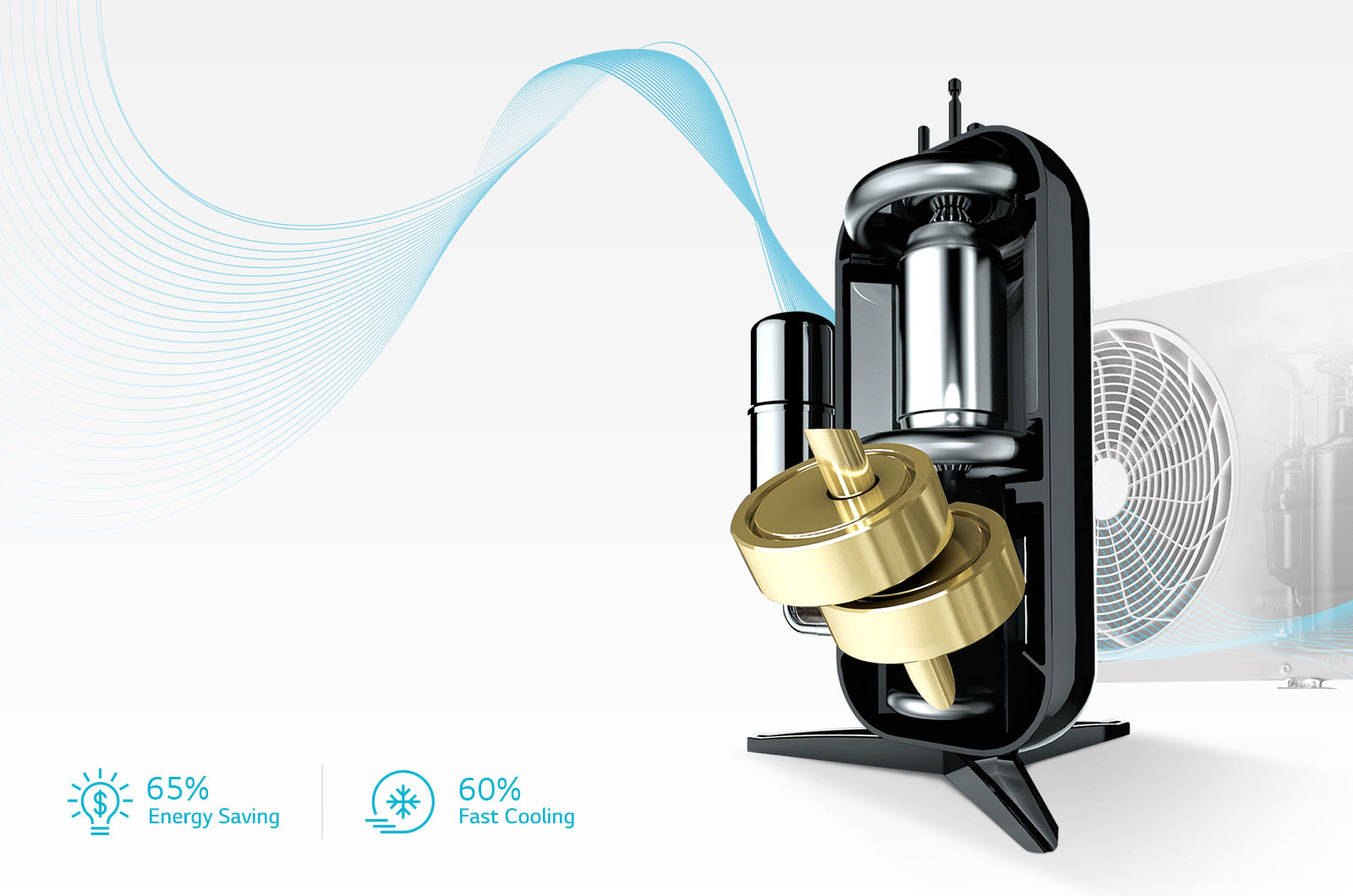

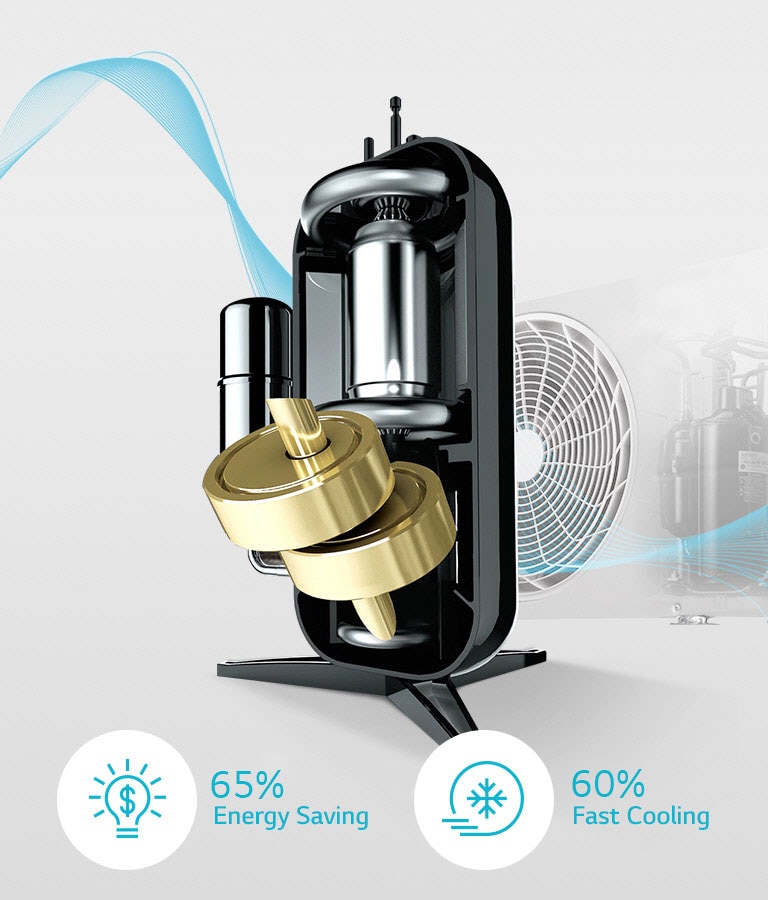

  • Dual Inverter Compressor™
  • 65% Energy Saving
  • 60% Faster Cooling

component-OBScountrySelectDesc

DUALCOOL Inverter AC 1.5 Ton, Air Purification, 65°Operation, 65% Energy Saving

Dimensions

SPEC SUMMARY

  • Capacity
    1.5 Ton
  • Dimension (W x H x D) mm
    Indoor 1020 x 385 x 210 / Outdoor 870 x 650 x 330
  • Main Technology
    Enhanced Air Purification
  • Additional Benefit
    Dual Inverter Compressor™

CAPACITY

  • Cooling - Min ~ Rated ~ Max(kW)
    0.90/5.57/7.09
    Cooling - Min ~ Rated ~ Max(Btu/h)
    3,070/19,000/24,200
  • Cooling (T3) - Min ~ Rated ~ Max(kW)
    0.79/4.78/5.86
    Cooling (T3) - Min ~ Rated ~ Max(Btu/h)
    2,700/16,300/20,000

POWER INPUT

  • Cooling - Min ~ Rated ~ Max(W)
    340/1,570/3,000
    Cooling (T3) - Min ~ Rated ~ Max(W)
    394/1,830/3,000

RUNNING CURRENT

  • Cooling - Min ~ Rated ~ Max(A)
    1.65/6.80/16.00
    Cooling (T3) - Min ~ Rated ~ Max(A)
    1.90/8.00/16.00

EER

  • EER(W/W)
    3.55
    EER((Btu/h)/W)
    12.1

EER(T3)

  • EER (T3)(W/W)
    2.61
    EER (T3)((Btu/h)/W)
    8.91

ENERGY LABEL GRADE

  • Cooling/Heating
    4

POWER SUPPLY

  • Power Supply (Ø, V, Hz)
    1, 220 ~ 240, 50

AVAILABLE VOLTAGE RANGE

  • Available Voltage Range(V)
    187 ~ 276

POWER FACTOR

  • Cooling/Heating (%)
    98.0

MOISTURE REMOVAL

  • Moisture Removal(l/h)
    1.47

INDOOR

  • Air Flow Rate - Cooling, Max/H/M/L(m³/min)
    17.0/13.5/11.0/8.5
    Sound Pressure Level - Cooling, Max/H/M/L/SL(dB(A))
    55/47/42/37/28
  • Dimensions (W × H × D) - Net(mm)
    1020 x 385 x 210
    Dimensions (W × H × D) - Shipping(mm)
    1073 x 433 x 276
  • Weight - Net(kg)
    13.0
    Weight - Shipping(kg)
    14.7
  • Exterior Color Code
    Munsell 7.5BG 10/2 (RAL 9016)

OUTDOOR

  • Air Flow Rate - Max(㎥/min)
    49.0
    Sound Pressure Level - Cooling, Rated(dB(A))
    55
  • Dimensions (W × H × D) - Net(mm)
    870 x 650 x 330
    Dimensions (W × H × D) - Shipping(mm)
    1026 x 693 x 446
  • Weight - Net(kg)
    43
    Weight - Shipping(kg)
    47
  • Max. Fuse Size(A)
    25
    Exterior Color Code
    Munsell 9.54Y 8.34/1.31 (RAL 9001)
  • Operation Range - Cooling(℃ DB)
    18 ~ 54

CIRCUIT BREAKER

  • Circuit Breaker(A)
    30

POWER SUPPLY CABLE

  • Power Supply Cable(No. × mm²)
    3 x 2.5

POWER SUPPLY TO UNIT

  • Power Supply to Unit
    Outdoor

POWER AND COMMUNICATION CABLE

  • Power and Communication Cable(No. x mm²)
    4 x 0.75

PIPING

  • Size - Liquid(mm)
    Ø 6.35
    Size - Gas(mm)
    Ø 15.88
  • Connections Method - Indoor/Outdoor
    Flared/Flared

DRAIN HOSE SIZE

  • O.D, I.D(mm)
    21.5, 16.0

BETWEEN INDOOR & OUTDOOR

  • Piping Length - Min/Standard/Max(m)
    3/5/30
    Piping Length - No Charge(m)
    7.5
  • Max. Elevation Difference(m)
    25
    Piping Connection Heat Insulation
    Both liquid and Gas Pipes

REFRIGERANT

  • Type
    R410A
    Pre Charge(g)
    1400
  • Additional Charge(g/m)
    20
    Control
    Electronics Expansion Valve

TOOL CODE(CHASSIS)

  • Indoor/Outdoor
    SK/U24A

COMPRESSOR

  • Type
    Dual Inverter Compressor
    Model
    GKT208MAA
  • Motor Type
    BLDC
    Oil Type / Maker
    PVE (FVC68D)/IDEMITSU
  • Oil Charge (cc)
    570
    Manufacturer / Country of Origin
    LG Electronics/China

FAN(INDOOR)

  • Type
    Cross Flow Fan
    Motor Output(W)
    58

FAN(OUTDOOR)

  • Type
    Propeller Fan
    Motor Type
    BLDC
  • Motor Output(W)
    85
    Motor Insulation
    Class E
  • Motor Enclosure/Ingress Protection
    TEAO/IPX4

HEAT EXCHANGER

  • Evaporator - Material, Tube / Fin
    Cu/Al
    Evaporator - Corrosion Protection
    PCM
  • Condenser - Material, Tube / Fin
    Cu/Al
    Condenser - Corrosion Protection

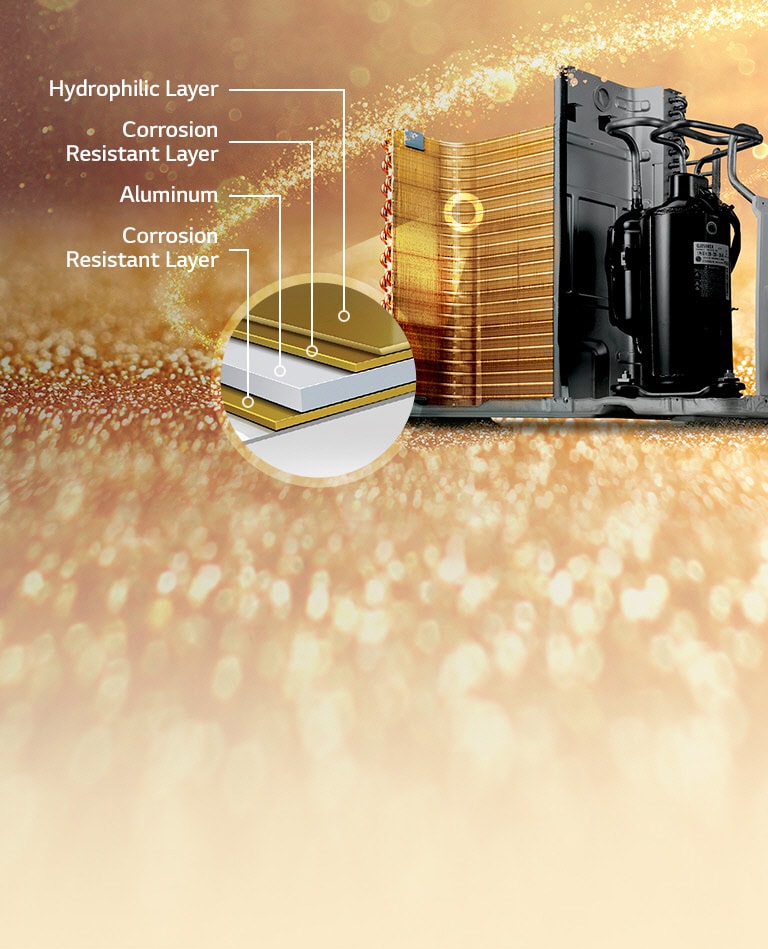

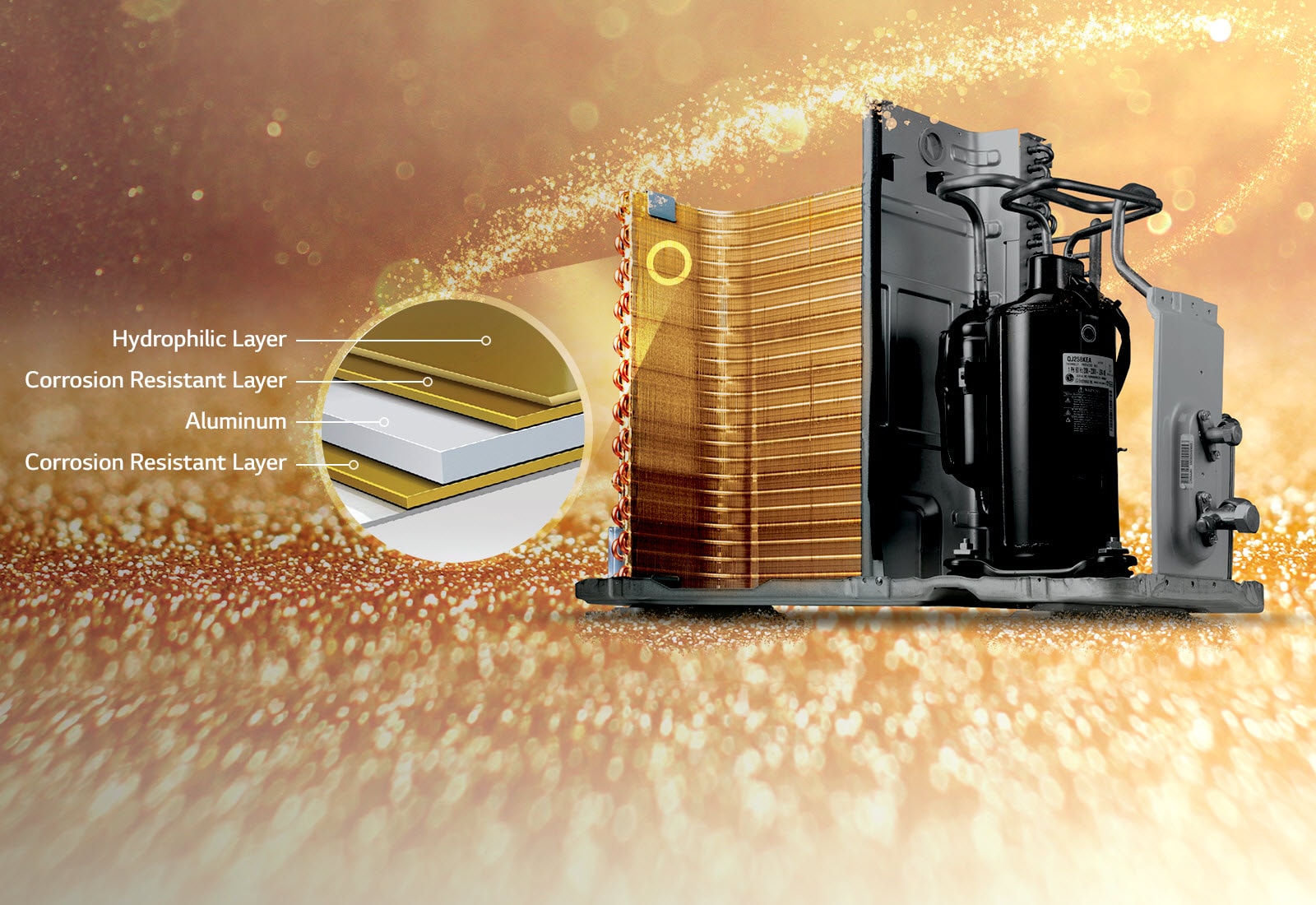

    Gold
  • Condenser - Fin Type
    Louver
