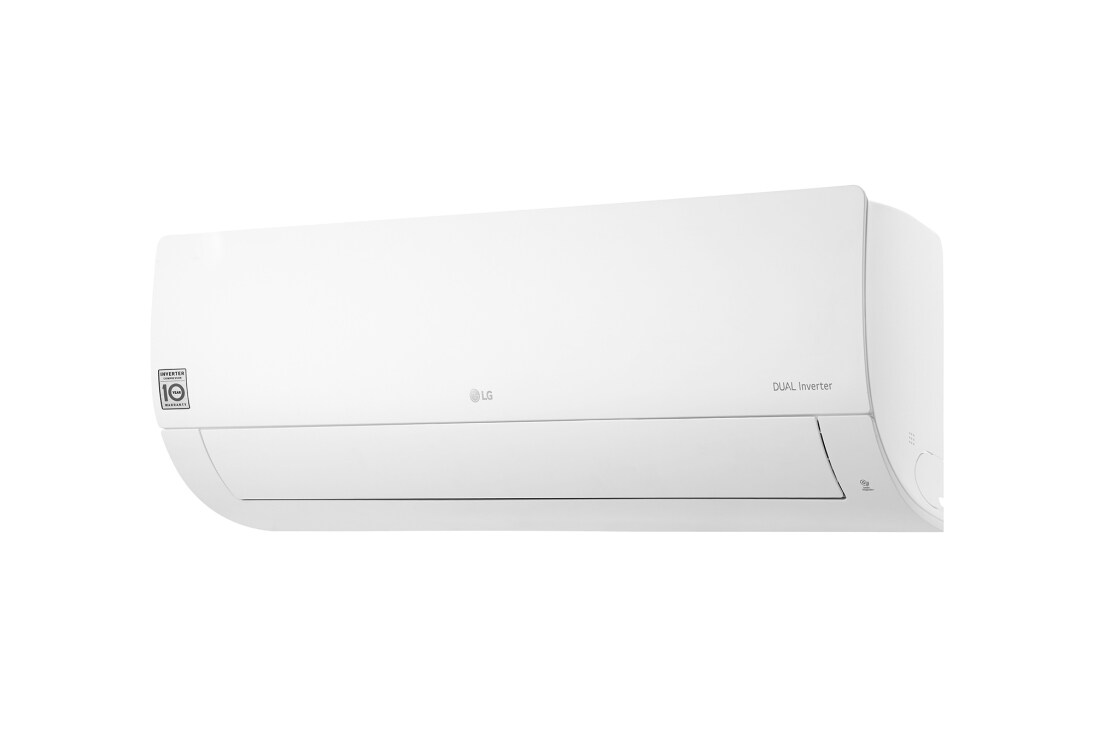

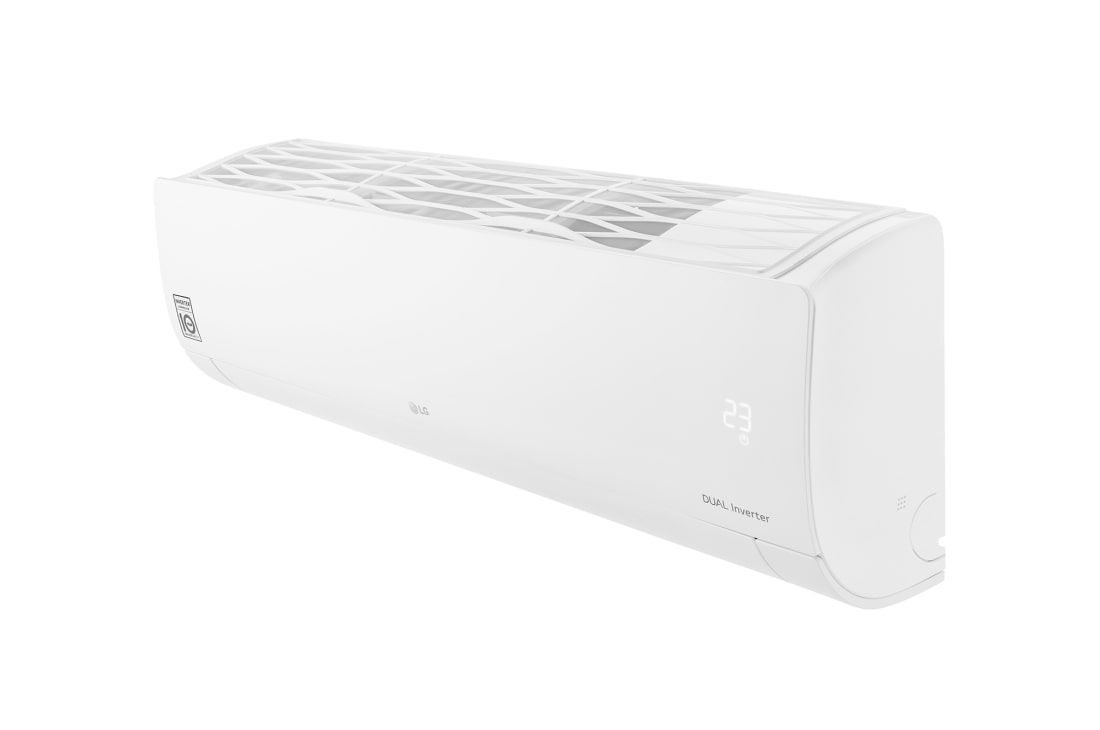

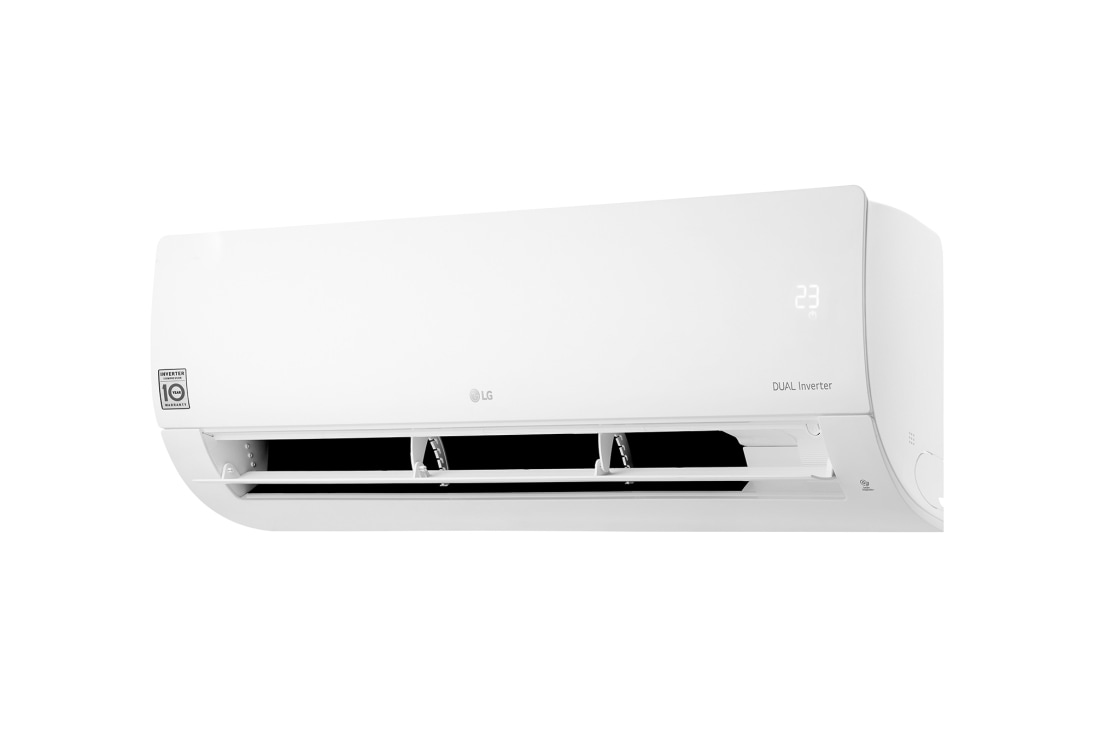

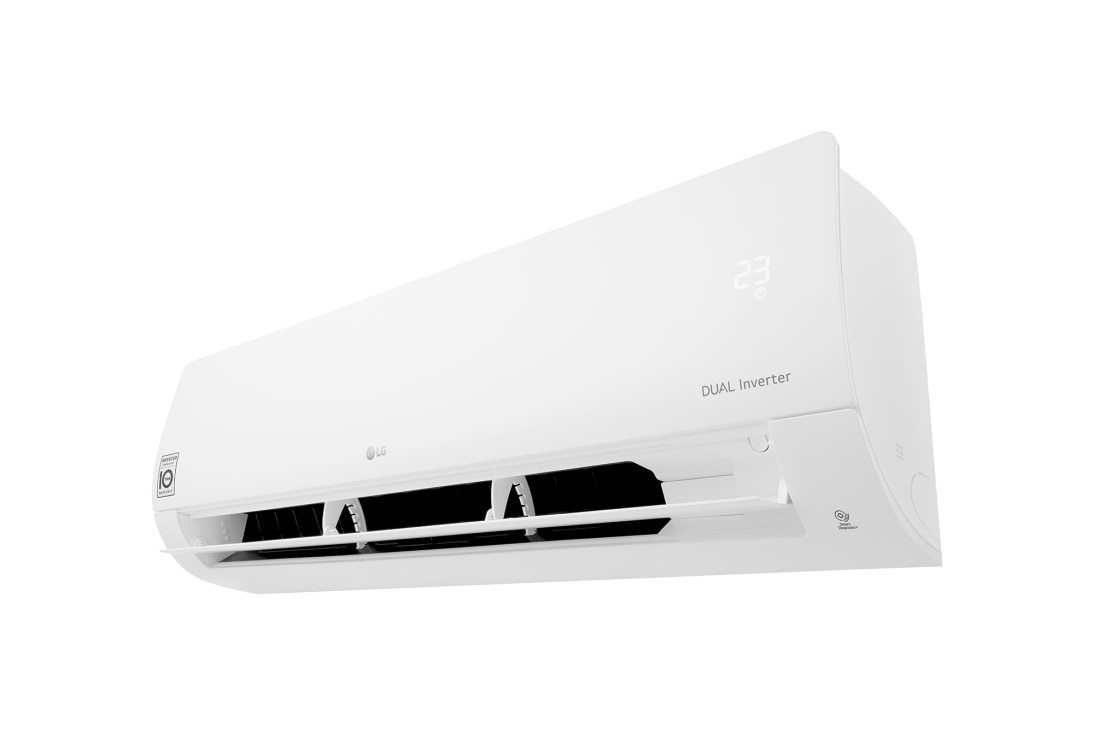

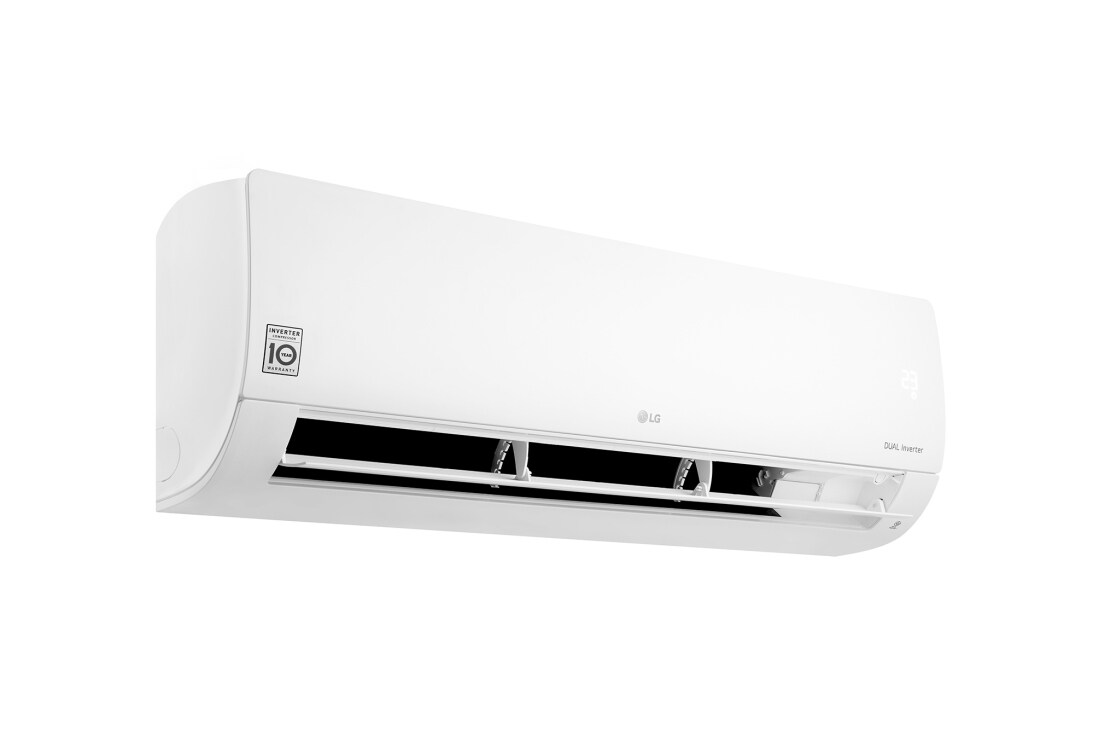

I27TCC

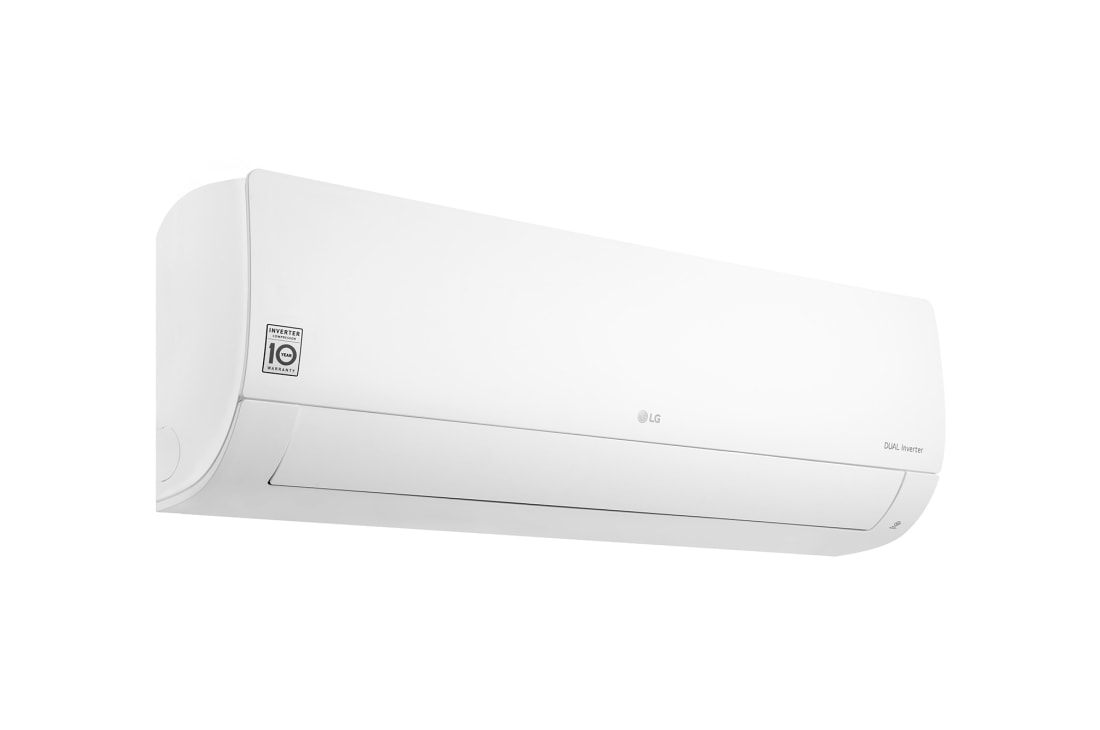

DUALCOOL Inverter AC 2 Ton, 65° Operation, 65% Energy Saving, 60% Faster cooling
  • 65°C Dual Inverter Compressor™
  • 10 Year Warranty
  • 60% Faster Cooling
  • 65% Energy Saving
  • Comfort Sleep
  • Gold Fin™

component-OBScountrySelectDesc

DUALCOOL Inverter AC 2 Ton, 65° Operation, 65% Energy Saving, 60% Faster cooling

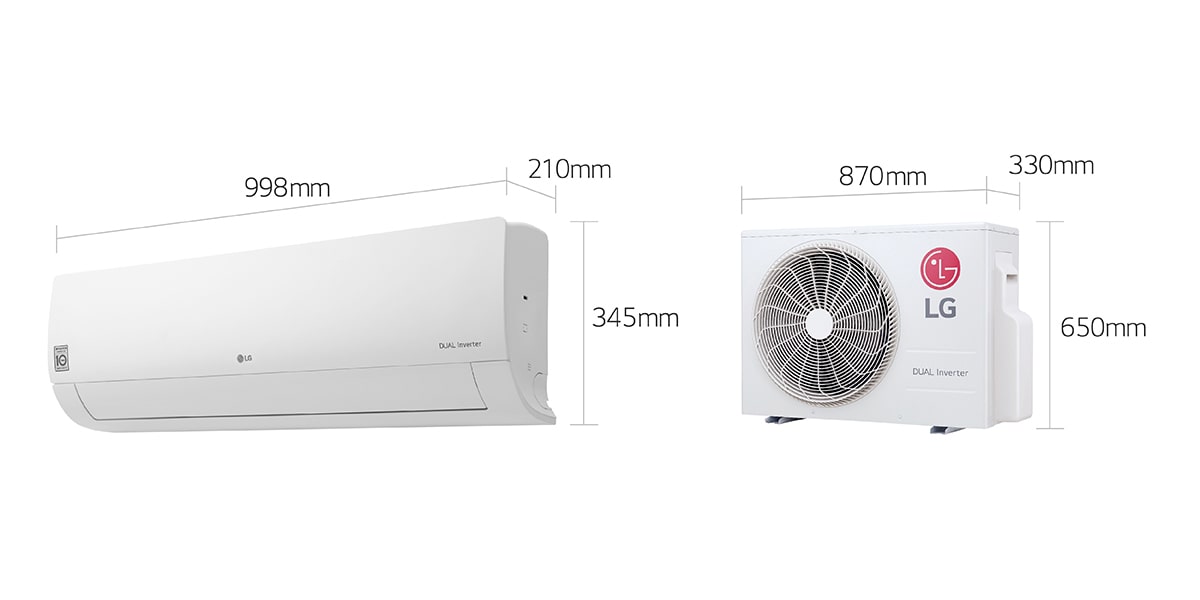

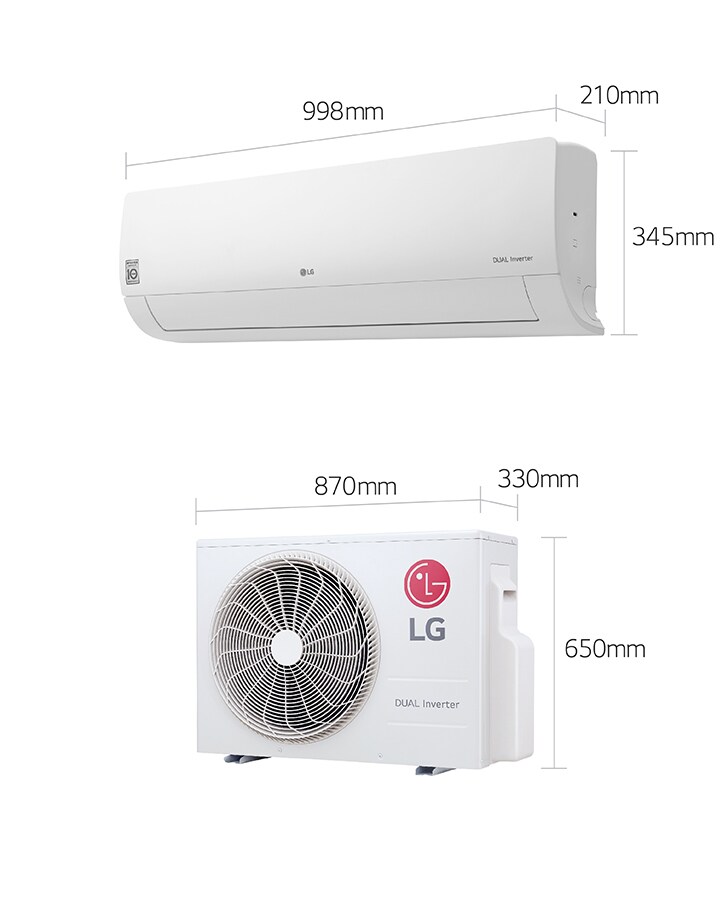

Dimensions

SPEC SUMMARY

  • Capacity
    2 Ton
  • Dimension (W x H x D) mm
    Indoor 998 x 345 x 210 / Outdoor 870 x 650 x 330
  • Main Technology
    65°C Dual Inverter Compressor™
  • Additional Benefit
    10 Year Warranty

CAPACITY

  • Cooling - Min ~ Rated ~ Max(kW)
    0.90 / 6.45 / 8.00
    Cooling - Min ~ Rated ~ Max(Btu/h)
    3,070 / 22,000 / 27,300
  • Cooling (T3) - Min ~ Rated ~ Max(kW)
    0.79 / 5.42 / 7.03
    Cooling (T3) - Min ~ Rated ~ Max(Btu/h)
    2,700 / 18,500 / 24,000

POWER INPUT

  • Cooling - Min ~ Rated ~ Max(W)
    340 / 1,839 / 3,700
    Cooling (T3) - Min ~ Rated ~ Max(W)
    340 / 2,135 / 3,700

RUNNING CURRENT

  • Cooling - Min ~ Rated ~ Max(A)
    1.65 / 8.10 / 17.00
    Cooling (T3) - Min ~ Rated ~ Max(A)
    1.65 / 9.70 / 17.00

EER

  • EER(W/W)
    3.51
    EER((Btu/h)/W)
    11.96

EER(T3)

  • EER (T3)(W/W)
    2.54
    EER (T3)((Btu/h)/W)
    8.67

ENERGY LABEL GRADE

  • Cooling / Heating
    4 / -

ANNUAL ENERGY CONSUMPTION

  • Cooling / Heating
    4,965 / -

POWER SUPPLY

  • Ø / V / Hz
    1, 220-240, 50

AVAILABLE VOLTAGE RANGE

  • Available Voltage Range(V)
    187 ~ 276

POWER FACTOR

  • Cooling / Heating(%)
    98.7 / -

MOISTURE REMOVAL

  • Moisture Removal(l/h)
    2.5

INDOOR

  • Air Flow Rate - Cooling, Max / H / M / L(㎥/min)
    20.0 / 15.0 / 13.5 / 10.5
    Sound Pressure Level - Cooling, Max / H / M / L / SL(dB(A))
    - / 47 / 42 / 37 / 28
  • Dimensions (W × H × D) - Net(mm)
    998 × 330 × 210
    Dimensions (W × H × D) - Shipping(mm)
    1145 × 395 × 300
  • Weight - Net(kg)
    12.6
    Weight - Shipping(kg)
    14.3
  • Exterior Color Code
    Munsell 7.5BG 10/2 (RAL 9016)

OUTDOOR

  • Air Flow Rate - Max(㎥/min)
    49.0
    Sound Pressure Level - Cooling, Rated(dB(A))
    55
  • Dimensions (W × H × D) - Net(mm)
    870 × 650 × 330
    Dimensions (W × H × D) - Shipping(mm)
    1026 × 693 × 446
  • Weight - Net(kg)
    47.0
    Weight - Shipping(kg)
    51.0
  • Max. Fuse Size(A)
    30
    Exterior Color Code
    Munsell 9.54Y 8.34/1.31 (RAL 9001)
  • Operation Range - Cooling(℃ DB)
    18 ~ 54

COMPRESSOR

  • Type
    Dual Inverter Compressor™
    Model
    GKT208MAA
  • Motor Type
    BLDC
    Oil Type / Maker
    PVE (FVC68D) / IDEMITSU
  • Oil Charge (cc)
    570
    Manufacturer / Country of Origin
    LG Electronics / China

FAN(INDOOR)

  • Type
    Cross Flow Fan
    Motor Output (W)
    60

FAN(OUTDOOR)

  • Type
    Propeller Fan
    Motor Type
    BLDC
  • Motor Output (W)
    85
    Motor Insulation
    Class E
  • Motor Enclosure / Ingress Protection
    TEAO / IPX4

HEAT EXCHANGER

  • Evaporator - Material, Tube / Fin
    Cu / Al
    Evaporator - (Φ x Row x Column x FPI/FPDM x L) x Qty.(W)
    (Φ7 x 2 x 16 x 20FPI x 744) x 1
  • Evaporator - (Φ x Row x Column x FPI/FPDM x L) x Qty.
    (Φ5 x 1 x 4 x 22FPI x 744) x 2
    Evaporator - Corrosion Protection
    PCM
  • Condenser - Material, Tube / Fin
    Cu /Al
    Condenser - (Φ x Row x Column x FPI/FPDM x L) x Qty.(#3)
    (Φ7 x 3 x 28 x 18FPI x 940) x 1
  • Condenser - Corrosion Protection
    Gold Fin™

CIRCUIT BREAKER

  • Circuit Breaker(A)
    30

POWER SUPPLY CABLE

  • Power Supply Cable(No. × ㎟)
    3 × 2.5

POWER SUPPLY TO UNIT

  • Power Supply to Unit
    Outdoor

POWER AND COMMUNICATION CABLE

  • Power and Communication Cable(No. × ㎟)
    4 × 1.0

PIPING

  • Size - Liquid(mm)
    Ø 6.35
    Size - Gas(mm)
    Ø 15.88
  • Connections Method - Indoor / Outdoor
    Flared / Flared

DRAIN HOSE SIZE

  • O.D, I.D(mm)
    21.5, 16.0

BETWEEN INDOOR & OUTDOOR

  • Piping Length - Min / Standard / Max(m)
    3 / 5 / 30
    Piping Length - No Charge(m)
    7.5
  • Max. Elevation Difference(m)
    25

REFRIGERANT

  • Type
    R410A
    Pre Charge(g)
    1850
  • Additional Charge(g/m)
    20
    Control
    Electronic Expansion Valve

TOOL CODE(CHASSIS)

  • Indoor / Outdoor
    SK / U24A

FEATURE

  • Air Flow - 4way Swing
    Yes
    Air Flow - Jetcool
    Yes
  • Air Flow - Comfort Air
    Yes
    Air Purifying - Dual Protection Filter
    Yes
  • Air Purifying - Auto Cleaning
    Yes
    Convenience - Comfort Sleep
    Yes
  • Convenience - Smart Diagnosis
    Yes
