I32KEC

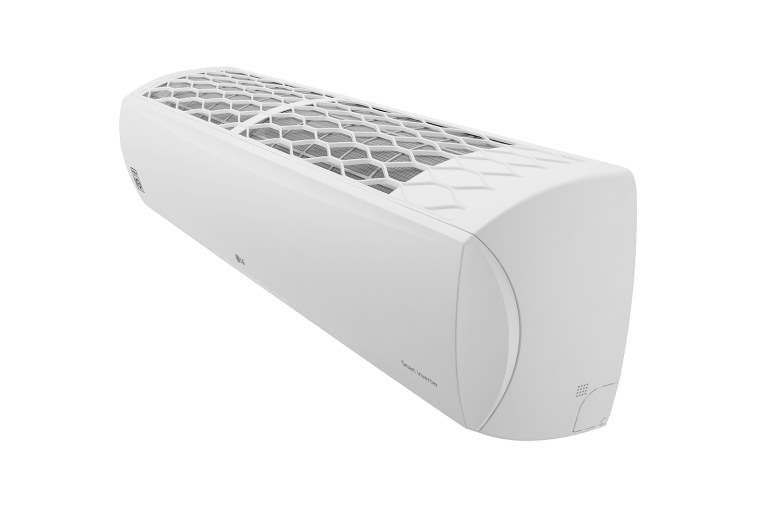

All New Air Conditioner, LG DUALCOOL Inverter
  • 65°C Dual Inverter Compressor™
  • 10 Year Warranty
  • 60% Faster Cooling
  • 65% Energy Saving
  • Comfort Sleep
  • Gold Fin™

component-OBScountrySelectDesc

All New Air Conditioner, LG DUALCOOL Inverter

Dimensions

CAPACITY

  • Cooling - Min ~ Rated ~ Max(kW)
    3.99 / 8.21 / 9.38
    Cooling - Min ~ Rated ~ Max(Btu/h)
    13,600 / 28,000 / 32,000
  • Cooling (T3) - Min ~ Rated ~ Max(kW)
    - / 7.48 / -
    Cooling (T3) - Min ~ Rated ~ Max(Btu/h)
    - / 25,500 / -

POWER INPUT

  • Cooling - Min ~ Rated ~ Max(W)
    1,129 / 2,325 / 4,450
    Cooling (T3) - Min ~ Rated ~ Max(W)
    - / 2,920 / -

RUNNING CURRENT

  • Cooling - Min ~ Rated ~ Max(A)
    4.90 / 10.10 / 19.60
    Cooling (T3) - Min ~ Rated ~ Max(A)
    - / 12.70 / -

EER

  • EER(W/W)
    3.53
    EER((Btu/h)/W)
    12.04

EER(T3)

  • EER (T3)(W/W)
    2.56
    EER (T3)((Btu/h)/W)
    8.73

ENERGY LABEL GRADE

  • Cooling / Heating
    4 / -

ANNUAL ENERGY CONSUMPTION

  • Cooling / Heating
    2,920 / -

POWER SUPPLY

  • Ø / V / Hz
    1, 220-240, 50

AVAILABLE VOLTAGE RANGE

  • Available Voltage Range(V)
    198 ~ 264

POWER FACTOR

  • Cooling / Heating(%)
    99.0 / -

MOISTURE REMOVAL

  • Moisture Removal(l/h)
    2.5

INDOOR

  • Air Flow Rate - Cooling, Max / H / M / L(㎥/min)
    33 / 30 / 26 / 23
    Sound Pressure Level - Cooling, Max / H / M / L / SL(dB(A))
    - / 53 / 49 / 44 / -
  • Dimensions (W × H × D) - Net(mm)
    1190 × 346 × 265
    Dimensions (W × H × D) - Shipping(mm)
    1265 × 432 × 335
  • Weight - Net(kg)
    17.3
    Weight - Shipping(kg)
    21.9
  • Exterior Color Code
    Munsell 7.5BG 10/2 (RAL 9016)

OUTDOOR

  • Air Flow Rate - Max(㎥/min)
    70.0
    Sound Pressure Level - Cooling, Rated(dB(A))
    59
  • Dimensions (W × H × D) - Net(mm)
    950 × 832 × 330
    Dimensions (W × H × D) - Shipping(mm)
    1065 × 918 × 461
  • Weight - Net(kg)
    66.4
    Weight - Shipping(kg)
    74.2
  • Max. Fuse Size(A)
    25
    Exterior Color Code
    Munsell 9.54Y 8.34/1.31 (RAL 9001)
  • Operation Range - Cooling(℃ DB)
    -5 ~ 54

COMPRESSOR

  • Type
    Smart Inverter Compressor
    Model
    GPT442MAB
  • Motor Type
    BLDC
    Oil Type / Maker
    PVE (FVC68D) / IDEMITSU
  • Oil Charge (cc)
    1300
    Manufacturer / Country of Origin
    LG Electronics / Korea

FAN(INDOOR)

  • Type
    Cross Flow Fan
    Motor Output (W)
    113.1

FAN(OUTDOOR)

  • Type
    Propeller Fan
    Motor Type
    BLDC
  • Motor Output (W)
    124.2
    Motor Insulation
    Class E
  • Motor Enclosure / Ingress Protection
    TEAO / IP43

HEAT EXCHANGER

  • Evaporator - Material, Tube / Fin
    Cu / Al
    Evaporator - (Φ x Row x Column x FPI/FPDM x L) x Qty.(W)
    (Φ9 x 2 x 14 x 20FPI x 913) x 1
  • Evaporator - Corrosion Protection
    PCM
    Condenser - Material, Tube / Fin
    Cu /Al
  • Condenser - (Φ x Row x Column x FPI/FPDM x L) x Qty.(#3)
    (Φ7 x 2 x 38 x 17FPI x 950) x 1
    Condenser - Corrosion Protection
    Gold Fin™

CIRCUIT BREAKER

  • Circuit Breaker(A)
    25

POWER SUPPLY CABLE

  • Power Supply Cable(No. × ㎟)
    3 × 2.5

POWER SUPPLY TO UNIT

  • Power Supply to Unit
    Outdoor

POWER AND COMMUNICATION CABLE

  • Power and Communication Cable(No. × ㎟)
    4 × 0.75

PIPING

  • Size - Liquid(mm)
    Ø 9.52
    Size - Gas(mm)
    Ø 15.88
  • Connections Method - Indoor / Outdoor
    Flared / Flared

DRAIN HOSE SIZE

  • O.D, I.D(mm)
    21.5, 16.0

BETWEEN INDOOR & OUTDOOR

  • Piping Length - Min / Standard / Max(m)
    3 / 7.5 / 20
    Piping Length - No Charge(m)
    7.5
  • Max. Elevation Difference(m)
    15

REFRIGERANT

  • Type
    R410A
    Pre Charge(g)
    2080
  • Additional Charge(g/m)
    30
    Control
    Electronic Expansion Valve

TOOL CODE(CHASSIS)

  • Indoor / Outdoor
    SV / U4

FEATURE

  • Air Flow - 4way Swing
    Yes
    Air Flow - Jetcool
    Yes
  • Air Flow - Comfort Air
    Yes
    Air Purifying - Dual Protection Filter
    Yes
  • Air Purifying - Auto Cleaning
    Yes
    Convenience - Comfort Sleep
    Yes
  • Convenience - Smart Diagnosis
    Yes
