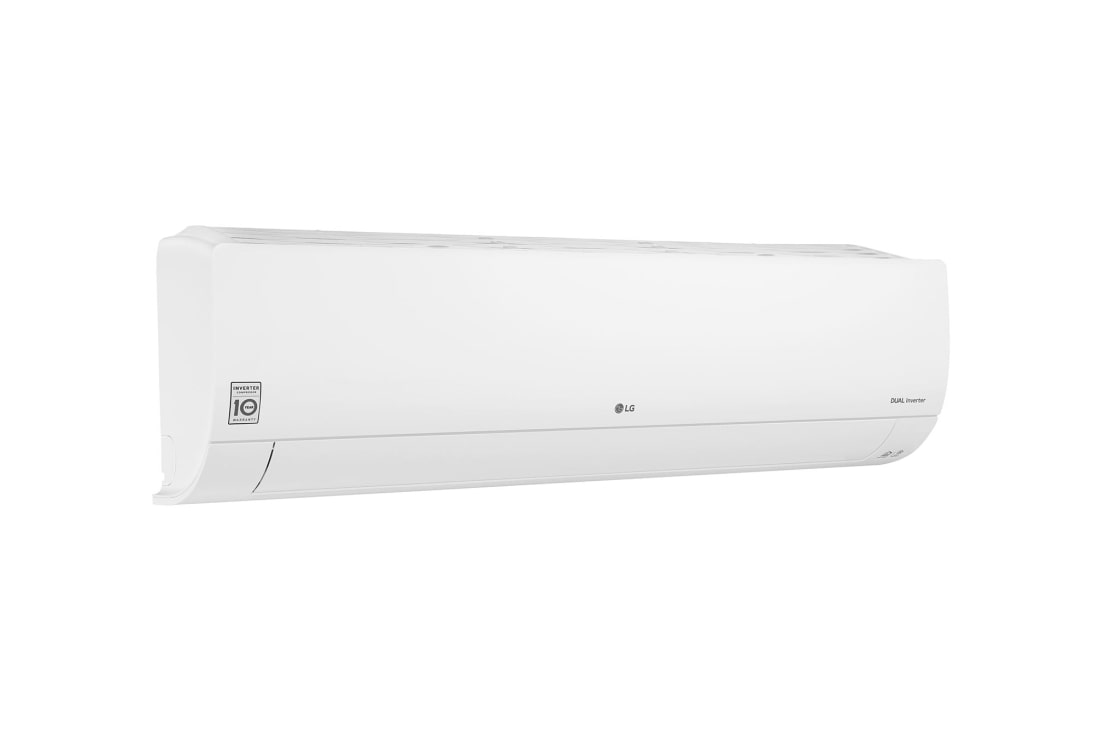

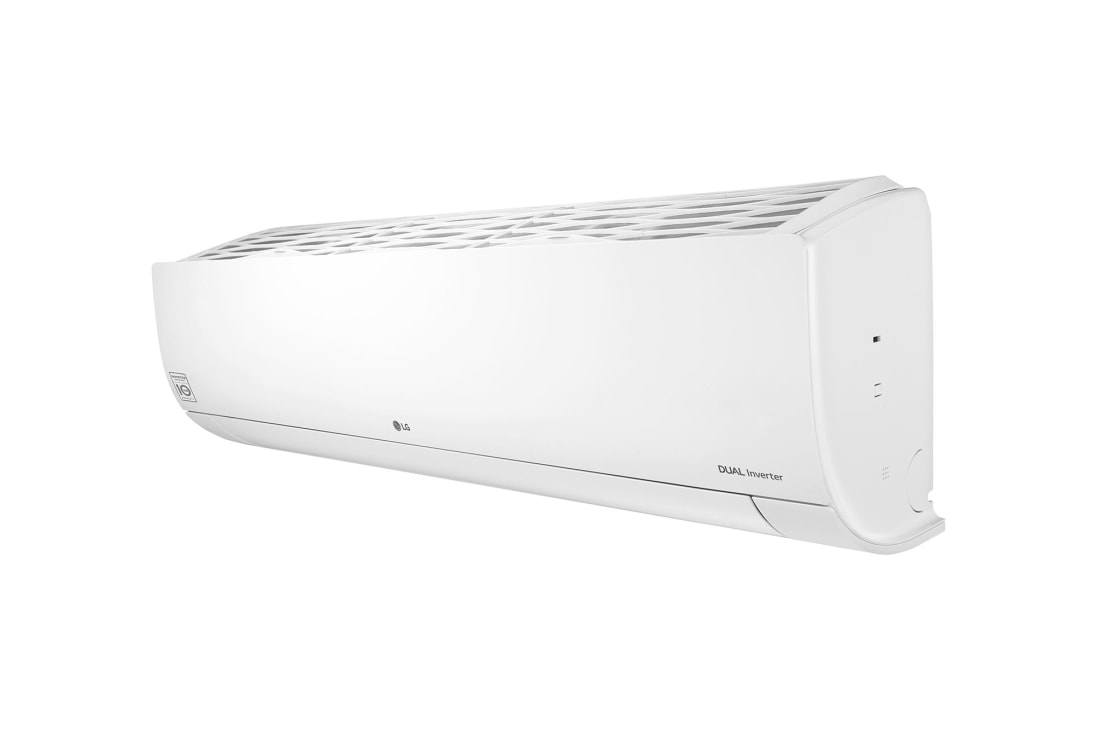

DUALCOOL Inverter 2.5 Ton Energy Saving Air Conditioner With 10 Year Warranty
  • 65°C Dual Inverter Compressor™
  • 10 Year Warranty
  • 60% Faster Cooling
  • 65% Energy Saving
  • Comfort Sleep
  • Gold Fin™

component-OBScountrySelectDesc

DUALCOOL Inverter 2.5 Ton Energy Saving Air Conditioner With 10 Year Warranty
Dimensions
SPEC SUMMARY
  • Capacity
    2.5 Ton
  • Dimension (W x H x D) mm
    Indoor 1200 x 265 x 360 / Outdoor 950 x 832 x 330
  • Main Technology
    65°C Dual Inverter Compressor™
  • Additional Benefit
    10 Year Warranty
CAPACITY
  • Cooling - Min ~ Rated ~ Max(kW)
    1.77/8.20/9.96
    Cooling - Min ~ Rated ~ Max(Btu/h)
    6,035/28,000/34,000
  • Cooling (T3) - Min ~ Rated ~ Max(kW)
    3.21/7.47/8.21
    Cooling (T3) - Min ~ Rated ~ Max(Btu/h)
    10,940/25,500/28,000
POWER INPUT
  • Cooling - Min ~ Rated ~ Max(W)
    529/2,135/3,990
    Cooling (T3) - Min ~ Rated ~ Max(W)
    1,490/2,830/3,990
RUNNING CURRENT
  • Cooling - Min ~ Rated ~ Max(A)
    3.82/9.85/17.00
    Cooling (T3) - Min ~ Rated ~ Max(A)
    6.66/13.00/17.00
EER
  • EER(W/W)
    3.84
    EER((Btu/h)/W)
    13.1
EER(T3)
  • EER (T3)(W/W)
    2.64
    EER (T3)((Btu/h)/W)
    9.01
ENERGY LABEL GRADE
  • Cooling / Heating
    5/-
POWER SUPPLY
  • Ø, V, Hz
    1, 220~240, 50
AVAILABLE VOLTAGE RANGE
  • Available Voltage Range(V)
    187~276
POWER FACTOR
  • Cooling / Heating(%)
    94.2/-
MOISTURE REMOVAL
  • Moisture Removal(l/h)
    1.49
INDOOR
  • Air Flow Rate - Cooling, Max / H / M / L(㎥/min)
    32/25/21/17
    Sound Pressure Level - Cooling, Max / H / M / L / SL(dB(A))
    -/52/47/43/34
  • Dimensions (W × H × D) - Net(mm)
    1200 x 360 x 265
    Dimensions (W × H × D) - Shipping(mm)
    1280 x 455 x 357
  • Weight - Net(kg)
    18.5
    Weight - Shipping(kg)
    22.2
  • Exterior Color Code
    Munsell 7.5BG 10/2 (RAL 9016)
OUTDOOR
  • Air Flow Rate - Max(㎥/min)
    71.0
    Sound Pressure Level - Cooling, Rated(dB(A))
    58
  • Dimensions (W × H × D) - Net(mm)
    950 x 832 x 330
    Dimensions (W × H × D) - Shipping(mm)
    1130 x 908 x 456
  • Weight - Net(kg)
    63.9
    Weight - Shipping(kg)
    69.4
  • Max. Fuse Size(A)
    25
    Exterior Color Code
    Munsell 9.54Y 8.34/1.31
  • Operation Range - Cooling(℃ DB)
    18 ~ 54
CIRCUIT BREAKER
  • Circuit Breaker(A)
    25
POWER SUPPLY CABLE
  • Power Supply Cable(No. × ㎟)
    3 x 2.5
POWER SUPPLY TO UNIT
  • Power Supply to Unit
    Outdoor
POWER AND COMMUNICATION CABLE
  • Power and Communication Cable(No. × ㎟)
    4 x 1
PIPING
  • Size - Liquid(mm)
    Ø 9.52
    Size - Gas(mm)
    Ø 15.88
  • Connections Method - Indoor / Outdoor
    Flared/Flared
DRAIN HOSE SIZE
  • O.D, I.D(mm)
    20, 15
BETWEEN INDOOR & OUTDOOR
  • Piping Length - Min / Standard / Max(m)
    5/7.5/30
    Piping Length - No Charge(m)
    7.5
  • Max. Elevation Difference(m)
    25
    Piping Connection Heat Insulation
    Both liquid and Gas Pipes
REFRIGERANT
  • Type
    R410A
    Pre Charge(g)
    2400
  • Additional Charge(g/m)
    30
    Control
    Electronics Expansion Valve
TOOL CODE(CHASSIS)
  • Indoor / Outdoor
    SR/U4
COMPRESSOR
  • Type
    Twin Rotary
    Model
    GPT330MAB
  • Motor Type
    BLDC
    Oil Type / Maker
    PVE (FVC68D)/IDEMITSU
  • Oil Charge (cc)
    1300
    Manufacturer / Country of Origin
    LG Electronics/Korea
FAN(INDOOR)
  • Type
    Cross Flow Fan
    Motor Output (W)
    113.1
FAN(OUTDOOR)
  • Type
    Propeller Fan
    Motor Type
    BLDC
  • Motor Output (W)
    124
    Motor Insulation
    Class E
  • Motor Enclosure / Ingress Protection
    TEAO/IPX4
HEAT EXCHANGER
  • Evaporator - Material, Tube / Fin
    Cu/Al
    Evaporator - Corrosion Protection
    PCM
  • Condenser - Material, Tube / Fin
    Cu/Al
    Condenser - Corrosion Protection
    Gold
  • Condenser - Fin Type
    Louver
