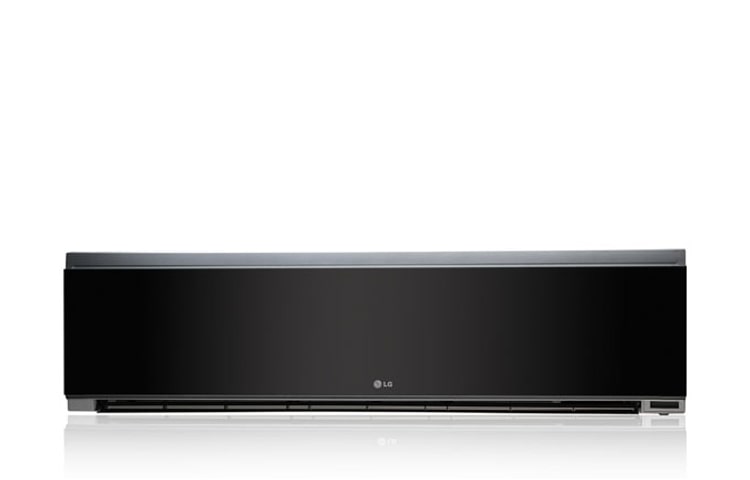

LS-H096ZRL8
cooling & heating
  • Auto Cleaning
  • Deodorizing_Triple Filter
  • Jet Cool
  • Plasmaster Filter

component-OBScountrySelectDesc

cooling & heating

AIR FLOW RATE

  • Indoor, Max (m3 / min(CFM))
    7(247)
    Outdor, Max (m3 / min(CFM))
    20(706.3)

MOISTURE REMOVAL

  • l/h.
    0.8

ADDITIONAL REFRIGERANT CHARGE

  • g/m (oz/ft)
    20(0.21)

COMPRESSOR

  • Type
    Rotary(Tropical)
    Model
    QK164PCB
  • Motor Type
    PSC
    Oil Type
    NM56 or 4GSI
  • Oil Charge (cc)
    350
    O.L.P. name
    MRA99018-12027

FAN(INDOOR)

  • Type
    Cross Flow Fan
    Motor Output (W)
    14.7

FAN(OUTDOOR)

  • Type
    Axial Fan
    Motor Type
    AC INDUCTION
  • Motor Output (W)
    26

CIRCUIT BREAKER*

  • A
    15

POWER SUPPLY CABLE

  • No.*mm²
    3*0.75(Including Earth)

PIPING CONNECTIONS

  • Liquid Side (mm(in))
    6.35(1/4)
    Gas Side (mm(in))
    9.52(3/8)

DIMENSIONS

  • Indoor(W*H*D)(mm)
    900*272*135
    Indoor(W*H*D)(inch)
    35.4*10.7*5.3
  • Outdoor(W*H*D)(mm)
    717*498*229
    Outdoor(W*H*D)(inch)
    28.2*19.6*9.0

NET WEIGHT

  • Indoor (kg(lbs))
    8.1(17.86)
    Outdoor (kg(lbs))
    35(77.16)

OPERATION RANGE

  • Cooling (outdoor) °C(°F)
    21~43(69.8~109.4)
    Heating (outdoor) °C(°F)
    1~24(33.8~75.2)

MAX. ELEVATION DIFFERENCE

  • m(ft)
    7(29.9)

TOOL CODE(CHASSIS)

  • Indoor + Outdoor
    SZ + UA3

FUNCTIONS

  • Temperature Control
    Thermistor
    Auto Clean
    Yes
  • CHAOS Wind (Auto Wind)
    3 / 4 / 3
    Steps, Fan/Cool/Heat
    Auto
  • Airflow Direction Control(Up & Down)
    Manual
    Airflow Direction Control(Left & Right)
    Wireless LCD
  • Remote Controller Type
    18°C ~ 30°C
    Setting Temperature Range_Cooling
    16°C ~ 30°C
  • Setting Temperature Range_Heating
    1
    Auto Operation (Micom Control)
    Yes
  • Auto Changeover (Micom Control)
    Yes
    Self Diagnosis
    24h, On/Off
  • Timer
    Yes
    Sleep Operation
    Yes
  • Soft Dry Operation
    3
    Restart Delay (minute)
    Yes
  • Hot Start
    Yes
    Deice Control(Defrost)
    Yes

POWER INPUT

  • Cooling/Heating(W)
    3.9 / 4.2

E.E.R.

  • W / W
    2.83
    Btu / h.W
    9.66

C.O.P.

  • W / W
    3.06

POWER SUPPLY

  • Ø / V / Hz
    1 / 220~240 / 50

COOLING CAPACITY

  • kW
    8,500
    Btu/hr
    2.60

HEATING CAPACITY

  • kW
    8,900
    Btu/hr
    880 / 850

POWER FACTOR

  • %
    97.3

SOUND LEVEL

  • Indoor, H/M/L(dB(A) ± 3)
    39/36/31
    Outdoor, Max(dB(A) ± 3)
    47

POWER AND TRANSMISSION CABLE NO.*

  • No. *mm²
    3*0.75(Including Earth)+2*0.75

DRAIN HOSE

  • O.D / I.D(mm(in))
    21.5/16 (0.85/0.63)

MAX. PIPING LENGTH

  • m(ft)
    15(49.2)

FILTER

  • Plasma
    Yes
    Prefilter(washable/anti-fungus)
    Yes
  • Virus + Triple
    Yes
    Triple
    Thermistor

REFRIGERANT & CHARGE (AT 7.5 M) (G(OZ))

  • g(oz)
    R22, 740(26.1)
