S1268H

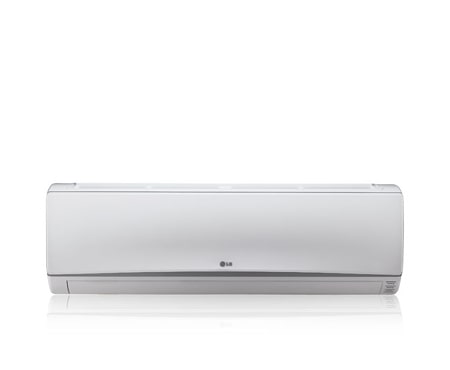

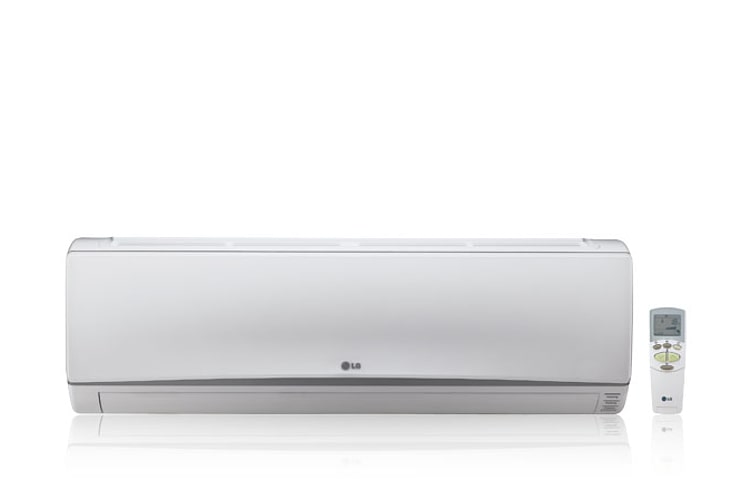

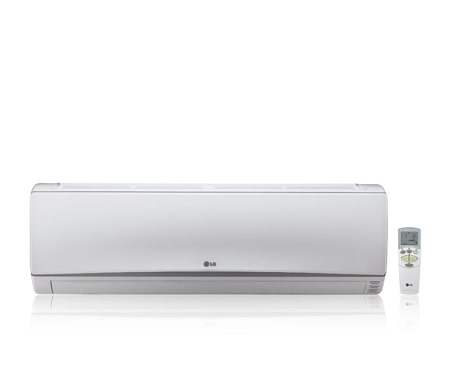

Titan Deluxe boasts an unrivaled package of the most complete air conditioning solution with power cooling and durability (Heating & Cooling)
  • 10m windblast
  • Jet Cool
  • Optimized Airflow
  • Tropical Compressor

component-OBScountrySelectDesc

Titan Deluxe boasts an unrivaled package of the most complete air conditioning solution with power cooling and durability (Heating & Cooling)

AIR FLOW RATE

  • Indoor, Max (m3 / min(CFM))
    8(282)
    Outdor, Max (m3 / min(CFM))
    20(706.3)

MOISTURE REMOVAL

  • l/h.
    1.3

ADDITIONAL REFRIGERANT CHARGE

  • g/m (oz/ft)
    20(0.21)

COMPRESSOR

  • Type
    Twin Rotary
    Model
    QKT222P
  • Motor Type
    PSC
    Oil Type
    NM56
  • Oil Charge (cc)
    480
    O.L.P. name
    MRA12052-12027

FAN(INDOOR)

  • Type
    SKEW FLOW FAN
    Motor Output (W)
    22

FAN(OUTDOOR)

  • Type
    Axial Fan
    Motor Type
    AC INDUCTION
  • Motor Output (W)
    25

CIRCUIT BREAKER*

  • A
    15

POWER SUPPLY CABLE

  • No.*mm²
    3*1.0(Including Earth)

PIPING CONNECTIONS

  • Liquid Side (mm(in))
    6.35(1/4)
    Gas Side (mm(in))
    12.70(1/2)

DIMENSIONS

  • Indoor(W*H*D)(mm)
    890*290*210
    Indoor(W*H*D)(inch)
    35.0*11.4*8.3
  • Outdoor(W*H*D)(mm)
    717*498*229
    Outdoor(W*H*D)(inch)
    28.2*19.6*9.0

NET WEIGHT

  • Indoor (kg(lbs))
    10(22)
    Outdoor (kg(lbs))
    34(75.0)

OPERATION RANGE

  • Cooling (outdoor) °C(°F)
    21~43(69.8~109.4)
    Heating (outdoor) °C(°F)
    1~24(33.8~75.2)

MAX. ELEVATION DIFFERENCE

  • m(ft)
    7(23)

TOOL CODE(CHASSIS)

  • Indoor + Outdoor
    SB + UA3

FUNCTIONS

  • Temperature Control
    Thermistor
    Auto Clean
    Yes
  • CHAOS Wind (Auto Wind)
    Yes
    Steps, Fan/Cool/Heat
    3/4/3
  • Airflow Direction Control(Up & Down)
    Auto
    Airflow Direction Control(Left & Right)
    Auto
  • Remote Controller Type
    Wireless LCD
    Setting Temperature Range_Cooling
    16°C ~ 30°C
  • Setting Temperature Range_Heating
    1
    Temperature Increment
    1
  • Auto Changeover (Micom Control)
    Yes
    Self Diagnosis
    Yes
  • Timer
    24h, On/Off
    Sleep Operation
    Yes
  • Soft Dry Operation
    Yes
    Restart Delay (minute)
    3
  • Hot Start
    Yes
    Jet Cool
    Yes
  • Device Control (Defrost)
    Yes

POWER INPUT

  • Cooling/Heating(W)
    1,290 / 1,220

E.E.R.

  • W / W
    2.61
    Btu / h.W
    8.91

C.O.P.

  • W / W
    3

RUNNING CURRENT

  • Cooling/Heating(W)
    6.0 / 5.8

POWER SUPPLY

  • Ø / V / Hz
    1 / 220~240 / 50

COOLING CAPACITY

  • kW
    3.37
    Btu/hr
    11,500

HEATING CAPACITY

  • kW
    3.66
    Btu/hr
    12,500

POWER FACTOR

  • %
    95

SOUND LEVEL

  • Indoor, H/M/L(dB(A) ± 3)
    39/33/28
    Outdoor, Max(dB(A) ± 3)
    49

POWER AND TRANSMISSION CABLE NO.*

  • No. *mm²
    3*1.0(Including Earth)+2*0.75

DRAIN HOSE

  • O.D / I.D(mm(in))
    21.5/16 (0.85/0.63)

MAX. PIPING LENGTH

  • m(ft)
    15(49.2)

FILTER

  • Plasma
    Yes
    Prefilter(washable/anti-fungus)
    Yes
  • Virus + Allerge + Triple (case)
    Yes

REFRIGERANT & CHARGE (AT 7.5 M) (G(OZ))

  • g(oz)
    850(30)
