Discontinued
S186SC
Titan Jetcool
  • Cools even at 58°C
  • Corrosion Resistance
  • Faster Cooling
  • Multi Directional Cooling

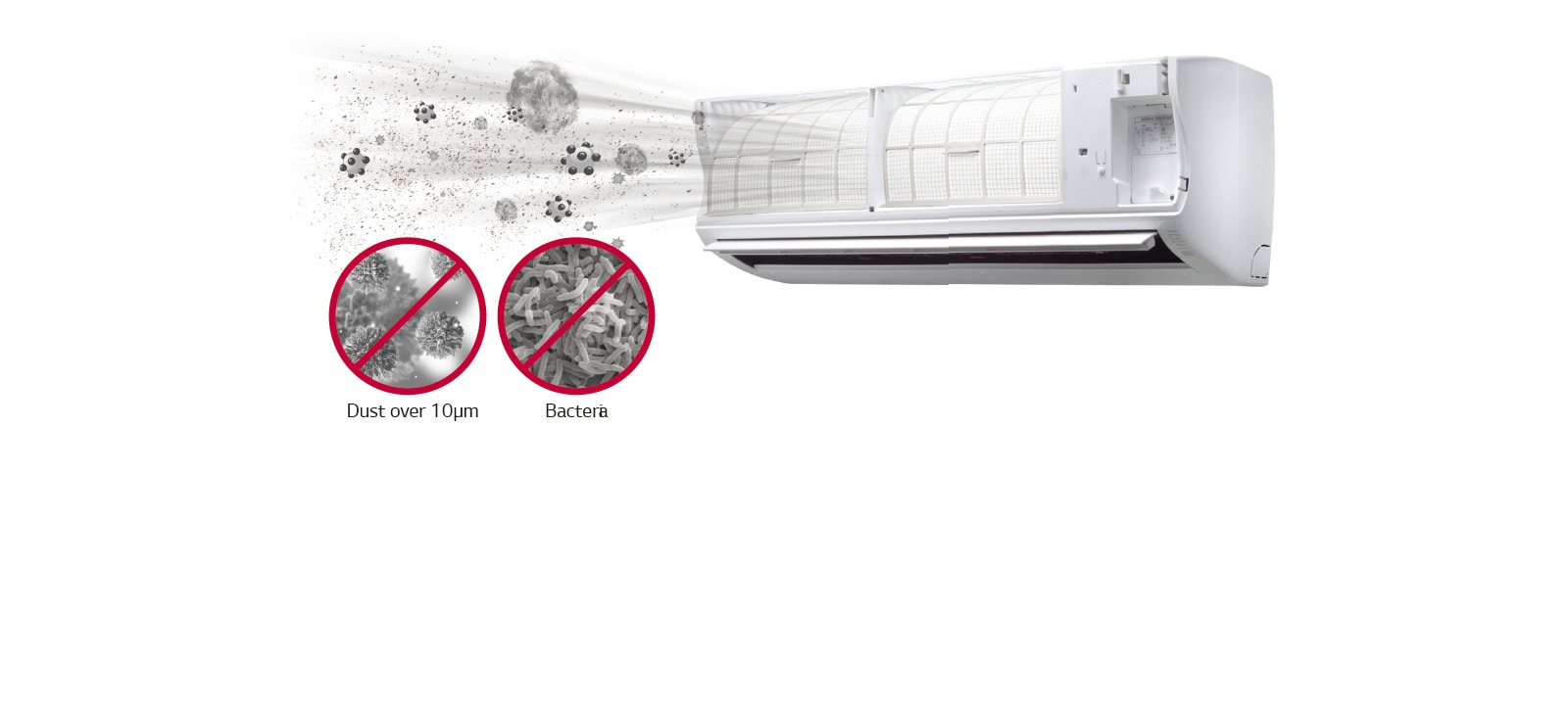

  • Dual Protection Filter

component-OBScountrySelectDesc

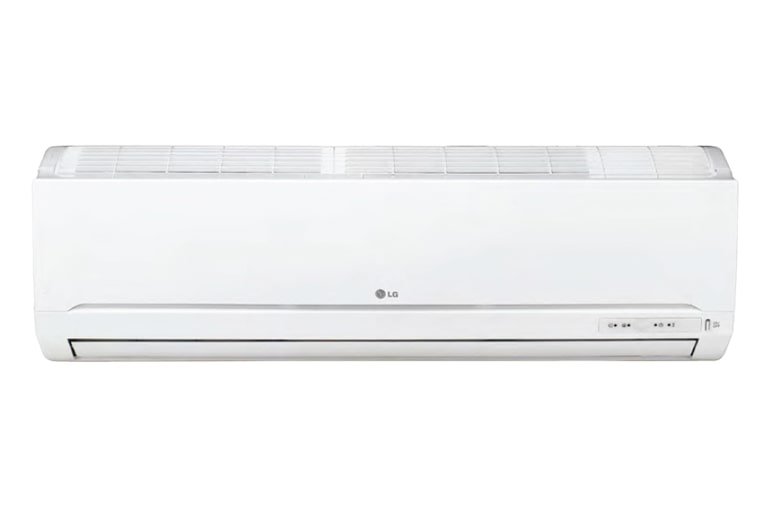

Titan Jetcool

COOLING (MIN/RATED/MAX)

  • T1(kW)
    5.0
    T1(Btu/h.)
    17,500
  • T3(kW)
    4.5
    T3(Btu/h.)
    15,200

POWER INPUT (COOLING)

  • T1(W)
    1,980
    T3(W)
    2,325

RUNNING CURRENT (COOLING)

  • T1(A)
    8.7
    T3(A)
    10.4

EER

  • T1(W/W)
    2.6
    T1(Btu/h.W)
    8.7
  • T3 W/W
    1.9
    T3 Btu/h.W
    6.52

GENERAL SPECIFICATIONS

  • Power Supply (ø / V / Hz)
    1 / 220-240 / 50
    Air Flow Rate (Indoor,Max) m³/min(CFM)
    12.8(452)
  • Air Flow Rate (Outdoor,Max) m³/min(CFM)
    32.0(1,130)
    Noise Level © (Indoor,H/M/L/LL) dB(A)±3
    40 / 37 / 34 / -
  • Noise Level © (Outdoor,Max) dB(A)±3
    54
    Refrigerant & Charge g(oz)
    R22, 850(30.0)
  • Additional Refrigerant charge g/m
    20
    Max. Piping Length m(ft)
    20(65.6)
  • Max. Elevation Difference m(ft)
    15(49.2)
    Circuit Breaker A
    20

HEAT EXCHANGER

  • Condenser(Material, Tube/Fin)
    MF

NET WEIGHT

  • Indoor (kg(lbs))
    12(26.7)
    Outdoor (kg(lbs))
    39(86.0)

OPERATION RANGE (MIN~GUARANTEED~MAX)

  • Cooling(Outdoor) °C
    21~54~58

PIPING CONNECTIONS

  • Liquid Side (mm(in))
    6.35(1/4)
    Gas Side (mm(in))
    12.70(1/2)

DIMENSIONS

  • Indoor(W*H*D)(mm)
    1,090*300*180
    Indoor(W*H*D)(inch)
    42.9*11.8*7.1
  • Outdoor(W*H*D)(mm)
    810*568*270
    Outdoor(W*H*D)(inch)
    31.9*22.3*10.6

FILTER

  • Dual Protection Filter(Washable/Anti-fungus)
    Yes
