Discontinued
S186TC2
Cooling only
  • Corrosion Resistance
  • Tropical Compressor
  • Plasmaster Auto Cleaning

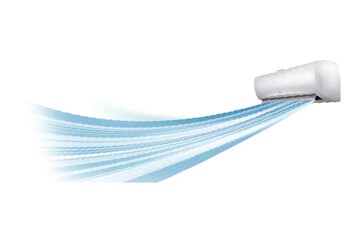

  • 10M windblast

component-OBScountrySelectDesc

Cooling only

DIMENSION

  • Indoor (W*H*D)(mm)
    1,030*325*250
    Indoor (W*H*D)(inch)
    40.6*12.8*9.8
  • Outdoor (W*H*D)(mm)
    870*800*320
    Outdoor (W*H*D)(inch)
    34.3*31.5*12.6

FILTER

  • 3M Multi Protection Filter
    Yes
    Prefilter(washable/anti-fungus)
    Yes
  • Plasma Filter
    Yes

HIGHLIGHTS

  • Cooling (Min / Rated / Max) T1
    5.04 KW , 17,200 Btu/h
    Power Input (Cooling) T1-W
    1560
  • Power Supply
    1 / 220-240 / 50 - Ø / V / Hz
    Running Current (Cooling) T1-A
    7.1

NET WEIGHT (AFTER HIGHLIGHTS)

  • Indoor (kg(lbs))
    17(37.5)
    Outdoor (kg(lbs))
    60 (132.3)

OPERATION RANGE

  • Cooling (outdoor) °C(°F)
    21~54(69.8~129.2)

OTHER FUNCTIONS

  • Additional Refrigerant charge
    20 g/m
    Circuit Breaker
    20 A
  • Max. Elevation Difference
    15 (49.2) m(ft)
    Max. Piping Length
    20 (65.6) m(ft)
  • Moisture Removal
    1.7 l/h
    Refrigerant & Charge
    R22, 1,000 (35.3) g(oz)

PERFORMANCE

  • Air Flow Rate (Indoor, Max)
    15.0 (530) m3/min(CFM)
    Air Flow Rate (Outdoor, Max)
    48.0 (1,695) m3/min(CFM)
  • EER
    3.2 T1 W/W , 11.0 T1 Btu/h.w
    Noise Level © (Indoor,H / M / L / LL)
    42 / 39 / 34 / dB(A)±3
  • Noise Level © (Outdoor, Max)
    54 dB(A)±3

PIPING CONNECTIONS (AFTER PERFORMANCE)

  • Liquid Side (mm(in))
    6.35 (1/4)
    Gas Side (mm(in))
    12.70 (1/2)
