S18TUC

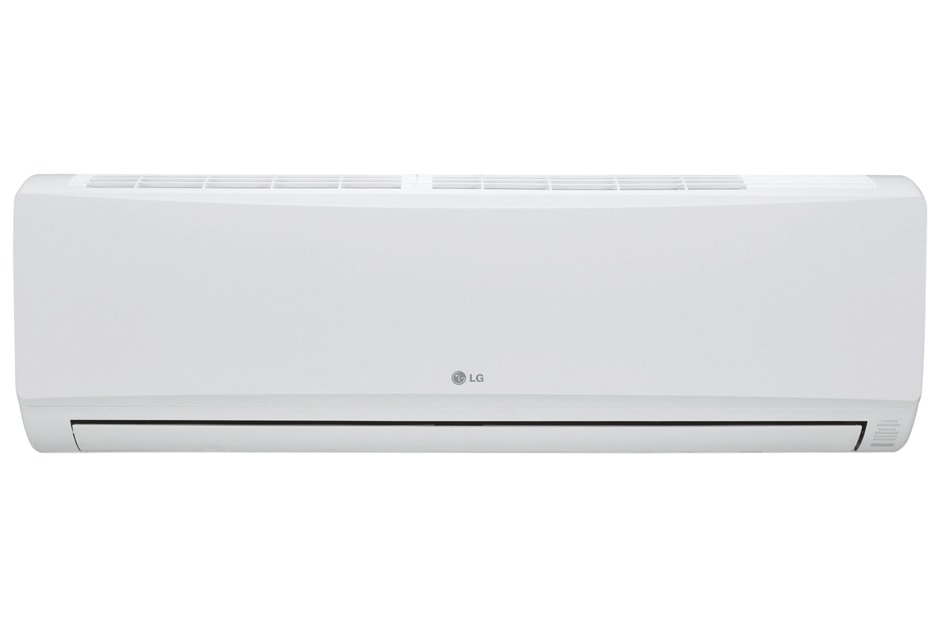

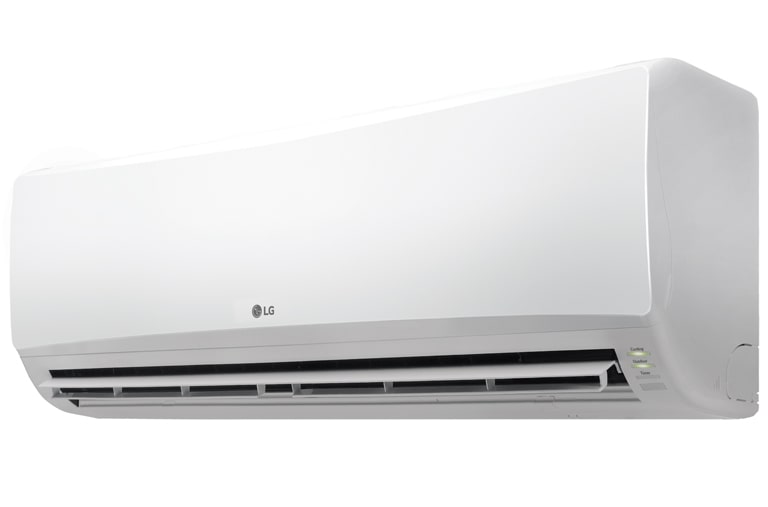

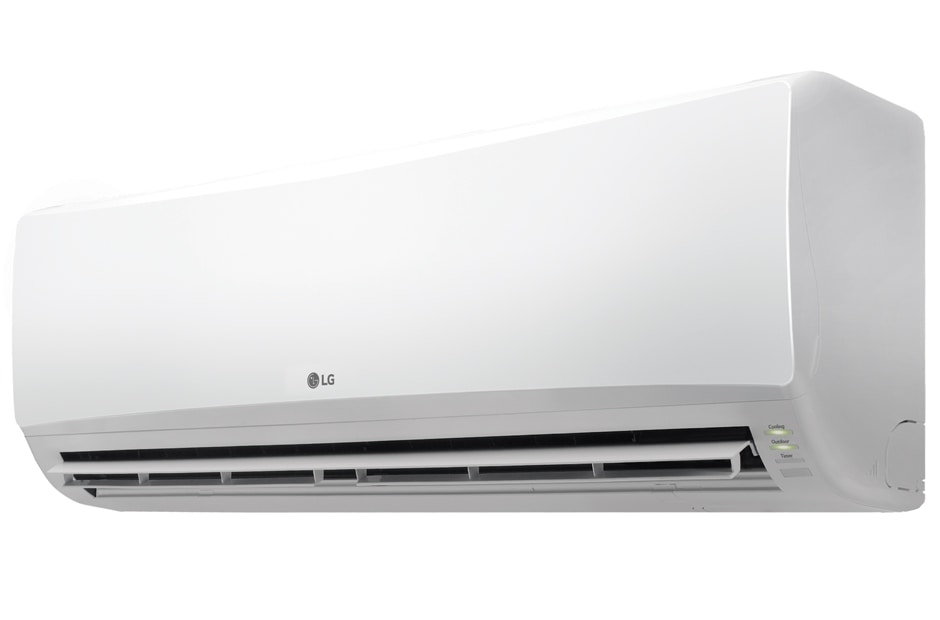

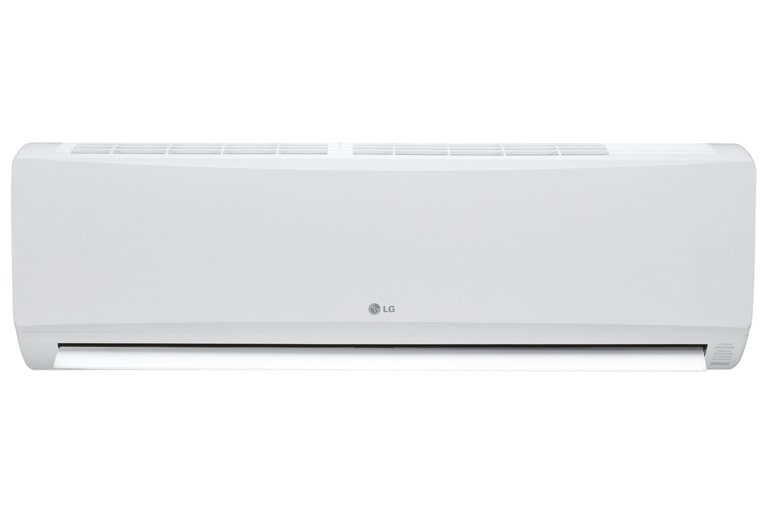

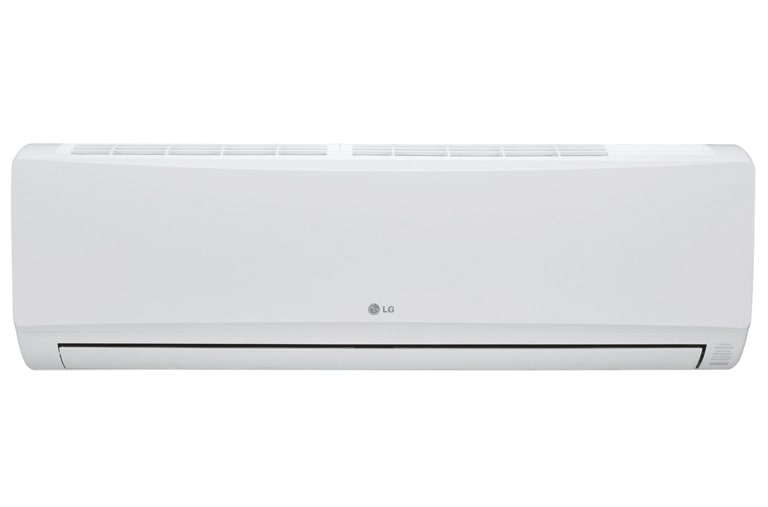

Titan AC
  • Tropical Compressor 60°C

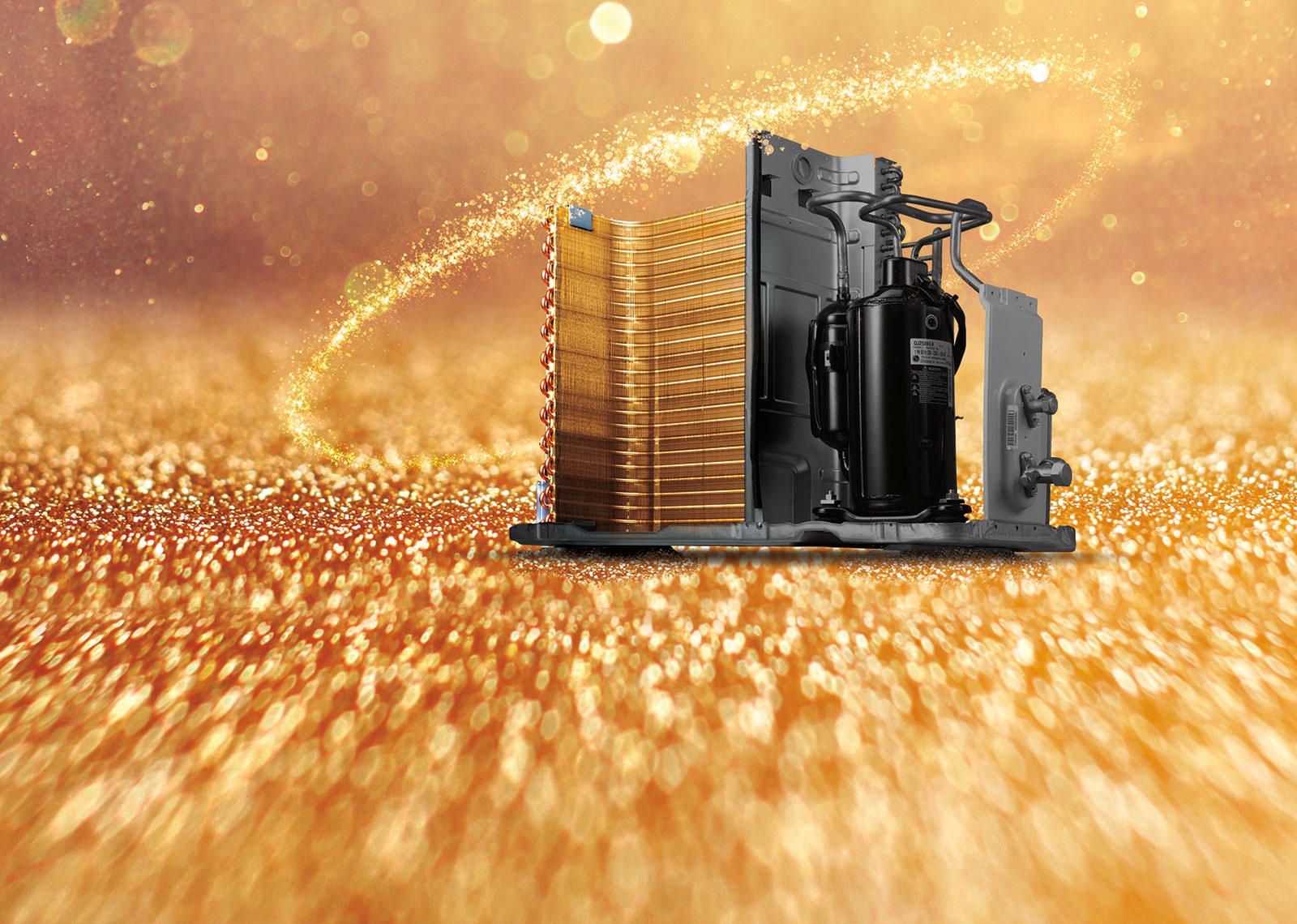

  • Gold Fin™ Condenser
  • Jet Cool

component-OBScountrySelectDesc

Titan AC

GENERAL SPECIFICATIONS

  • Power Supply (ø / V / Hz)
    1/220~240/50
    Compressor
    Rotary
  • Air Flow Rate (Indoor,Max) m³/min(CFM)
    14.8(523)
    Air Flow Rate (Outdoor,Max) m³/min(CFM)
    50
  • Noise Level © (Indoor,H/M/L/LL) dB(A)±3
    42 / 39 / 36 / -
    Noise Level © (Outdoor,Max) dB(A)±3
    56
  • Refrigerant & Charge g(oz)
    R22, 1300(45.9)
    Additional Refrigerant charge g/m
    20
  • Max. Piping Length m(ft)
    20(65.6)
    Max. Elevation Difference m(ft)
    15(49.2)
  • Circuit Breaker A
    30

COOLING (MIN/RATED/MAX)

  • T1 kW
    5.4
    T1 Btu/h.
    18,400
  • T3 kW
    5
    T3 Btu/h.
    16,200

POWER INPUT (COOLING)

  • T1 W
    1,919
    T3 W
    2,218

RUNNING CURRENT (COOLING)

  • T1 A
    8.6
    T3 A
    10

EER

  • T1 W/W
    2.8
    T1 Btu/h.W
    9.6
  • T3 W/W
    2.1
    T3 Btu/h.W
    7.3

HEAT EXCHANGER

  • Evaporator
    Cu / Al
    Condenser Material, Tube/Fin
    Cu / Al
  • Fin type
    Gold Fin™

NET WEIGHT

  • Indoor (kg(lbs))
    13.5(30.9)
    Outdoor (kg(lbs))
    49.2(108.5)

OPERATION RANGE (MIN~GUARANTEED~MAX)

  • Cooling(Outdoor)
    21~54~60 °C

PIPING CONNECTIONS

  • Liquid Side (mm(in))
    6.35(1/4)
    Gas Side (mm(in))
    12.70(1/2)

DIMENSIONS

  • Indoor(W*H*D)(mm)
    1030*325*250
    Indoor(W*H*D)(inch)
    40.6*12.8*9.8
  • Outdoor(W*H*D)(mm)
    870*660*360
    Outdoor(W*H*D)(inch)
    34.3*26.0*14.2
