S246NC
cooling only
  • Corrosion Resistance
  • Jet Cool
  • Tropical Compressor

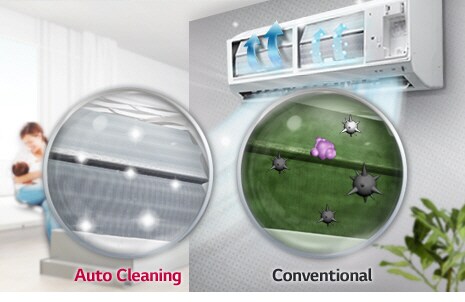

  • Plasmaster Auto Cleaning

component-OBScountrySelectDesc

cooling only

DIMENSION

  • Indoor (W*H*D)(mm)
    1085*300*205
    Indoor (W*H*D)(inch)
    42.7*11.8*8.1
  • Outdoor (W*H*D)(mm)
    840*577*276
    Outdoor (W*H*D)(inch)
    33.0*22.7*10.9

FILTER

  • Prefilter(washable/anti-fungus)
    Yes

HIGHLIGHTS

  • Cooling (Min / Rated / Max) T1
    7.00 KW , 23,884 Btu/h
    Heating (Min / Rated / Max) T3
    5.9 KW , 20,000 Btu/h
  • Power Input (Cooling) T1-W
    2500
    Power Input (Cooling) T3-W
    3070
  • Power Supply
    1 / 220-240 / 50 - Ø / V / Hz
    Running Current (Cooling) T1-A
    12
  • Running Current (Cooling) T3-A
    14

NET WEIGHT

  • Indoor (kg(lbs))
    15 (33.1)
    Outdoor (kg(lbs))
    51 (112.4)

OPERATION RANGE

  • Cooling (outdoor) °C(°F)
    21~54(69.8~129.2)

OTHER FUNCTIONS

  • Additional Refrigerant charge
    30 g/m
    Circuit Breaker
    20 A
  • Max. Elevation Difference
    15 (49.2) m(ft)
    Max. Piping Length
    20 (65.6) m(ft)
  • Moisture Removal
    3.0 l/h
    Refrigerant & Charge
    R22,900 g(oz)

PERFORMANCE

  • Air Flow Rate (Indoor, Max)
    28.0 (989) m3/min(CFM)
    Air Flow Rate (Outdoor, Max)
    45 m3/min(CFM)
  • EER
    2.8T1-W/W , 9.6 T1-Btu/h.W , 1.9 T3-W/W , 6.5 T3-Btu/h.W
    Noise Level © (Indoor,H / M / L / LL)
    47 dB(A)±3
  • Noise Level © (Outdoor, Max)
    57 dB(A)±3

PIPING CONNECTIONS

  • Liquid Side (mm(in))
    9.52 (3/8)
    Gas Side (mm(in))
    15.88(5/8)
