ADD TO WISHLIST

Discontinued

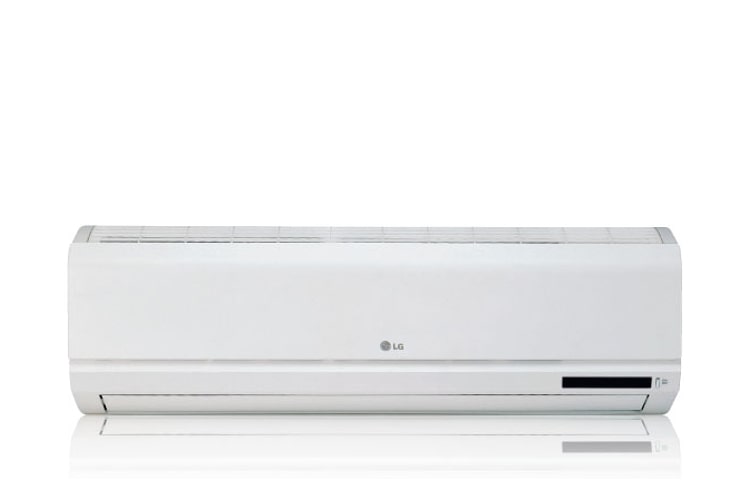

S246NH
Cooling & Heating
  • Jet Cool
  • Tropical Compressor
  • Gold Fin
  • Auto Cleaning

component-OBScountrySelectDesc

Cooling & Heating

AIR CIRCULATION

  • Indoor, Max
    18
    Outdoor, Max
    45

COMPRESSOR

  • Compressor
    Rotary

CIRCUIT BREAKER

  • Circuit Breaker(A)
    20

CONNECTING CABLE

  • AWG#:P*㎟
    3*2.5+2*0.75

CONNECTING TUBE (Ø. SOCKET FLARE)

  • Gas Side, mm(in)
    15.88(5/8)
    Liquid Side, mm(in)
    9.52(3/8)
  • Length,std, m(in)
    5

COOLING CAPACITY

  • Btu/hr
    24,000
    kcal/h
    6,048
  • W
    7,032

DIMENSION

  • Indoor (W*H*D)(mm)
    1085*300*191
    Outdoor (W*H*D)(mm)
    840*577*276

E.E.R.

  • Btu / h.W
    9
    kcal / hW
    2.24
  • W / W
    2.61

FUNCTIONS

  • CHAOS Wind (Auto Wind)
    Yes
    Hot Start
    Yes
  • Jet Cool
    Yes
    Remote Controller Type
    Wireless LCD
  • Restart Delay (minute)
    3
    Steps, Fan/Cool
    3/4
  • Temperature Control
    Thermistor
    Timer
    7Hr,On/Off

HEATING CAPACITY

  • Btu/h.
    24,000
    kcal/h
    6,048
  • W
    7,032

MOISTURE REMOVAL

  • ℓ/h.(pts/h.)
    3

NET WEIGHT

  • Indoor (kg(lbs))
    15
    Outdoor (kg(lbs))
    57

NOISE LEVEL (SOUND PRESSURE, 1M)

  • 0utdoor,Max. dB(A)±3
    57
    Indoor,High. dB(A)±3
    47

OUTDOOR H/E

  • Outdoor H/E
    GOLD FIN

POWER INPUT

  • Cooling(W)
    2,700
    Heating(W)
    2,510

POWER SUPPLY

  • Ø / V / Hz
    1,220,50

POWER CORD

  • AWG#:P*㎟
    3*2.5

RUNNING CURRENT

  • Cooling(A)
    12.80
    Heating(A)
    11.90

REFRIGERANT(R-22)CHARGE

  • g(oz)
    1,350
