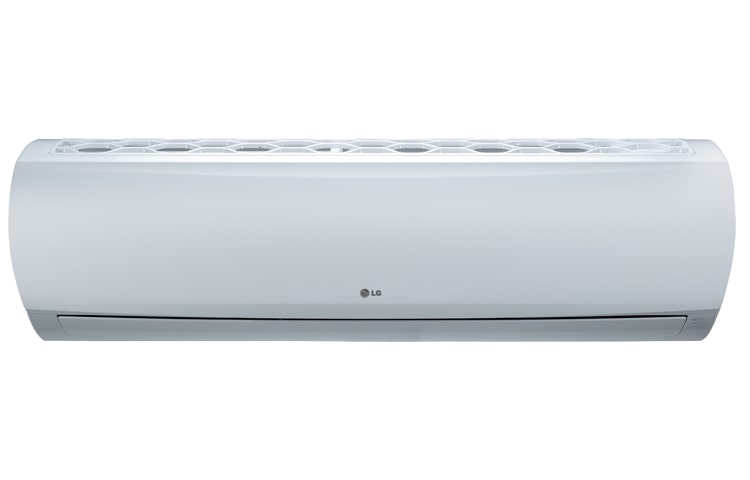

S306EC
cooling only
  • Corrosion Resistance
  • Optimized Airflow
  • Tropical Compressor

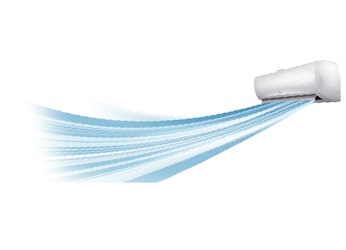

  • 20M winblast

component-OBScountrySelectDesc

cooling only

DIMENSION

  • Indoor (W*H*D)(mm)
    1190*346*265
    Indoor (W*H*D)(inch)
    46.9*13.6*10.4
  • Outdoor (W*H*D)(mm)
    870*800*320
    Outdoor (W*H*D)(inch)
    34.3*31.5*12.6

FILTER

  • Prefilter(washable/anti-fungus)
    Yes

HIGHLIGHTS

  • Cooling (Min / Rated / Max) T1
    7.91 KW , 27000 Btu/h
    Heating (Min / Rated / Max) T3
    7.03 KW , 24,000 Btu/h
  • Power Input (Cooling) T1-W
    3200
    Power Input (Cooling) T3-W
    3780
  • Power Supply
    1 / 220-240 / 50 - Ø / V / Hz
    Running Current (Cooling) T1-A
    14.7
  • Running Current (Cooling) T3-A
    23

NET WEIGHT (AFTER HIGHLIGHTS)

  • Indoor (kg(lbs))
    18 (39.7)
    Outdoor (kg(lbs))
    60 (132.3)

OTHER FUNCTIONS

  • Additional Refrigerant charge
    30 g/m
    Circuit Breaker
    30 A
  • Max. Elevation Difference
    15 (49.2) m(ft)
    Max. Piping Length
    20 (65.6) m(ft)
  • Moisture Removal
    2.8 l/h
    Refrigerant & Charge
    R22, 1200 g(oz)

PERFORMANCE

  • Air Flow Rate (Indoor, Max)
    23.0 (812) m3/min(CFM)
    Air Flow Rate (Outdoor, Max)
    58.0 (2,048) m3/min(CFM)
  • EER
    2.5 T1-W/W , 8.4 T1-Btu/h.W , 1.9 T , 6.4 T3-Btu/h.W3-W/W ,
    Noise Level © (Indoor,H / M / L / LL)
    50 / 46 / 42 / dB(A)±3
  • Noise Level © (Outdoor, Max)
    62 dB(A)±3

PIPING CONNECTIONS (AFTER PERFORMANCE)

  • Liquid Side (mm(in))
    9.52 (3/8)
    Gas Side (mm(in))
    15.88(5/8)
