S306EC

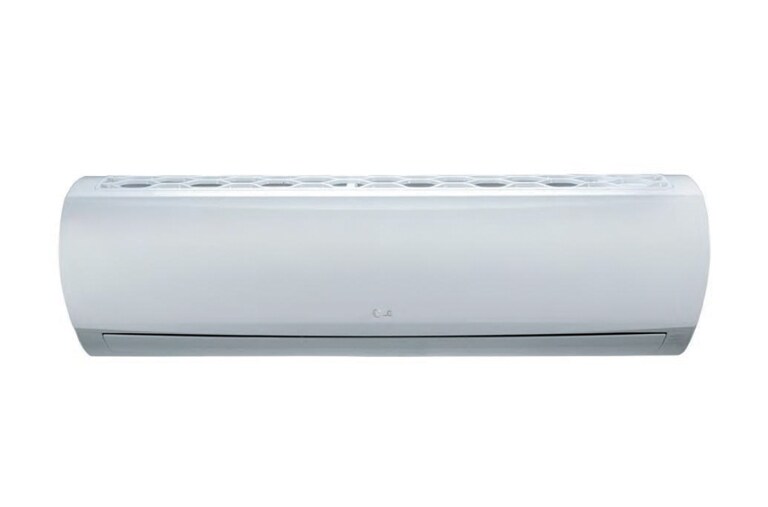

TITAN BIG II
  • Cools even at 58°C
  • Corrosion Resistance
  • Powerful Cooling up to 20m
  • Faster Cooling
  • Multi Directional Cooling

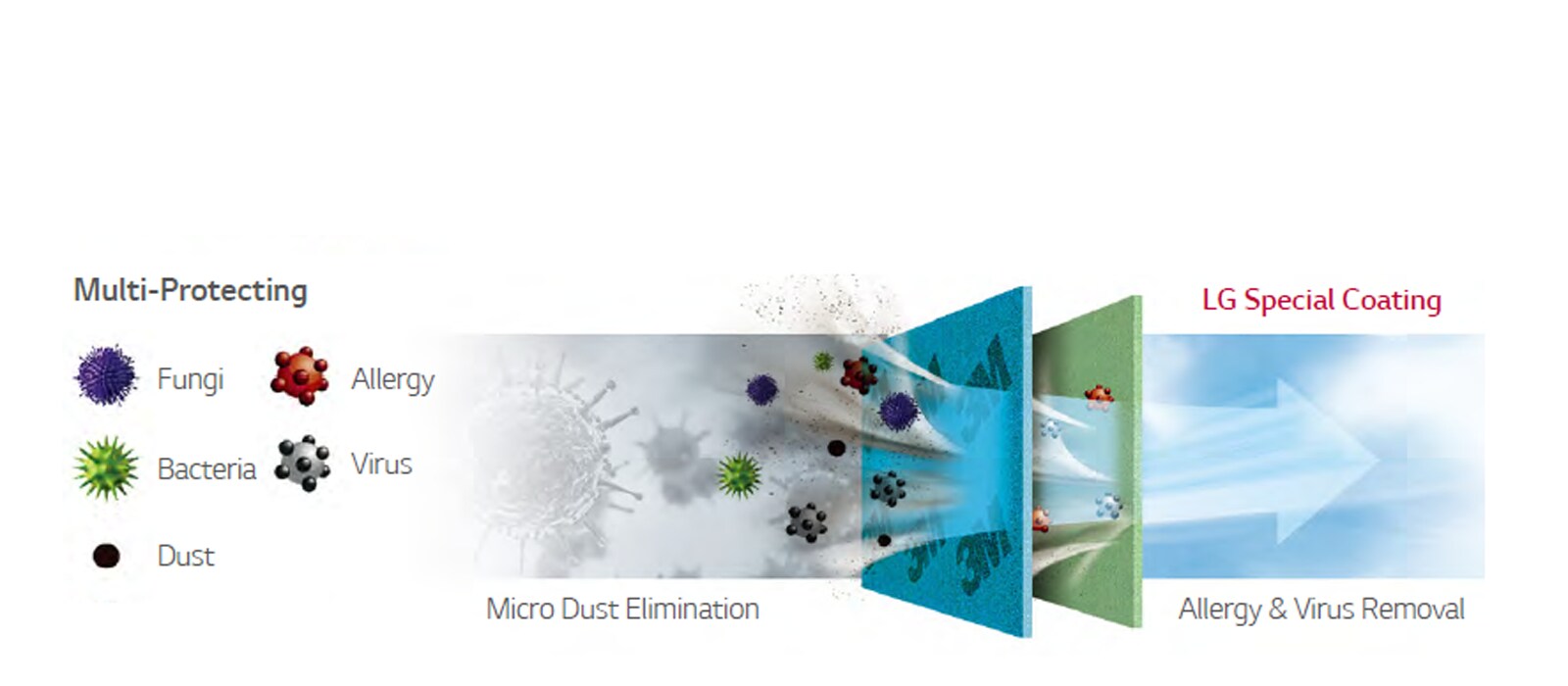

  • Dual Protection Filter

component-OBScountrySelectDesc

TITAN BIG II

COOLING (MIN/RATED/MAX)

  • T1 kW
    8.8
    T1 Btu/h.
    30,000
  • T3 kW
    7.5
    T3 Btu/h.
    25,500

POWER INPUT (COOLING)

  • T1(W)
    2,920
    T3(W)
    3,520

RUNNING CURRENT (COOLING)

  • T1(A)
    13.0
    T3 A
    15.7

EER

  • T1(W/W)
    3.0
    T1(Btu/h.W)
    10.3
  • T3 W/W
    2.1
    T3 Btu/h.W
    7.24

GENERAL SPECIFICATIONS

  • Power Supply (ø / V / Hz)
    1 / 220-240 / 50
    Compressor
    Scroll
  • Air Flow Rate (Indoor,Max) m³/min(CFM)
    23.0(812)
    Air Flow Rate (Outdoor,Max) m³/min(CFM)
    60.0(2,119)
  • Noise Level © (Indoor,H/M/L/LL) dB(A)±3
    48 / 44 / 40 / -
    Noise Level © (Outdoor,Max) dB(A)±3
    58
  • Refrigerant & Charge g(oz)
    R22, 950(33.5)
    Additional Refrigerant charge g/m
    40
  • Max. Piping Length m(ft)
    20(65.6)
    Max. Elevation Difference m(ft)
    10(32.8)
  • Circuit Breaker A
    30

HEAT EXCHANGER

  • Condenser(Material, Tube/Fin)
    MF

NET WEIGHT

  • Indoor (kg(lbs))
    18(39.7)
    Outdoor (kg(lbs))
    60(132.3)

OPERATION RANGE (MIN~GUARANTEED~MAX)

  • Cooling(Outdoor) °C
    21~54~60 °C

PIPING CONNECTIONS

  • Liquid Side (mm(in))
    9.52(3/8)
    Gas Side (mm(in))
    15.88(5/8)

DIMENSIONS

  • Indoor(W*H*D)(mm)
    1190*346*265
    Indoor(W*H*D)(inch)
    46.9*13.6*10.4
  • Outdoor(W*H*D)(mm)
    870*800*320
    Outdoor(W*H*D)(inch)
    34.3*31.5*12.6

FILTER

  • Deodorization Triple Filter
    Yes
    Dual Protection Filter(Washable/Anti-fungus)
    Yes
