S306SP

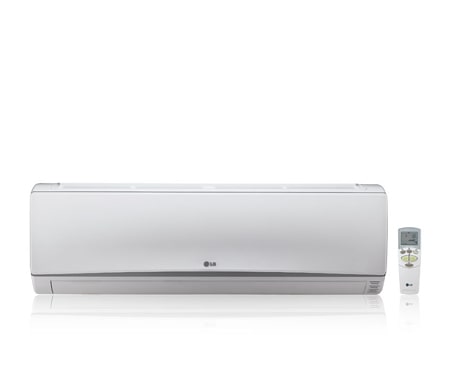

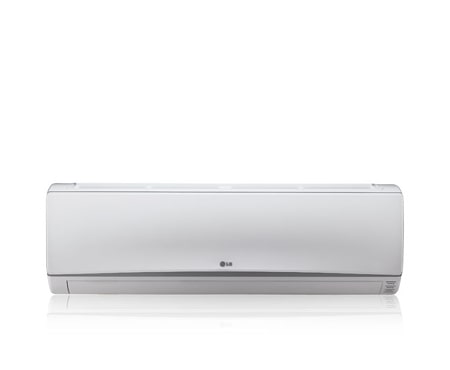

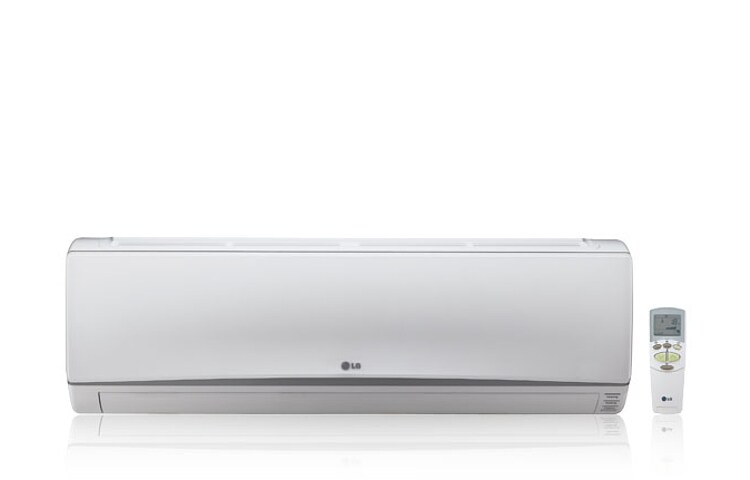

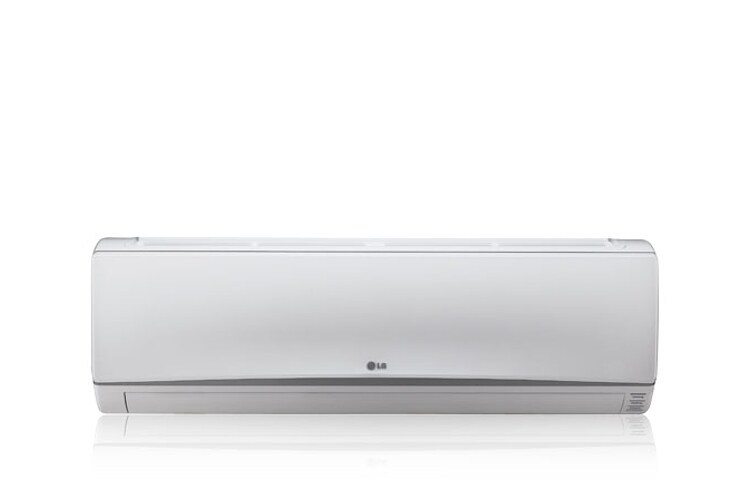

Titan Deluxe boasts an unrivaled package of the most complete air conditioning solution with power cooling and durability
  • Jet Cool

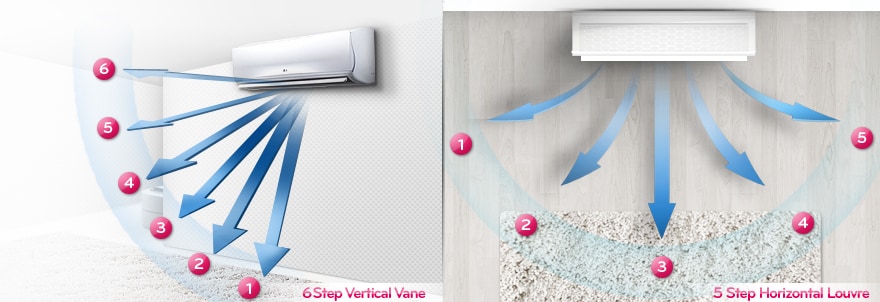

  • Optimized Airflow
  • Tropical Compressor
  • Gold Fin
Titan Deluxe boasts an unrivaled package of the most complete air conditioning solution with power cooling and durability

AIR FLOW RATE

  • Indoor, Max (m3 / min(CFM))
    23(812)
    Outdor, Max (m3 / min(CFM))
    42(1,483)

MOISTURE REMOVAL

  • l/h.
    3.8

ADDITIONAL REFRIGERANT CHARGE

  • g/m (oz/ft)
    30(0.32)

COMPRESSOR

  • Type
    Twin Rotary(Tropical)
    Model
    QPT525PBA
  • Motor Type
    PSC
    Oil Type
    NM56 or 4GSI
  • Oil Charge (cc)
    1200
    O.L.P. name
    Internal

FAN(INDOOR)

  • Type
    Cross Flow Fan
    Motor Output (W)
    52.5

FAN(OUTDOOR)

  • Type
    Axial Fan
    Motor Type
    AC INDUCTION
  • Motor Output (W)
    72

CIRCUIT BREAKER*

  • A
    30

POWER SUPPLY CABLE

  • No.*mm²
    3*2.5(Including Earth)

POWER AND TRANSMISSION CABLE NO. *MM²

  • No.*mm²
    3*0.75(Including Earth)+2*0.75

PIPING CONNECTIONS

  • Liquid Side (mm(in))
    9.52(3/8)
    Gas Side (mm(in))
    15.88(5/8)

DIMENSIONS

  • Indoor(W*H*D)(mm)
    1,209*346*216
    Indoor(W*H*D)(inch)
    47.6*13.6*8.5
  • Outdoor(W*H*D)(mm)
    870*808*320
    Outdoor(W*H*D)(inch)
    34.3*31.8*12.6

NET WEIGHT

  • Indoor (kg(lbs))
    17(37.5)
    Outdoor (kg(lbs))
    62(136.7)

OPERATION RANGE

  • Cooling (outdoor) °C(°F)
    21~54(69.8~129.2)

MAX. ELEVATION DIFFERENCE

  • m(ft)
    15(49.2)

TOOL CODE(CHASSIS)

  • Indoor + Outdoor
    SD + UE1

FUNCTIONS

  • Temperature Control
    Thermistor
    Auto Clean
    Yes
  • CHAOS Wind (Auto Wind)
    Yes
    Steps, Fan/Cool/Heat
    3 / 4 / -
  • Airflow Direction Control(Up & Down)
    Auto
    Airflow Direction Control(Left & Right)
    Auto

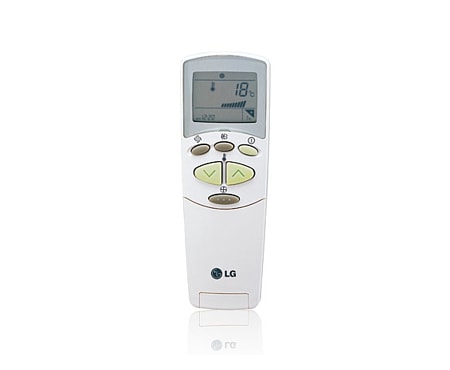

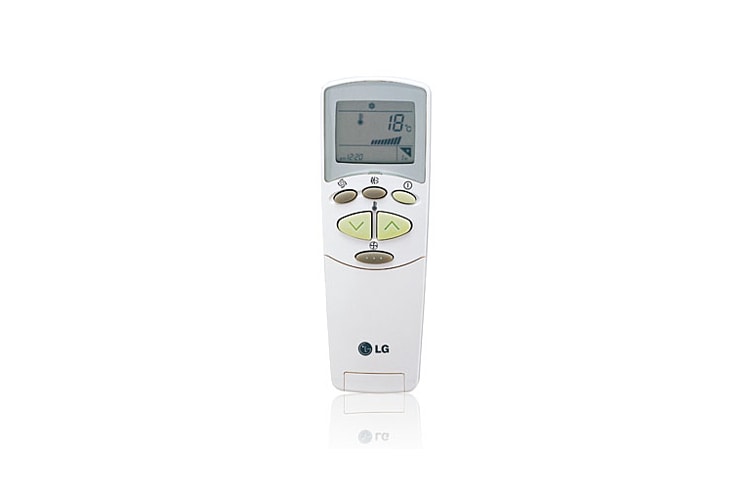

  • Remote Controller Type
    Wireless LCD
    Setting Temperature Range_Cooling
    18°C ~ 30°C
  • Temperature Increment
    1
    Auto Operation (Micom Control)
    Yes
  • Self Diagnosis
    Yes
    Timer
    24h, On/Off
  • Sleep Operation
    Yes
    Soft Dry Operation
    Yes
  • Restart Delay (minute)
    3
    Jet Cool
    Yes

E.E.R.

  • W / W
    2.60
    Btu / h.W
    8.89

RUNNING CURRENT

  • Cooling/Heating(W)
    14.0/-

POWER SUPPLY

  • Ø / V / Hz
    1 / 220~240 / 50

COOLING CAPACITY

  • kW
    8.20
    Btu/hr
    28,000

POWER FACTOR

  • %
    97.8

DRAIN HOSE

  • O.D / I.D(mm(in))
    21.5/16 (0.85/0.63)

MAX. PIPING LENGTH

  • m(ft)
    30(98.4)

FILTER

  • Plasma
    Yes
    Prefilter(washable/anti-fungus)
    Yes

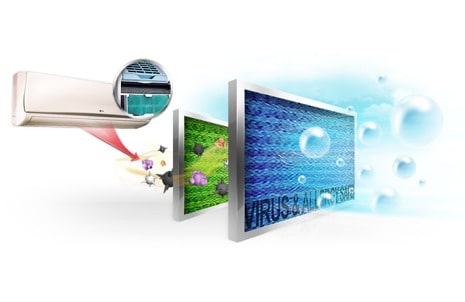

  • Virus + Allerge + Triple
    Yes

REFRIGERANT & CHARGE (AT 7.5 M) (G(OZ))

  • g(oz)
    2,000(70.55)

POWER INPUT

  • Cooling/Heating(W)
    3,150/-

SOUND LEVEL

  • Indoor, H/M/L. dB(A) ± 3
    46/43/39
    Outdoor, Max. dB(A) ± 3
    56
