Discontinued

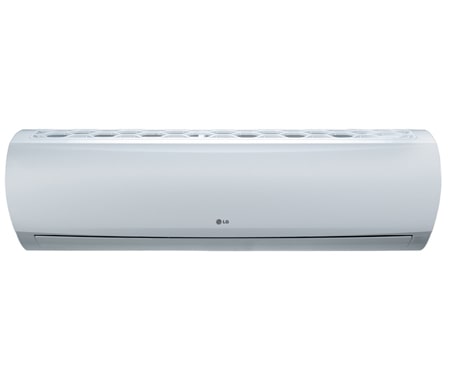

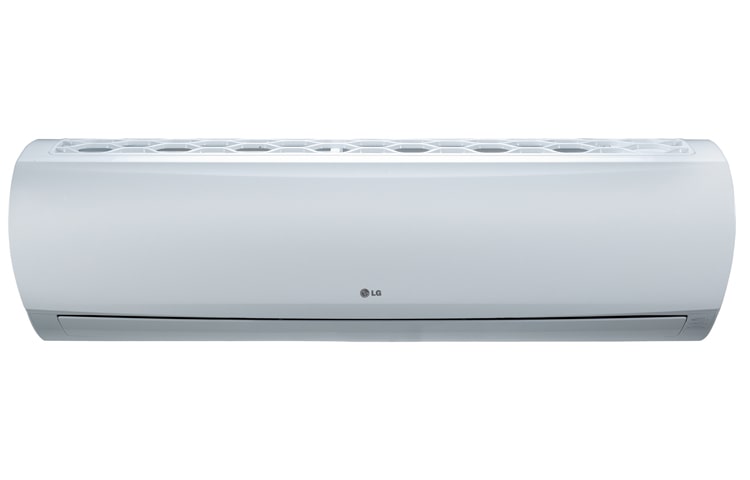

S366EC
cooling only
  • Corrosion Resistance
  • Optimized Airflow
  • Tropical Compressor
  • Plasmaster Auto Cleaning

component-OBScountrySelectDesc

cooling only

DIMENSION

  • Indoor (W*H*D)(mm)
    1190*346*265
    Indoor (W*H*D)(inch)
    46.9*13.6*10.4
  • Outdoor (W*H*D)(mm)
    870*800*320
    Outdoor (W*H*D)(inch)
    34.3*31.5*12.6

FILTER

  • Prefilter(washable/anti-fungus)
    Yes

HIGHLIGHTS

  • Cooling (Min / Rated / Max) T1
    9.14 KW , 31,200 Btu/h
    Heating (Min / Rated / Max) T3
    7.91KW , 27,000 Btu/h
  • Power Input (Cooling) T1-W
    3500
    Power Input (Cooling) T3-W
    4260
  • Power Supply
    1 / 220-240 / 50 - Ø / V / Hz
    Running Current (Cooling) T1-A
    16.3
  • Running Current (Cooling) T3-A
    19.9

NET WEIGHT

  • Indoor (kg(lbs))
    18 (39.7)
    Outdoor (kg(lbs))
    60 (132.3)

OPERATION RANGE

  • Cooling (outdoor) °C(°F)
    21~54(69.8~129.2)

OTHER FUNCTIONS

  • Additional Refrigerant charge
    30 g/m
    Circuit Breaker
    35 A
  • Max. Elevation Difference
    15 (49.2) m(ft)
    Max. Piping Length
    20 (65.6) m(ft)
  • Moisture Removal
    2.8 l/h
    Refrigerant & Charge
    R22, 1200 g(oz)

PERFORMANCE

  • Air Flow Rate (Indoor, Max)
    28.0 (989) m3/min(CFM)
    Air Flow Rate (Outdoor, Max)
    58.0 (2,048) m3/min(CFM)
  • EER
    2.6 T1 W/W , 8.9 T1 Btu/h.w , 1.9 T3 W/W , 6.4 Btu/h.W
    Noise Level © (Indoor,H / M / L / LL)
    53 / 48 / 44 / dB(A)±3
  • Noise Level © (Outdoor, Max)
    62 dB(A)±3

PIPING CONNECTIONS

  • Liquid Side (mm(in))
    9.52 (3/8)
    Gas Side (mm(in))
    15.88(5/8)
