S366EC

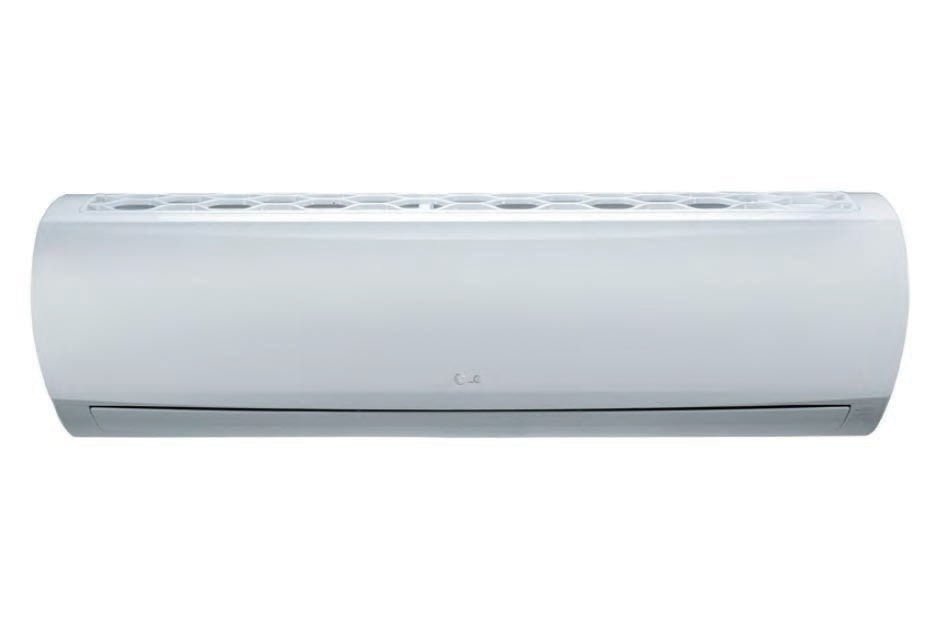

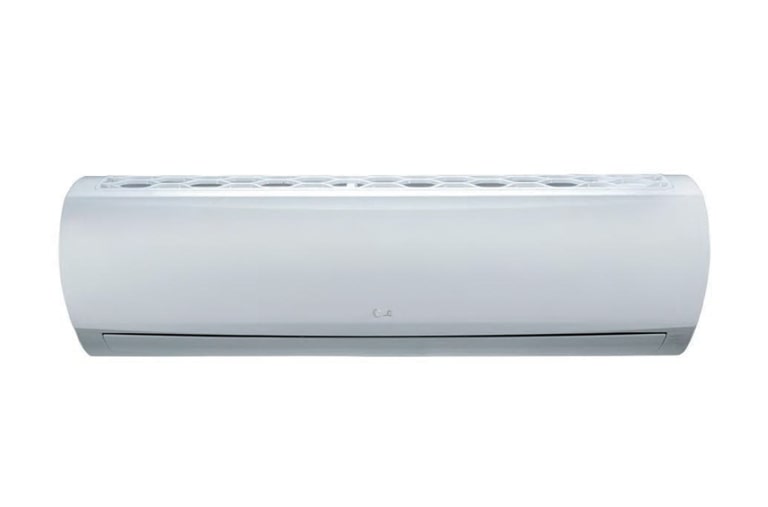

TITAN BIG II
  • Cools even at 60°C
  • Patented Anticorrosion Coating
  • Corrosion Resistance
  • Powerful Cooling up to 20m
  • Faster Cooling
  • Multi Directional Cooling

component-OBScountrySelectDesc

TITAN BIG II

GENERAL SPECIFICATIONS

  • Compressor
    Scroll
    Power Supply (ø / V / Hz)
    1 / 220-240 / 50
  • Air Flow Rate (Indoor,Max) m³/min(CFM)
    28.0(989)
    Air Flow Rate (Outdoor,Max) m³/min(CFM)
    70.0(2,472)
  • Noise Level © (Indoor,H/M/L/LL) dB(A)±3
    51 / 46 / 42 / -
    Noise Level © (Outdoor,Max) dB(A)±3
    60
  • Refrigerant & Charge g(oz)
    R22, 2,300(81.1)
    Additional Refrigerant charge g/m
    40
  • Max. Piping Length m(ft)
    30(98.4)
    Max. Elevation Difference m(ft)
    15(49.2)
  • Circuit Breaker A
    35

COOLING (MIN/RATED/MAX)

  • T1 kW
    10.0
    T1 Btu/h.
    34,000
  • T3 kW
    8.7
    T3 Btu/h.
    29,500

POWER INPUT (COOLING)

  • T1(W)
    3,300
    T3(W)
    4,040

RUNNING CURRENT (COOLING)

  • T1(A)
    15.5
    T3 A
    18.6

EER

  • T1(W/W)
    3.0
    T1(Btu/h.W)
    10.3
  • T3 W/W
    2.1
    T3 Btu/h.W
    7.30

HEAT EXCHANGER

  • Evaporator
    Cu / Al
    Condenser(Material, Tube/Fin)
    Cu / Al
  • Fin type
    Gold Fin™

NET WEIGHT

  • Indoor (kg(lbs))
    18(39.7)
    Outdoor (kg(lbs))
    71(153.4)

OPERATION RANGE (MIN~GUARANTEED~MAX)

  • Cooling(Outdoor) °C
    21~54~60 °C

CIRCUIT BREAKER

  • A
    35

PIPING CONNECTIONS

  • Liquid Side (mm(in))
    9.52(3/8)
    Gas Side (mm(in))
    15.88(5/8)

DIMENSIONS

  • Indoor(W*H*D)(mm)
    1190*346*265
    Indoor(W*H*D)(inch)
    46.9*13.6*10.4
  • Outdoor(W*H*D)(mm)
    950*832*330
    Outdoor(W*H*D)(inch)
    37.4*32.8*13.0

FILTER

  • Deodorization Triple Filter
    Yes
    Dual Protection Filter(Washable/Anti-fungus)
    Yes
