S366SQ

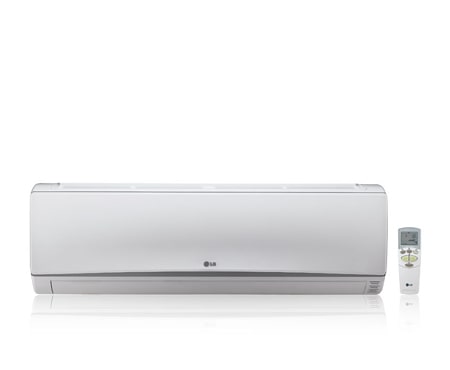

Titan Big boasts an unrivaled package of the most complete air conditioning solution with power (Heating & Cooling)
  • Jet Cool
  • Optimized Airflow
  • Tropical Compressor
  • Gold Fin

component-OBScountrySelectDesc

Titan Big boasts an unrivaled package of the most complete air conditioning solution with power (Heating & Cooling)

DIMENSION

  • Indoor (W*H*D)(mm)
    1,209*346*216
    Indoor (W*H*D)(inch)
    47.6*13.6*8.5
  • Outdoor (W*H*D)(mm)
    870*1060*320
    Outdoor (W*H*D)(inch)
    34.3*41.7*12.6

AIR FLOW RATE

  • Indoor, Max (m3 / min(CFM))
    25(883)
    Outdor, Max (m3 / min(CFM))
    58(2,048)

MOISTURE REMOVAL

  • l/h.
    4.2

ADDITIONAL REFRIGERANT CHARGE

  • g/m (oz/ft)
    40(0.44)

COMPRESSOR

  • Type
    SCROLL
    Model
    SQ042PBA
  • Motor Type
    PSC
    Oil Type
    SUNISO 4GSI
  • Oil Charge (cc)
    1200
    O.L.P. name
    Internal

FAN(INDOOR)

  • Type
    Cross Flow Fan
    Motor Output (W)
    76.1

FAN(OUTDOOR)

  • Type
    Axial Fan
    Motor Type
    AC INDUCTION
  • Motor Output (W)
    29.2

CIRCUIT BREAKER*

  • A
    40

POWER SUPPLY CABLE

  • No.*mm²
    3*5.5(Including Earth)

PIPING CONNECTIONS

  • Liquid Side (mm(in))
    9.52(3/8)
    Gas Side (mm(in))
    15.88(5/8)

NET WEIGHT

  • Indoor (kg(lbs))
    18(39.68)
    Outdoor (kg(lbs))
    80(176.37)

OPERATION RANGE

  • Cooling (outdoor) °C(°F)
    21~54(69.8~129.2)
    Heating (outdoor) °C(°F)
    1~24(33.8~75.2)

MAX. ELEVATION DIFFERENCE

  • m(ft)
    15(49.2)

TOOL CODE(CHASSIS)

  • Indoor + Outdoor
    SD+UE2

FUNCTIONS

  • Temperature Control
    Thermistor
    Auto Clean
    Yes
  • CHAOS Wind (Auto Wind)
    Yes
    Steps, Fan/Cool/Heat
    3/4/3
  • Airflow Direction Control(Up & Down)
    Auto
    Airflow Direction Control(Left & Right)
    Auto
  • Remote Controller Type
    Wireless LCD
    Setting Temperature Range_Cooling
    18°C ~ 30°C
  • Setting Temperature Range_Heating
    16°C ~ 30°C
    Temperature Increment
    1
  • Auto Changeover (Micom Control)
    Yes
    Self Diagnosis
    Yes
  • Timer
    24h, On/Off
    Sleep Operation
    Yes
  • Soft Dry Operation
    Yes
    Restart Delay (minute)
    3
  • Hot Start
    Yes
    Jet Cool
    Yes
  • Low Ambient Operation
    Yes

POWER INPUT

  • Cooling/Heating(W)
    3,830/3,900

E.E.R.

  • W / W
    2.60
    Btu / h.W
    8.88

C.O.P.

  • W / W
    2.55

RUNNING CURRENT

  • Cooling/Heating(W)
    19/18

POWER SUPPLY

  • Ø / V / Hz
    1 / 220~240 / 50

COOLING CAPACITY

  • kW
    9.96
    Btu/hr
    34,000

HEATING CAPACITY

  • kW
    9.96
    Btu/hr
    34,000

POWER FACTOR

  • %
    96.1

SOUND LEVEL

  • Indoor, H/M/L(dB(A) ± 3)
    51/46/42
    Outdoor, Max(dB(A) ± 3)
    60

POWER AND TRANSMISSION CABLE NO.*

  • No. *mm²
    3*0.75(Including Earth)+3*0.75

DRAIN HOSE

  • O.D / I.D(mm(in))
    21.5/16 (0.85/0.63)

MAX. PIPING LENGTH

  • m(ft)
    30(98.4)

FILTER

  • Plasma
    Yes
    Prefilter(washable/anti-fungus)
    Yes
  • Virus + Allerge + Triple
    Yes

REFRIGERANT & CHARGE (AT 7.5 M) (G(OZ))

  • g(oz)
    2,660(93.83)
