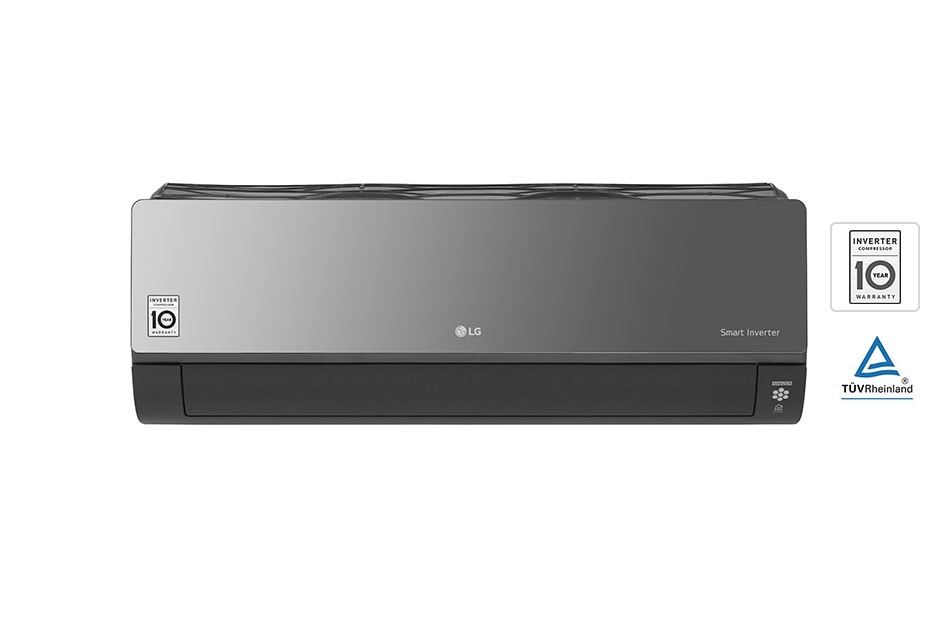

US-W096JRZ1
US-W096JRZ1
  • Inverter Compressor
  • Energy Saving
  • Faster Cooling

component-OBScountrySelectDesc

US-W096JRZ1

Dimensions

Dimensions Dimensions

CAPACITY

  • Cooling - Min ~ Rated ~ Max(kW)
    1.03 / 2.64 / 3.81
    Cooling - Min ~ Rated ~ Max(Btu/h)
    3,500 / 9,000 / 13,000
  • Heating - Min ~ Rated ~ Max(kW)
    1.03 / 2.84 / 3.99
    Heating - Min ~ Rated ~ Max(Btu/h)
    3,500 / 9,690 / 13,600

POWER INPUT

  • Cooling - Min ~ Rated ~ Max(W)
    158 / 776 / 1,280
    Cooling (T3) - Min ~ Rated ~ Max(W)
    - / 0 / 0
  • Heating - Min ~ Rated ~ Max(W)
    158 / 747 /1,300

RUNNING CURRENT

  • Cooling - Min ~ Rated ~ Max(A)
    0.90 / 3.70 / 6.50
    Cooling (T3) - Min ~ Rated ~ Max(A)
    - / 0.00 / 0.00
  • Heating - Min ~ Rated ~ Max(A)
    0.90 / 3.50 / 7.50

EER

  • EER(W/W)
    3.40
    EER((Btu/h)/W)
    11.60

COP

  • COP(W/W)
    3.80
    COP((Btu/h)/W)
    12.97

POWER SUPPLY

  • Ø / V / Hz
    1, 220~240, 50

AVAILABLE VOLTAGE RANGE

  • Available Voltage Range(V)
    187 ~ 276

POWER FACTOR

  • Cooling / Heating(%)
    93.0 / 93.0

MOISTURE REMOVAL

  • Moisture Removal(l/h)
    0.6

INDOOR

  • Air Flow Rate - Cooling, Max / H / M / L(㎥/min)
    9.8 / 8.7 / 7.5 / 4.2
    Air Flow Rate - Heating, Max / H / M / L(㎥/min)
    10.5 / 9 / 7 / 5.5
  • Sound Pressure Level - Cooling, Max / H / M / L / SL(dB(A))
    41 / 35 / 27 / 19
    Sound Pressure Level - Heating, Max / H / M / L(dB(A))
    41 / 35 / 30
  • Dimensions (W × H × D) - Net(mm)
    837 × 308 × 192
    Dimensions (W × H × D) - Shipping(mm)
    914 × 388 × 261
  • Weight - Net(kg)
    9.7
    Weight - Shipping(kg)
    12.0
  • Exterior Color Code
    Munsell 7.5PB 0.2/20 (RAL 9005)

OUTDOOR

  • Air Flow Rate - Max(㎥/min)
    27.0
    Sound Pressure Level - Cooling, Rated(dB(A))
    50
  • Sound Pressure Level - Heating, Rated(dB(A))
    52
    Dimensions (W × H × D) - Net(mm)
    717 × 483 × 230
  • Dimensions (W × H × D) - Shipping(mm)
    842 × 531 × 322
    Weight - Net(kg)
    25.8
  • Weight - Shipping(kg)
    30.1
    Max. Fuse Size(A)
    15
  • Exterior Color Code
    Munsell 9.54Y 8.34/1.31 (RAL 9001)
    Operation Range - Cooling(℃ DB)
    18 ~ 48
  • Operation Range - Heating(℃ WB)
    -5 ~ 24

CIRCUIT BREAKER

  • Circuit Breaker(A)
    15

POWER SUPPLY CABLE

  • Power Supply Cable(No. × ㎟)
    3 × 1.0

POWER SUPPLY TO UNIT

  • Power Supply to Unit
    Outdoor

POWER AND COMMUNICATION CABLE

  • Power and Communication Cable(No. × ㎟)
    4 × 0.75

PIPING

  • Size - Liquid(mm)
    Ø 6.35
    Size - Gas(mm)
    Ø 9.52
  • Connections Method - Indoor / Outdoor
    Flared / Flared

DRAIN HOSE SIZE

  • O.D, I.D(mm)
    28.0, 16.4

BETWEEN INDOOR & OUTDOOR

  • Piping Length - Min / Standard / Max(m)
    3.6 / 5.0 / 15
    Piping Length - No Charge(m)
    5.0
  • Max. Elevation Difference(m)
    7
    Piping Connection Heat Insulation
    Both liquid and Gas Pipes

REFRIGERANT

  • Type
    R410A
    Pre Charge(g)
    820
  • Additional Charge(g/m)
    20
    Control
    Capillary
  • Global Warning Potential
    2087.5
    t-CO₂ eq
    1.71

DEFROST METHOD

  • Defrost Method
    Reverse Cycle

TOOL CODE(CHASSIS)

  • Indoor / Outdoor
    SJ / UA3

COMPRESSOR

  • Type
    Single Rotary
    Model
    GA092MCA
  • Motor Type
    BLDC
    Oil Type / Maker
    POE (RB68A) / Sun Oil or Jx Nippon
  • Oil Charge (cc)
    310
    Manufacturer / Country of Origin
    LG Electronics / China

FAN(INDOOR)

  • Type
    Cross Flow Fan
    Motor Output (W)
    30

FAN(OUTDOOR)

  • Type
    Propeller Fan
    Motor Type
    AC
  • Motor Output (W)
    25
    Motor Insulation
    Class E
  • Motor Enclosure / Ingress Protection
    TEAO / IP24

HEAT EXCHANGER

  • Evaporator - Material, Tube / Fin
    Cu / Al
    Condenser - Material, Tube / Fin
    Cu /Al
