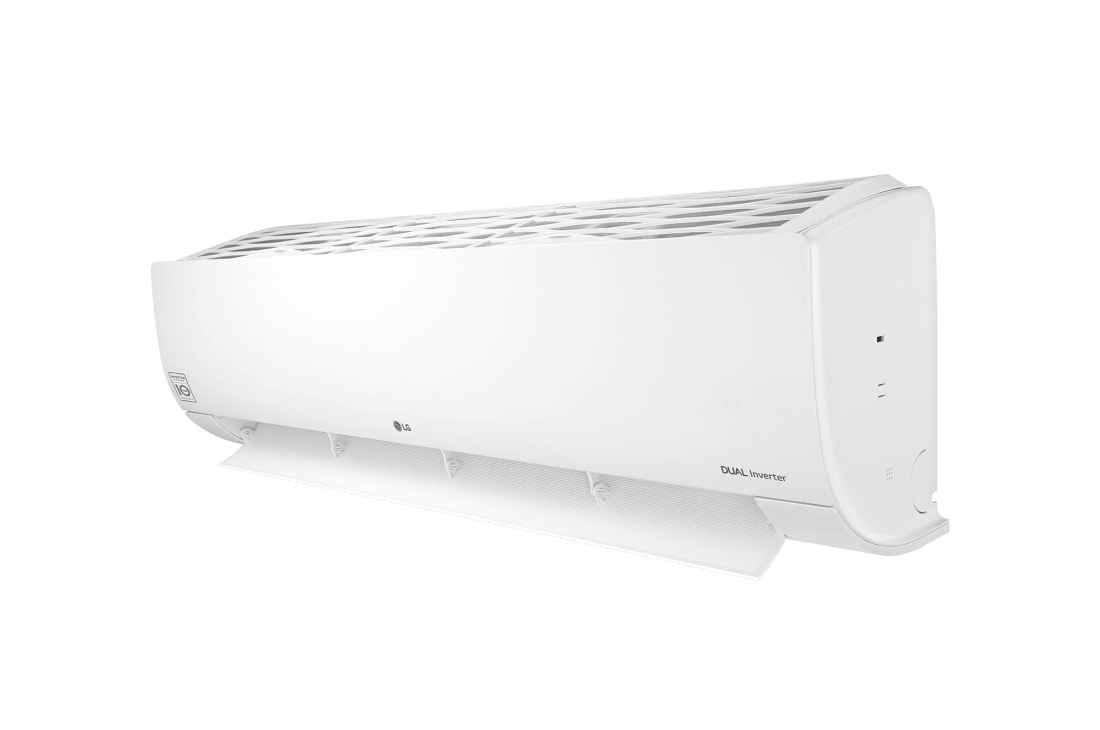

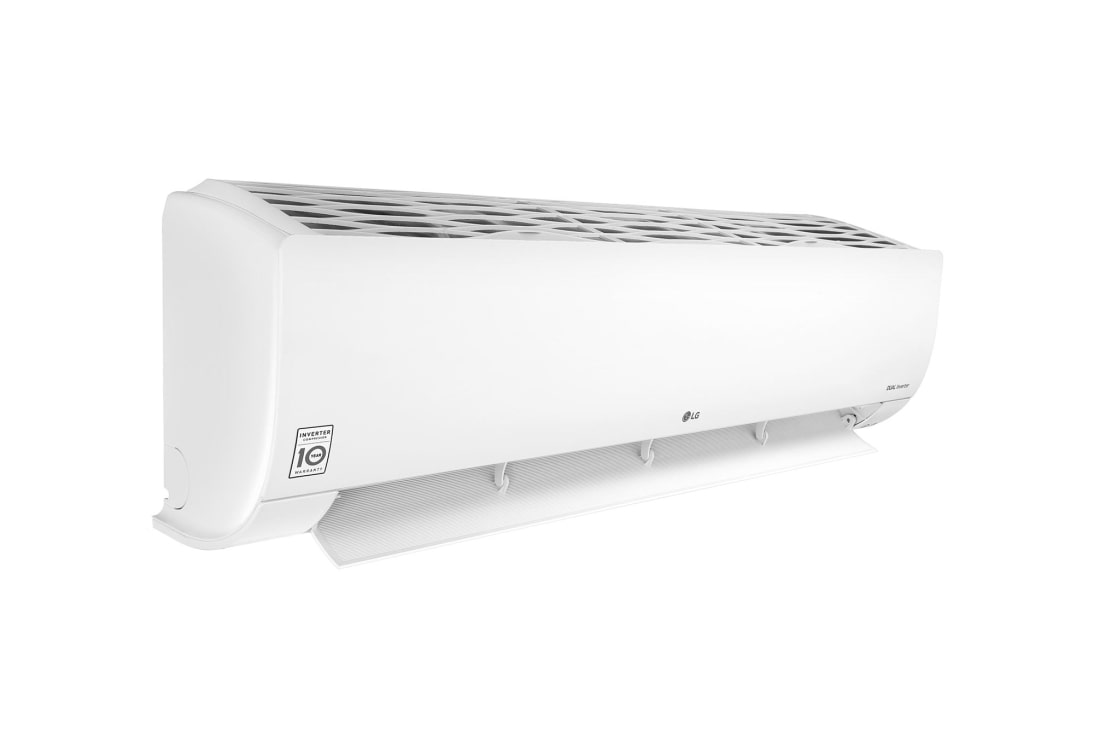

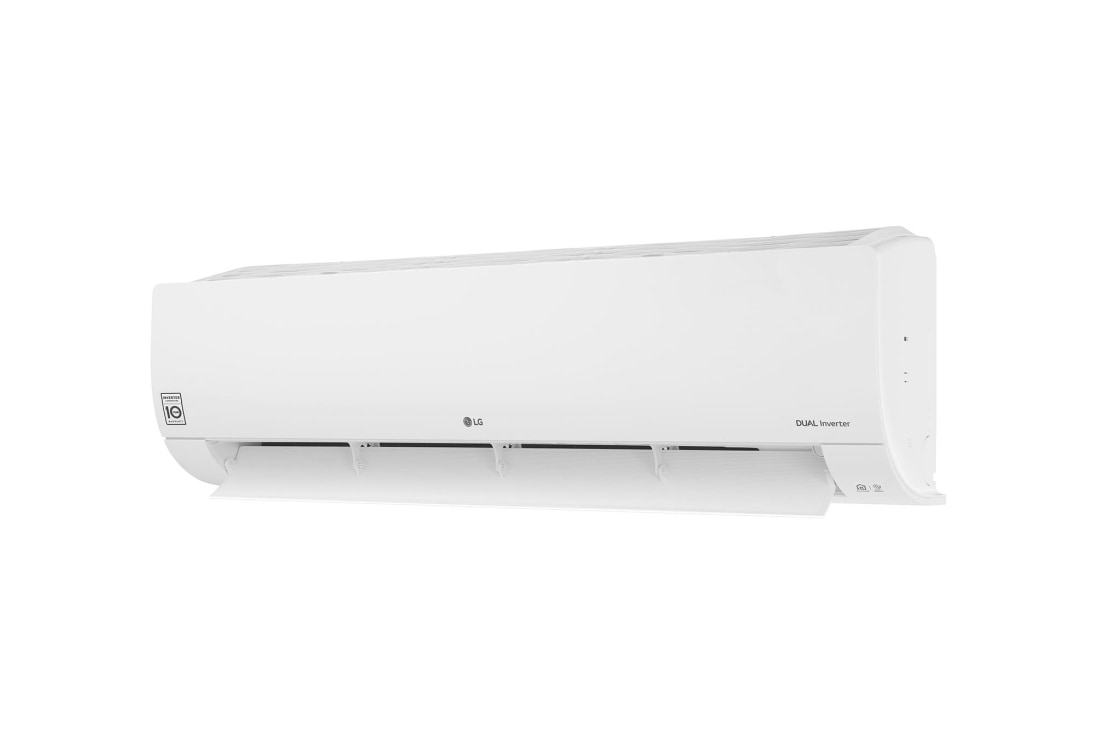

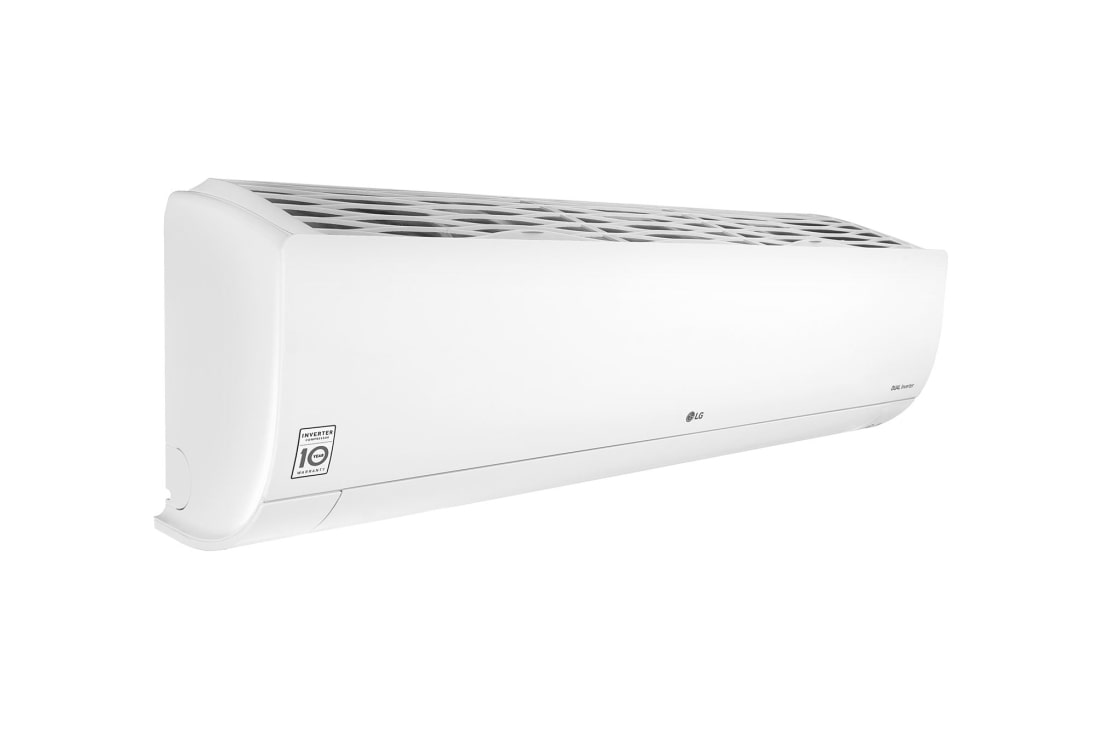

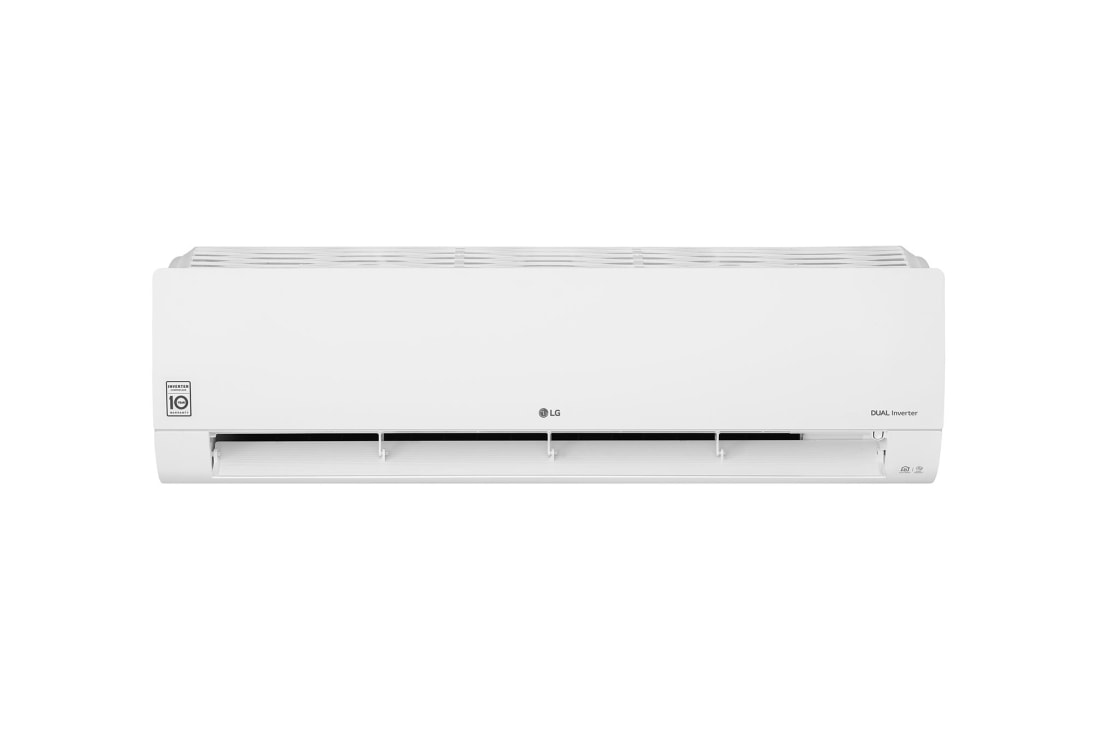

DUALCOOL Inverter AC 3 Ton, 65°Operation, 65% Energy Saving, ThinQ

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (I38TCF)
    AED
    AED
    LG Members Price
Total

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (I38TCF)
    AED
    AED
    LG Members Price
Total

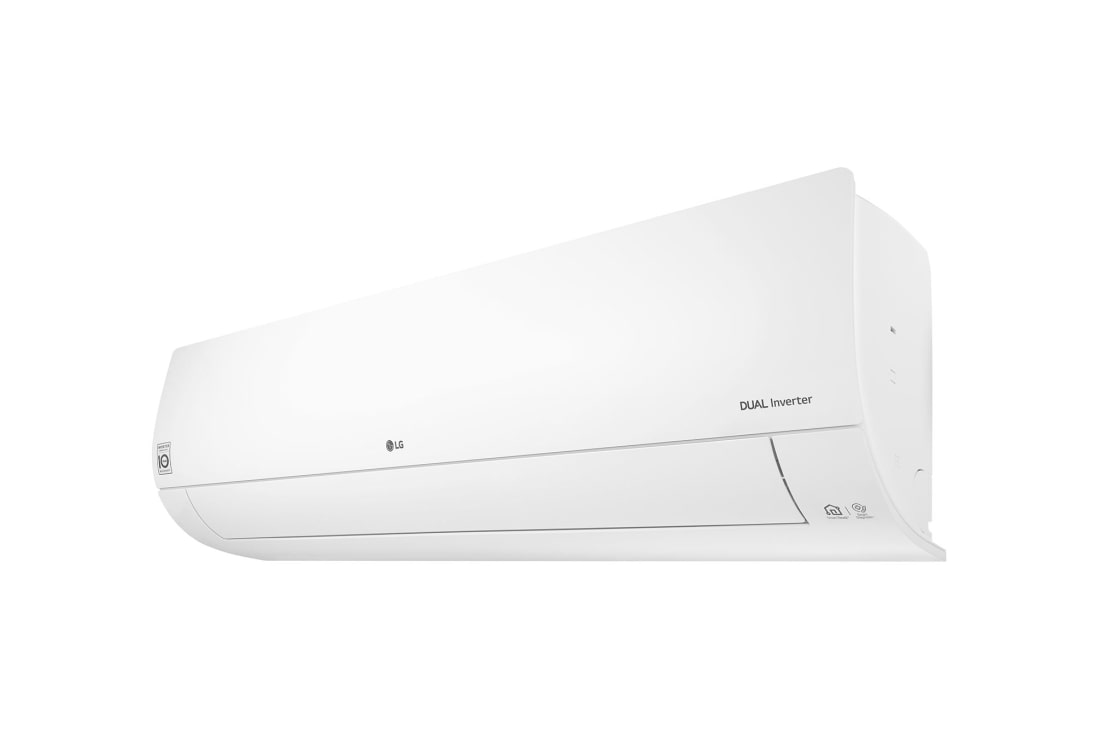

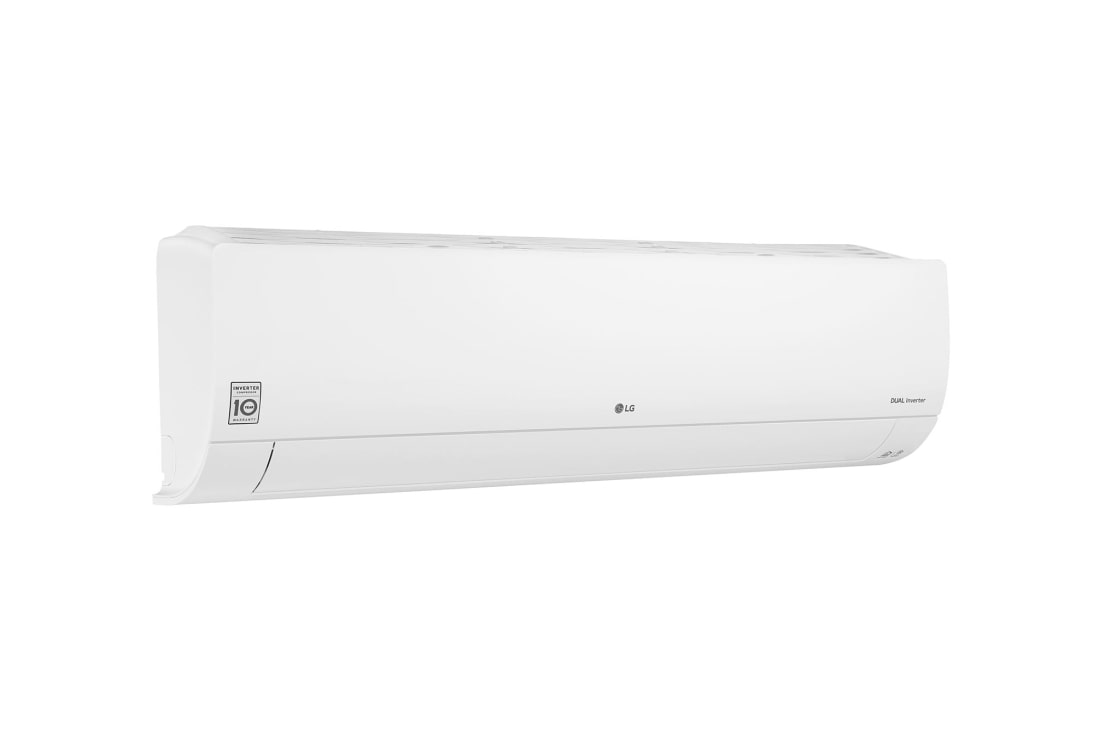

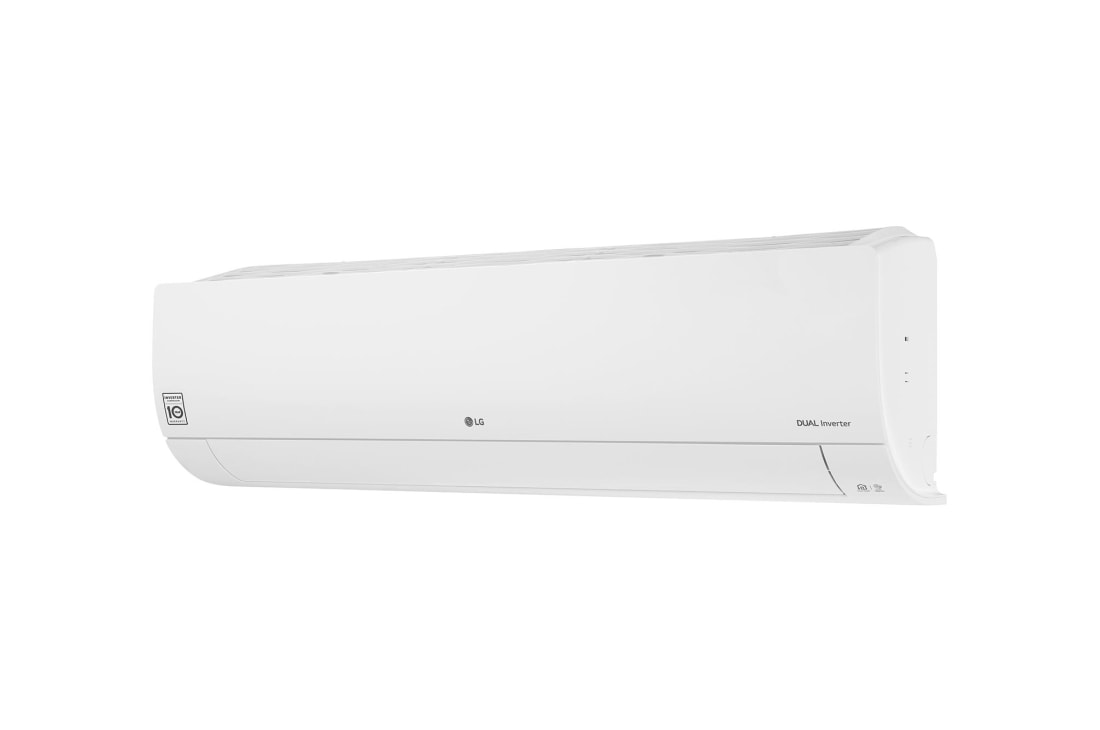

DUALCOOL Inverter AC 3 Ton, 65°Operation, 65% Energy Saving, ThinQ

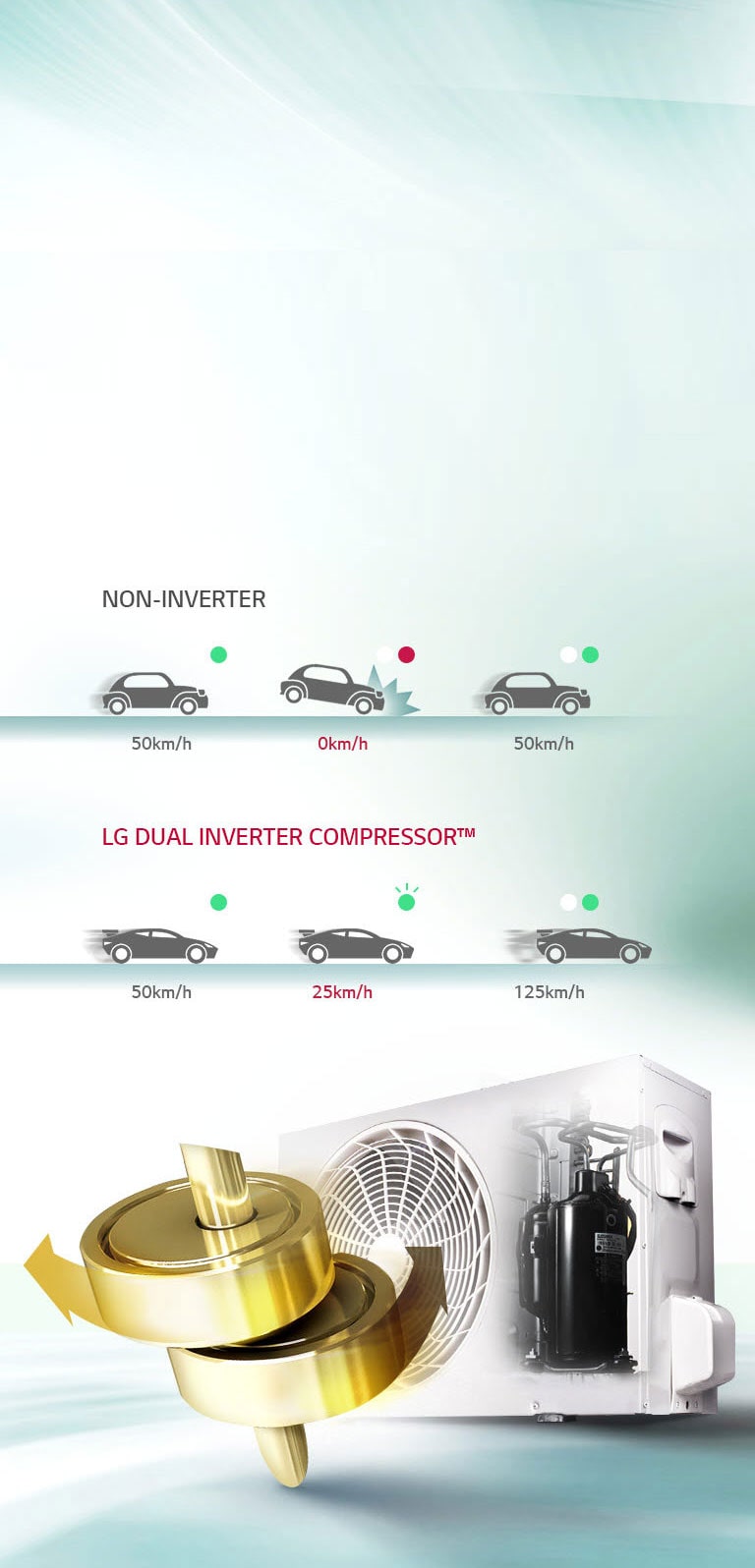

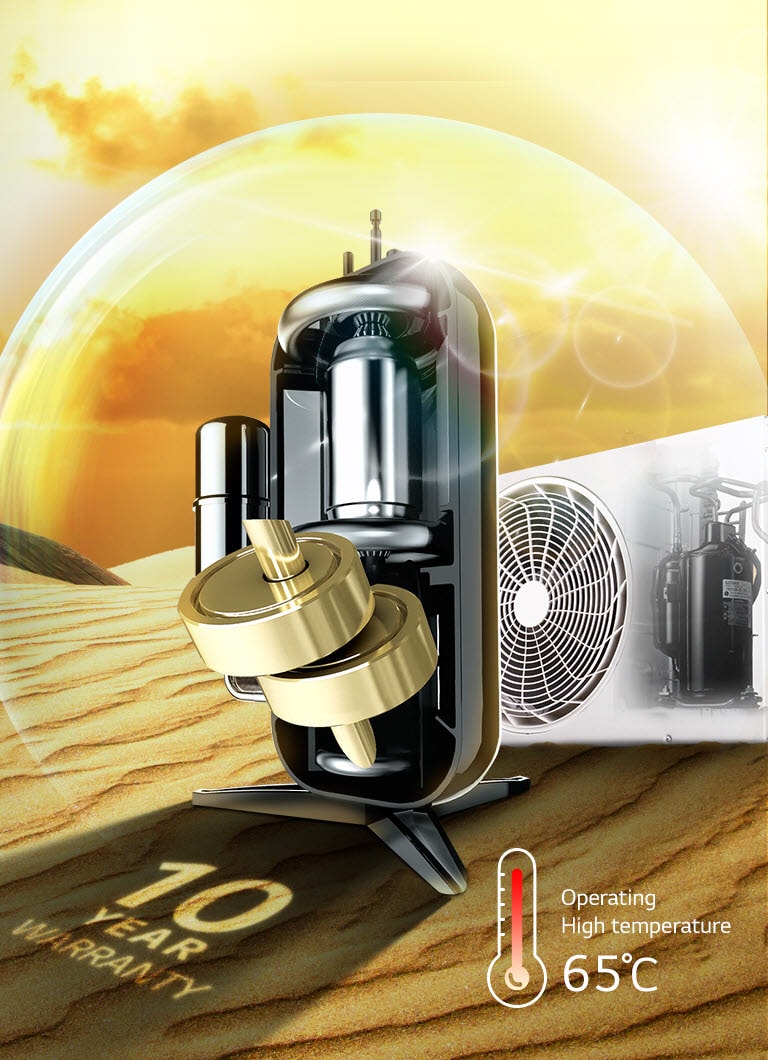

  •  Dual Inverter Compressor™1

    Dual Inverter Compressor™

    A compressor with a wider rotational frequency saves more energy and has a faster cooling range

  • 10 Year Warranty1

    10 Year Warranty

    Verification obtained from TUV Rheinland for 10-year product life cycle

  • TUV Rheinland1

    TUV Rheinland

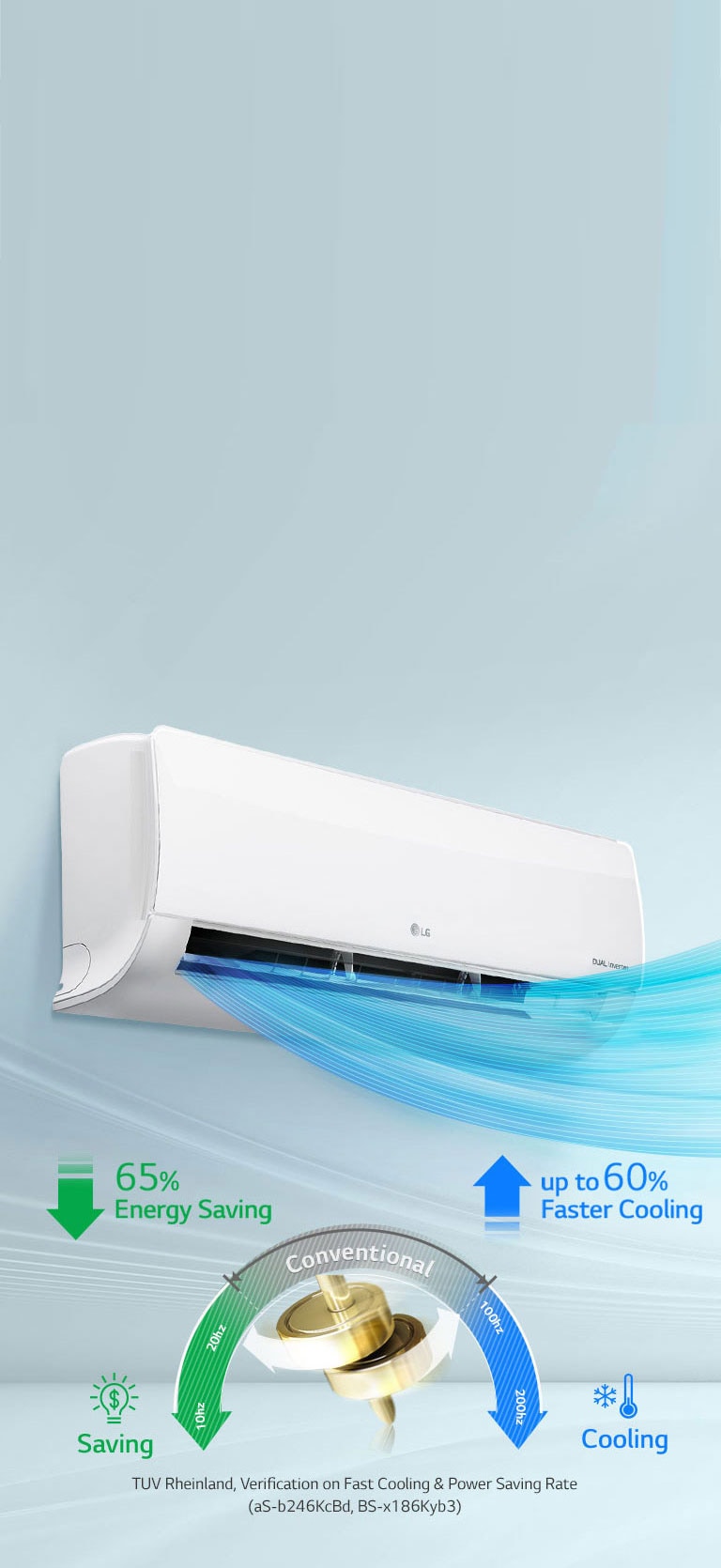

    TUV Rheinland, Verification on Fast Cooling & Power Saving Rate(aS-b246KcBd, BS-x186Kyb3)

4Way Swing1

4Way Swing

LG air conditioners deliver cool air to every corner of your room. The 4 way swing function blows the air quickly and efficiently in many direction.
  • Vertical 6 Steps Louver Control1

    Vertical 6 Steps Louver Control

    Users can choose the vane direction among 6 preset positions to meet the exact wind blow direction you desire.

  • Horizontal 5 steps Louver Control1

    Horizontal 5 steps Louver Control

    Direction of vertical louver can be adjusted from step 1 to 5, left & right, with full auto swing. This function also allows the air conditioner to cool specific areas in only a short period of time.

  • Comfort Sleep1

    Comfort Sleep

    Avail the utmost comfort sleep environment by automatically adjusting 3 different functions(Indirect airflow/7hr off time set/Soft wind & sleep time logic), with the simple click of button.

  • Gold Fin™1

    Gold Fin™

    The Gold Fin™ ensures that the surface is more resistant to corrosion and enhances the durability of heat exchanger for a much longer period.

  • Auto Cleaning1

    Auto Cleaning

    It prevents forming of bacteria & mold on the heat exchanger. Thus provides a pleasant environment.

  • Dual Protection Filter1

    Dual Protection Filter

    The Dual Protection Filter captures dust size over 10㎛ and bacteria.

  • Silent Mode1

    Silent Mode

    LG's unique new skew fan & low vibration compressor technology achieve world's lowest sound levels.

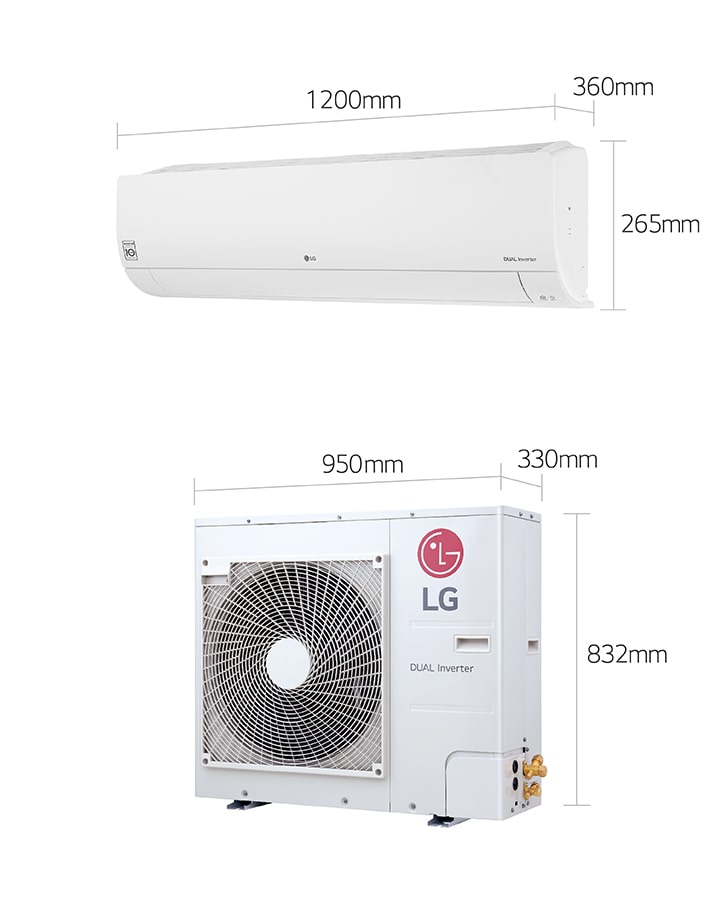

Dimensions
SPEC SUMMARY
  • Capacity
    3 Ton
  • Dimension (W x H x D) mm
    Indoor 1200 x 265 x 360 / Outdoor 950 x 832 x 330
  • Main Technology
    65°C Dual Inverter Compressor™
  • Additional Benefit
    10 Year Warranty
CAPACITY
  • Cooling - Min ~ Rated ~ Max(kW)
    1.77/9.10/11.13
    Cooling - Min ~ Rated ~ Max(Btu/h)
    6,035/31,000/38,000
  • Cooling (T3) - Min ~ Rated ~ Max(kW)
    3.21/7.77/8.79
    Cooling (T3) - Min ~ Rated ~ Max(Btu/h)
    10,940/26,500/30,000
POWER INPUT
  • Cooling - Min ~ Rated ~ Max(W)
    529/2,520/3,990
    Cooling (T3) - Min ~ Rated ~ Max(W)
    1,490/3,050/3,990
RUNNING CURRENT
  • Cooling - Min ~ Rated ~ Max(A)
    3.82/11.60/17.00
    Cooling (T3) - Min ~ Rated ~ Max(A)
    6.66/14.00/17.00
EER
  • EER(W/W)
    3.61
    EER((Btu/h)/W)
    12.25
EER(T3)
  • EER (T3)(W/W)
    2.55
    EER (T3)((Btu/h)/W)
    8.69
ENERGY LABEL GRADE
  • Cooling
    5
POWER SUPPLY
  • Ø / V / Hz
    1 , 220 ~ 240 ,50
AVAILABLE VOLTAGE RANGE
  • Available Voltage Range(V)
    187 ~ 276
POWER FACTOR
  • Cooling(%)
    94.4
MOISTURE REMOVAL
  • Moisture Removal(l/h)
    1.49
INDOOR
  • Air Flow Rate - Cooling, Max / H / M / L(㎥/min)
    32/25/21/17
    Sound Pressure Level - Cooling, Max / H / M / L / SL(dB(A))
    52/47/43/34
  • Dimensions (W × H × D) - Net(mm)
    1200 x 360 x 265
    Dimensions (W × H × D) - Shipping(mm)
    1280 x 455 x 357
  • Weight - Net(kg)
    18.5
    Weight - Shipping(kg)
    22.2
  • Exterior Color Code
    Munsell 7.5BG 10/2 (RAL 9016)
OUTDOOR
  • Air Flow Rate - Max(㎥/min)
    71.0
    Sound Pressure Level - Cooling, Rated(dB(A))
    58
  • Dimensions (W × H × D) - Net(mm)
    950 x 832 x 330
    Dimensions (W × H × D) - Shipping(mm)
    1130 x 908 x 456
  • Weight - Net(kg)
    63.9
    Weight - Shipping(kg)
    69.4
  • Max. Fuse Size(A)
    25
    Exterior Color Code
    Munsell 9.54Y 8.34/1.31
  • Operation Range - Cooling(℃ DB)
    18 ~ 54
CIRCUIT BREAKER
  • Circuit Breaker(A)
    25
POWER SUPPLY CABLE
  • Power Supply Cable (No. × ㎟)
    3 x 2.5
POWER SUPPLY TO UNIT
  • Power Supply to Unit
    Outdoor
POWER AND COMMUNICATION CABLE
  • Power and Communication Cable(No. × ㎟)
    4 x 1
PIPING
  • Size - Liquid(mm)
    Ø 9.52
    Size - Gas(mm)
    Ø 15.88
  • Connections Method - Indoor / Outdoor
    Flared/Flared
DRAIN HOSE SIZE
  • O.D, I.D(mm)
    20, 15
BETWEEN INDOOR & OUTDOOR
  • Piping Length - Min / Standard / Max(m)
    5/7.5/30
    Piping Length - No Charge(m)
    7.5
  • Max. Elevation Difference(m)
    25
    Piping Connection Heat Insulation
    Both liquid and Gas Pipes
REFRIGERANT
  • Type
    R410A
    Pre Charge(g)
    2400
  • Additional Charge(g/m)
    30
    Control
    Electronic Expansion Valve
TOOL CODE(CHASSIS)
  • Indoor / Outdoor
    SR/U4
COMPRESSOR
  • Type
    Twin Rotary
    Model
    GPT330MAB
  • Motor Type
    BLDC
    Oil Type / Maker
    PVE (FVC68D)/IDEMITSU
  • Oil Charge (cc)
    1300
    Manufacturer / Country of Origin
    LG Electronics/Korea
FAN(INDOOR)
  • Type
    Cross Flow Fan
    Motor Output (W)
    113.1
FAN(OUTDOOR)
  • Type
    Propeller Fan
    Motor Type
    BLDC
  • Motor Output (W)
    124
    Motor Insulation
    Class E
  • Motor Enclosure / Ingress Protection
    TEAO/IPX4
HEAT EXCHANGER
  • Evaporator - Material, Tube / Fin
    Cu/Al
    Evaporator - Corrosion Protection
    PCM
  • Condenser - Material, Tube / Fin
    Cu/Al
    Condenser - Corrosion Protection
    Gold
  • Condenser - Fin Type
    Louver
