Cyclone Vacuum Cleaner Filters & Air Guide Tank

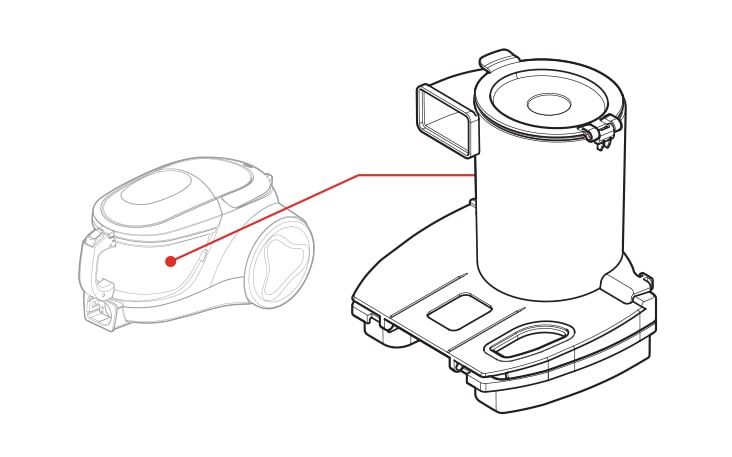

Mounting Location

The actual installation location of this item may vary depending on product model.

For more detailed information, please refer to the product manual for your model.

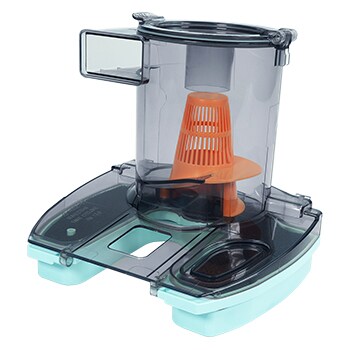

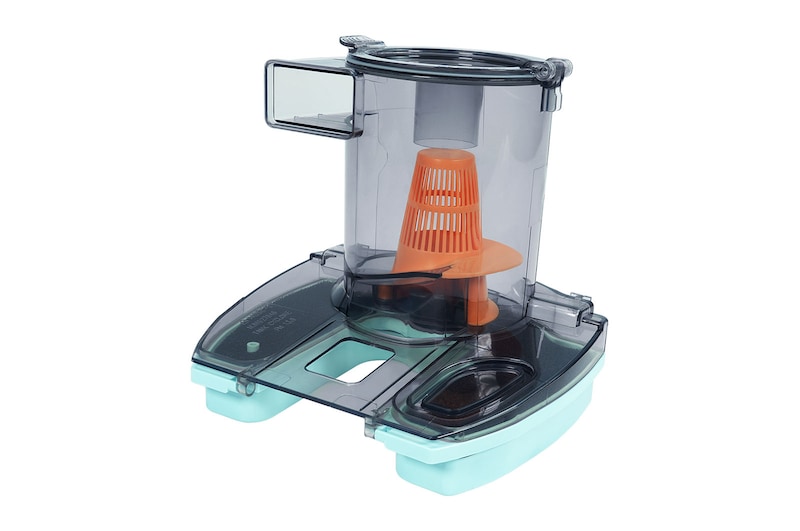

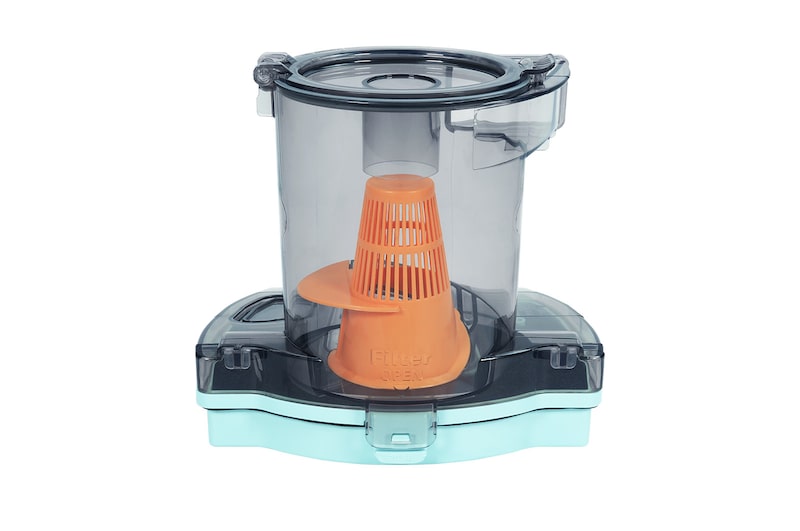

The filters and air guide tank are located inside the cyclone vacuum cleaner

How to Replace

The replacement instruction for this item may differ slightly from the information below.

For more detailed information, please refer to the product manual for your model.

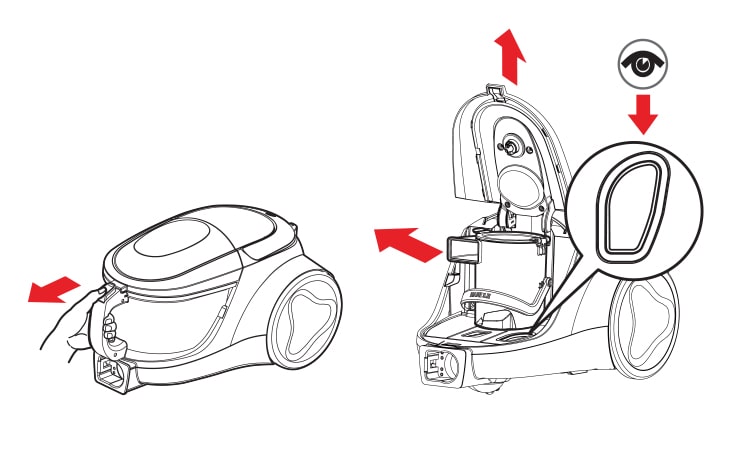

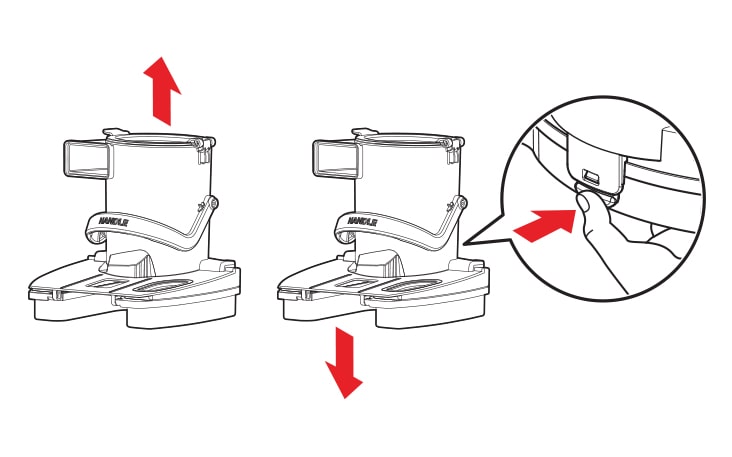

STEP 1

While pressing the release button on the dust bin, pull the dust bin out to separate it.



After checking that dust has accumulated in the air filter, hold the dust separator handle and pull it.

While pressing the release button on the dust bin pull the dust bin out to separate it  After checking that dust has accumulated in the air filter hold the dust separator handle and pull it

STEP 2

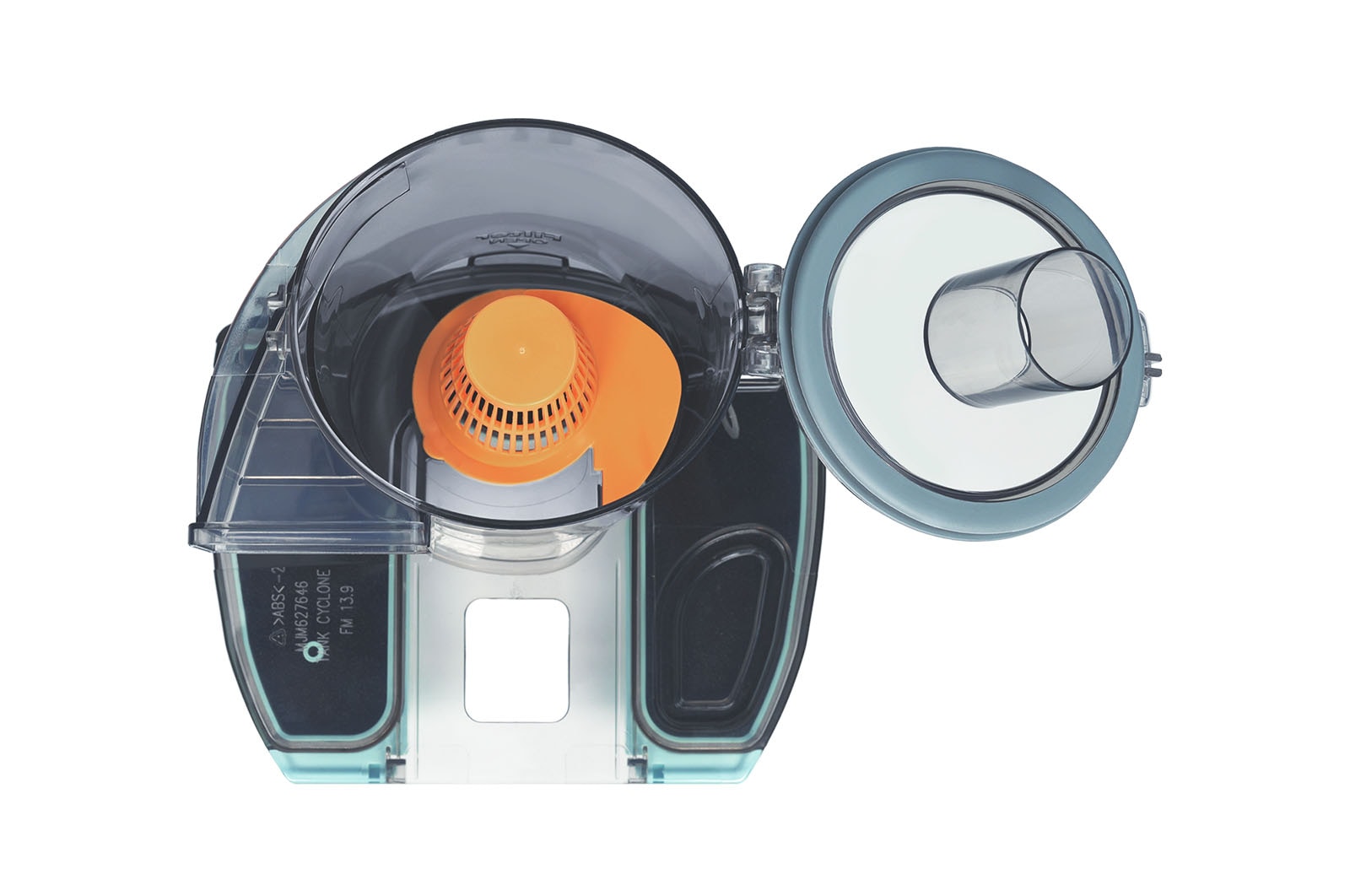

Open the dust separator cover and remove the dust.

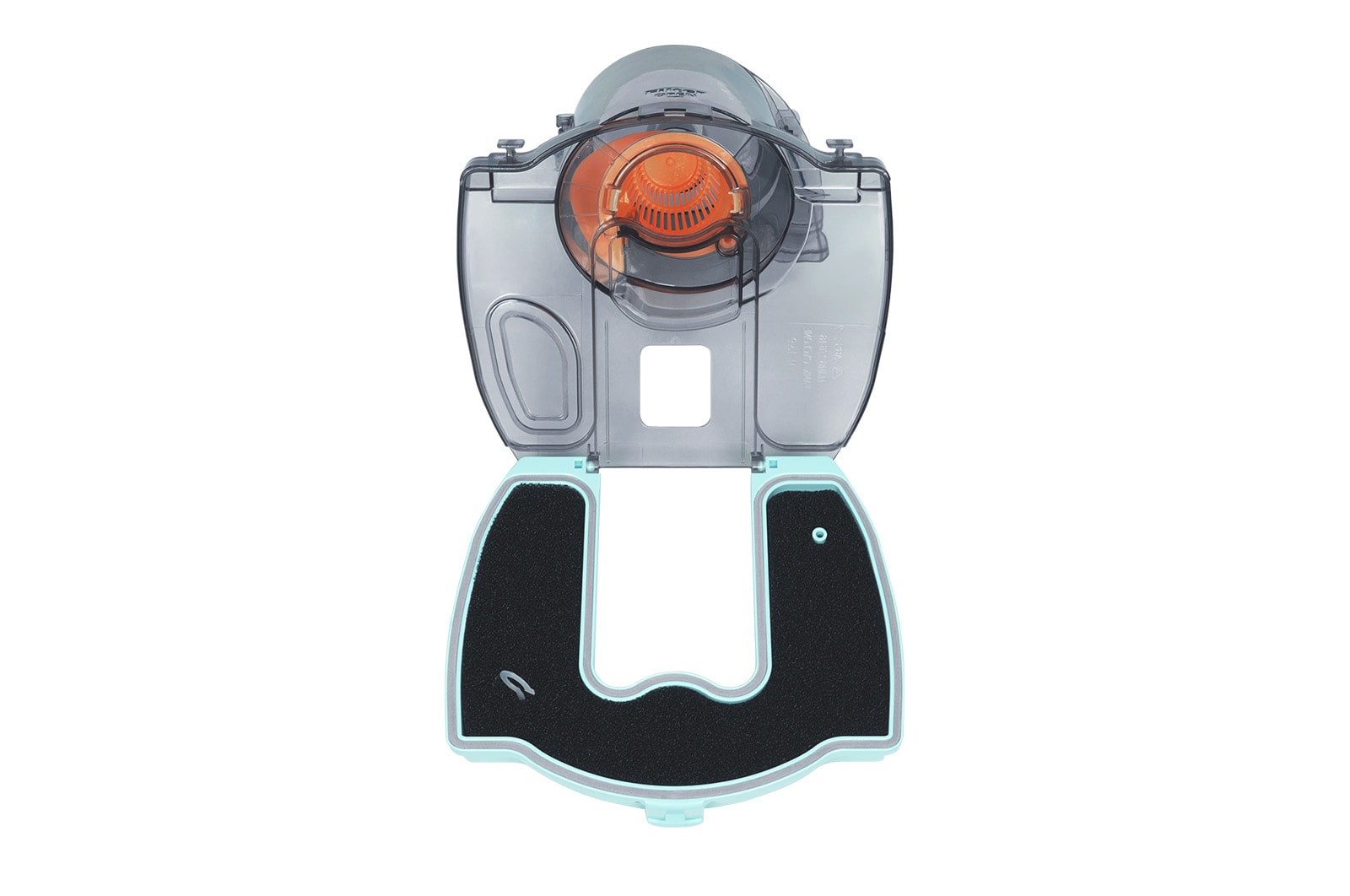

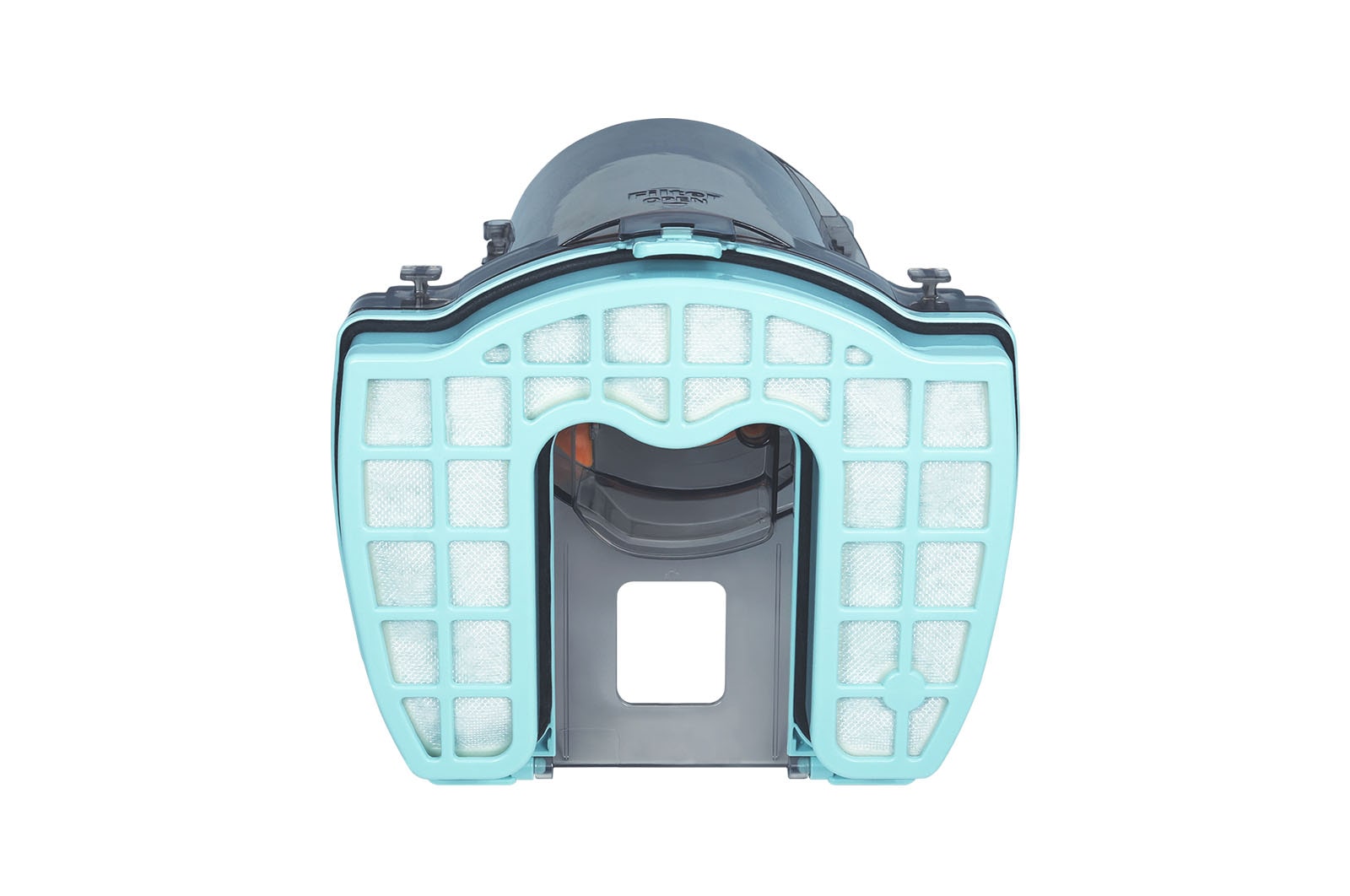

Open the filter cover.

Open the dust separator cover and remove the dust  Open the filter cover

STEP 3

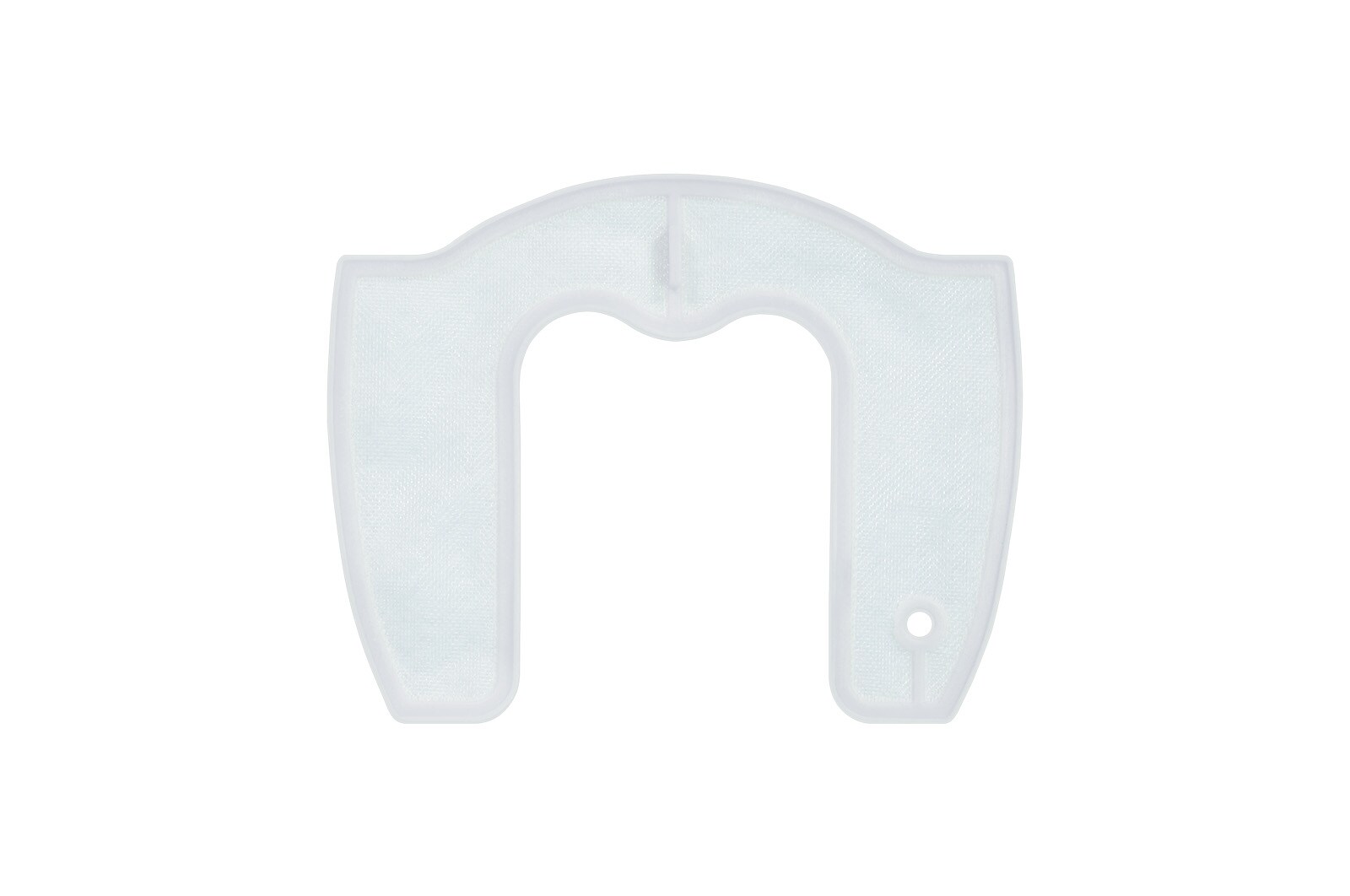

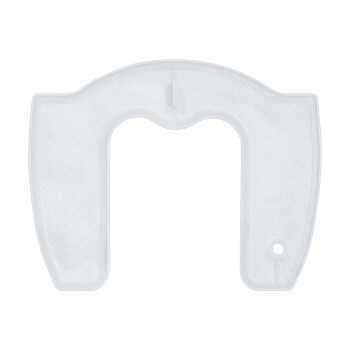

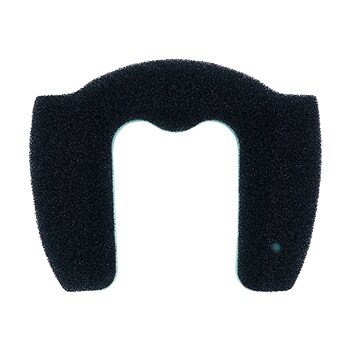

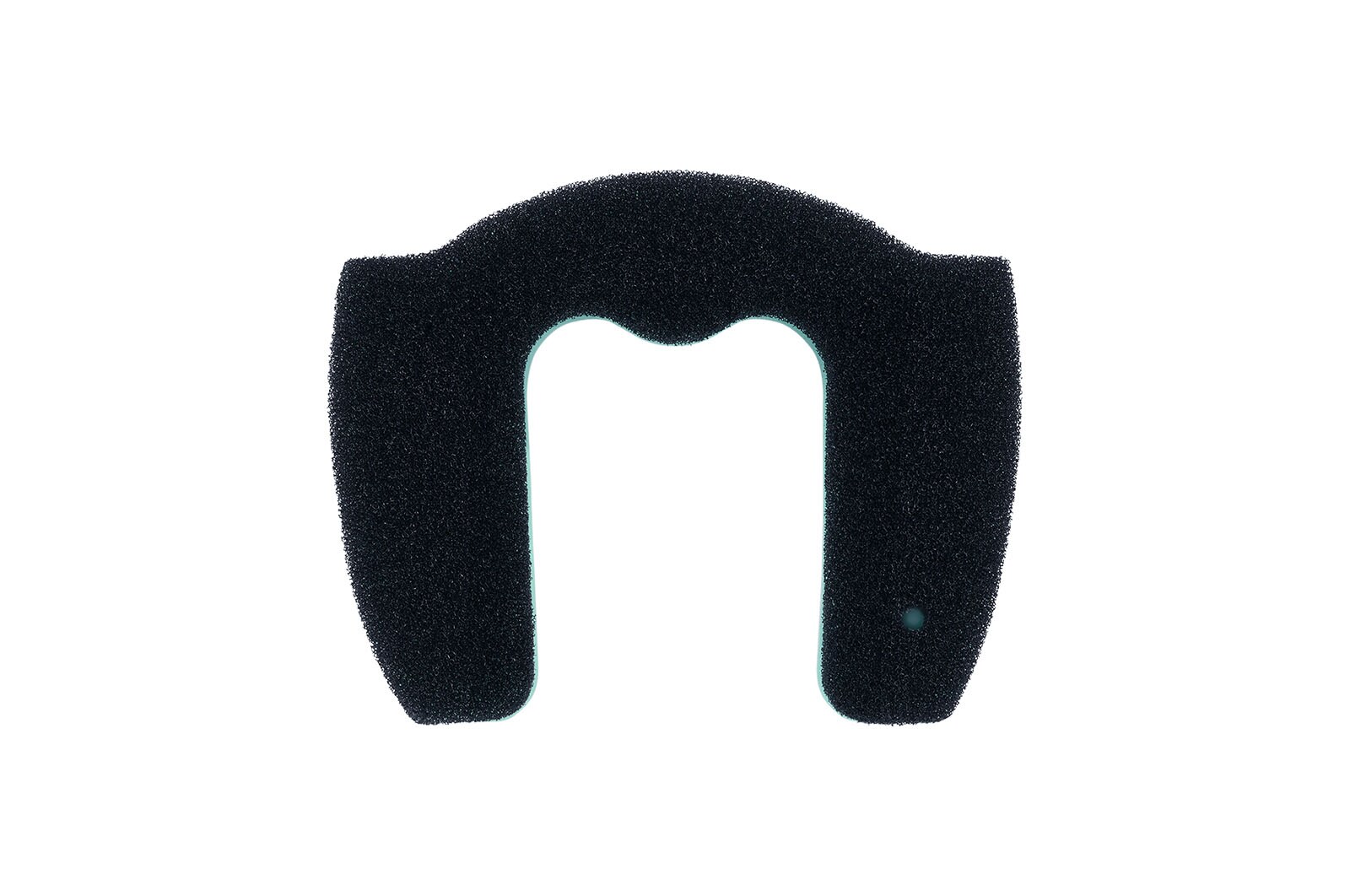

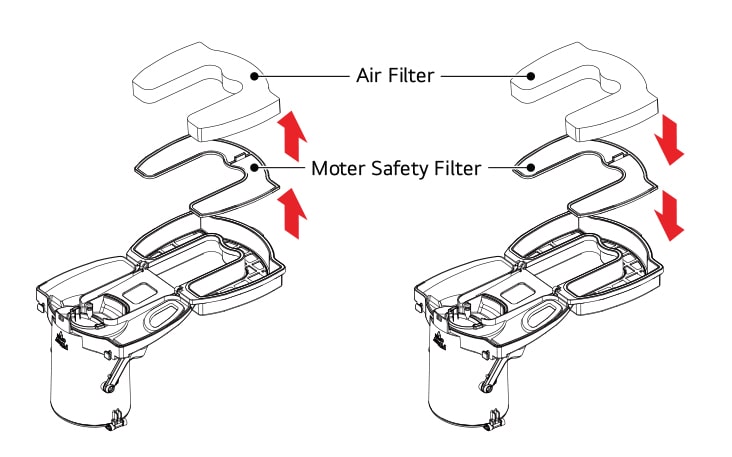

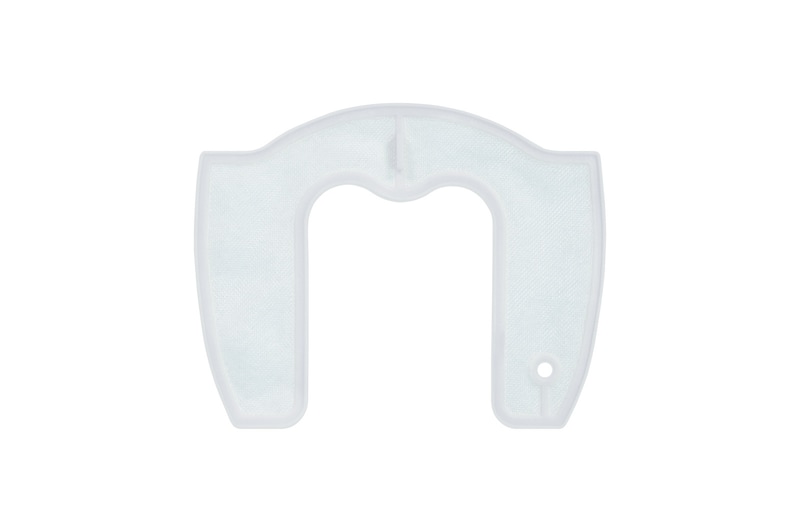

Remove the air filter and motor safety filter.



Insert the air filter and motor safety filter in order.

Remove the air filter and motor safety filter  Insert the air filter and motor safety filter in order

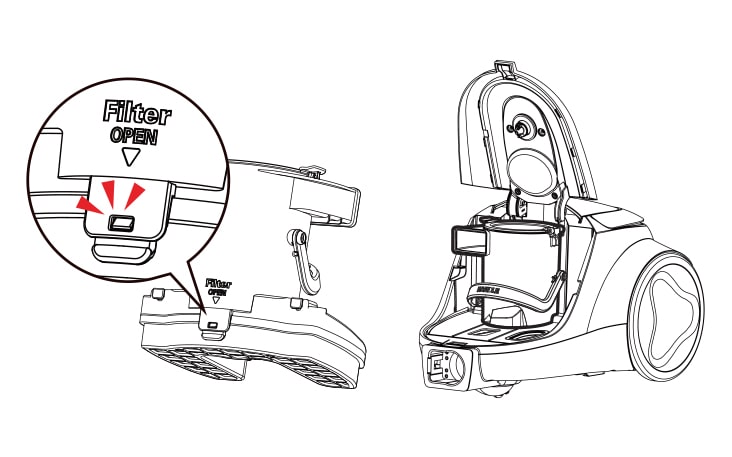

STEP 4

Close the filter cover.



Hold the dust separator handle and pull it down firmly, ensuring secure assembly.

Close the filter cover  Hold the dust separator handle and pull it down firmly ensuring secure assembly

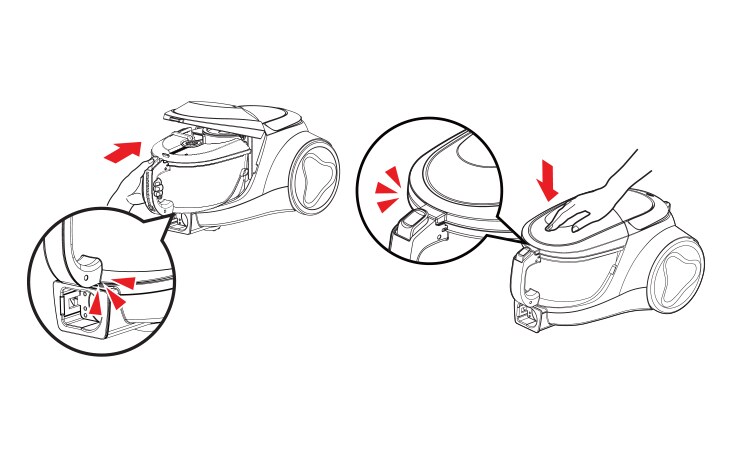

STEP 5

Push the dust bin until you hear a click.

If the dust bin is not securely assembled, suction may be weak.



Close the vacuum cleaner cover by pressing it until you hear a click.

Push the dust bin until you hear a click If the dust bin is not securely assembled suction may be weak  Close the vacuum cleaner cover by pressing it until you hear a click

How to Clean

For more detailed information, please refer to the product manual for your model.

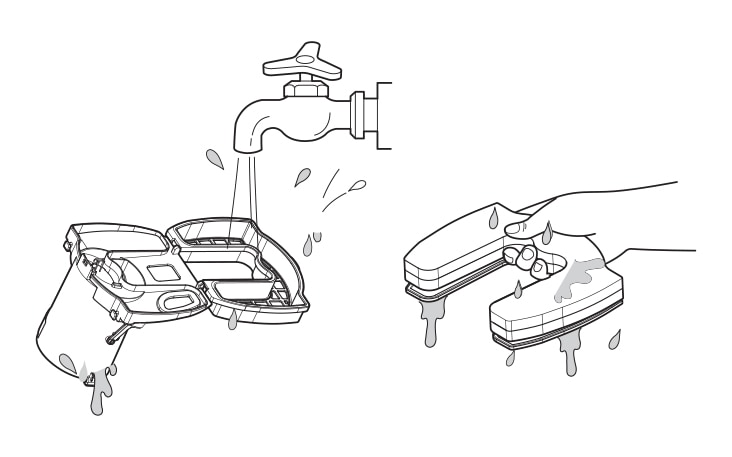

If suction power is decreased after cleaning dust tank, clean air filter and motor satety filter.



- Wash air filter and motor satety filter with water.

- Gently rinse both parts separately under a cold running tap until the water runs clear.

- Do not wash filters with hot water.

- Do not use detergent or a washing machine or dishwasher.

If suction power is decreased after cleaning dust tank clean air filter and motor satety filter  Wash air filter and motor satety filter with water Gently rinse both parts separately under a cold running tap until the water runs clear Do not wash filters with hot water Do not use detergent or a washing machine or dishwasher

Dry fully for more than 24 hours in shade.

Wash filters at least once a month.

Dry fully for more than 24 hours in shade Wash filters at least once a month

* Product images and features may contain advertising expressions and may differ from the actual product. Product appearance, specifications, etc. may change without prior notice for product improvement.

* All product images are photo cuts and may differ from the actual product. Product color may vary depending on monitor resolution, brightness settings, and computer specifications.

* The performance of the product may vary depending on the usage environment, and availability may vary by store.

Summary

DIMENSIONS

All Spec

GENERAL

  • Part Number

    AEC73917409

DIMENSIONS & WEIGHTS

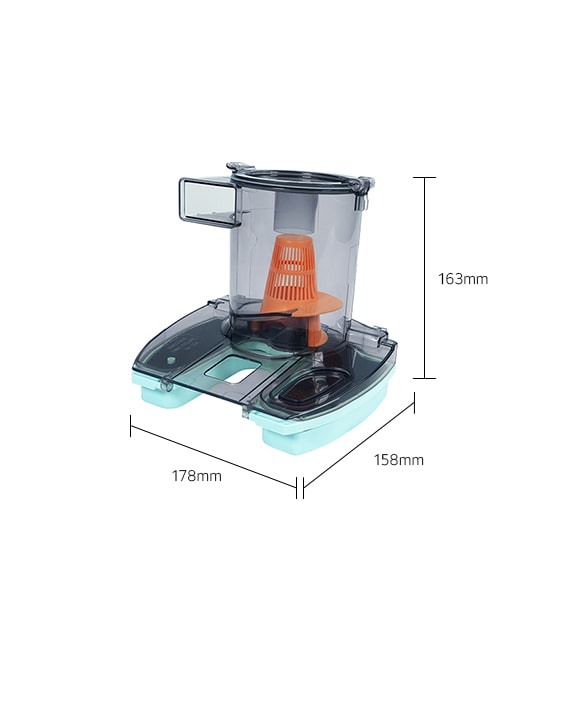

  • Product Dimension (W x H x D, mm)

    178 x 163 x 158

  • Net Weight (g)

    312
