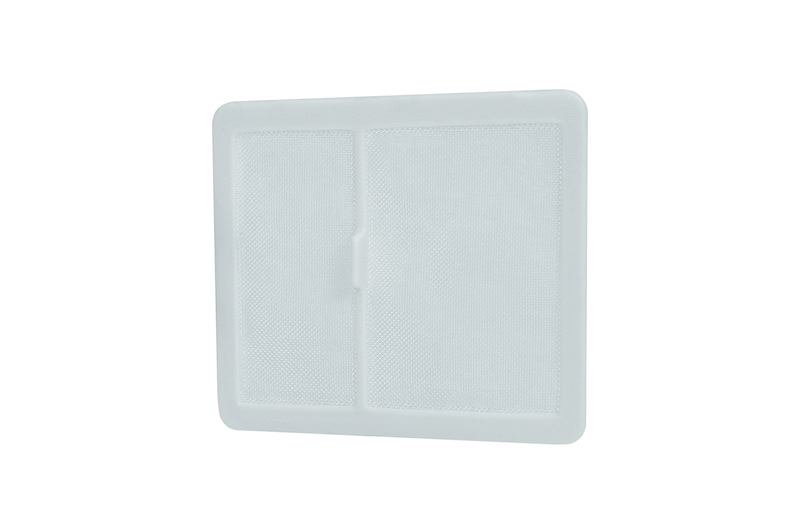

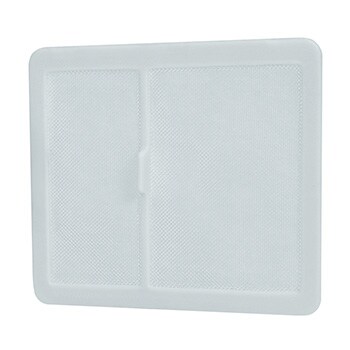

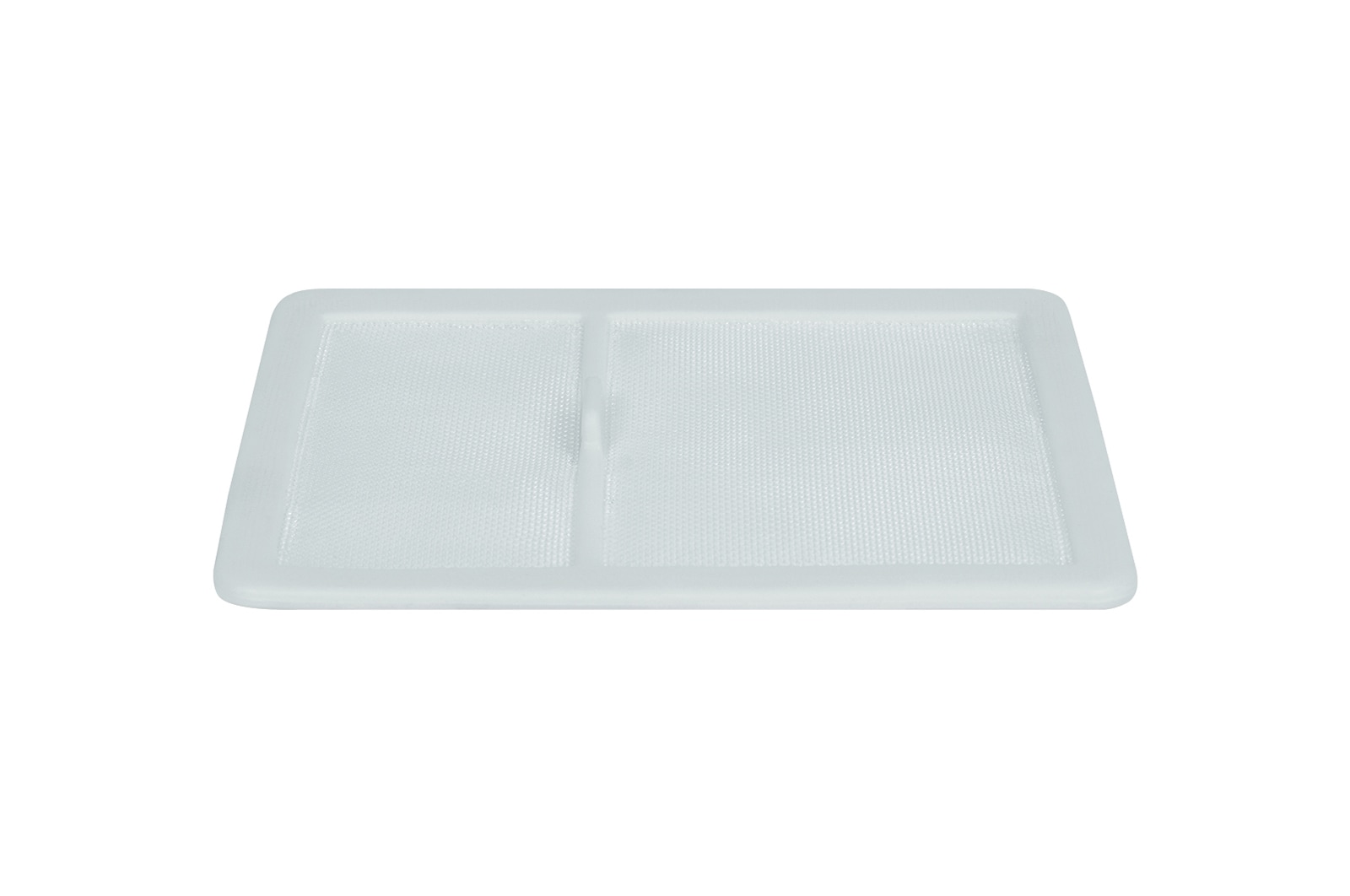

Cyclone Vacuum Cleaner Motor Safety Filter

MDJ63305401

Key Features

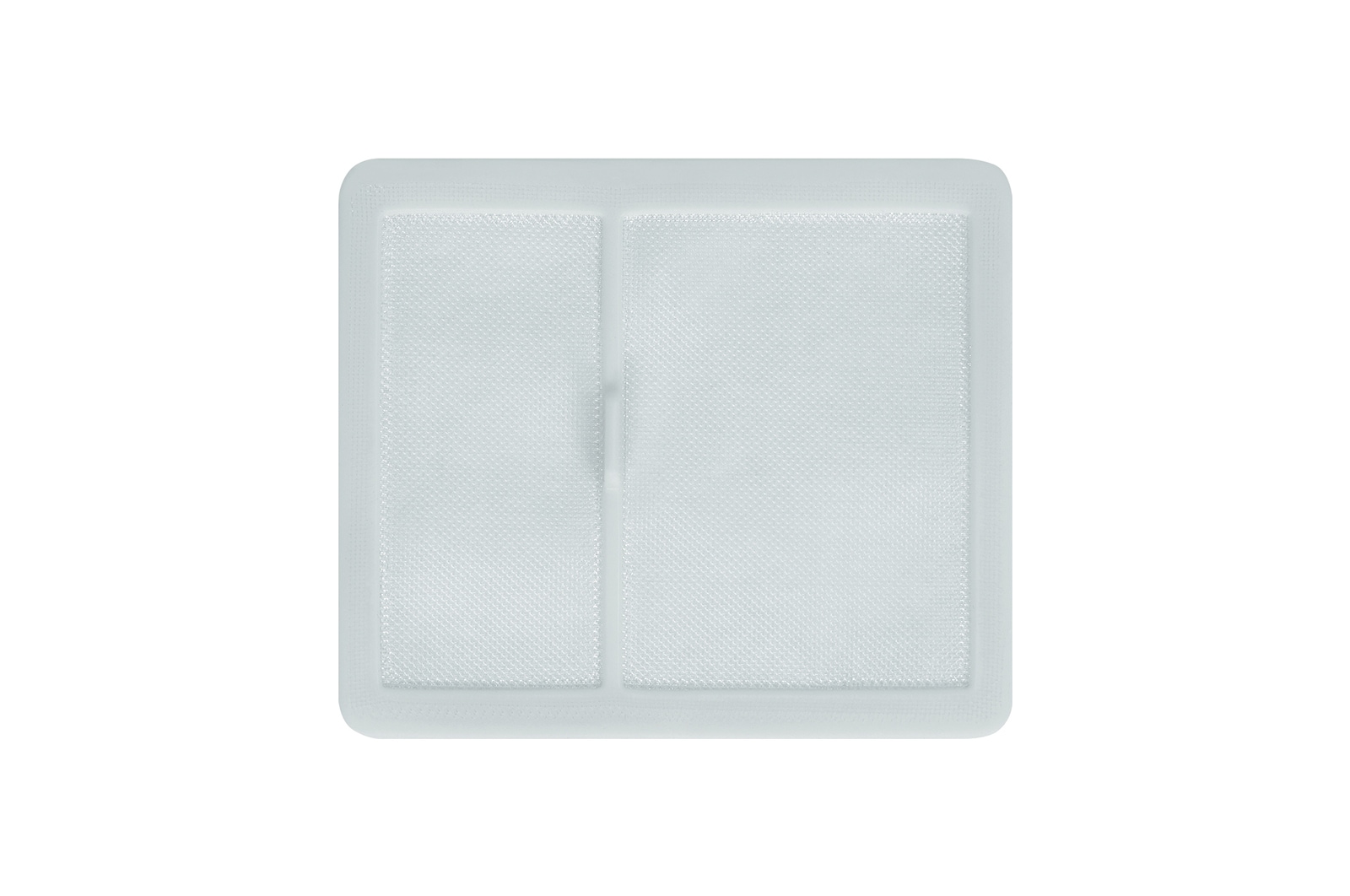

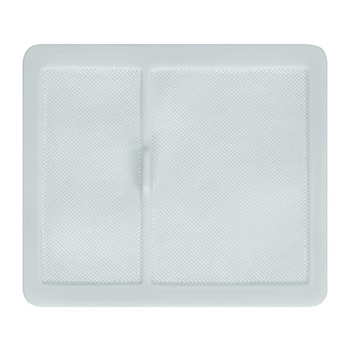

LG Cyclone Vacuum Cleaner Genuine Motor Safety Filter

Mounting Location

The actual installation location of this item may vary depending on product model.

For more detailed information, please refer to the product manual for your model.

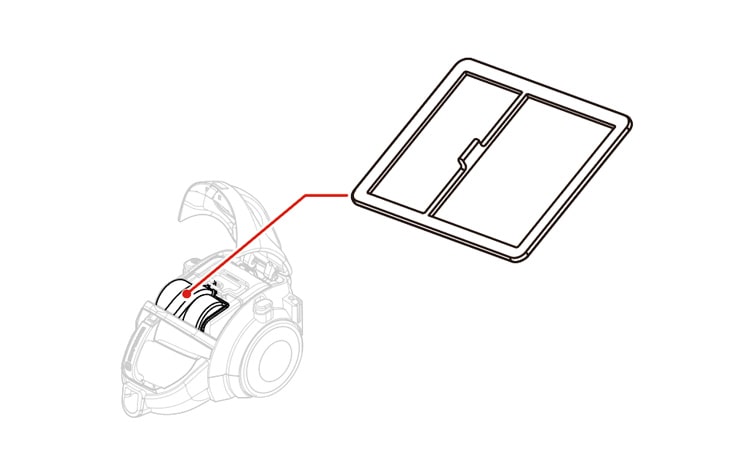

The motor safety filter is located inside the main body of the cyclone vacuum cleaner

How to Replace

The replacement instruction for this item may differ slightly from the information below.

For more detailed information, please refer to the product manual for your model.

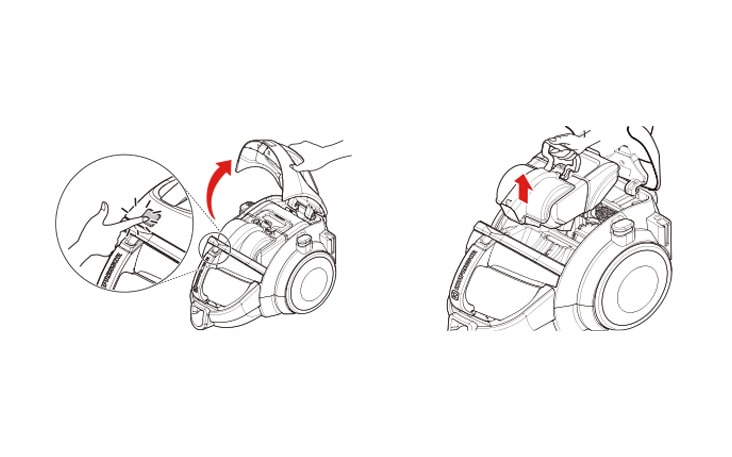

STEP 1

Open the vacuum cleaner cover by pushing the button.

Grasp the handle of the dust separator and take out it.

STEP 2

Pull the guide cover lever to open the guide cove and remove dust.

Open the air filter cover by pushing the air filter cover lever and take out the air filter.

Illustration shows a hand pulling the detergent compartment out from the washing machine on the left.

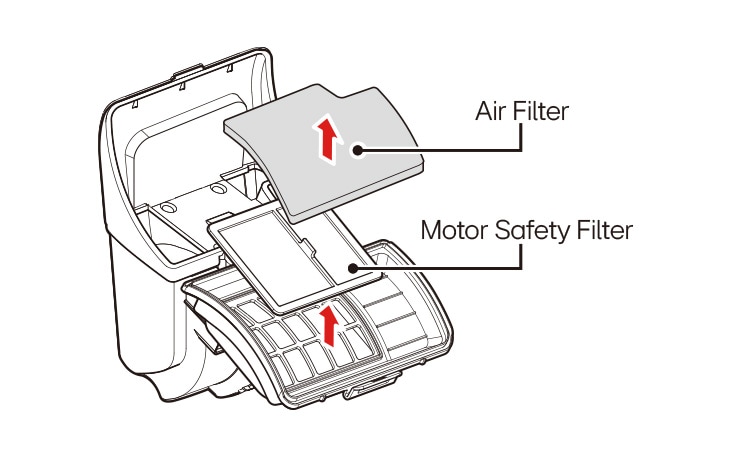

STEP 3

Separate the air filter e and motor safety filter from the dust separator.

STEP 4

Insert the motor safety filter first, followed by the air filter.

Close the filter cover.

STEP 5

Close the dust separator cover.

Hold the dust separator handle and pull it down to secure it in place.

Close the vacuum cleaner cover.

Illustration showing detergent compartment and arrow indicating direction to insert in washing machine.

How to Clean

For more detailed information, please refer to the product manual for your model.

STEP 1

Wash the air filter, motor safety filter and dust separator.

- Wash filters at least once a month.

- Do not wash filters with hot water.

Hand rinses washing machine filter under tap, water drips from components, depicting filter cleaning process.

STEP 2

To dry thoroughly, the air filter and the motor safety filter should be cleaned as below the figure.

- If filters are damaged, do not use them.

A hand holds a wet mobile, with scattered icons showing cleaning and maintenance products around it.

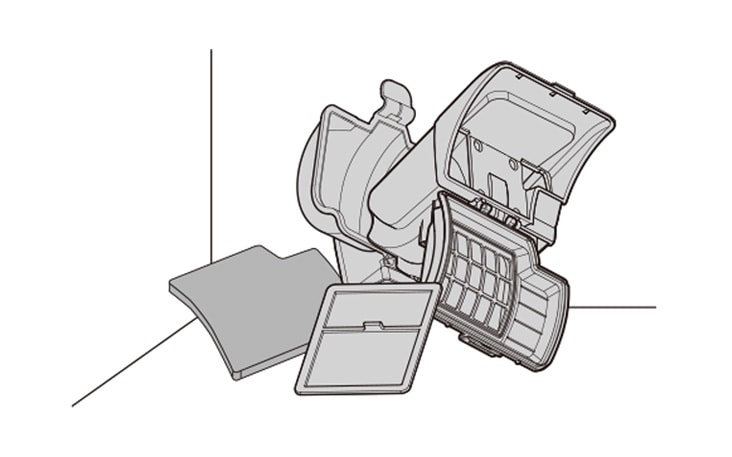

STEP 3

To avoid odour, allow the filters to dry completely in a well-ventilated area out of direct sunlight for at least 24 hours before reassembling.

Disassembled LG washing machine filter parts, showing multiple sections, placed on a white background.

* Product images and features may contain advertising expressions and may differ from the actual product. Product appearance, specifications, etc. may change without prior notice for product improvement.

* All product images are photo cuts and may differ from the actual product. Product color may vary depending on monitor resolution, brightness settings, and computer specifications.

* The performance of the product may vary depending on the usage environment, and availability may vary by store.

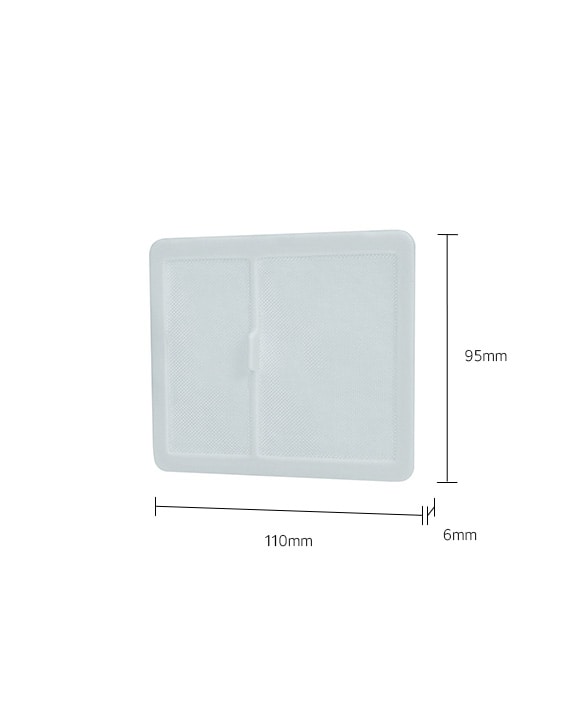

DIMENSIONS

All Spec

GENERAL

Part Number
MDJ63305401

COMPATIBLE MODELS

Compatible Model
VK7320NHAB.BKBQMEA, VK7320NHAR.AKRQEEC, VK7320NHAR.BKRQEEC, VK7320NHAR.BKRQMEA, VK7320NHAY.BKBQEEC, VK7320NHAYB.AKBQEEC, VK7320NNT.BRDQMEA, VK7320NRT.BKSQEEC, VK7320NRT.BKSQMEA, VK7320NRTR.BKRQEEC, VK7918NRT.AAEPEEC, VK7920NHAY.AAEPEEC, VK7920NHAY.ABLPEEC, VK7920NNA.AAEQEEC.
